A self-priming household pressure system pairing the Wadfow 1HP jet pump with the WPC1A01 automatic controller. The jet-pump architecture is better suited to domestic setups where the pump must draw from a ground-level tank or where suction recovery is more demanding than a simple peripheral-pump installation.
SYSTEM COMPONENTS
Pump + automatic control

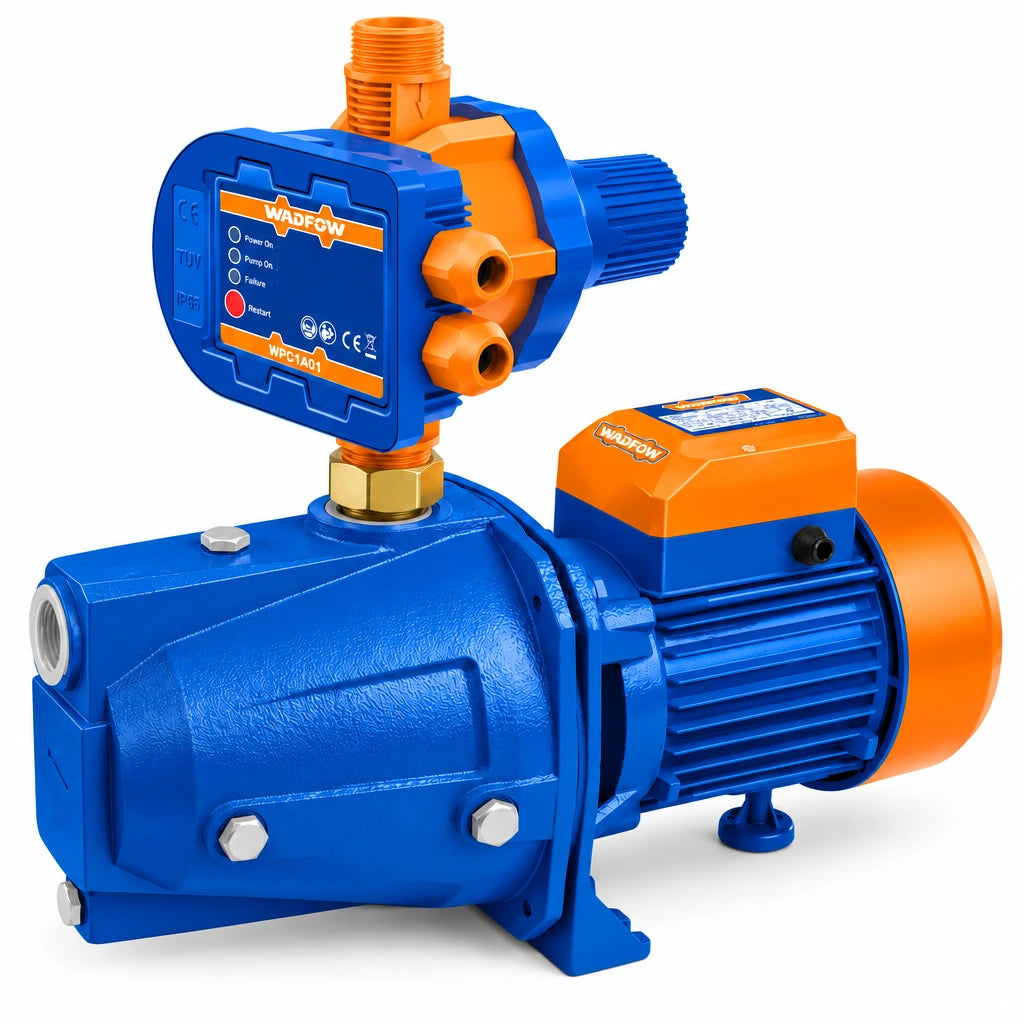

- Pump: Wadfow WWPJA03 1HP Self-Priming Jet Pump
- Control: Wadfow WPC1A01 Automatic Pump Control
KEY SYSTEM SPECIFICATIONS
- 750W / 1HP self-priming jet pump
- 45m maximum head
- 50L/min maximum flow
- 9m maximum suction
- 1 in. inlet/outlet
- Automatic 1.5-bar start control
- 10A / 10-bar controller
- IP65 controller protection
SUPPLY MASTER COMPLETE
Buy the system. Have the replacement completed.
Professional installation · Greater Accra
Product delivery remains nationwide. Professional installation is available in Greater Accra. Product Only includes the pump and matched controller. Replacement Installation adds the standard connection materials, professional replacement labour, setup, priming, testing and handover.
EXISTING SETUP
Replacement Installation
For an accessible existing clean-water source and pump point with compatible 1-inch pipework, a primable suction line, stable mounting base and existing correctly rated earthed electrical supply. The fixed installed total shown above covers this standard replacement scope.
Fixed standard installation price shown above.
NEW SETUP
Assessment & quote
For first-time installations or sites that need new pipe runs, electrical work, civil work or other changes. Buy the pump-and-control system today; the installation is assessed and quoted separately.
System today. Installation quoted separately.
STANDARD MATERIALS SUPPLIED
- 2 × full-bore isolation ball valves
- 2 × removable unions
- 1 × non-return/check valve, or foot valve where the verified source requires it
- Pump-to-pipe threaded adaptors/reducers
- Short approved PVC/PPR connection pieces and elbows at the existing points
- PTFE thread-seal tape and matching pipe-joining consumables
- Electrical cable gland, terminal connectors and short connection tail to the existing compliant supply
- Anti-vibration mounting pads and base fasteners
STANDARD REPLACEMENT SCOPE

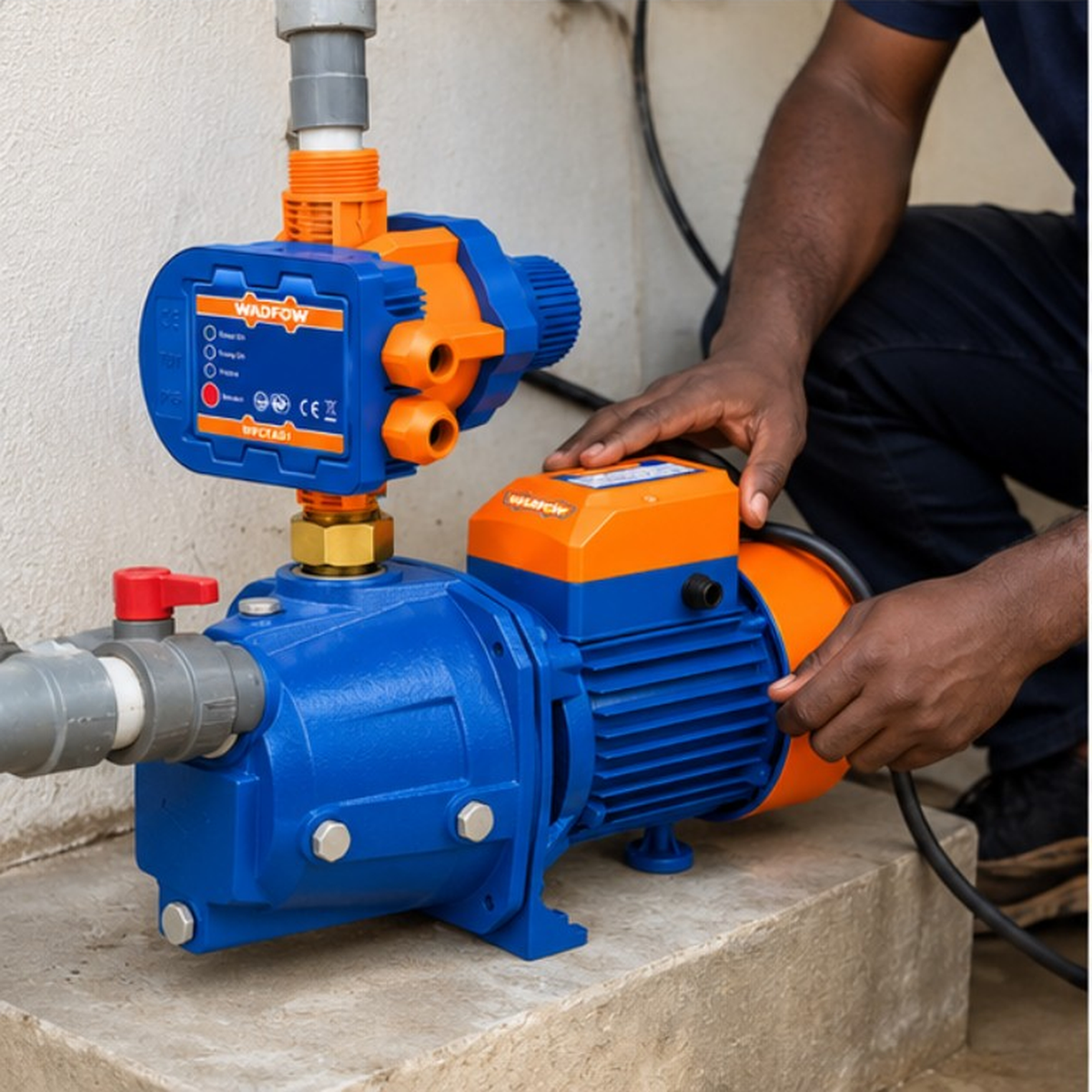

Includes isolation and removal of the existing comparable surface pump/controller, installation on the existing suitable pipe and electrical points, controller setup, pump priming, startup, pressure/leak checks and customer handover.
Not included: new borehole or tank work, new suction/discharge runs, new electrical circuits or rewiring, civil base construction, concealed leak diagnosis, wall cutting or major plumbing alteration. Additional work is quoted before it begins.
