Wadfow Compact Home Water Pressure System 0.5HP + Automatic Control | Supply Master Complete

GH₵710.00
Purchase Type
GH₵0.00 back
in Club Cash Join or sign in to earn.
Warranty & after-sales support
Eligible warranty claims are coordinated through Supply Master from issue report to resolution.
7-day return window
Eligible unused items in original packaging can be returned within 7 days of delivery.
Supply Master customer trust
Managed buying experience since 2019
Customers rate us 4.6/5 based on 1292 reviews.

Product details

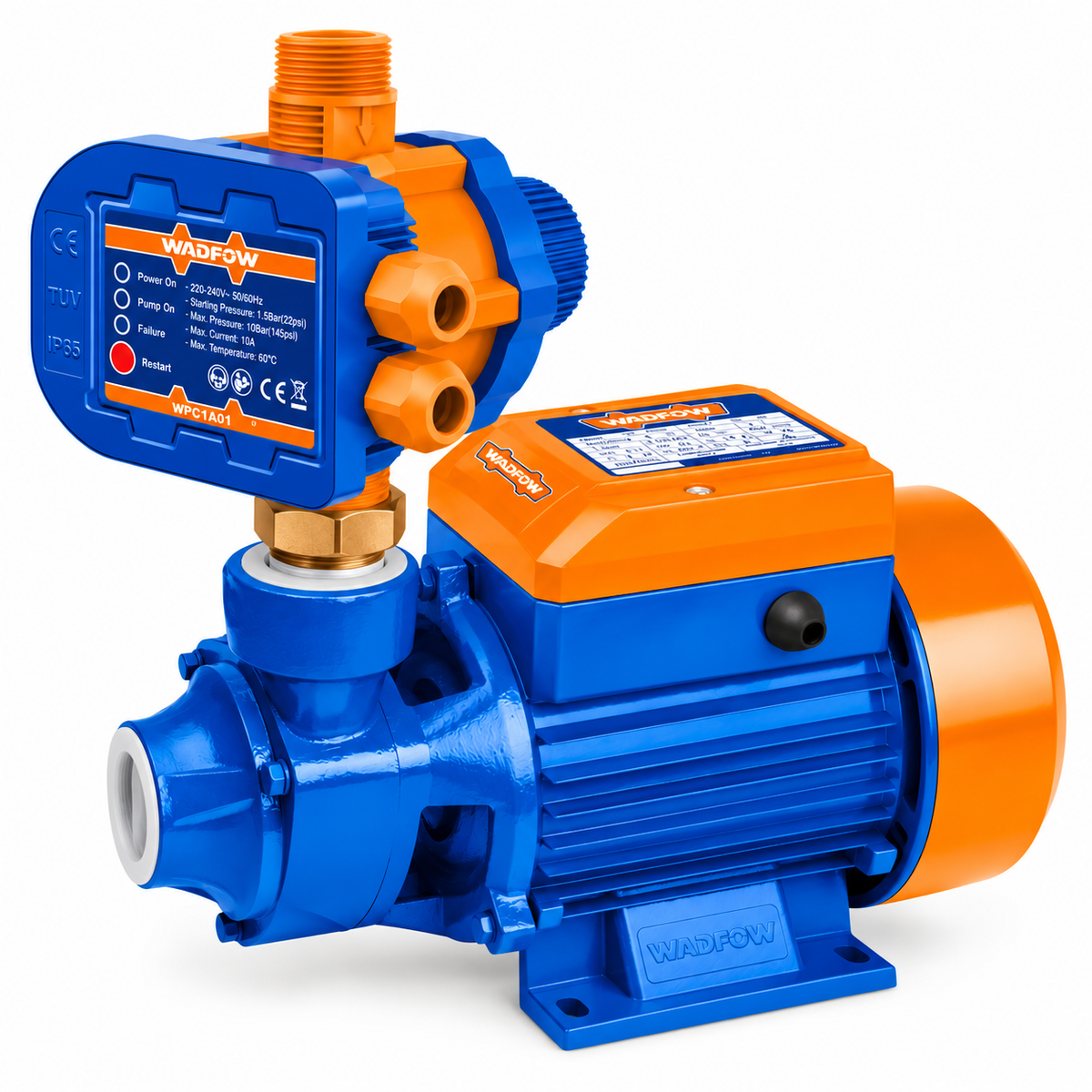

A compact automatic household water-pressure system built around the Wadfow 0.5HP peripheral pump and WPC1A01 automatic controller. Designed for straightforward pressure boosting from an existing clean-water storage source where suction distance, pipework and household demand are modest.

SYSTEM COMPONENTS

Pump + automatic control

  • Pump: Wadfow WWPVA01 0.5HP Peripheral Pump
  • Control: Wadfow WPC1A01 Automatic Pump Control

KEY SYSTEM SPECIFICATIONS

  • 370W / 0.5HP pump
  • 30m maximum head
  • 30L/min maximum flow
  • 8m maximum suction
  • 1 in. inlet/outlet
  • Automatic 1.5-bar start control
  • 10A / 10-bar controller
  • IP65 controller protection

SUPPLY MASTER COMPLETE

Buy the system. Have the replacement completed.

Professional installation · Greater Accra

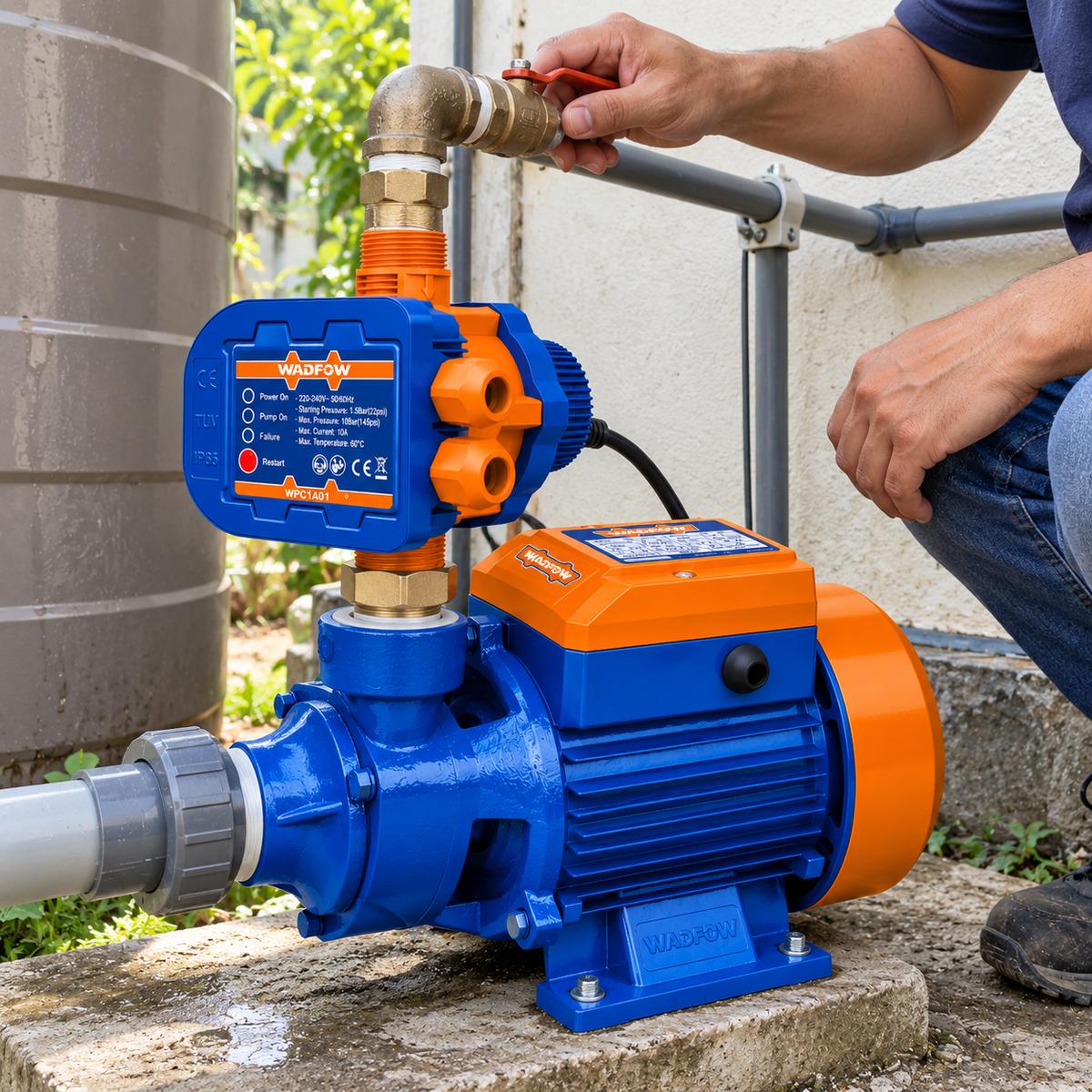

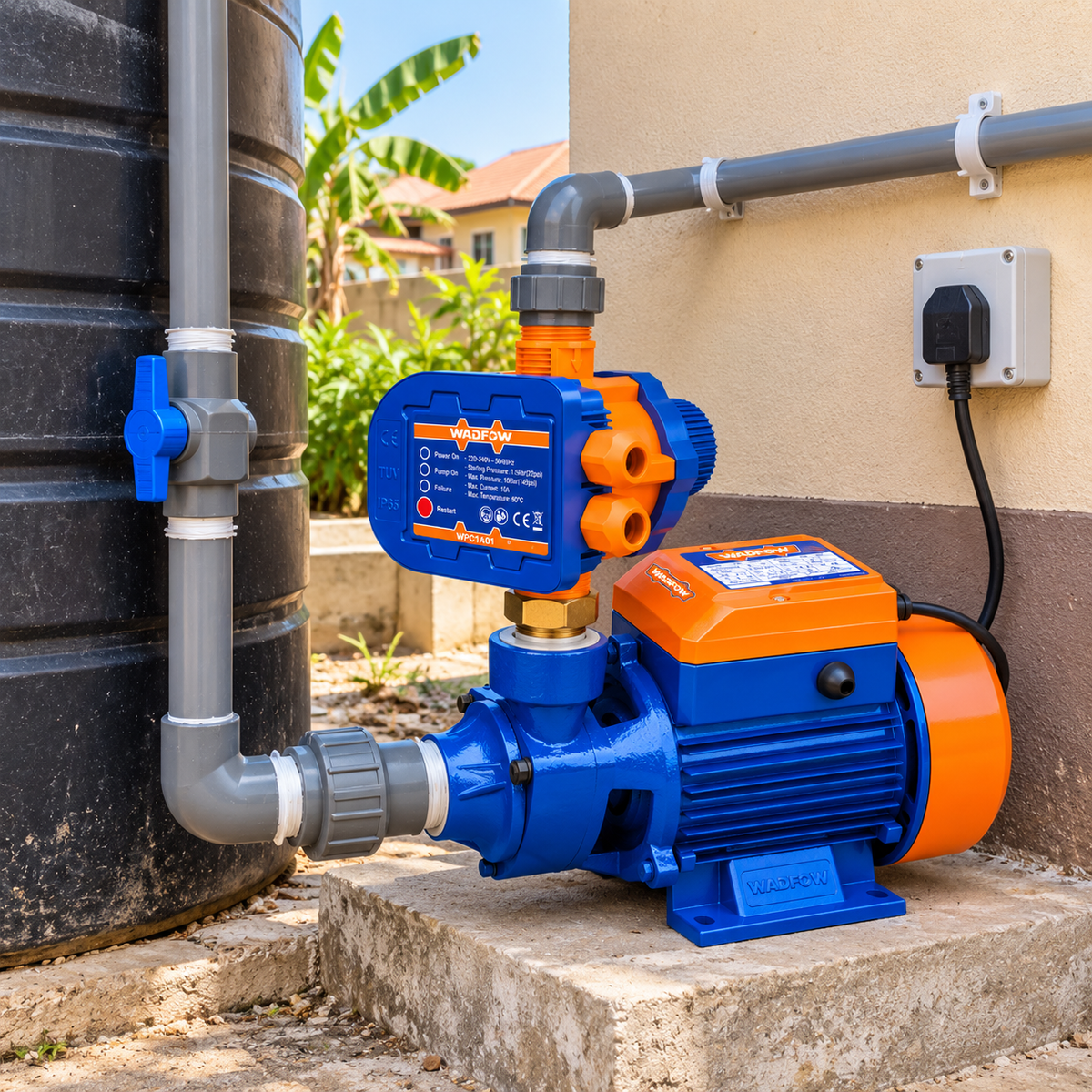

Product delivery remains nationwide. Professional installation is available in Greater Accra. Product Only includes the pump and matched controller. Replacement Installation adds the standard connection materials, professional replacement labour, setup, priming, testing and handover.

EXISTING SETUP

Replacement Installation

For an accessible existing clean-water pump point with suitable 1-inch suction/discharge pipework, a stable mounting base and an existing correctly rated earthed electrical supply. The fixed installed total shown above covers this standard replacement scope.

Fixed standard installation price shown above.

NEW SETUP

Assessment & quote

For first-time installations or sites that need new pipe runs, electrical work, civil work or other changes. Buy the pump-and-control system today; the installation is assessed and quoted separately.

System today. Installation quoted separately.

STANDARD MATERIALS SUPPLIED

  • 2 × full-bore isolation ball valves
  • 2 × removable unions
  • 1 × non-return/check valve, or foot valve where the verified source requires it
  • Pump-to-pipe threaded adaptors/reducers
  • Short approved PVC/PPR connection pieces and elbows at the existing points
  • PTFE thread-seal tape and matching pipe-joining consumables
  • Electrical cable gland, terminal connectors and short connection tail to the existing compliant supply
  • Anti-vibration mounting pads and base fasteners

STANDARD REPLACEMENT SCOPE

Includes isolation and removal of the existing comparable surface pump/controller, installation on the existing suitable pipe and electrical points, controller setup, pump priming, startup, pressure/leak checks and customer handover.

Not included: new borehole or tank work, new suction/discharge runs, new electrical circuits or rewiring, civil base construction, concealed leak diagnosis, wall cutting or major plumbing alteration. Additional work is quoted before it begins.
