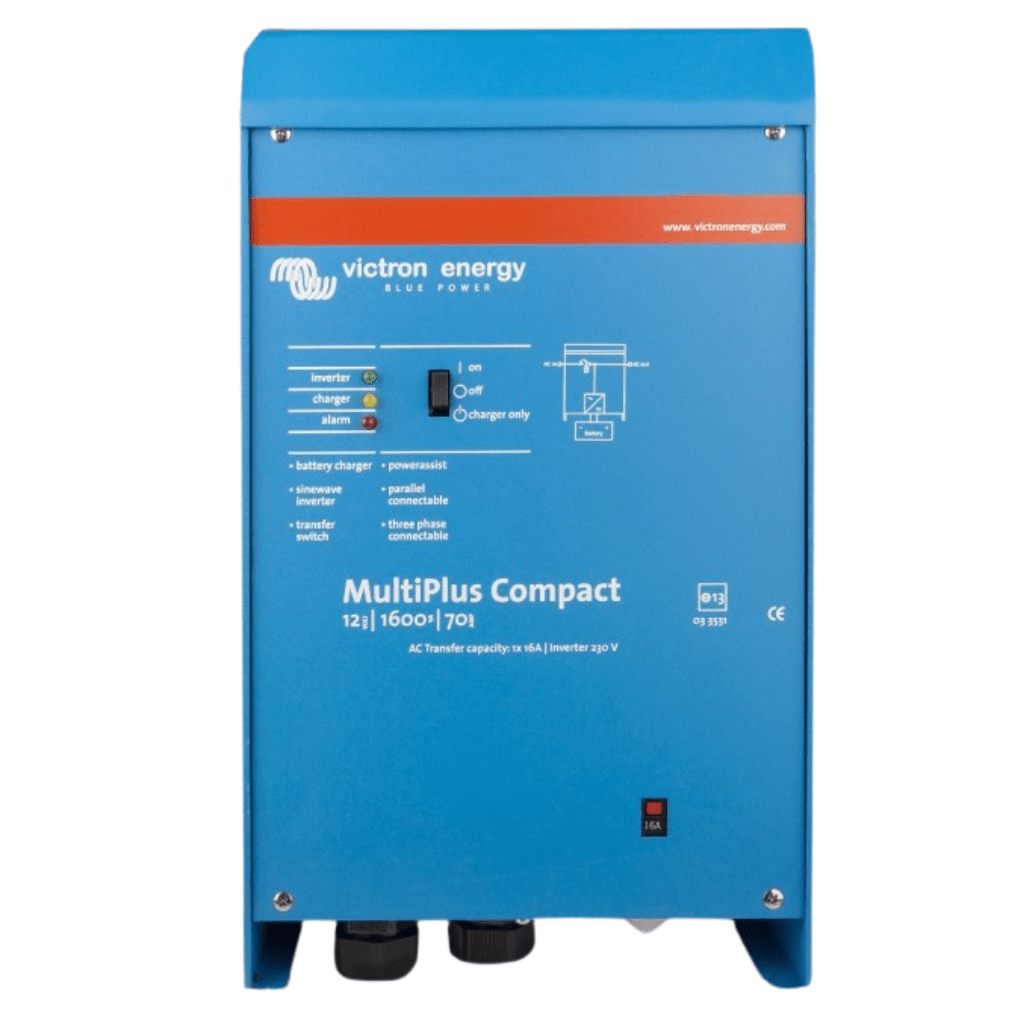

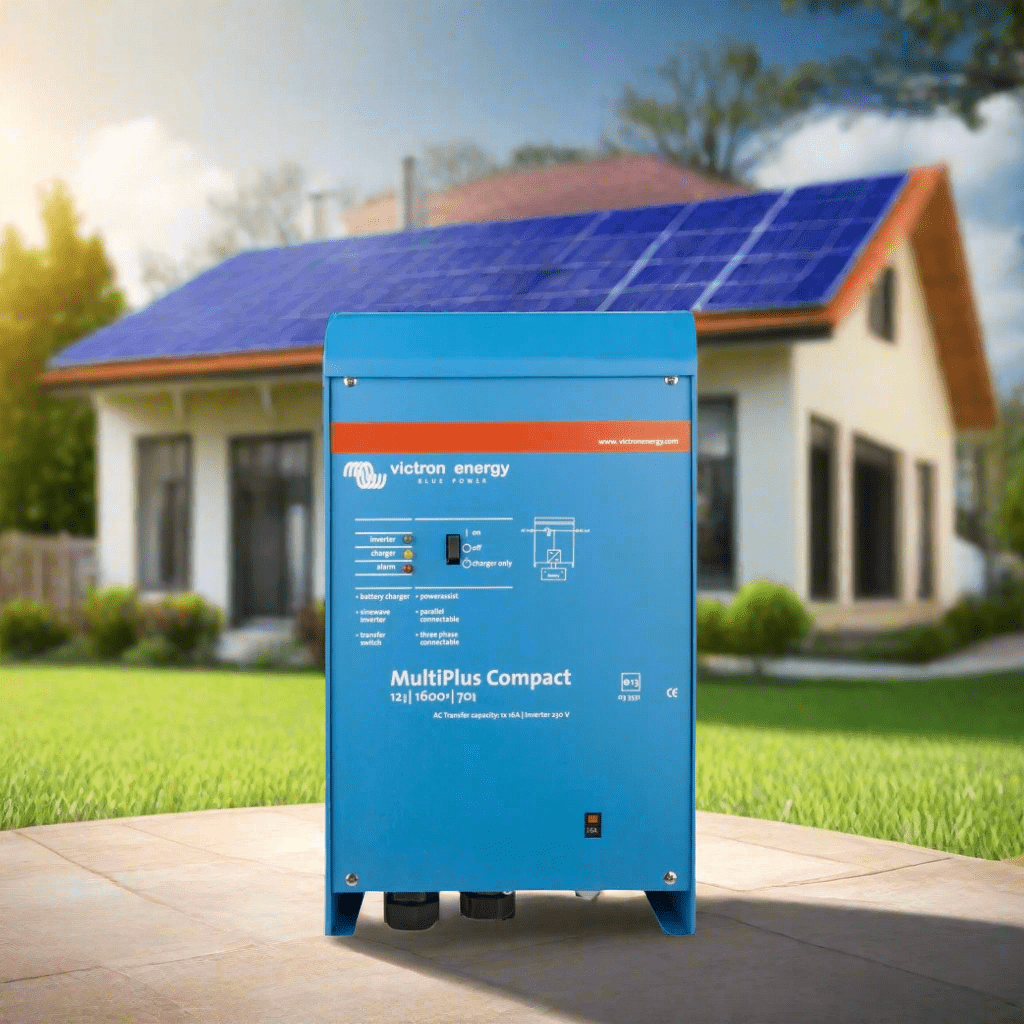

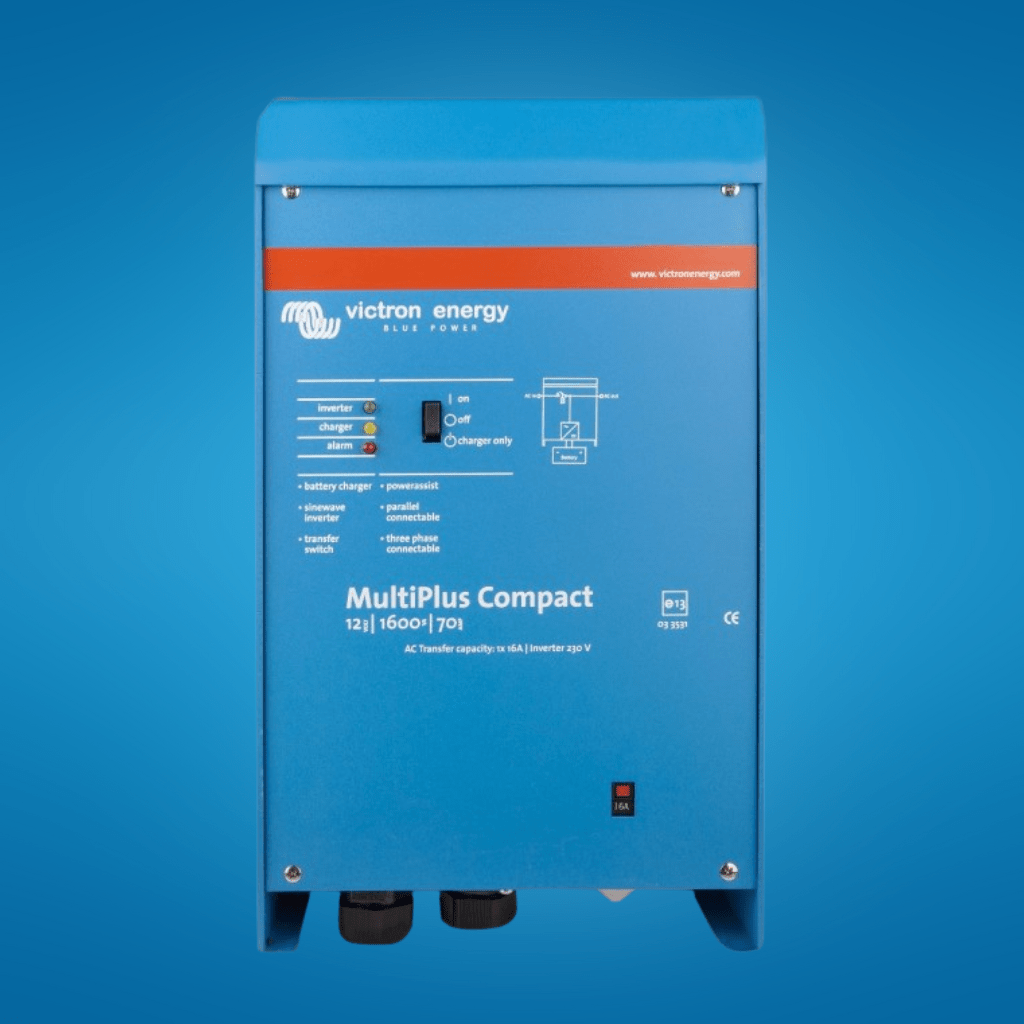

Victron MultiPlus Compact 12/1200/50-16 230V VE.Bus - CMP121220000
Victron MultiPlus Compact 12/1200/50-16 230V VE.Bus - CMP121220000 is available on backorder and will be fulfilled once restocked.
Victron MultiPlus Compact 12/1200/50-16 230V VE.Bus - CMP121220000
Victron MultiPlus Compact 12/1200/50-16 230V VE.Bus - CMP121220000 is available on backorder and will be fulfilled once restocked.
Product details
Product details
Deliver clean, reliable power in any off-grid or mobile application with the Victron Phoenix Inverter Compact 12/1600. This professional-grade pure sine wave inverter combines robust performance with compact design, featuring 1300W continuous power and 3000W surge capability. With Victron's advanced SinusMax technology, it effortlessly handles demanding loads like motors and compressors while maintaining 94% efficiency.
Key Features
- Pure sine wave output – Safely powers sensitive electronics and industrial equipment
- High surge power – 3000W peak capacity for motor starting and difficult loads
- SinusMax technology – Hybrid HF design for compact size and superior performance
- Parallel operation – Connect up to 6 units for expanded power capacity (up to 24kW)
- 3-phase capability – Configure multiple units for three-phase systems
- Computer monitoring – RS-485 port with VEConfigure software for custom settings
Technical Specifications
- Continuous power: 1300W (1600VA)
- Peak power: 3000W
- Input voltage: 12V DC (9.5-17V range)
- Output: 230V AC ±2%, 50Hz ±0.1%
- Efficiency: 94% (peak)
- Protection rating: IP21
- Operating temperature: -40°C to +65°C
- Dimensions: 375 × 214 × 110 mm
- Weight: 10 kg
- Battery cables: 1.5 meters included
- Communication: RS-485 port (VE.Bus compatible)
Advanced Capabilities
- Parallel operation: Stack up to 6 units for higher power requirements
- 3-phase configuration: Create balanced three-phase systems
- VEConfigure software: Customize voltage, frequency, and relay settings
- Remote monitoring: Compatible with Victron's monitoring systems
Engineered for professional performance, the Victron Phoenix Inverter Compact delivers exceptional power quality and reliability for the most demanding applications. Its robust construction and advanced features make it the ideal choice for users who refuse to compromise on power quality
