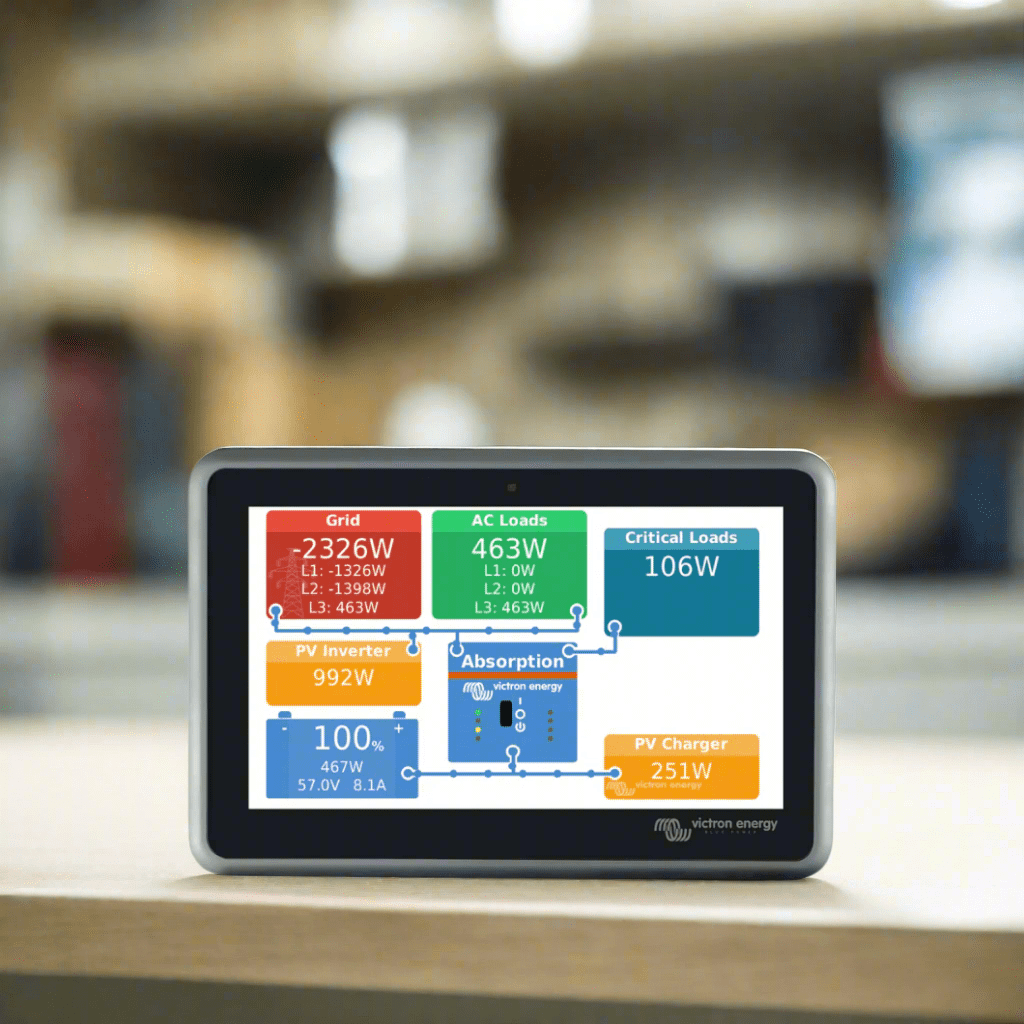

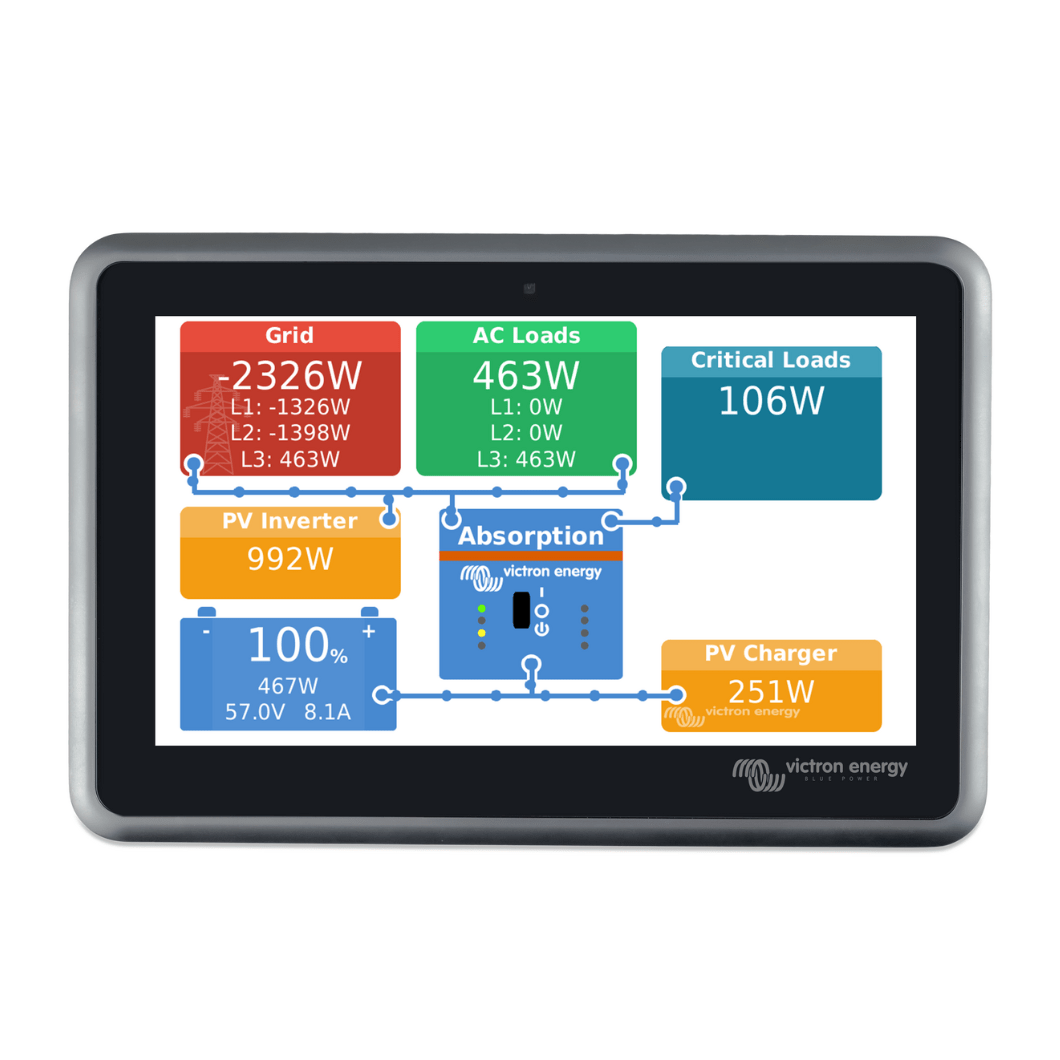

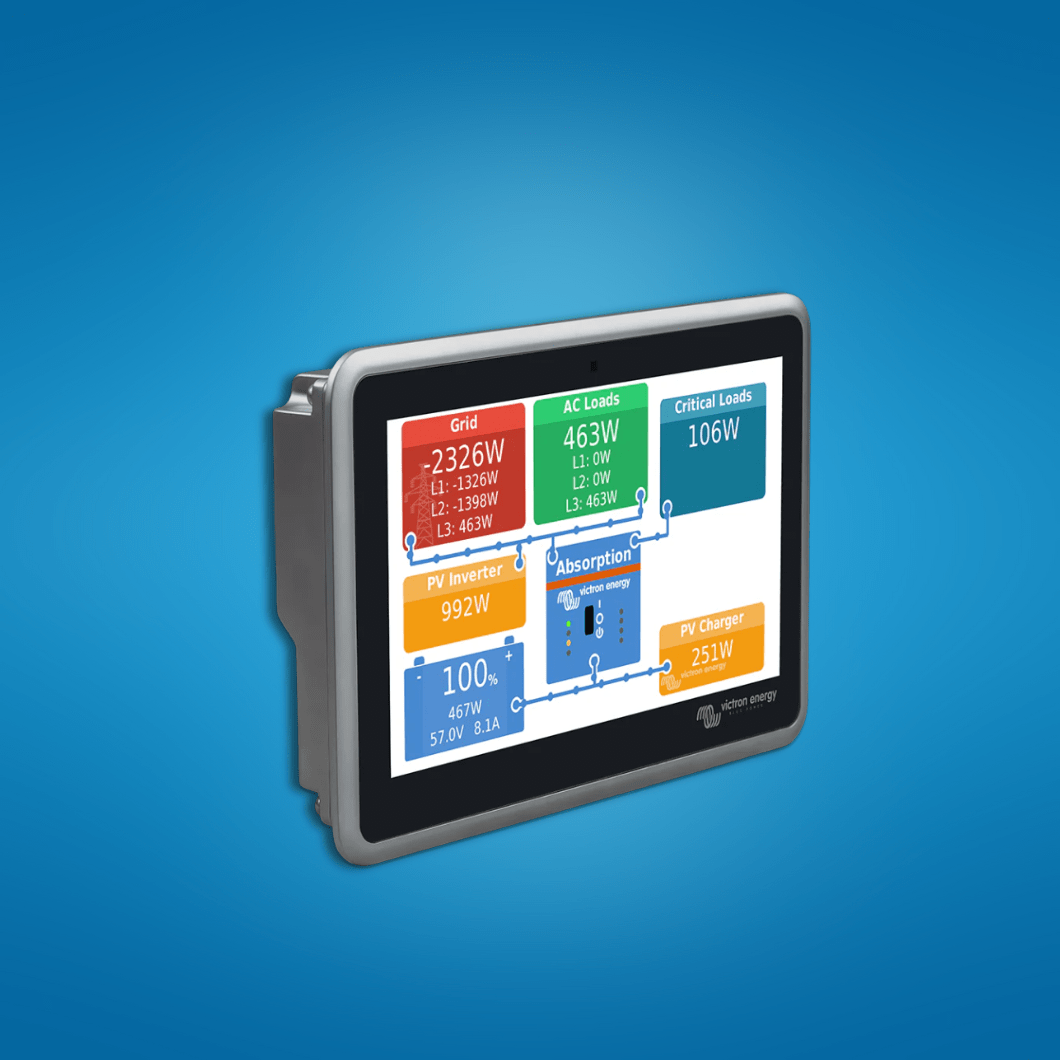

Victron Energy Solar Ekrano GX - BPP900480100

The Victron Ekrano GX is Victron’s next-generation communication hub with an integrated 7-inch waterproof touchscreen display, designed to replace and surpass the functionality of the Color Control GX.

It combines high processing power, full connectivity, and an intuitive interface to monitor and control your entire power setup. Whether you access it directly via its screen, through the VictronConnect app, or remotely via Victron Remote Management (VRM), the Ekrano GX gives you seamless oversight and control.

With robust aluminum housing and IP-rated protection (when mounted with included bracket), the device is built for reliability in challenging environments.

Key Features:

• Integrated 7-inch waterproof touchscreen combining display and processing in one unit
• Next-generation GX device: faster processor, more memory, and more connectivity than Cerbo GX & Color Control GX

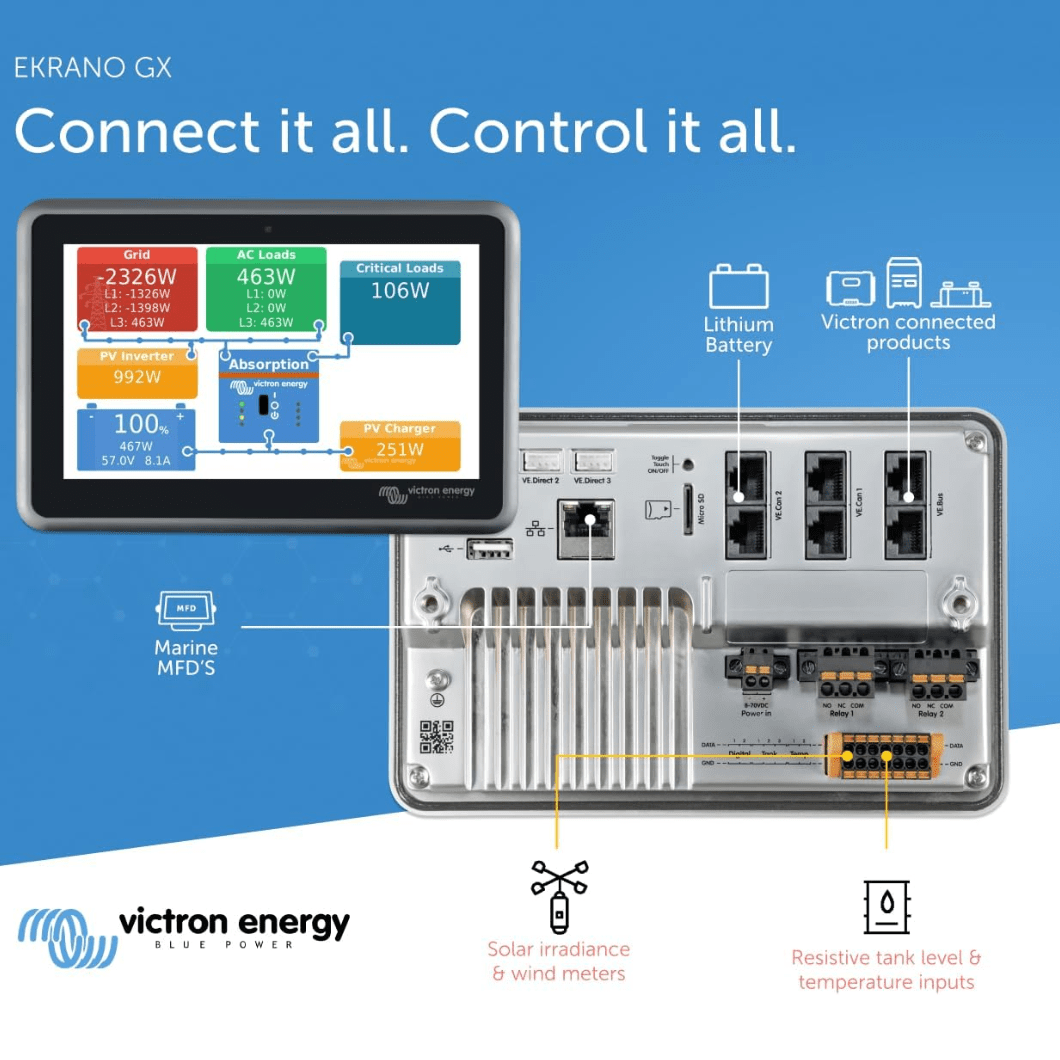

• Full connectivity suite: WiFi, Bluetooth, Ethernet, VE.Direct, VE.Can, USB, and more
• Dual VE.Can ports: one isolated, one non-isolated — ideal for systems needing multiple CAN networks
• Relay control: 2 × NO/NC relays (configurable) for alarms, generator start/stop, load control
• Multiple I/O and sensor inputs: resistive tank level inputs, temperature sensors, digital inputs
• Flush or blind-hole mounting: both mounting options included for flexible installation
• Touch disable button: recessed toggle on back to lock display from unauthorized use
• Built-in VRM Remote Console & local console: remote control over the internet as if you were in front of the screen


Technical Specifications:

• Supply voltage range: 8 – 70 V DC
• Power draw (display on, 100% brightness): ~6.2 W @12 V, ~6.6 W @24 V, ~7.4 W @48 V
• Power draw (display off): ~2.6 W @12 V, ~3.0 W @24 V, ~3.7 W @48 V
• Relay outputs: 2 × NO/NC, DC up to 30 V / 3 A, AC 125 V / 1 A
• VE.Direct ports (always isolated): 3 ports
• VE.Bus ports: 1 bus (with 2 paralleled RJ45 sockets)
• VE.Can ports: 2 (one isolated, one non-isolated)
• Ethernet: 10/100 Mbps
• WiFi: 2.4 GHz, internal access point & station mode
• Bluetooth Smart: yes (for configuration)
• USB Host ports: 2 × USB-A (combined max 1.5A @ 5V)
• MicroSD slot: supports up to 32 GB (SDHC) for data logging
• Resistive tank level inputs: 3 channels
• Temperature sensor inputs: 2 channels
• Digital inputs: 2-channel open/closed or pulse inputs
• Display resolution: 1024 × 600 px
• Backlight brightness (max): ~1000 cd/m²
• Dimensions (HxWxD): 124 × 187 × 29.8 mm (without connectors / mounting)
• Operating temperature range: –20 °C to +50 °C
• Protection rating: Front IP54 (when installed with steel bracket); Front IP31 (spring mounting); Back IP21
• Mounting options: flush panel mount or blind-hole using included springs or steel bracket
• Touch disable feature: recessed button to disable or re-enable touch capability


For users looking for an all-in-one GX communication hub with integrated display, powerful connectivity, and robust performance, the Victron Ekrano GX (BPP900480100) is an excellent choice. It’s ideal for systems where space, usability, and remote monitoring matter.
