Product details
Product details

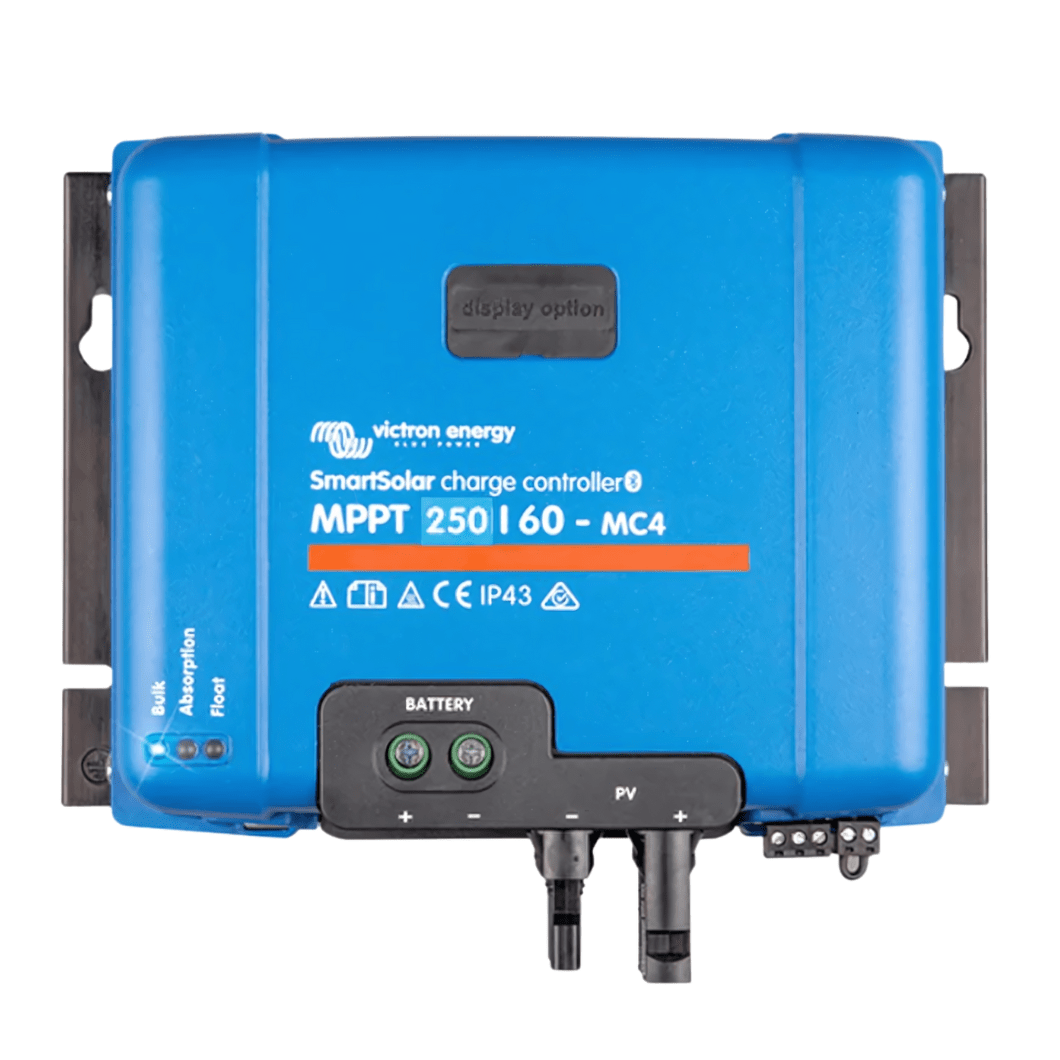

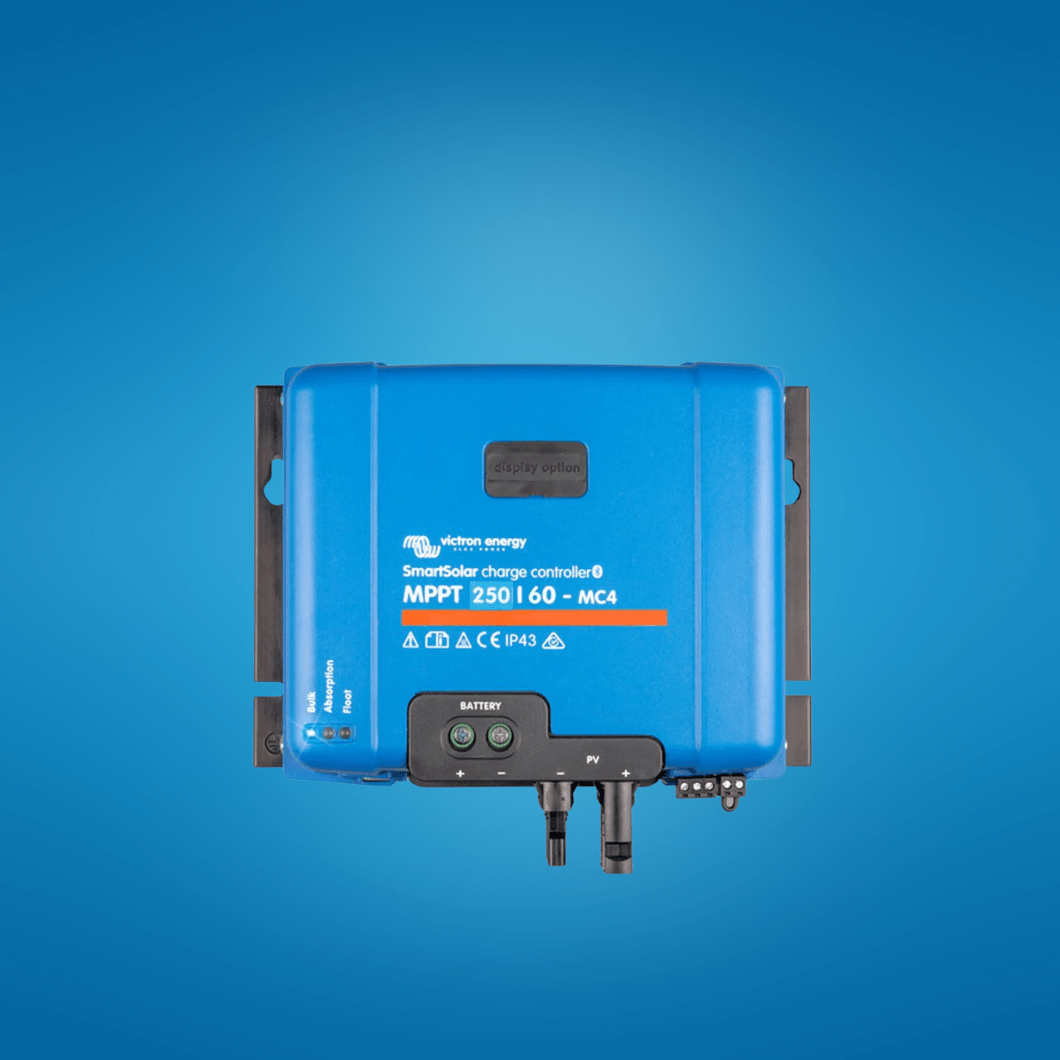

The Victron Energy SmartSolar MPPT 250/60-MC4 VE.Can (Model SCC125060321) is built for serious solar setups that demand both high performance and intelligent control. It features ultra-fast MPPT (Maximum Power Point Tracking) technology that ensures your solar panels deliver maximum power, even under variable lighting or partial shading. With MC4 connectors, VE.Can communication, and Bluetooth connectivity, this controller brings both rugged hardware and smart management tools to your system.
Designed for 12V, 24V, 36V, or 48V battery systems, with a strong 60A charging current, this model delivers reliable energy conversion for large off-grid or hybrid installations. It’s engineered to protect your battery, extend system lifespan, and maximize solar yield — all packed in a robust and high-voltage design.
Key Features:
- Ultra-fast MPPT algorithm for increased energy harvest under changing light and shading conditions
- MC4 type PV input connectors for easy, reliable connections to panels
- Supports 12V, 24V, 36V, and 48V battery banks with auto-voltage detection
- 60A continuous charging current for heavy-duty solar array demands
- High maximum array open-circuit voltage (Voc) up to around 250V, enabling larger panel strings and reduced wiring losses
- Built-in Bluetooth Smart for setup, monitoring, and firmware updates via VictronConnect app
- VE.Can communication port for system integration and scalability
- Optional LCD display available (pluggable) for local status feedback
- Comprehensive protections: over-temperature, short-circuit, reverse polarity, PV reverse current protection, and built-in temperature sensor
Technical Specifications:
- Works with battery systems at 12V, 24V, 36V, or 48V, auto-detecting most voltages
- Rated charge current: 60A continuous
- Maximum PV open-circuit voltage: up to 250V
- Suggested PV input power: approx. 860W when used with a 12V battery; 1,720W with 24V; 3,440W with 48V battery bank
- High peak conversion efficiency, often quoted at ~98-99% under ideal conditions
- Self-consumption (idle power draw) is low (mA range) to minimize wasted energy when batteries are near full charge
- Enclosure / protection rating: IP43 for electronic components; terminals / connection areas typically IP22
- Weight: approximately 3.0 kg
- Approximate dimensions: 21.5 cm × 25 cm × 9.5 cm (Length × Width × Depth)
- Temperature range: designed to operate from low (cold) ambient to high temperatures; includes derating above certain thresholds; built-in temperature sensor for compensation
If you’re building a high-voltage solar array and need a controller that delivers power, protection, and smart control, the Victron Energy SmartSolar MPPT 250/60-MC4 VE.Can (SCC125060321) is an excellent choice. With its 60A capability, MC4 connectors, high Voc rating, and robust protection features, this unit ensures your solar setup is ready for performance and long life.
