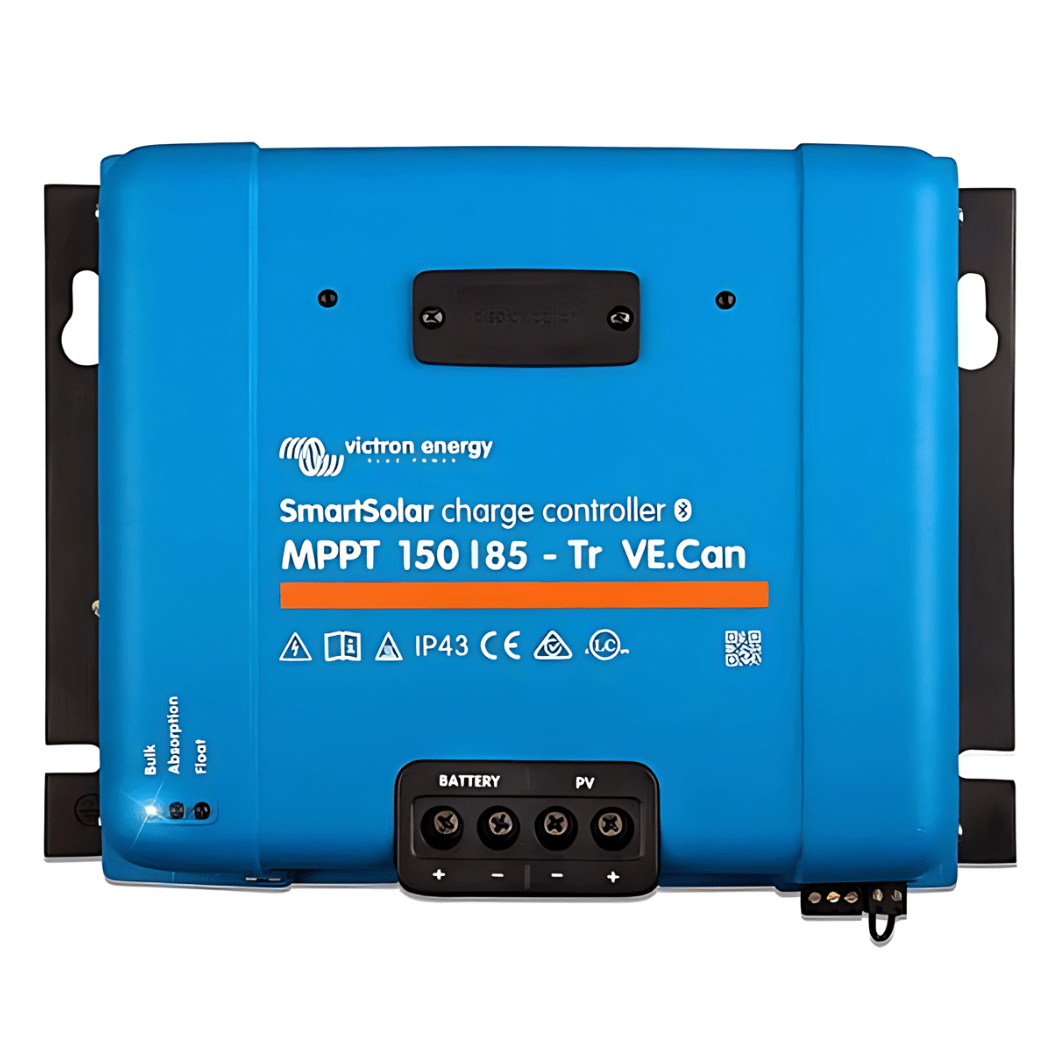

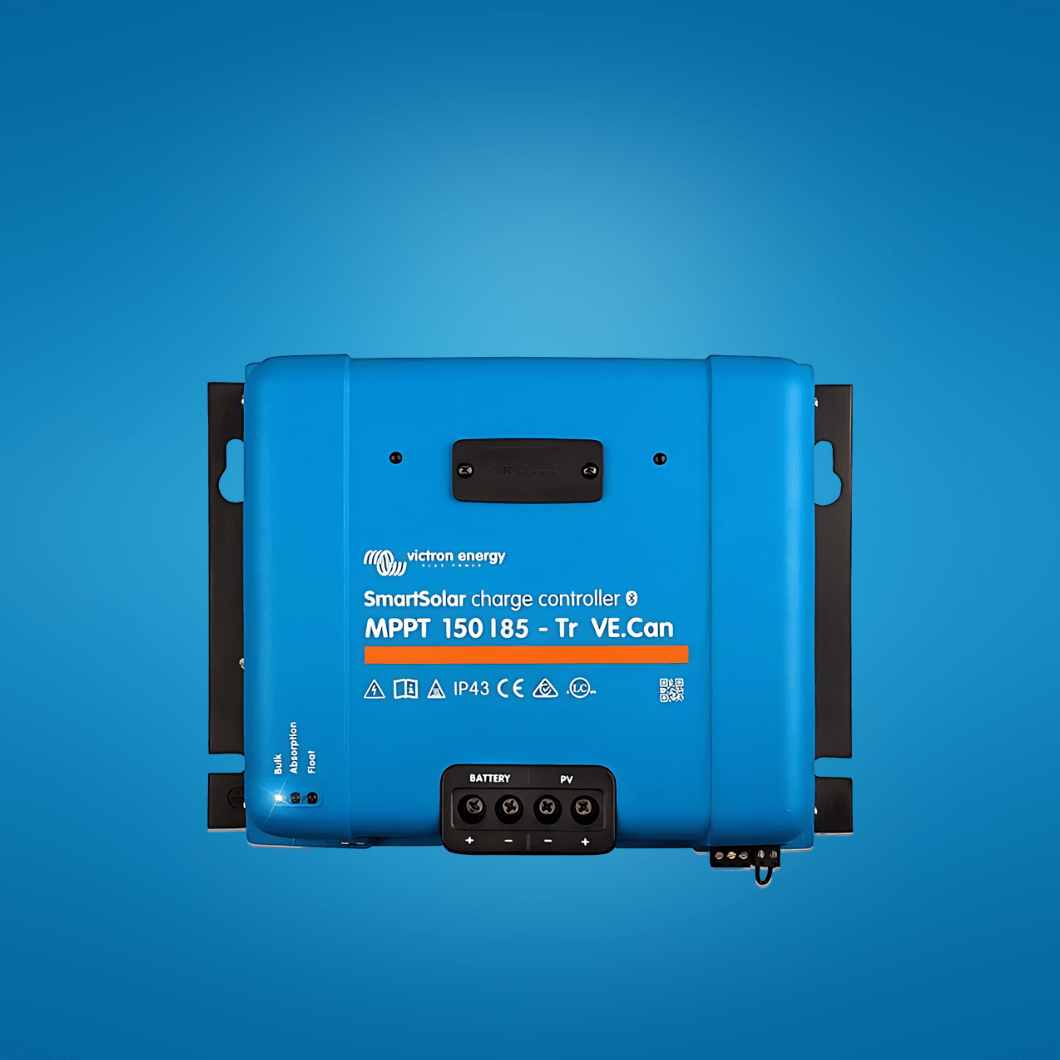

Victron Energy SmartSolar MPPT 150/85-Tr VE.Can Charge Controller - SCC115085410

The Victron Energy SmartSolar MPPT 150/85-Tr VE.Can (SCC115085410) is a high-capacity, top-tier solar charge controller built for serious solar systems. It uses ultra-fast MPPT (Maximum Power Point Tracking) technology to extract maximum possible energy from your solar panels, even under challenging lighting—cloud cover, early morning/late afternoon sun, or partial shade.

Capable of handling large PV arrays and delivering 85A of charging current, this controller is ideal for mid-to-large off-grid systems, commercial installations, and high load residential setups. With support for 12V, 24V, and 48V battery banks, remote monitoring via VictronConnect, synchronization across multiple units, and advanced protection features, it’s engineered for performance, durability, and battery longevity.

Key Features:

• Ultra-fast MPPT algorithm that increases solar yield especially under variable lighting conditions (clouds, shading)
• Supports battery systems at 12V, 24V, or 48V (auto detection)
• High output: 85A continuous charge current for demanding applications
• Maximum PV open-circuit voltage up to 150V (absolute maximum)
• Built-in Bluetooth with VictronConnect app support for monitoring, configuration, firmware updates, and historical performance data
• VE.Can interface for communication, allowing synchronization of multiple units and integration into larger system monitoring via GX devices and VRM (Victron Remote Management)
• Multiple pre-programmed charge algorithms and flexibility for different battery chemistries (lead-acid, lithium etc.)
• Outstanding efficiency (exceeds ~98%) with no cooling fan; high performance up to around 40°C ambient temperature; automatic power derating above that to protect components
• Comprehensive protection features: reverse polarity, short-circuit, PV reverse current, over-temperature shutdown, derating under extreme conditions


Technical Specifications:

• Battery Voltage Compatibility: 12V / 24V / 48V auto detection
• Rated Charge Current: 85A continuous
• Maximum PV Open-Circuit Voltage (Voc): 150V (absolute maximum under cold conditions); ~145V operational start-up limit
• Maximum PV Short-Circuit Current: approx. 70A
• Maximum Nominal PV Power:
    • ~1200W for 12V systems
    • ~2400W for 24V systems
    • ~4800W for 48V systems
• Efficiency: >98% conversion
• Self-consumption: low idle power draw typical for units in this class (mA range)
• Dimensions: approximately 295 × 216 × 103 mm (Height × Width × Depth) for the “Tr” model
• Weight: ~4.5 kg
• IP Rating / Protection: IP43 for electronics, IP22 for connection area; designed for harsh environments
• Modularity & Expansion: Up to 25 units can be synchronized via VE.Can; remote on/off available; programmable relay included


For those who require high performance, reliability, and advanced monitoring in solar charge control, the Victron Energy SmartSolar MPPT 150/85-Tr VE.Can (SCC115085410) delivers. Its powerful 85A current rating, wide battery voltage support, remote management features, and robust protection mechanisms make it ideal for large off-grid systems, commercial installations, or any setup where you need consistency under load.
