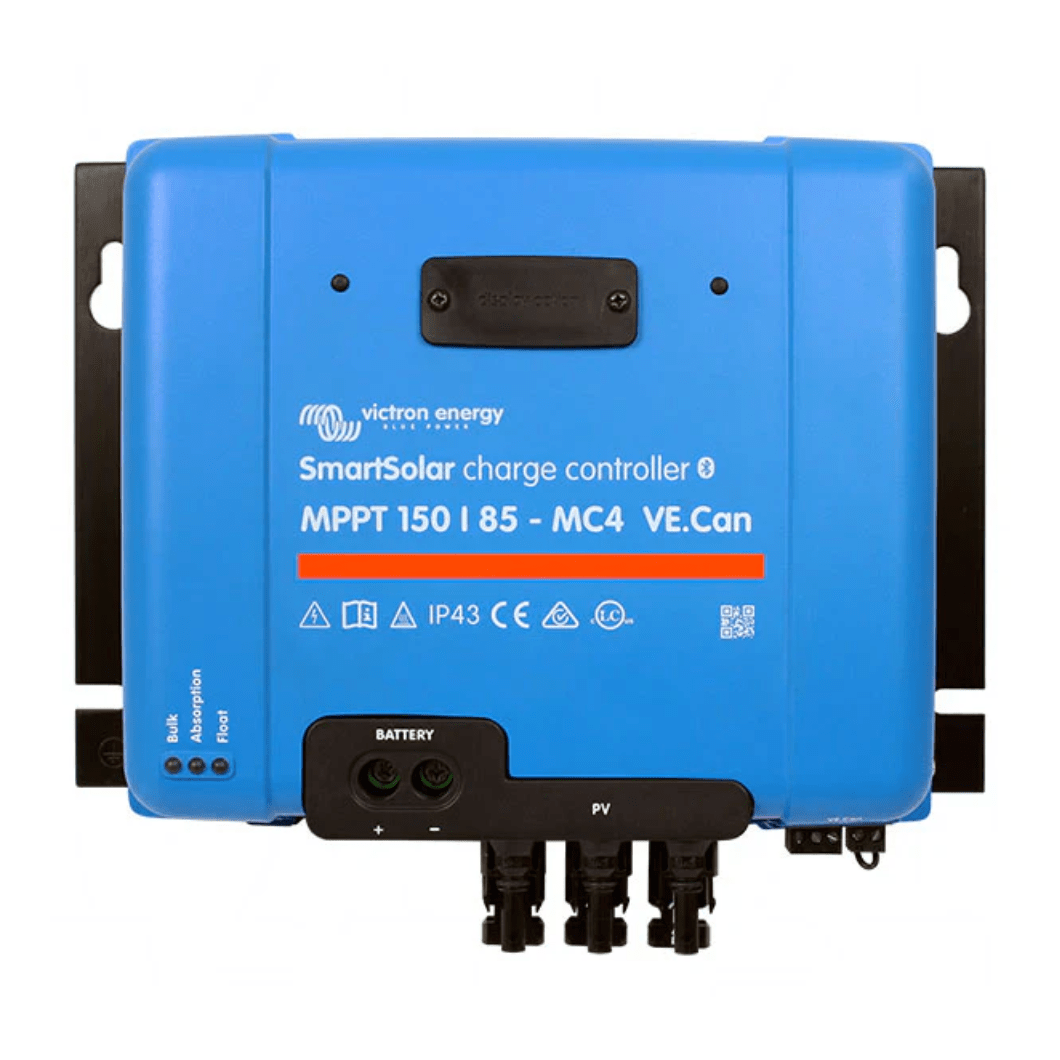

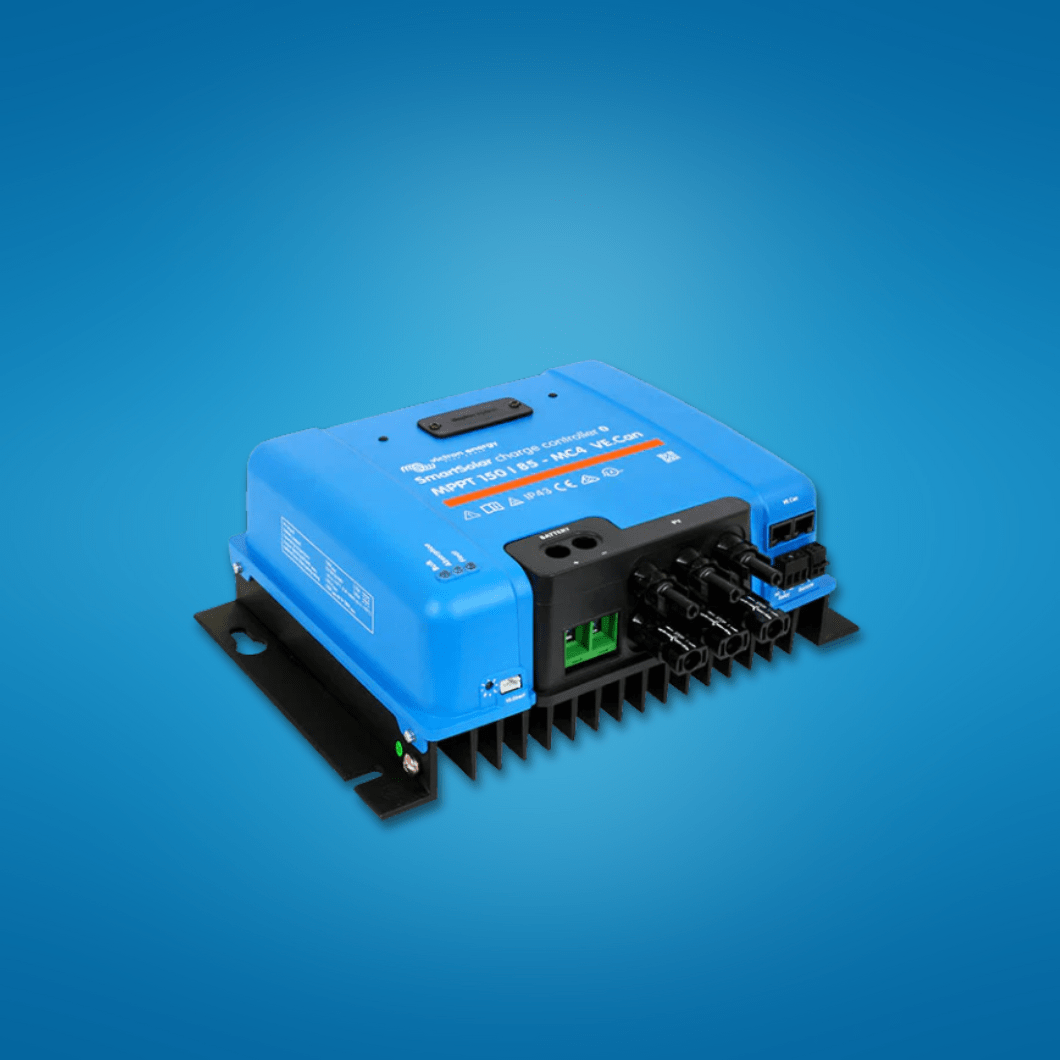

Victron Energy SmartSolar MPPT 150/85-MC4 VE.Can Charge Controller - SCC115085511
Victron Energy SmartSolar MPPT 150/85-MC4 VE.Can Charge Controller - SCC115085511 is available on backorder and will be fulfilled once restocked.
Victron Energy SmartSolar MPPT 150/85-MC4 VE.Can Charge Controller ...
Victron Energy SmartSolar MPPT 150/85-MC4 VE.Can Charge Controller - SCC115085511 is available on backorder and will be fulfilled once restocked.
Product details
Product details
The Victron SmartSolar MPPT 150/85-MC4 VE.Can (SCC115085511) is a high-performance solar charge controller built for advanced off-grid and hybrid solar systems. With ultra-fast MPPT (Maximum Power Point Tracking) technology and intelligent charging algorithms, it ensures maximum energy extraction even under variable sunlight conditions or partial shading.
This model supports 12V, 24V, 36V (manual), and 48V battery systems, and delivers a continuous 85A charge current. Featuring built-in Bluetooth, VE.Can, and VE.Direct communication ports, it offers remote configuration, monitoring, and system integration. Its compact MC4 input connectors make it easy to connect to solar panels while maintaining a robust and protected design.
Key Features:
- Ultra-fast MPPT algorithm for optimized power harvest, even under changing light
- Bluetooth, VE.Can & VE.Direct communications for seamless remote monitoring and control
- 85A continuous charge current — ideal for mid to large systems
- Supports 12V / 24V / 36V / 48V battery systems (auto-select, manual 36V)
- MC4 input connectors for easy, reliable solar panel wiring
- High PV open-circuit tolerance up to 150V (cold condition)
- Conversion efficiency around 98% under ideal conditions
- Low self-consumption: < 35 mA @ 12V / ~20 mA @ 48V
- Adaptive multi-stage charging with preprogrammed and user-definable profiles
- Comprehensive protection features: reverse polarity, over-temperature, short-circuit, reverse current
-
Remote on/off and programmable relay support
Technical Specifications:
- Battery voltage compatibility: 12V / 24V / 48V auto-select (36V via manual setting)
- Rated charge current: 85A
- Nominal PV power: ~1,200W (12V), ~2,400W (24V), ~4,900W (48V)
- Max PV short-circuit current: 70A (max 30A per MC4 connector)
- Maximum PV open-circuit voltage (Voc): 150V absolute maximum (≈ 145V start/operation)
- Peak efficiency: ~98%
- Self-consumption (idle): < 35 mA @ 12V; ~20 mA @ 48V
- Default ‘absorption’ voltage: 14.4 / 28.8 / 57.6 V (adjustable)
- Default ‘float’ voltage: 13.8 / 27.6 / 55.2 V (adjustable)
- Default ‘equalization’ voltage: 16.2 / 32.4 / 64.8 V (adjustable)
- Charge algorithm: Multi-stage adaptive (eight preprogrammed) or user-defined
- Temperature compensation: -16 / -32 / -64 mV/°C depending on voltage
- Operating temperature: -30 °C to +60 °C (full rated to ~40 °C)
- Humidity: Up to 95% non-condensing
- Maximum altitude: Capable to 5000 m (full rated output to ~2000 m)
- Protection & safety: Reverse polarity, short-circuit, over-temperature, reverse current
- Parallel operation: Up to 25 units via VE.Can; up to 10 via Bluetooth
- PV terminals / MC4 connectors: Two pairs of MC4 connectors (each max 30A)
- Battery terminal capacity: 35 mm² / AWG2 wiring
- Protection categories: IP43 (electronics) / IP22 (connections)
- Weight: ~4.5 kg for MC4 model
-
Dimensions (MC4 model): 246 × 295 × 103 mm
The Victron Energy SmartSolar MPPT 150/85-MC4 VE.Can (SCC115085511) offers a powerful and flexible solution for solar systems that demand high performance, smart connectivity, and robust protection. With 85A output, broad voltage compatibility, and seamless control capabilities, it’s ideal for solar setups where efficiency and reliability matter.
