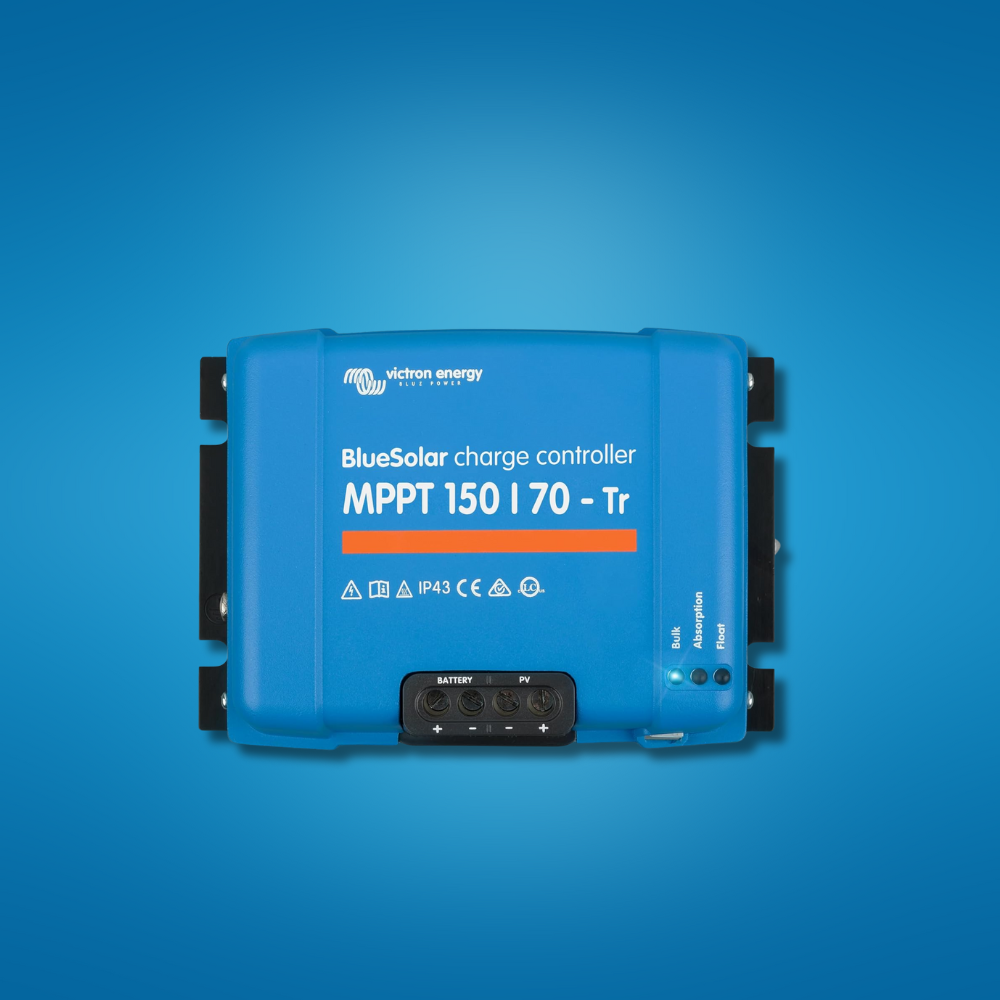

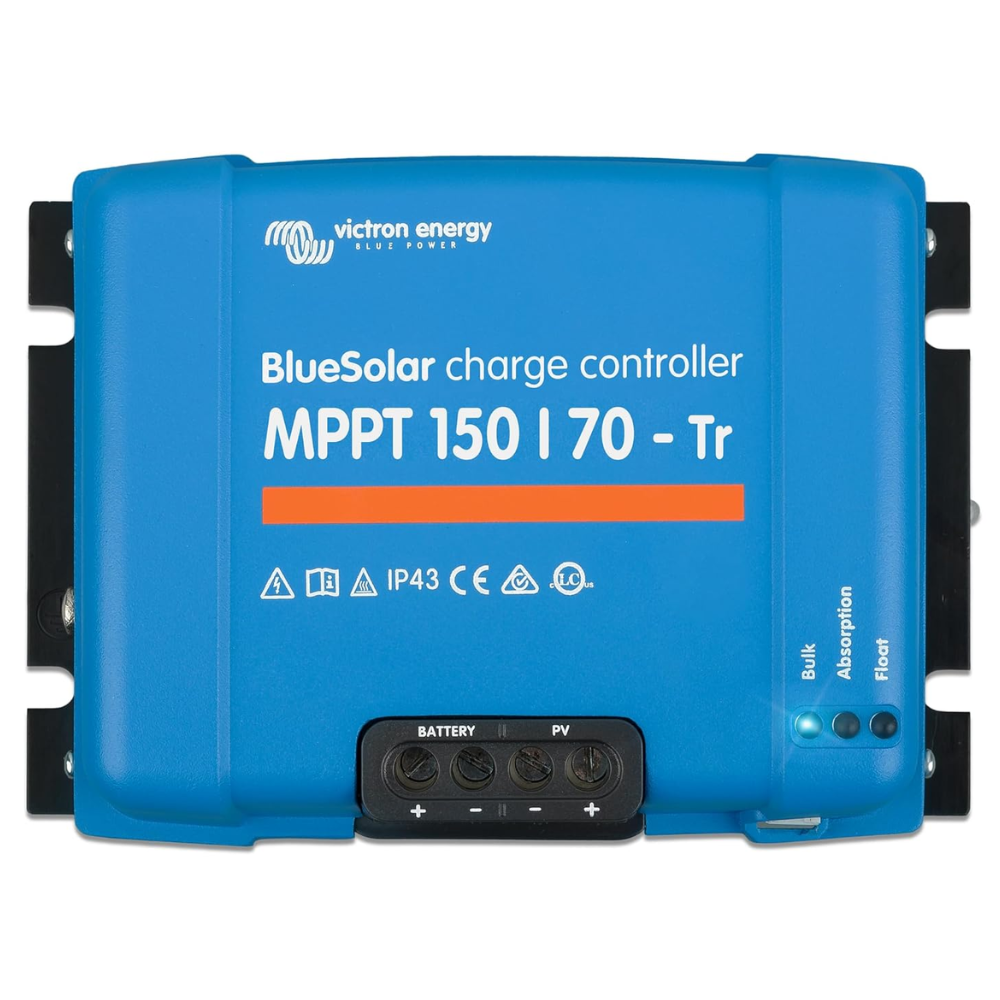

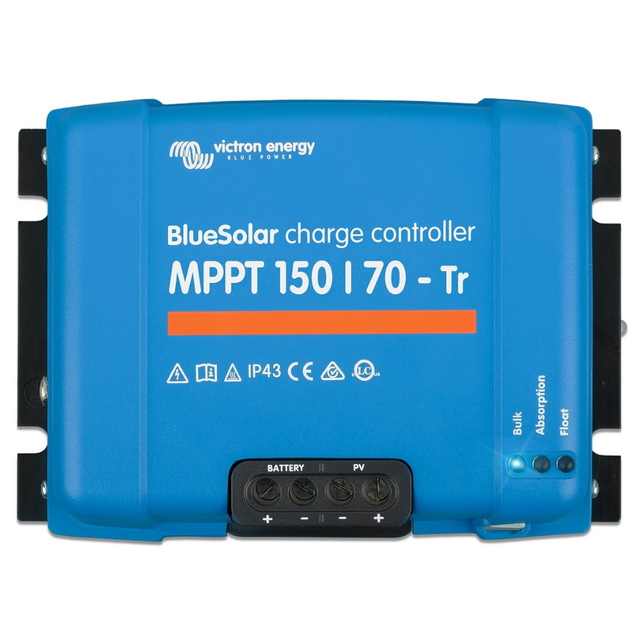

Victron Energy BlueSolar MPPT 150/70-Tr (12/24/36/48V-70A) Smart Solar Charge Controller - SCC010070200
Victron Energy BlueSolar MPPT 150/70-Tr (12/24/36/48V-70A) Smart Solar Charge Controller - SCC010070200 is available on backorder and will be fulfilled once restocked.
Victron Energy BlueSolar MPPT 150/70-Tr (12/24/36/48V-70A) Smart So...
Victron Energy BlueSolar MPPT 150/70-Tr (12/24/36/48V-70A) Smart Solar Charge Controller - SCC010070200 is available on backorder and will be fulfilled once restocked.
Product details
Product details
The Victron Energy BlueSolar MPPT 150/70-Tr Smart Solar Charge Controller (SCC010070200) is a powerful, high-capacity charge controller designed for large residential, commercial, and off-grid solar systems. With advanced Maximum Power Point Tracking (MPPT) technology, it ensures maximum solar energy harvest, even in cloudy or partially shaded conditions, increasing charging efficiency by up to 30% compared to conventional PWM controllers.
Supporting 12V, 24V, 36V, and 48V battery banks, this controller delivers up to 70A of charging current, making it suitable for demanding installations. Its SmartSolar technology with built-in Bluetooth allows real-time monitoring and configuration via the VictronConnect app, giving you full control over your solar power system. Engineered for reliability and safety, it extends battery life and protects against system faults, making it a trusted solution for serious solar users.
Key Features:
- High-efficiency MPPT technology for maximum solar harvest
- Supports 12V, 24V, 36V, and 48V battery systems (auto-detection)
- Delivers up to 70A charging current for large-scale applications
- Built-in Bluetooth Smart for wireless monitoring via VictronConnect app
- Superior charging performance in low-light and shaded conditions
- Advanced protections: overload, reverse polarity, overheating, and short-circuit
- Heavy-duty design for residential, commercial, and industrial use
- Manufactured by Victron Energy, a leader in solar energy technology
Technical Specifications:
- Model Number: SCC010070200
- Rated Battery Voltage: 12V / 24V / 36V / 48V auto-select
- Maximum PV Open Circuit Voltage (Voc): 150V
- Rated Charge Current: 70A
- Max. PV Input Power (12V): 1,000W
- Max. PV Input Power (24V): 2,000W
- Max. PV Input Power (36V): 3,000W
- Max. PV Input Power (48V): 4,000W
- Connectivity: Bluetooth Smart built-in (VictronConnect app support)

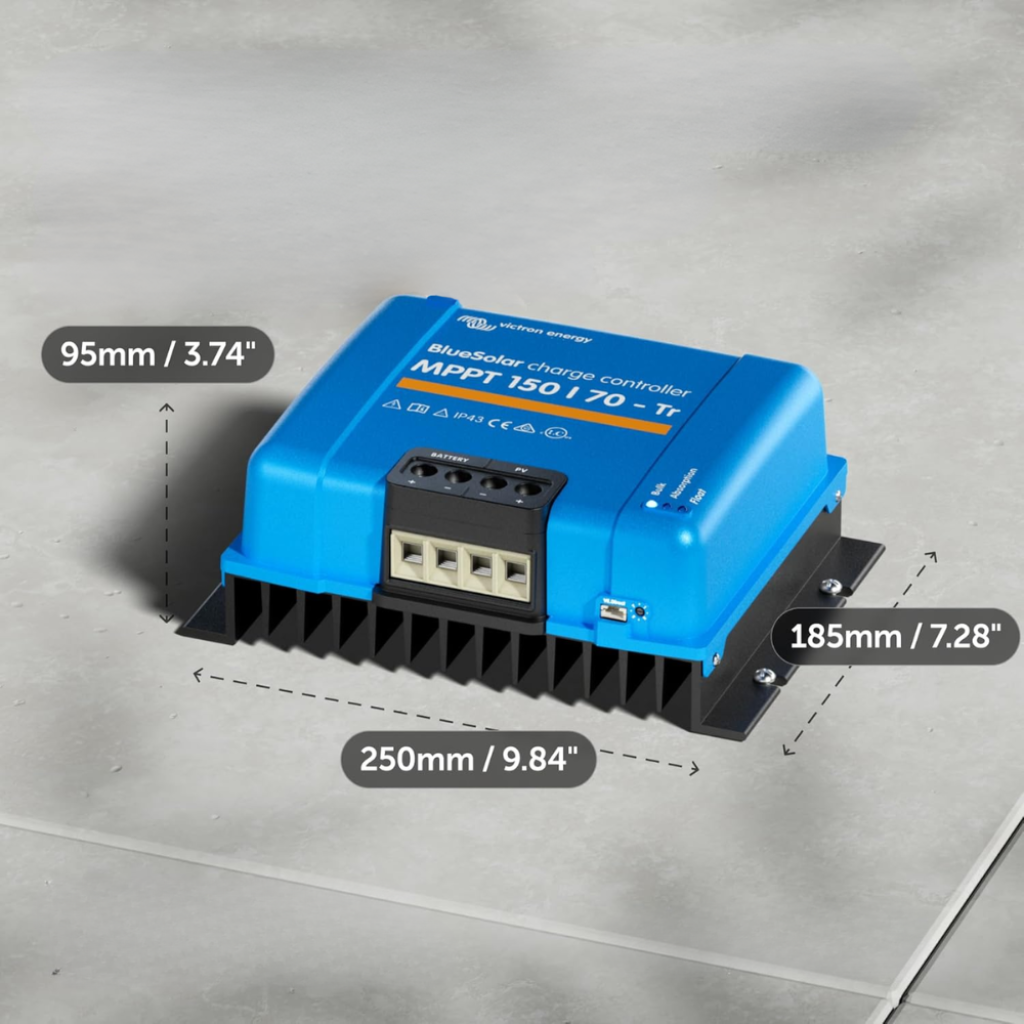

- Dimensions: 185 x 250 x 95 mm
- Weight: 3 kg
- Protection Features: Overload, reverse polarity, short-circuit, over-temperature
-
Brand: Victron Energy
Take your solar installation to the next level with the Victron Energy BlueSolar MPPT 150/70-Tr Smart Solar Charge Controller. Designed for larger off-grid or hybrid systems, it delivers powerful charging capacity, intelligent monitoring, and proven reliability.
