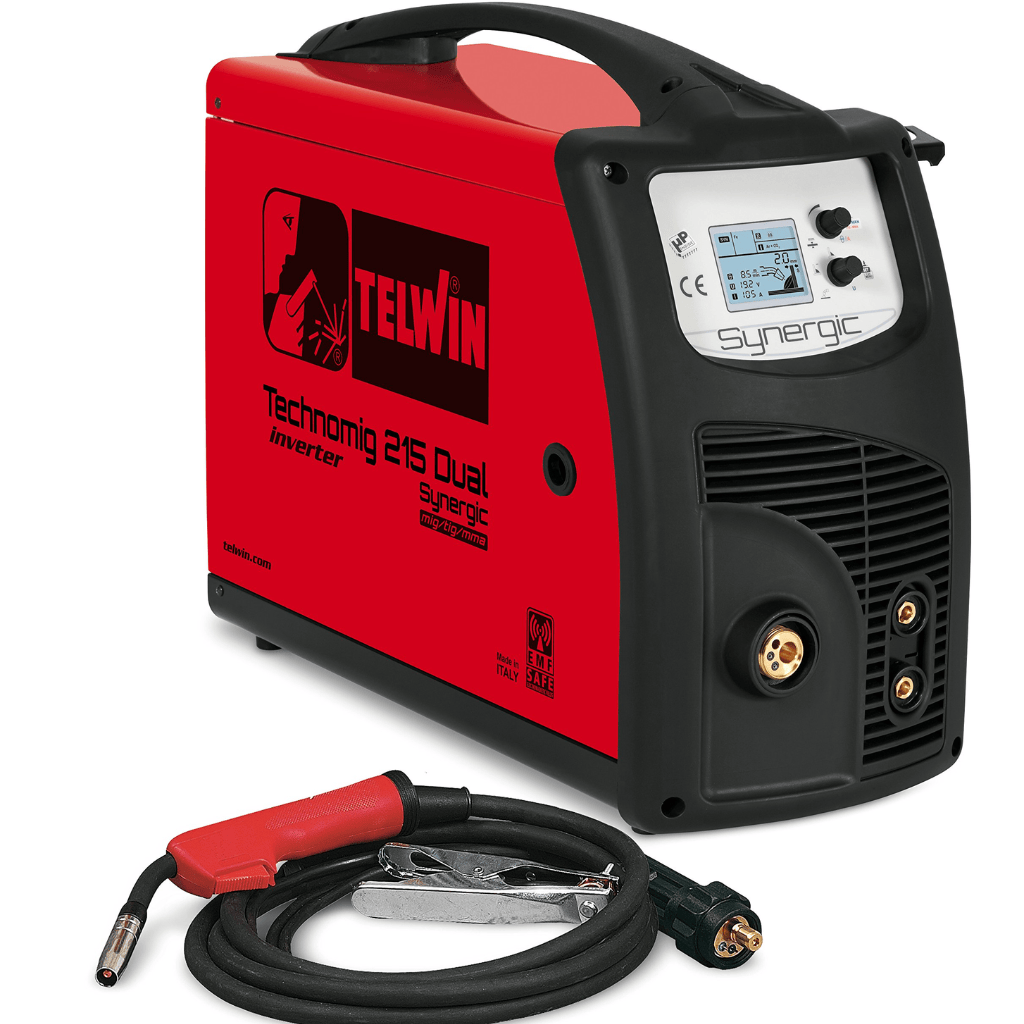

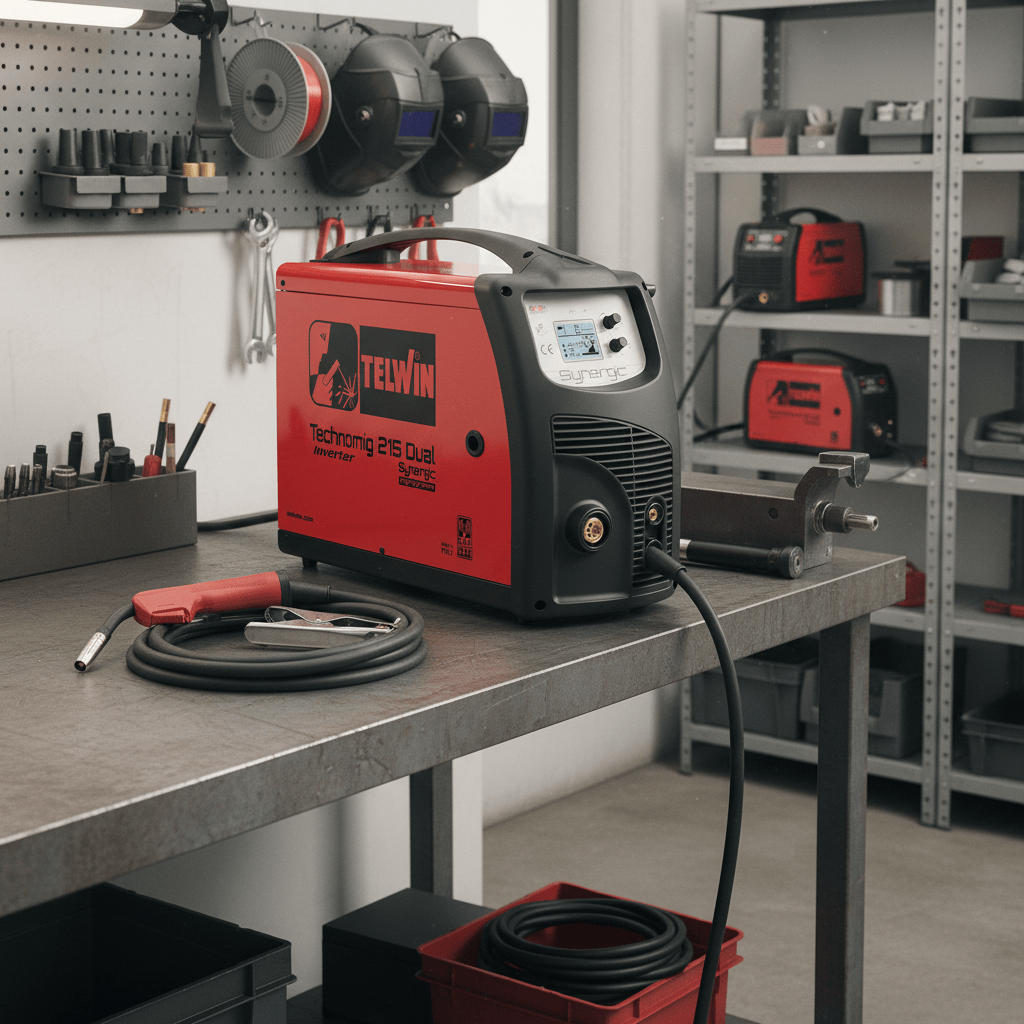

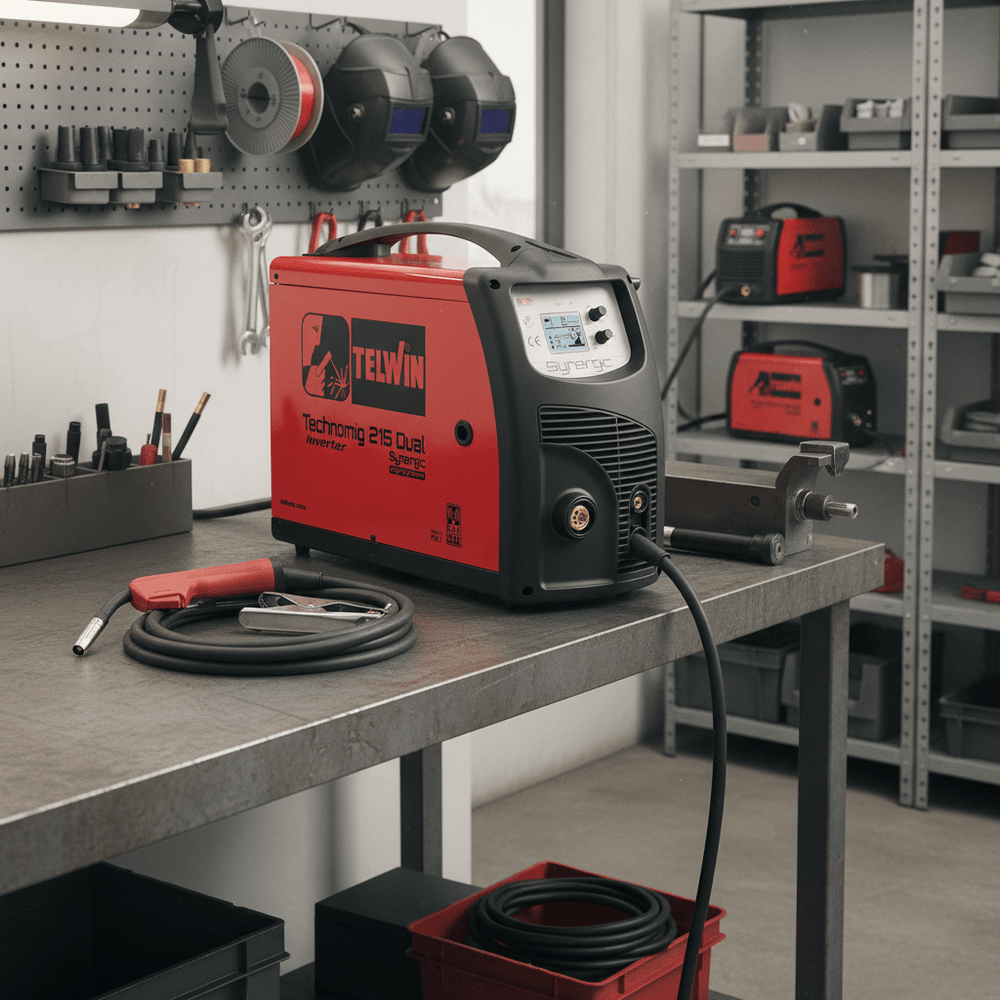

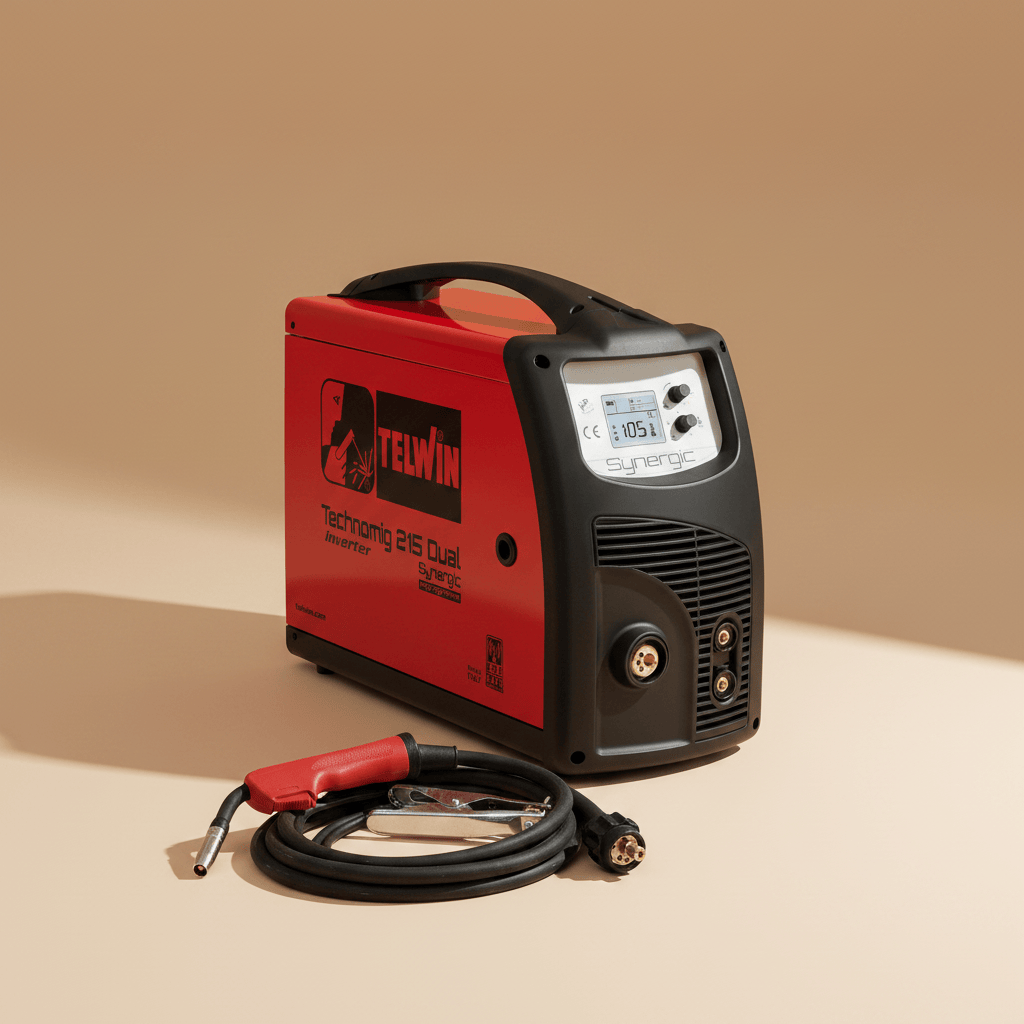

Telwin Technomig 215 DUAL SYNERGIC 220A Multiprocess MIG-MAG, Flux, Brazing, MMA & TIG DC-Lift Inverter Welding Machine 230V with Europa Trolley - TEL-816476
Telwin Technomig 215 DUAL SYNERGIC 220A Multiprocess MIG-MAG, Flux, Brazing, MMA & TIG DC-Lift Inverter Welding Machine 230V with Europa Trolley - TEL-816476 is available on backorder and will be fulfilled once restocked.
Complete your purchase
Useful add-ons for this product.
Telwin Technomig 215 DUAL SYNERGIC 220A Multiprocess MIG-MAG, Flux,...
Telwin Technomig 215 DUAL SYNERGIC 220A Multiprocess MIG-MAG, Flux, Brazing, MMA & TIG DC-Lift Inverter Welding Machine 230V with Europa Trolley - TEL-816476 is available on backorder and will be fulfilled once restocked.
Product details
Product details
The Telwin Technomig 215 DUAL SYNERGIC Multiprocess MIG-MAG, Flux, Brazing, MMA & TIG DC-Lift Inverter Welding Machine with Europa Trolley (TEL-816476) is a microprocessor-controlled 230V single-phase DC multiprocess inverter welder supporting MIG-MAG, Gasless Flux-Cored, MIG Brazing, MMA, and TIG DC-Lift welding processes with an adjustable current range of 20–220A. Rated at 180A at 20% duty cycle, 135A at 35%, and 100A at 60% duty cycle, it features OneTouch LCD Synergy control with up to 27 preset synergic welding curves, ATC Advanced Thermal Control, 2T/4T/Spot MIG modes, VRD safety, and generator compatibility. Supplied complete with the Telwin Europa Trolley (803073) for convenient workshop mobility with gas cylinder support.
Key Features:
- 5-in-1 Multiprocess Welding — Supports MIG-MAG, Gasless Flux-Cored, MIG Brazing, MMA, and TIG DC-Lift welding processes in a single 230V single-phase inverter unit.
- OneTouch LCD Synergy Control — Intuitive OneTouch LCD interface with up to 27 preset synergic welding curves for automatic coordination of welding parameters across wire types and material thicknesses.
- ATC Advanced Thermal Control — Advanced thermal management system for optimised performance and protection during sustained welding sessions.
- 2T, 4T & Spot MIG Modes — Selectable 2-stroke, 4-stroke, and spot welding trigger modes for versatility across tack welding, seam welding, and spot welding applications.
- MIG Brazing for Galvanised Sheet Metal — MIG Brazing process enables joining of galvanised sheet metal with minimal zinc burn-off for automotive and bodywork applications.
- VRD Safety Function — Voltage Reduction Device for enhanced operator safety during MMA welding.
- Generator Compatible — Compatible with generators with approximately ±15% voltage variation for site and field deployment.
- Wide Wire Compatibility — Supports steel (0.6–1mm), stainless steel (0.8–1mm), aluminium (0.8–1mm), flux-cored (0.8–1.2mm), and brazing wire (0.8–1mm).
- Large Spool Capacity — Accepts 200mm and 300mm diameter spools up to 15kg for extended production runs.
- Supplied with Europa Trolley (803073) — Includes the Telwin Europa Trolley with two large transport wheels, machine platform, and rear gas cylinder support (94 × 48 × 118cm, ~16.7kg) for convenient workshop mobility.
Technical Specifications:
- Product Type: Multiprocess Inverter Welding Machine
- Control System: Microprocessor Controlled
- Welding Processes: MIG-MAG, Flux, Brazing, MMA and TIG DC-Lift
- Welding Current Type: Direct Current
- Mains Voltage: 230V Single Phase
- Mains Frequency: 50/60Hz
- Welding-Current Range: 20–220A
- Maximum Rated Output: 180A at 20% Duty Cycle
- Output at 35% Duty Cycle: 135A
- Output at 60% Duty Cycle: 100A
- Maximum No-Load Voltage: 78V
- Maximum Absorbed Current: 31A
- Absorbed Current at 60%: 15A
- Maximum Absorbed Power: 5kW
- Absorbed Power at 60%: 2.2kW
- Efficiency: 84%
- Power Factor: 0.7
- MMA Electrode Diameter: 1.6–3.2mm
- Steel-Wire Diameter: 0.6–1mm
- Stainless-Steel Wire Diameter: 0.8–1mm
- Aluminium-Wire Diameter: 0.8–1mm
- Flux-Cored Wire Diameter: 0.8–1.2mm
- Brazing-Wire Diameter: 0.8–1mm
- Compatible Spool Diameters: 200mm and 300mm
- Maximum Spool Weight: 15kg
- Synergic Programs: Up to 27 Preset Curves
- MMA Functions: Arc Force, Hot Start, Anti-Stick and VRD
- MIG Operating Modes: 2-Stroke, 4-Stroke and Spot Welding
- Generator Compatibility: Yes, with approximately ±15% voltage variation
- Insulation Class: F
- Protection Rating: IP23
- Machine Dimensions: 62 × 26 × 49cm
- Machine Weight: Approximately 21.8kg
Included Telwin Europa Trolley (803073):
- Two Large Transport Wheels
- Platform for the Welding Machine
- Rear Support for a Compatible Gas Cylinder
- Overall Dimensions: 94 × 48 × 118cm
- Weight: Approximately 16.7kg
The Telwin Technomig 215 DUAL SYNERGIC is a professional multiprocess inverter welder that consolidates MIG-MAG, Flux-Cored, MIG Brazing, MMA, and TIG DC-Lift capability into a single 230V unit with OneTouch LCD Synergy control, 27 preset curves, ATC thermal management, and VRD safety. Supplied complete with the Europa Trolley for convenient workshop mobility and gas cylinder support, it is a comprehensive, user-friendly, and versatile welding solution for automotive bodywork, general fabrication, aluminium welding, and galvanised sheet brazing. A feature-rich professional multiprocess welding system built to Telwin's exacting standards.
