Telwin Technology 238 CE/MPGE Professional 180A MMA & TIG Inver...
Telwin Technology 238 CE/MPGE Professional 180A MMA & TIG Inverter Welding Machine - TEL-816213 is available on backorder and will be fulfilled once restocked.
Product details
Product details

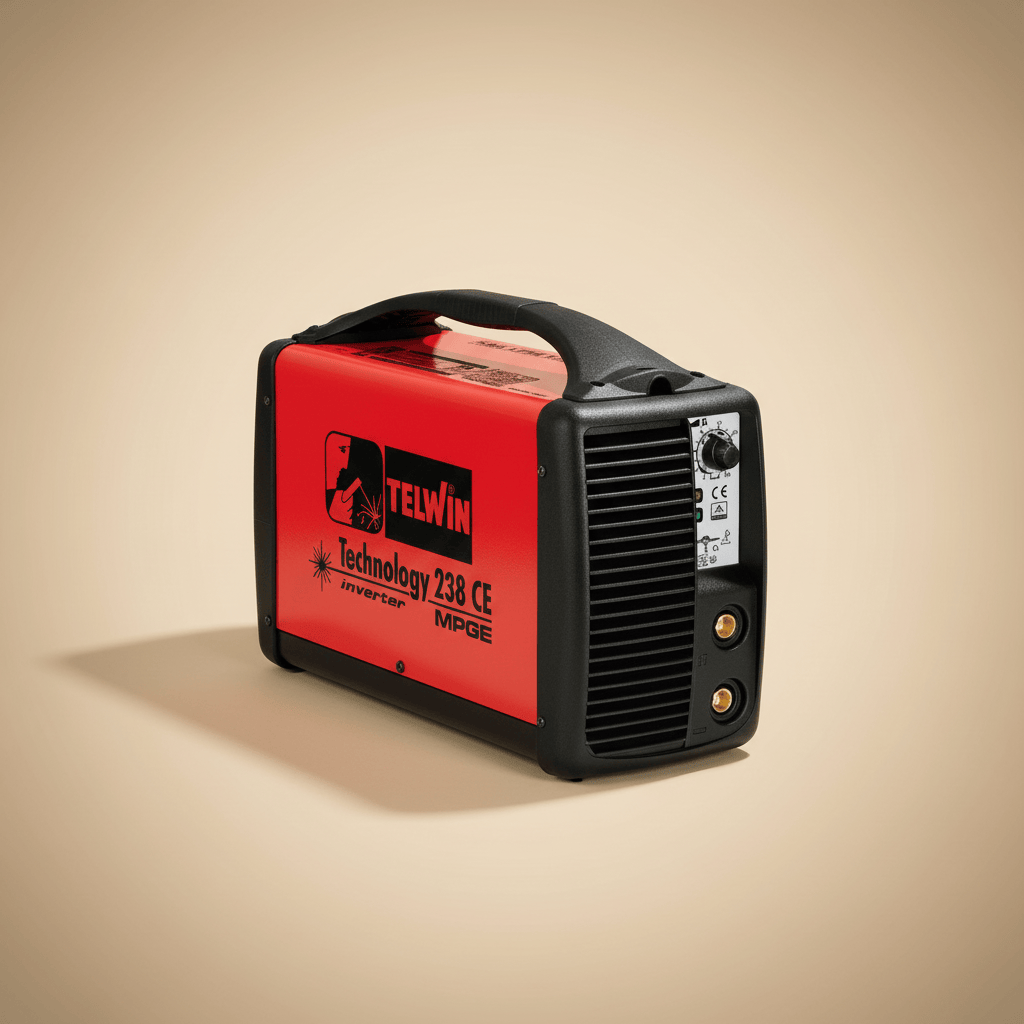

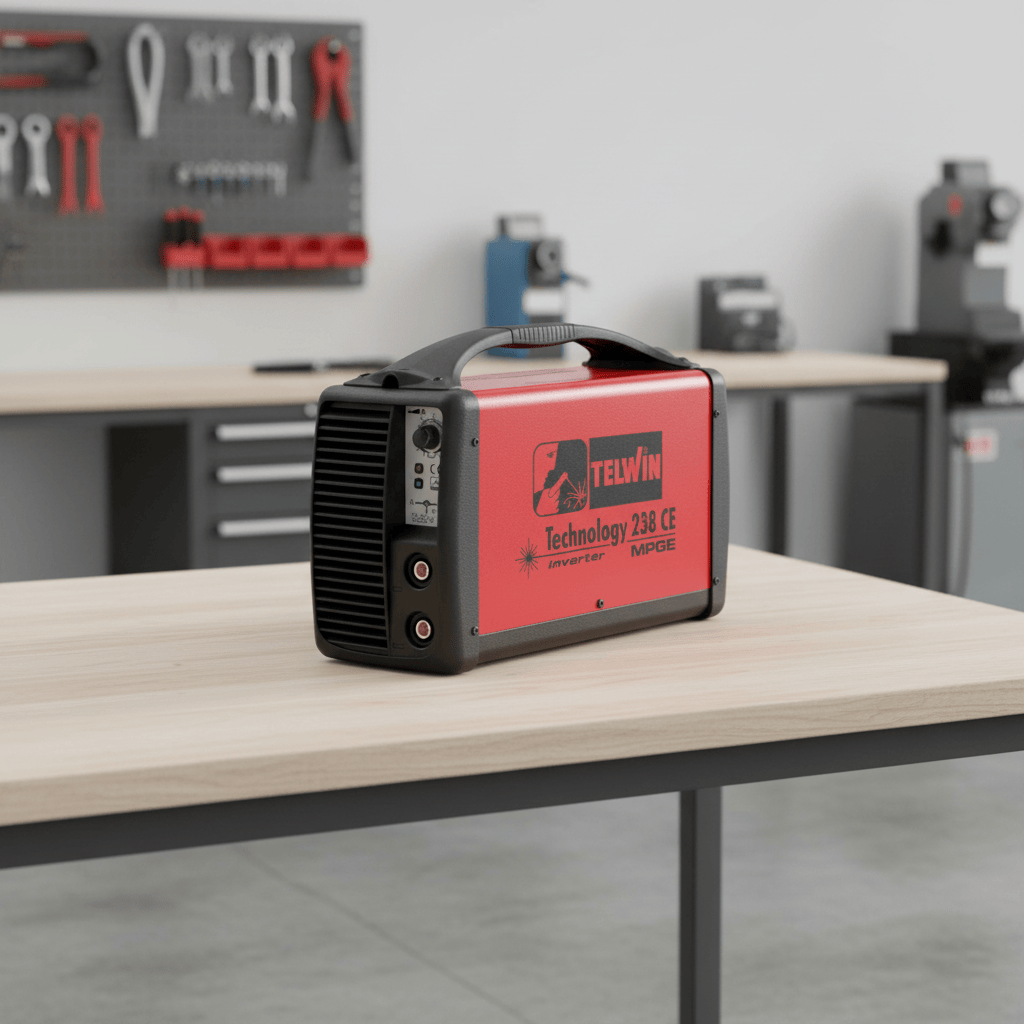

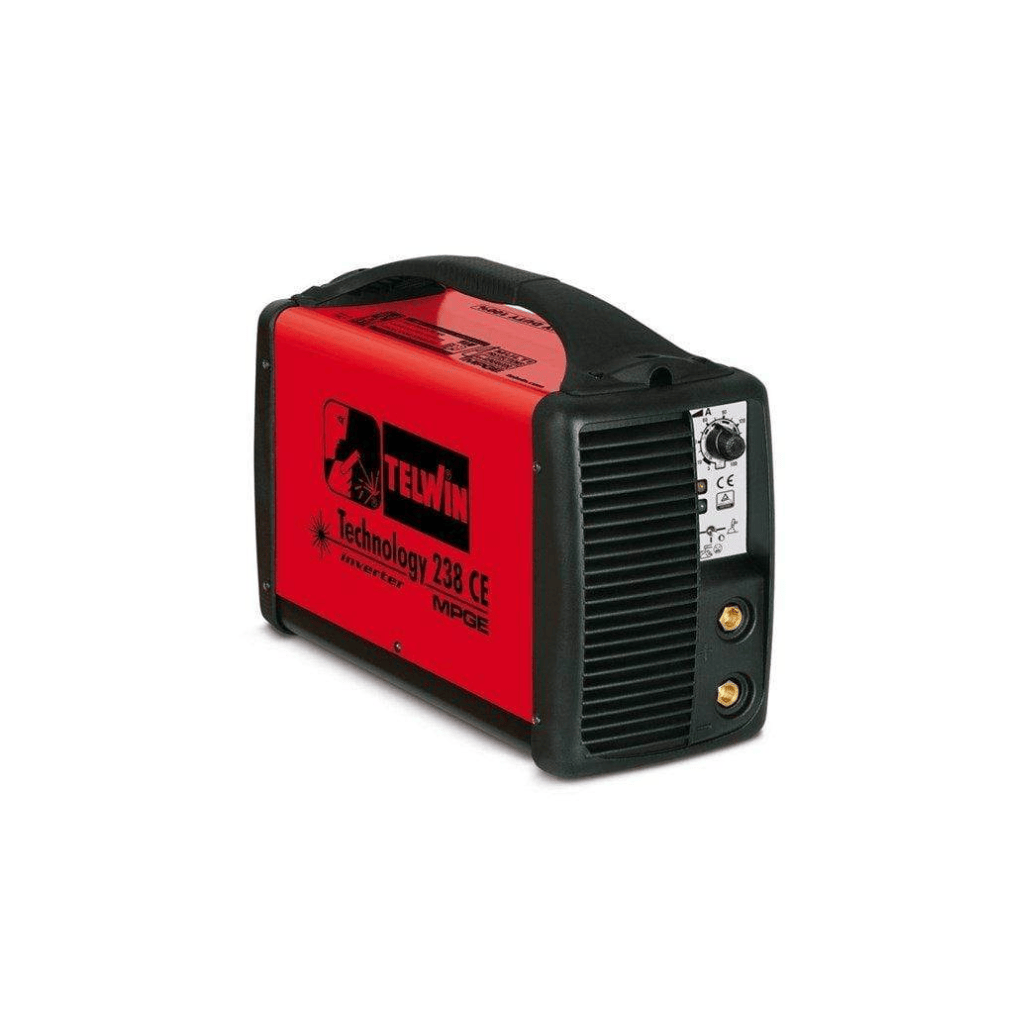

The Telwin Technology 238 CE/MPGE Professional MMA & TIG Inverter Welding Machine (TEL-816213) is a versatile 230V single-phase DC inverter welder delivering up to 180A at 35% duty cycle and 140A at 60% duty cycle, with an adjustable current range of 5–180A. Supporting both MMA stick welding and TIG scratch-start arc ignition, it accepts electrodes from 1.6mm to 4mm across cellulose, aluminium, rutile, basic, stainless steel, and cast iron types. Equipped with the MPGE Multiprotection System for generator compatibility and featuring Arc Force, Hot Start, and Anti-Stick functions, it is a reliable and portable professional welding solution for general fabrication, construction, and structural-steel welding.
Key Features:
- MMA & TIG Scratch-Start Dual Process — Supports both MMA stick welding and TIG scratch-start ignition for versatility across fabrication, construction, and installation welding tasks.
- 180A at 35% Duty Cycle — Full rated output for demanding welding applications, with 140A sustained output at 60% duty cycle for extended welding sessions.
- 5–180A Adjustable Welding Current — Wide current range for precise control from thin sheet metal through to structural steel components.
- MPGE Multiprotection System — Generator protection system ensures reliable, safe operation when powered by a compatible generator with a minimum recommended output of 9kW.
- Broad Electrode Compatibility — Accepts cellulose, aluminium, rutile, basic, stainless steel, and cast iron electrodes from 1.6mm to 4mm diameter.
- 84% Efficiency — High inverter efficiency reduces energy consumption in workshop and site environments.
- Arc Force Control — Automatically adjusts current to maintain a stable arc and prevent electrode sticking during welding.
- Hot Start Function — Momentary current boost on arc ignition for easier, more reliable electrode striking.
- Anti-Stick Function — Reduces output current if the electrode sticks, protecting the electrode and workpiece from damage.
- Generator Compatible — Minimum recommended generator power of 9kW for reliable site and field deployment.
Technical Specifications:
- Product Type: MMA and TIG Inverter Welding Machine
- Welding Current Type: Direct Current
- Mains Voltage: 230V, Single Phase
- Mains Frequency: 50/60Hz
- Welding-Current Range: 5–180A
- Maximum Welding Current: 180A at 35% Duty Cycle
- Welding Current at 60%: 140A
- Maximum No-Load Voltage: 102V
- Maximum Absorbed Current: 36A
- Absorbed Current at 60%: 27A
- Maximum Absorbed Power: 6kW
- Absorbed Power at 60%: 4.3kW
- Minimum Recommended Generator Power: 9kW
- Efficiency: 84%
- Power Factor: 0.7
- Electrode Diameter Range: 1.6–4mm
- Compatible Electrodes: Cellulose, Aluminium, Rutile, Basic, Stainless Steel and Cast Iron
- TIG Ignition: Scratch Start
- Functions: Arc Force, Hot Start and Anti-Stick
- Generator Protection: MPGE Multiprotection System
- Protection Rating: IP23
- Dimensions: 35.5 × 46.5 × 18.5cm
- Weight: Approximately 10.1kg
The Telwin Technology 238 CE/MPGE is a professional single-phase MMA and TIG inverter welder that combines reliable arc performance with generator compatibility via the MPGE Multiprotection System — making it equally capable in a workshop or on a construction site. Its 180A output, broad electrode compatibility, and intelligent arc control functions make it a dependable choice for fabricators, construction professionals, and maintenance engineers. A versatile, site-ready welding solution built to Telwin's CE-certified professional standards.
