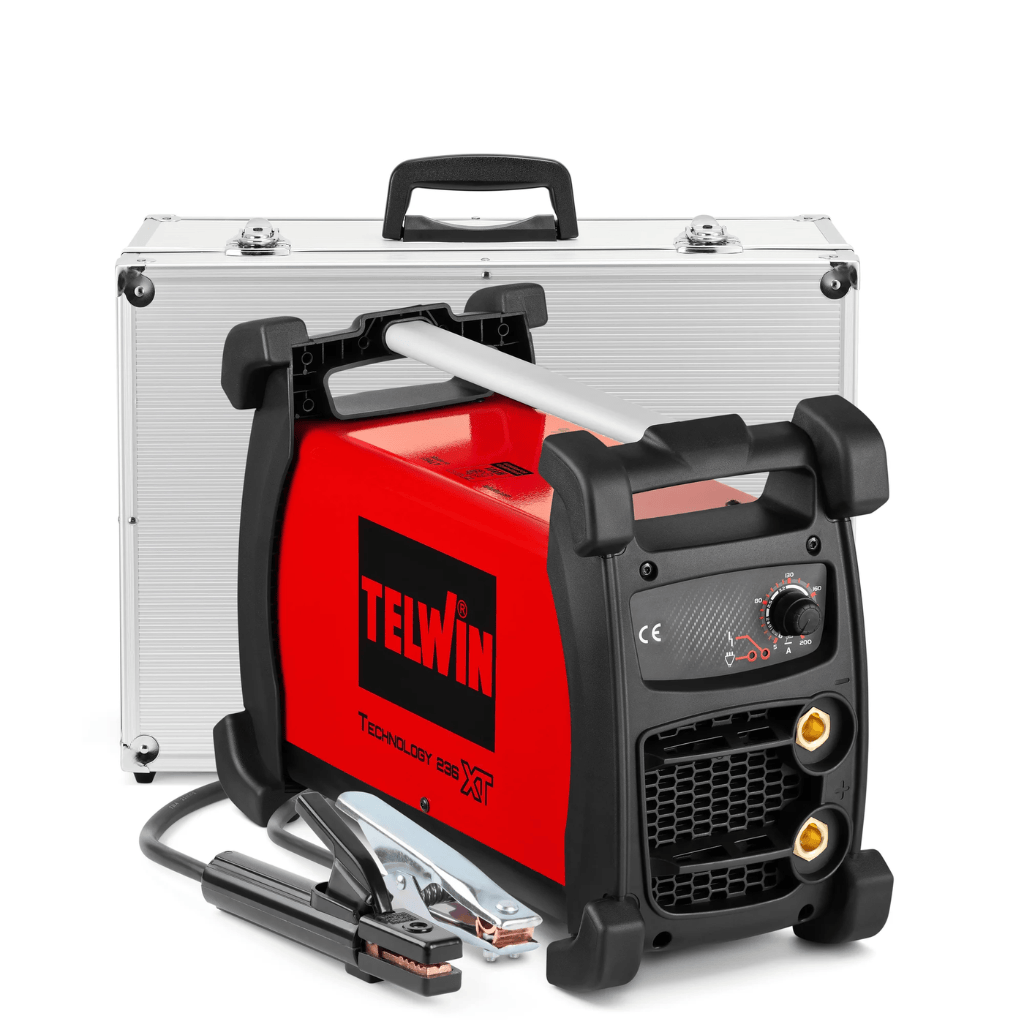

Telwin Technology 236 XT 200A MMA & TIG DC Inverter Welding Machine 230V with Aluminium Case - TEL-816251

The Telwin Technology 236 XT MMA & TIG DC Inverter Welding Machine with Aluminium Case (TEL-816251) is a professional 230V single-phase DC inverter welder supporting both MMA stick welding and TIG scratch-start arc ignition with an adjustable current range of 5–200A. Rated at 200A at 35% duty cycle and 140A at 60% duty cycle, it features Arc Force, Hot Start, Anti-Stick, 89% efficiency, 50mm quick connectors, Class F insulation, and an IP23 protection rating. Generator compatible from 10kW with ±15% voltage variation tolerance, it is supplied in a robust aluminium carry case for professional portability.

Key Features:

• MMA & TIG Scratch-Start Dual Process — Supports both MMA stick welding and TIG scratch-start ignition for versatility across professional fabrication, construction, and maintenance welding tasks.
• 5–200A Adjustable Welding Current — Wide current range for precise control from thin sheet metal through to structural components with electrodes from 1.6mm to 4mm.
• 200A at 35% / 140A at 60% Duty Cycle — Higher output ratings than the Technology 186 XT MPGE for more demanding professional welding applications.
• Generator Compatible — Minimum generator power of 10kW with ±15% voltage variation tolerance for reliable site and field deployment.
• 89% Efficiency — High inverter efficiency minimises energy consumption in workshop and site environments.
• 50mm Quick Connectors — Standard 50mm quick-connect cable connectors for fast, secure welding cable attachment.
• Arc Force Control — Automatically adjusts current to maintain a stable arc and prevent electrode sticking.
• Hot Start Function — Momentary current boost on arc ignition for easier, more reliable electrode striking.
• Anti-Stick Function — Reduces output current if the electrode sticks, protecting the electrode and workpiece.
• Class F Insulation — High-grade insulation for safe, durable performance under demanding welding conditions.
• Supplied with Aluminium Case — Robust aluminium carry case for professional transport and storage protection.

Technical Specifications:

• Product Type: MMA and TIG DC Inverter Welding Machine
• Welding Processes: MMA and TIG
• Welding Current Type: Direct Current
• TIG Ignition: Scratch Start
• Mains Voltage: 230V Single Phase
• Mains Frequency: 50/60Hz
• Welding-Current Range: 5–200A
• Maximum Rated Output: 200A at 35% Duty Cycle
• Output at 60% Duty Cycle: 140A
• Maximum No-Load Voltage: 60V
• Maximum Absorbed Current: 38A
• Absorbed Current at 60%: 22A
• Maximum Absorbed Power: 6kW
• Absorbed Power at 60%: 3.3kW
• Minimum Generator Power: 10kW
• Permitted Generator Voltage Variation: ±15%
• Efficiency: 89%
• Power Factor: 0.7
• Electrode Diameter Range: 1.6–4mm
• Compatible Electrodes: Rutile, Basic, Stainless Steel and Cast Iron
• MMA Functions: Arc Force, Hot Start and Anti-Stick
• Cable Connectors: 50mm Quick Connectors
• Insulation Class: F
• Protection Rating: IP23
• Dimensions: 37.5 × 50 × 22cm
• Weight: 10.6kg

The Telwin Technology 236 XT steps up from the 186 XT MPGE with a higher 200A output ceiling and 140A at 60% duty cycle, making it the preferred choice for more demanding professional fabrication, construction, and maintenance welding applications. Supplied with a robust aluminium carry case and generator compatible from 10kW, it is a portable, professional-grade MMA and TIG welding solution built to Telwin's quality standards.
