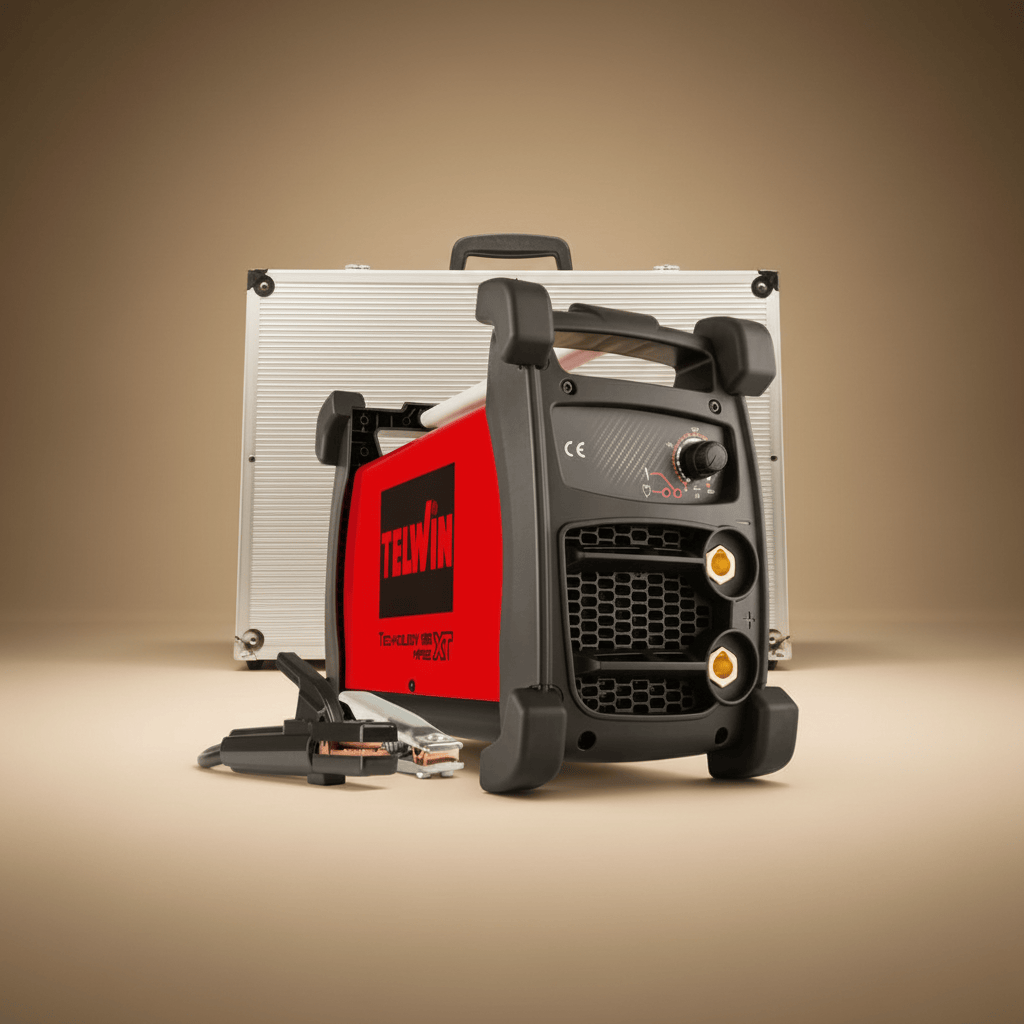

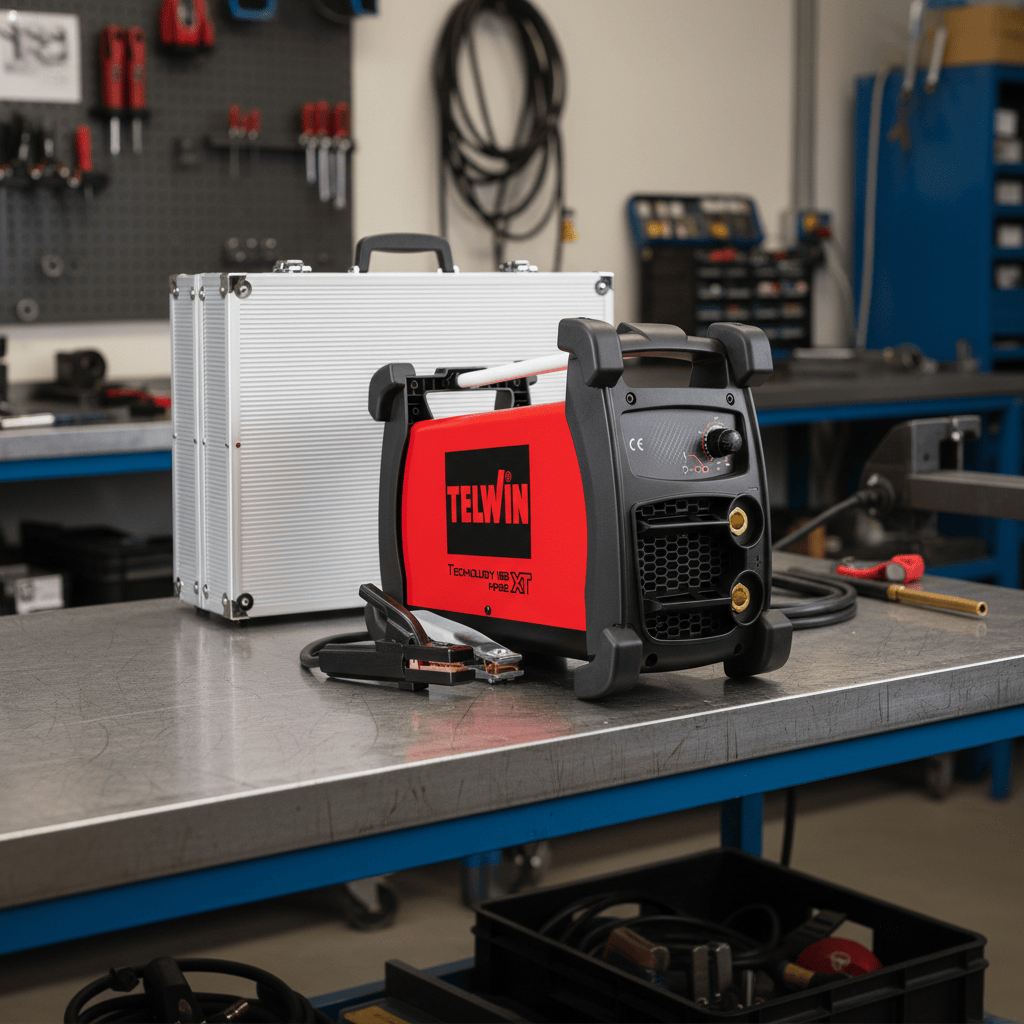

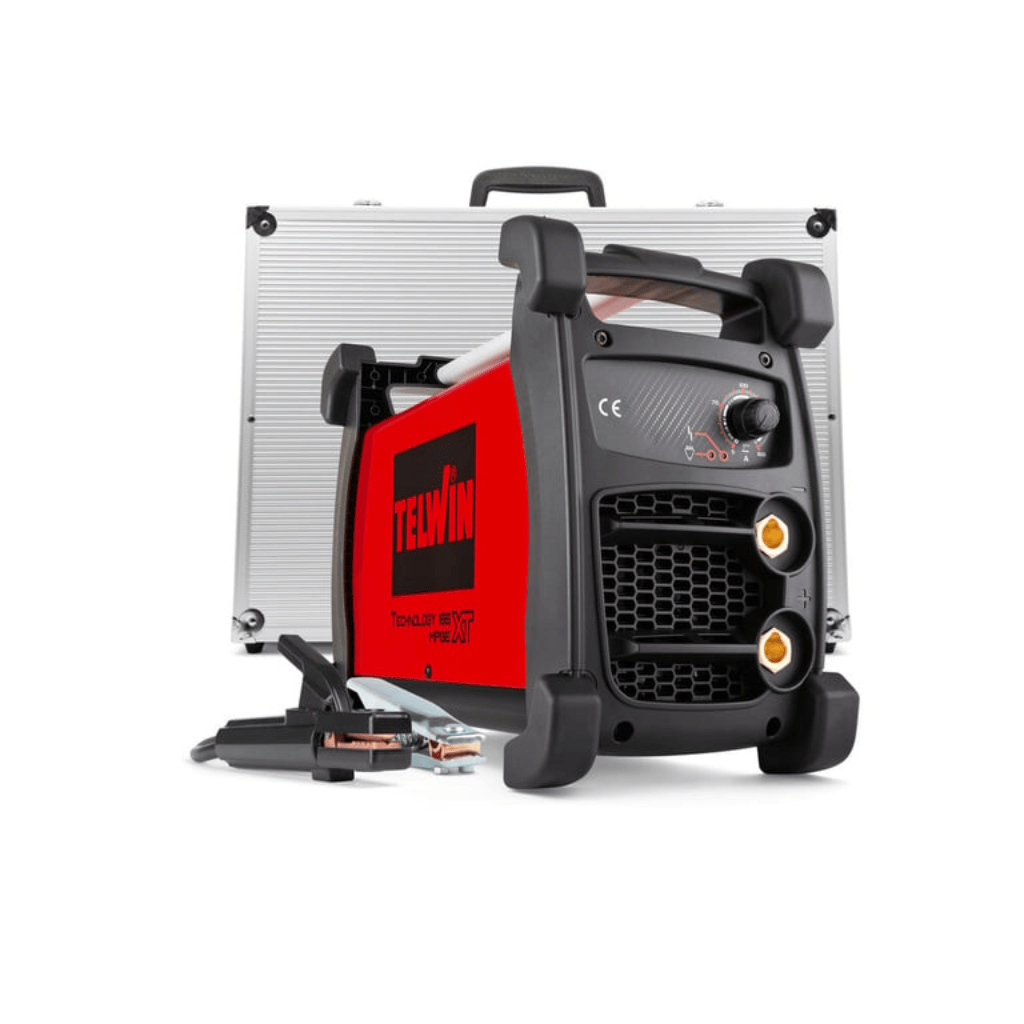

Telwin Technology 186 XT MPGE 160A MMA & TIG DC Inverter Welding Machine 230V with Aluminium Case - TEL-816250

The Telwin Technology 186 XT MPGE MMA & TIG DC Inverter Welding Machine with Aluminium Case (TEL-816250) is a compact and capable 230V single-phase DC inverter welder supporting both MMA stick welding and TIG scratch-start arc ignition with an adjustable current range of 5–160A. Rated at 160A at 35% duty cycle and 120A at 60% duty cycle, it features the MPGE Multi Protection for Generator system for reliable operation with compatible generators from 7kW with ±15% voltage variation tolerance. With Arc Force, Hot Start, Anti-Stick, 90% efficiency, 50mm quick connectors, and an IP23 protection rating, it is supplied in a robust aluminium carry case for professional portability.

Key Features:

• MMA & TIG Scratch-Start Dual Process — Supports both MMA stick welding and TIG scratch-start ignition for versatility across fabrication, construction, and maintenance welding tasks.
• 5–160A Adjustable Welding Current — Wide current range for precise control from thin sheet metal through to structural components with electrodes from 1.6mm to 4mm.
• MPGE Multi Protection for Generator — Generator protection system ensures reliable, safe operation with compatible generators from 7kW with ±15% voltage variation tolerance.
• 90% Efficiency — Exceptional inverter efficiency minimises energy consumption in workshop and site environments.
• 50mm Quick Connectors — Standard 50mm quick-connect cable connectors for fast, secure welding cable attachment.
• Arc Force Control — Automatically adjusts current to maintain a stable arc and prevent electrode sticking.
• Hot Start Function — Momentary current boost on arc ignition for easier, more reliable electrode striking.
• Anti-Stick Function — Reduces output current if the electrode sticks, protecting the electrode and workpiece.
• Supplied with Aluminium Case — Robust aluminium carry case for professional transport and storage protection.
• IP23 Protection Rating — Suitable for indoor and outdoor sheltered welding environments.

Technical Specifications:

• Product Type: MMA and TIG DC Inverter Welding Machine
• Welding Processes: MMA and TIG
• Welding Current Type: Direct Current
• TIG Ignition: Scratch Start
• Mains Voltage: 230V Single Phase
• Mains Frequency: 50/60Hz
• Welding-Current Range: 5–160A
• Maximum Rated Output: 160A at 35% Duty Cycle
• Output at 60% Duty Cycle: 120A
• Maximum No-Load Voltage: 60V
• Maximum Absorbed Current: 32A
• Absorbed Current at 60%: 18A
• Maximum Absorbed Power: 5kW
• Absorbed Power at 60%: 2.7kW
• Minimum Generator Power: 7kW
• Permitted Generator Voltage Variation: ±15%
• Efficiency: 90%
• Power Factor: 0.7
• Electrode Diameter Range: 1.6–4mm
• Compatible Electrodes: Rutile, Basic, Stainless Steel and Cast Iron
• MMA Functions: Arc Force, Hot Start and Anti-Stick
• Cable Connectors: 50mm Quick Connectors
• Protection Rating: IP23
• Dimensions: 37.5 × 50 × 22cm
• Weight: 10.1kg

The Telwin Technology 186 XT MPGE is a professional MMA and TIG scratch-start inverter welder that combines 90% efficiency, MPGE generator protection, and reliable arc control in a compact package supplied with a robust aluminium carry case. Its 7kW generator compatibility and ±15% voltage tolerance make it equally capable in a workshop or on a remote construction or agricultural site. A portable, professional-grade welding solution built to Telwin's quality standards.
