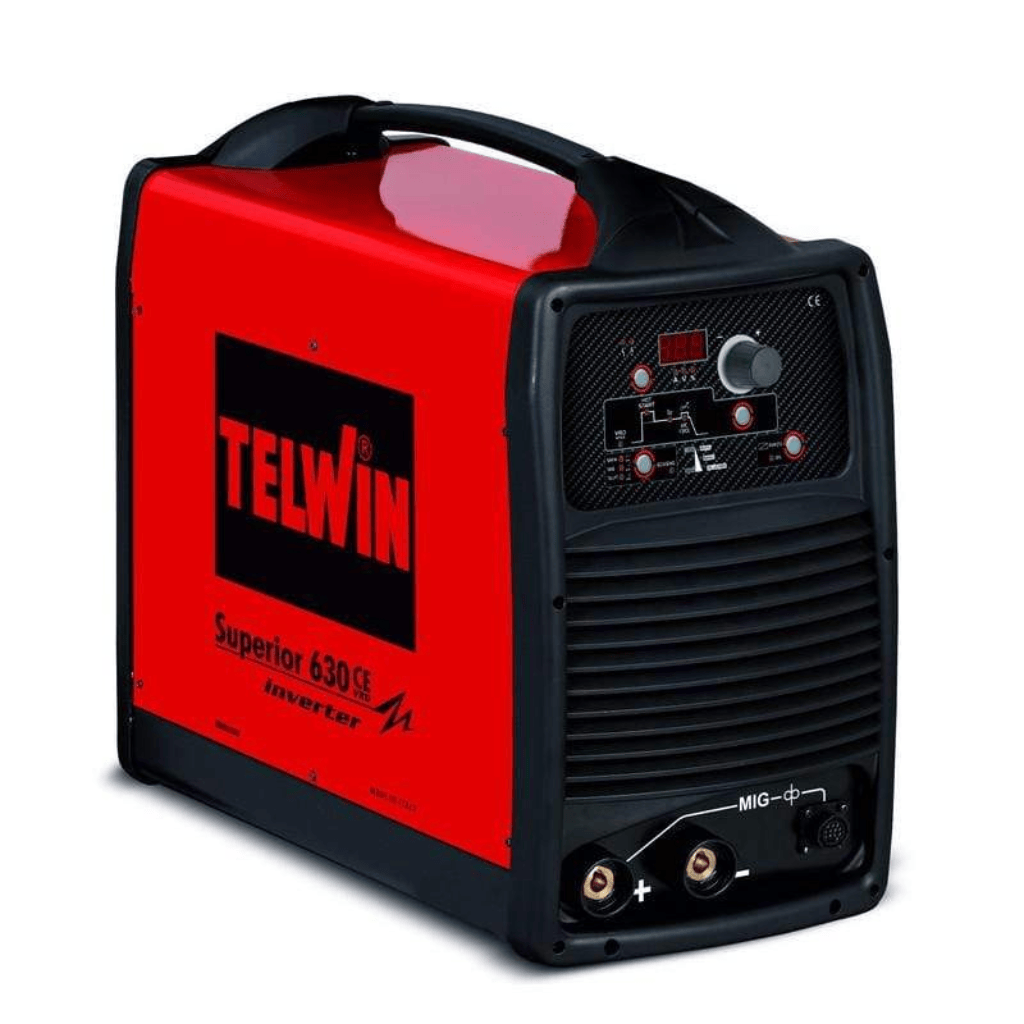

Telwin Superior 630 CE VRD Professional 500A MMA, TIG DC-Lift & Gouging Inverter Welding Machine 230V/400V with 600A MMA Kit - TEL-852057

The Telwin Superior 630 CE VRD Professional MMA, TIG DC-Lift & Gouging Inverter Welding Machine with 600A MMA Kit (TEL-852057) is a top-tier industrial 230V/400V three-phase DC multiprocess inverter welder supporting MMA, TIG DC-Lift, and Carbon-Arc Gouging, with optional MIG-MAG and Flux-Cored capability via additional equipment. Rated at 500A at 40% duty cycle on 400V and 400A at 35% duty cycle on 230V, it delivers 400A at 60% on 400V and 300A at 60% on 230V, with a current range of 10–600A on 400V and 10–450A on 230V. With adjustable Arc Force and Hot Start, Anti-Stick, VRD safety, alarm memory, remote-control connection, and support for cellulosic, rutile, basic, stainless steel, cast iron, and aluminium-coated electrodes from 1.6mm to 8mm, it is the definitive professional welding solution for heavy industrial fabrication, structural steel, and pipeline applications.

Key Features:

• MMA, TIG DC-Lift & Carbon-Arc Gouging — Three-process capability with optional MIG-MAG and Flux-Cored welding via additional equipment for maximum industrial process versatility.
• 500A at 40% Duty Cycle on 400V — Exceptional rated output with 400A at 60% duty cycle on 400V for sustained heavy industrial welding and gouging sessions.
• 10–600A on 400V / 10–450A on 230V — The widest current range in the Superior CE VRD series for precise control across all electrode sizes and the most demanding applications.
• 1.6–8mm Electrode Compatibility — Supports the full range of electrode diameters from 1.6mm to 8mm including cellulosic, rutile, basic, stainless steel, cast iron, and aluminium-coated types.
• VRD Voltage Reduction Device — Reduces no-load voltage between welds for enhanced operator safety in confined, damp, or pipeline environments.
• Cellulosic Electrode Support — Compatible with cellulosic electrodes for pipeline and vertical-down welding applications.
• Adjustable Arc Force & Hot Start — Fine-tunable arc control functions for optimised arc stability and electrode ignition across all supported electrode types.
• Alarm Memory — Stores machine alarms for fault diagnosis and maintenance tracking in industrial environments.
• Remote-Control Connection — Remote control socket for convenient current adjustment from the welding position.
• 86% Efficiency & 0.9 Power Factor — High efficiency and near-unity power factor minimise energy consumption and reactive power draw in demanding industrial environments.
• Supplied with 600A MMA Welding Kit — Complete ready-to-weld setup for immediate heavy-duty deployment.

Technical Specifications:

• Product Type: Industrial Multiprocess Inverter Welding Machine
• Welding Processes: MMA, TIG DC-Lift and Carbon-Arc Gouging
• Additional Processes (Optional Equipment): MIG-MAG and Flux-Cored Welding
• Welding Current Type: Direct Current
• Mains Voltage: 230V/400V, Three Phase
• Mains Frequency: 50/60Hz
• Current Range at 230V: 10–450A
• Current Range at 400V: 10–600A
• Maximum Rated Output at 230V: 400A at 35% Duty Cycle
• Maximum Rated Output at 400V: 500A at 40% Duty Cycle
• Output at 60% on 230V: 300A
• Output at 60% on 400V: 400A
• Maximum No-Load Voltage at 230V: 65V
• Maximum No-Load Voltage at 400V: 73V
• Maximum Absorbed Power at 230V: 16kW
• Maximum Absorbed Power at 400V: 23kW
• Minimum Generator Power at 230V: 22kW
• Minimum Generator Power at 400V: 32kW
• Efficiency: 86%
• Power Factor: 0.9
• Electrode Diameter Range: 1.6–8mm
• Compatible Electrodes: Cellulosic, Rutile, Basic, Stainless Steel, Cast Iron and Aluminium-Coated
• MMA Functions: Adjustable Arc Force, Adjustable Hot Start and Anti-Stick
• TIG Ignition: DC Lift Arc
• Safety Function: VRD
• Alarm Memory: Yes
• Remote-Control Connection: Yes
• Insulation Class: F
• Protection Rating: IP23
• Dimensions: 67 × 31 × 56cm
• Weight: 43kg

The Telwin Superior 630 CE VRD is the flagship of the Superior CE VRD series — a professional industrial multiprocess inverter welder delivering 500A output, 10–600A range, 1.6–8mm electrode compatibility, and Carbon-Arc Gouging capability with VRD safety and remote control. Supplied with a 600A MMA welding kit, it is ready for immediate deployment in the most demanding heavy industrial fabrication, structural steel, and pipeline welding environments. The definitive professional welding solution for operations where maximum current capacity, process versatility, and safety are non-negotiable.
