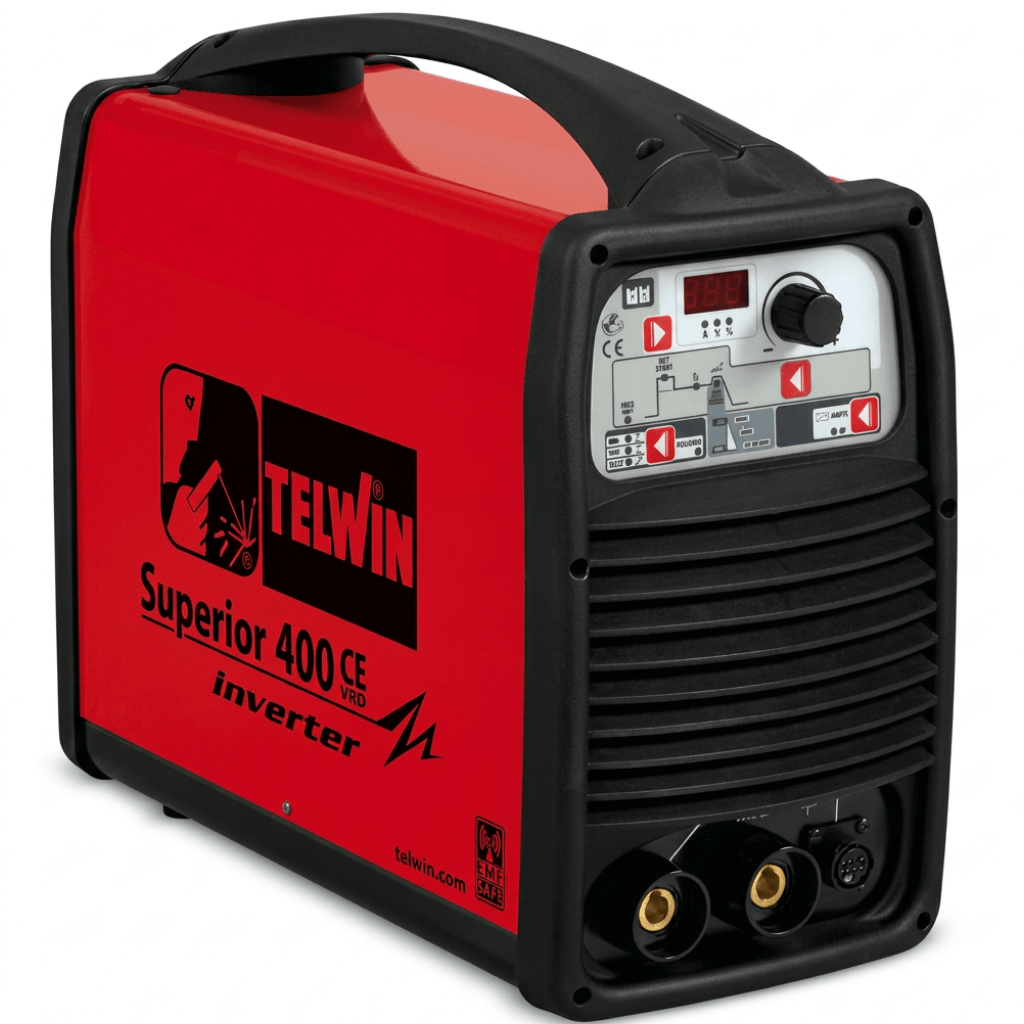

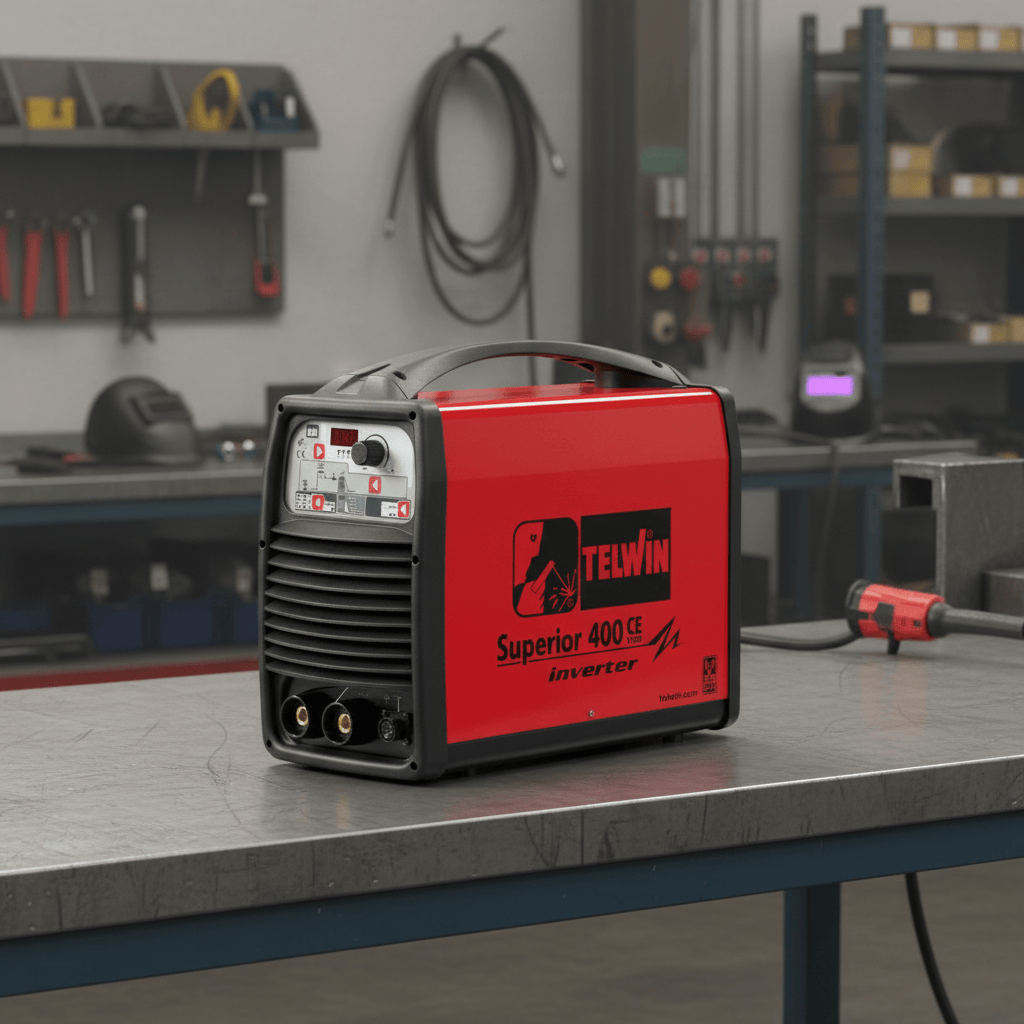

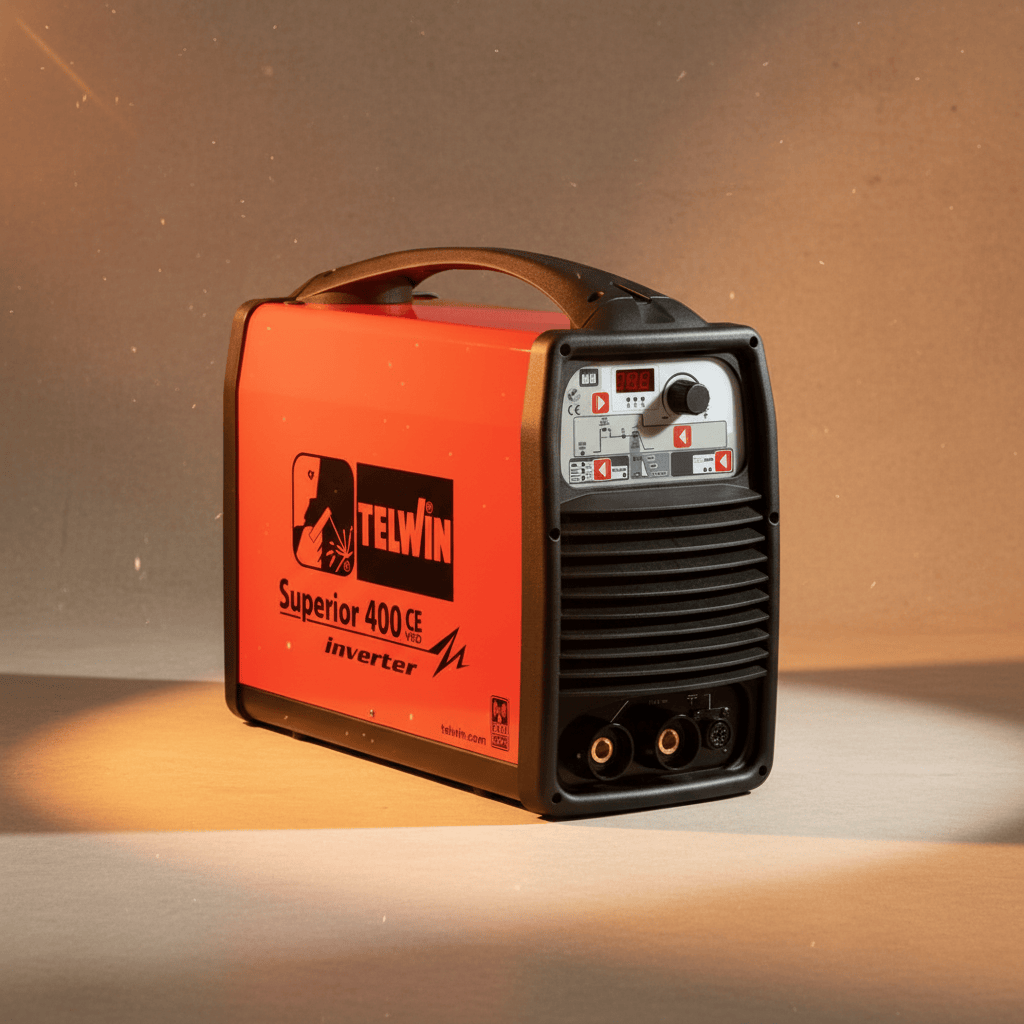

Telwin Superior 400 CE VRD Professional 350A MMA, TIG DC-Lift & Gouging Inverter Welding Machine 230V/400V with 400A MMA Kit - TEL-816034

The Telwin Superior 400 CE VRD Professional MMA, TIG DC-Lift & Gouging Inverter Welding Machine with 400A MMA Kit (TEL-816034) is a high-output 230V/400V three-phase DC multiprocess inverter welder supporting MMA, TIG DC-Lift, and Carbon-Arc Gouging, with optional MIG-MAG and Flux-Cored capability via additional equipment. Rated at 330A at 35% duty cycle on 400V and 250A at 35% duty cycle on 230V, it delivers 230A at 60% on 400V and 170A at 60% on 230V. With adjustable Arc Force and Hot Start, Anti-Stick, VRD safety, remote-control connection, alarm memory for the last 10 alarms, and support for cellulosic, rutile, basic, stainless steel, cast iron, and aluminium-coated electrodes from 1.6mm to 6mm, it is supplied complete with the Telwin 400A MMA Welding Kit (801093) for immediate professional use.

Key Features:

• MMA, TIG DC-Lift & Carbon-Arc Gouging — Three-process capability in a single unit, with optional MIG-MAG and Flux-Cored welding via additional equipment for maximum process versatility.
• 330A at 35% Duty Cycle on 400V — High rated output with 230A at 60% duty cycle on 400V for sustained professional welding and gouging sessions.
• 10–350A on 400V / 10–300A on 230V — Wide adjustable current range for precise control from thin sheet metal through to heavy structural and pipeline components.
• VRD Voltage Reduction Device — Reduces no-load voltage between welds for enhanced operator safety in confined, damp, or pipeline environments.
• Cellulosic Electrode Support — Compatible with cellulosic electrodes for pipeline and vertical-down welding applications.
• Broad Electrode Compatibility — Supports cellulosic, rutile, basic, stainless steel, cast iron, and aluminium-coated electrodes from 1.6mm to 6mm.
• Adjustable Arc Force & Hot Start — Fine-tunable arc control functions for optimised arc stability and electrode ignition across all supported electrode types.
• Alarm Memory (Last 10 Alarms) — Stores the last 10 machine alarms for fault diagnosis and maintenance tracking.
• Remote-Control Connection — Remote control socket for convenient current adjustment from the welding position.
• 86% Efficiency & 0.9 Power Factor — High efficiency and near-unity power factor minimise energy consumption and reactive power draw.
• Supplied with 400A MMA Welding Kit (801093) — Complete ready-to-weld setup included.

Technical Specifications:

• Product Type: Multiprocess Inverter Welding Machine
• Welding Processes: MMA, TIG DC-Lift and Carbon-Arc Gouging
• Additional Processes (Optional Equipment): MIG-MAG and Flux-Cored Welding
• Welding Current Type: Direct Current
• Mains Voltage: 230V/400V, Three Phase
• Mains Frequency: 50/60Hz
• Current Range at 230V: 10–300A
• Current Range at 400V: 10–350A
• Maximum Rated Output at 230V: 250A at 35% Duty Cycle
• Maximum Rated Output at 400V: 330A at 35% Duty Cycle
• Output at 60% on 230V: 170A
• Output at 60% on 400V: 230A
• Maximum No-Load Voltage at 230V: 63V
• Maximum No-Load Voltage at 400V: 62V
• Maximum Absorbed Power at 230V: 8kW
• Maximum Absorbed Power at 400V: 14kW
• Minimum Generator Power at 230V: 12kW
• Minimum Generator Power at 400V: 20kW
• Efficiency: 86%
• Power Factor: 0.9
• Electrode Diameter Range: 1.6–6mm
• Compatible Electrodes: Cellulosic, Rutile, Basic, Stainless Steel, Cast Iron and Aluminium-Coated
• MMA Functions: Adjustable Arc Force, Adjustable Hot Start and Anti-Stick
• TIG Ignition: DC Lift Arc
• Safety Function: VRD
• Alarm Memory: Last 10 Alarms
• Remote-Control Connection: Yes
• Insulation Class: F
• Protection Rating: IP23
• Dimensions: 53 × 24 × 45cm
• Weight: 25kg

Supplied 400A MMA Welding Kit (801093):

• DALLAS 400 Electrode Holder, 400A (712019)
• TOLEDO 400 Work Clamp (712032)
• Slag-Removal Hammer and Brush (712139)
• 4m Welding Cable, 50mm², AX50 Connection
• 3m Return Cable, 50mm², AX50 Connection

The Telwin Superior 400 CE VRD is a professional multiprocess inverter welder that combines MMA, TIG DC-Lift, and Carbon-Arc Gouging capability with VRD safety, cellulosic electrode support, alarm memory, and remote control in a 25kg professional package. Supplied complete with a 400A MMA welding kit, it is ready for immediate deployment in structural fabrication, pipeline, construction, and heavy industrial welding environments. A comprehensive, high-performance professional welding solution built to Telwin's exacting CE-certified standards.
