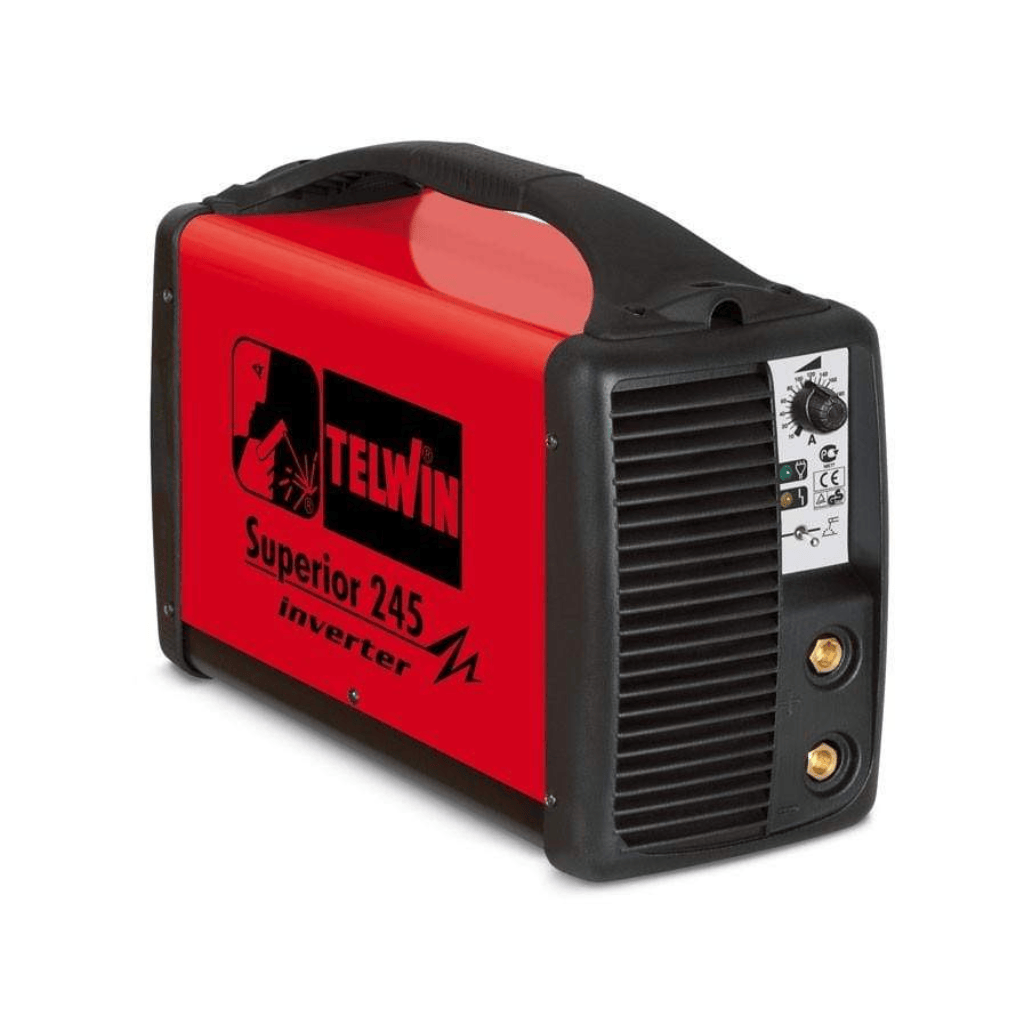

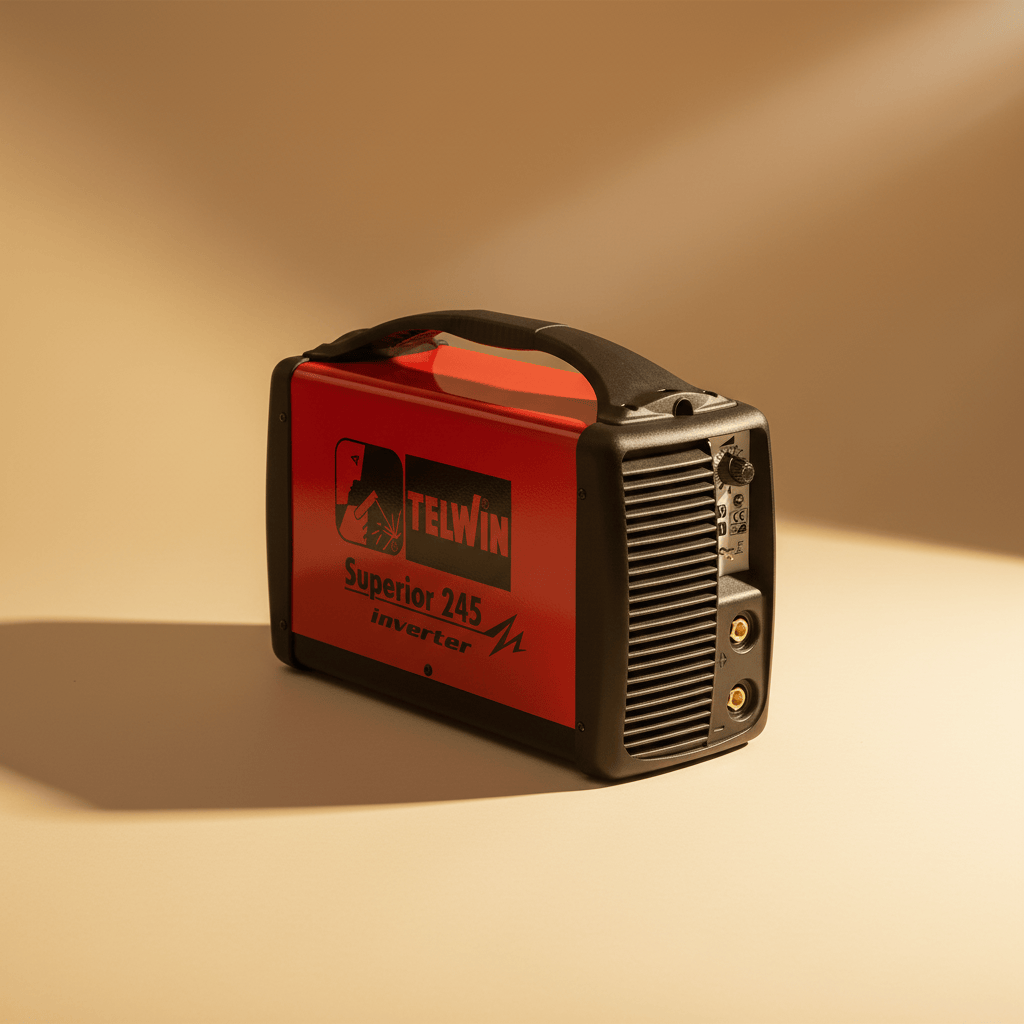

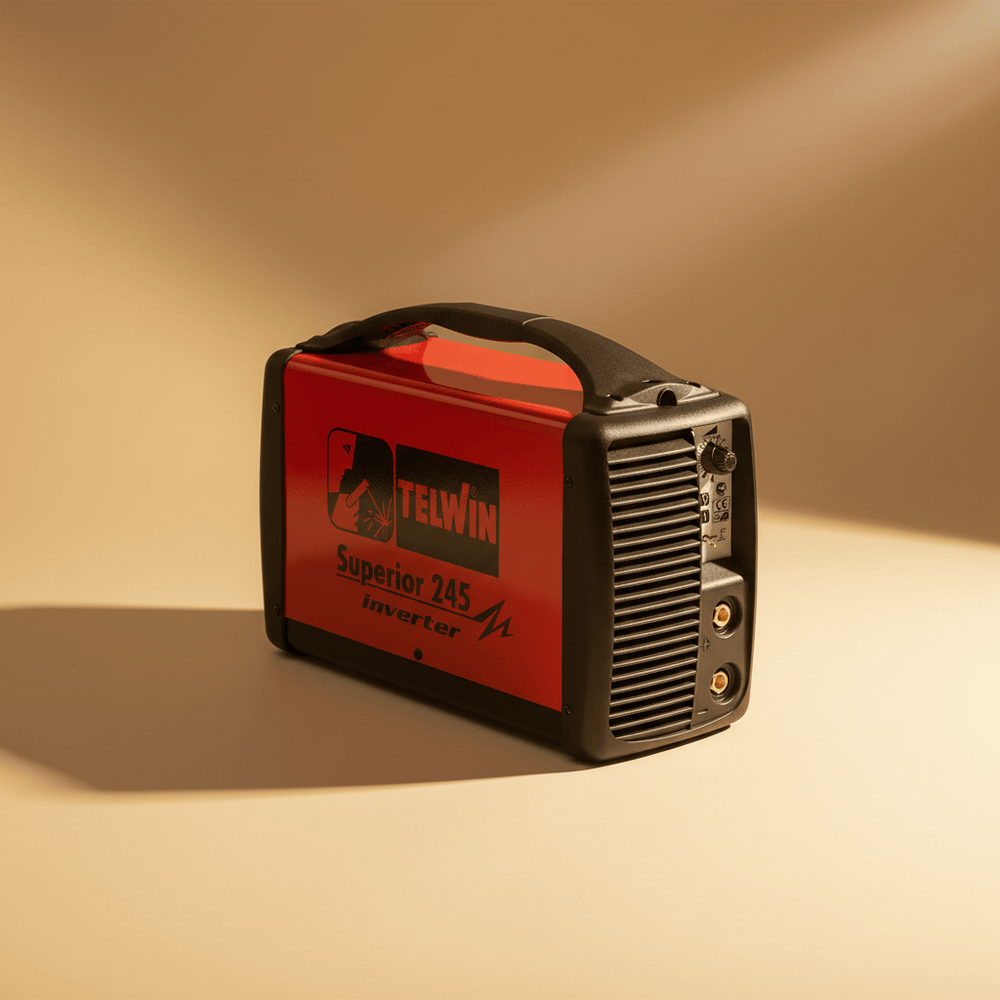

Telwin Superior 245 Professional MMA & TIG-Lift Inverter Welding Machine, 220A, 400V - TEL-852051
Telwin Superior 245 Professional MMA & TIG-Lift Inverter Welding Machine, 220A, 400V - TEL-852051 is available on backorder and will be fulfilled once restocked.
Complete your purchase
Useful add-ons for this product.
Telwin Superior 245 Professional MMA & TIG-Lift Inverter Weldin...
Telwin Superior 245 Professional MMA & TIG-Lift Inverter Welding Machine, 220A, 400V - TEL-852051 is available on backorder and will be fulfilled once restocked.
Product details
Product details
The Telwin Superior 245 Professional MMA & TIG-Lift Inverter Welding Machine (TEL-852051) is a versatile 400V three-phase DC inverter welder supporting both MMA and TIG-Lift arc welding processes with an adjustable current range of 5–220A. Designed for mild steel, stainless steel, and cast iron welding, it accepts electrodes from 1.6mm to 5mm in diameter across rutile, basic, stainless steel, cast iron, aluminium, and cellulosic types. With adjustable Hot Start, Arc Force, and Anti-Stick functions, it delivers precise, stable arc performance for professional fabrication and repair applications.
Key Features:
- MMA & TIG-Lift Dual Process — Supports both MMA stick welding and TIG-Lift arc ignition in a single unit, providing versatility across a wide range of welding applications.
- 5–220A Adjustable Welding Current — Wide current range accommodates thin sheet metal through to heavier structural components with precise control.
- 220A Maximum Output at 15% Duty Cycle — Delivers full rated output for demanding welding tasks within the specified duty cycle.
- Broad Electrode Compatibility — Accepts rutile, basic, stainless steel, cast iron, aluminium, and cellulosic electrodes from 1.6mm to 5mm diameter.
- Adjustable Hot Start — Boosts arc ignition current momentarily for easier, more reliable electrode striking.
- Arc Force Control — Automatically adjusts current during welding to prevent electrode sticking and maintain a stable arc.
- Anti-Stick Function — Cuts output current if the electrode sticks, protecting both the electrode and the workpiece.
- 400V Three-Phase Power Supply — Industrial three-phase input for stable, high-efficiency operation in professional workshop environments.
- IP23 Protection Rating — Dust and splash-resistant for reliable use in workshop and light outdoor conditions.
- Class H Insulation — High-grade insulation for safe, durable performance under demanding welding conditions.
Technical Specifications:
- Product Type: MMA and TIG DC Inverter Welding Machine
- Power Supply: 400V, Three Phase
- Mains Frequency: 50/60Hz
- Welding Processes: MMA and TIG DC-Lift
- Welding-Current Range: 5–220A
- Maximum Welding Current: 220A at 15% Duty Cycle
- Maximum No-Load Voltage: 79V
- Maximum Absorbed Current: 11.3A
- Absorbed Current at 60%: 6.4A
- Maximum Absorbed Power: 7.3kW
- Absorbed Power at 60%: 3.5kW
- Recommended Mains Fuse: 10A
- Usable Electrode Diameter: 1.6–5mm
- Compatible Electrodes: Rutile, Basic, Stainless Steel, Cast Iron, Aluminium and Cellulosic
- Arc Functions: Adjustable Hot Start, Arc Force and Anti-Stick
- Power Factor: 0.7
- Protection Rating: IP23
- Insulation Class: H
- Dimensions: 47 × 17 × 28.5cm
- Weight: 11kg
The Telwin Superior 245 TIG-Lift is a professional dual-process inverter welder that combines the versatility of MMA and TIG-Lift welding with precise arc control functions in a robust, portable package. Its broad electrode compatibility and intelligent arc management make it an ideal choice for fabricators, maintenance engineers, and welding professionals working across mild steel, stainless steel, and cast iron. A dependable, high-performance tool built to Telwin's exacting professional standards.
