Telwin Super Plasma 120A Three-Phase Plasma Cutting Machine, 230–40...
Telwin Super Plasma 120A Three-Phase Plasma Cutting Machine, 230–400V, 30mm - TEL-830512 is available on backorder and will be fulfilled once restocked.
Product details
Product details

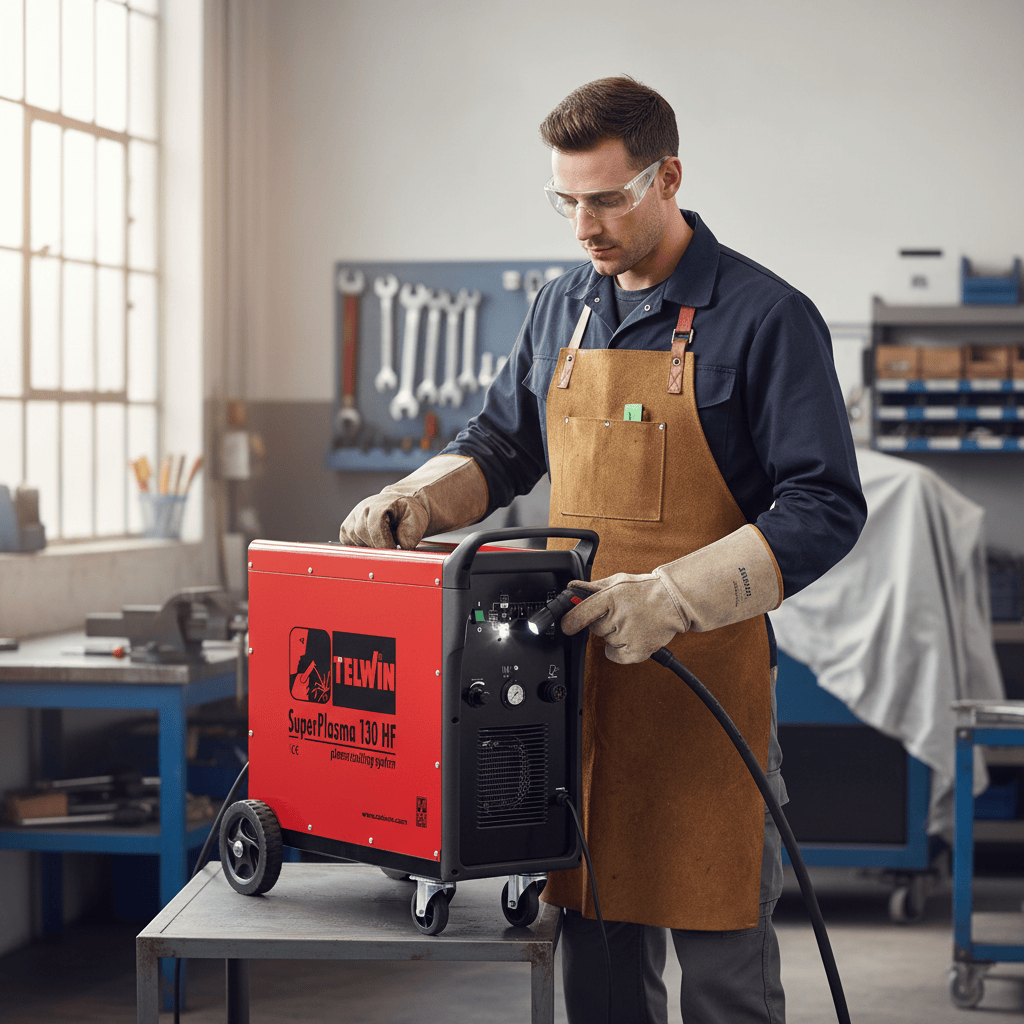

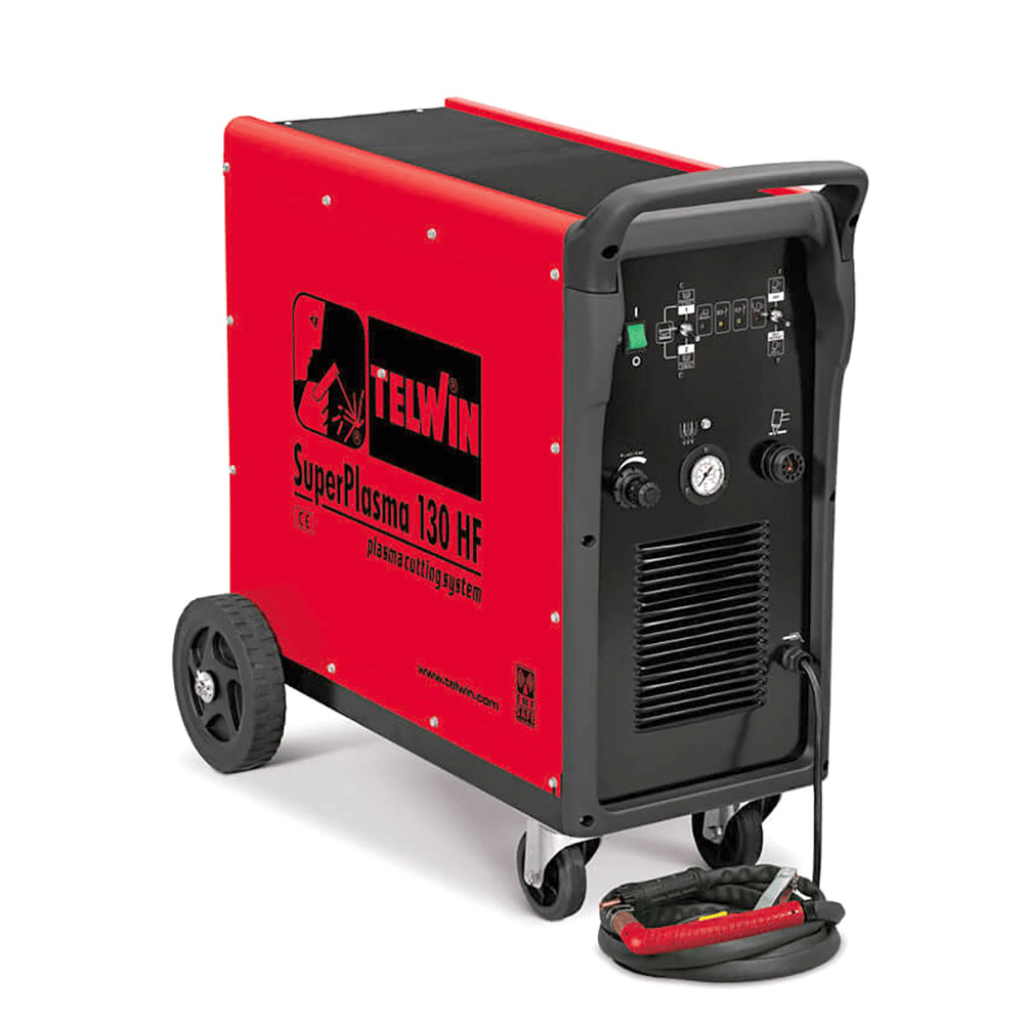

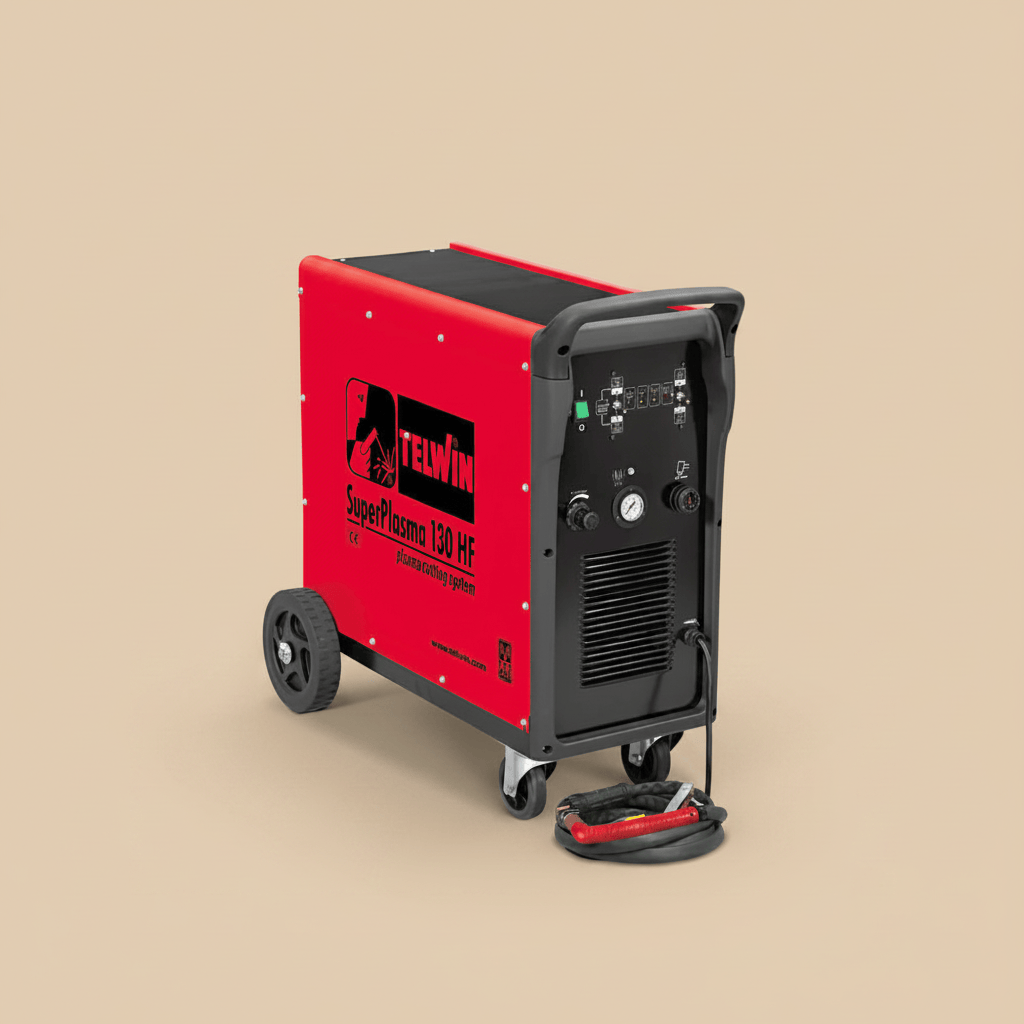

The Telwin Super Plasma 120A Three-Phase Plasma Cutting Machine (TEL-830512) is a heavy-duty industrial plasma cutting system delivering an adjustable cutting current of 65–120A from a 230–400V three-phase power supply, capable of cutting conductive materials up to 30mm thick. Engineered for structural steel fabrication, stainless steel work, aluminium, copper, and brass cutting, it features high-frequency non-contact pilot arc ignition for reliable, consistent arc starts. Its freestanding wheeled design makes it well-suited for demanding workshop, fabrication, and industrial environments.
Key Features:
- 120A Maximum Cutting Current — Adjustable from 65A to 120A to match cutting requirements across a wide range of material thicknesses and types.
- 30mm Maximum Cutting Thickness — Handles structural steel, stainless steel, galvanised metal, aluminium, copper, and brass up to 30mm thick.
- High-Frequency Non-Contact Pilot Arc — HF ignition ensures reliable, consistent arc starts without contact, reducing electrode wear and improving cut quality.
- Dual Duty Cycle Positions — Position 1 delivers 65A at 60% duty cycle; Position 2 delivers 115A at 30% duty cycle for sustained high-output cutting.
- 230–400V Three-Phase Power Supply — Wide voltage input range for compatibility with industrial three-phase power installations.
- 200L/min Airflow Capacity — High-volume air requirement supports clean, precise cuts at maximum output.
- Freestanding Wheeled Design — Heavy-duty wheeled base with robust construction for easy repositioning across large workshop or industrial floor spaces.
- IP22 Protection Rating — Suitable for indoor workshop and sheltered industrial environments.
Technical Specifications:
- Product Type: Compressed-Air Plasma Cutting Machine
- Power Supply: 230–400V, Three Phase
- Mains Frequency: 50/60Hz
- Cutting-Current Range: 65–120A
- Duty Cycle, Position 1: 65A at 60%
- Duty Cycle, Position 2: 115A at 30%
- Maximum Cutting Thickness: 30mm
- Pilot-Arc Ignition: High-Frequency, Non-Contact
- Maximum No-Load Voltage: 243V
- Maximum Absorbed Power: 20kW
- Required Airflow: 200L/min
- Required Air Pressure: 4–5 Bar
- Protection Rating: IP22
- Installation Type: Freestanding, Wheeled
- Dimensions: 96 × 34 × 82cm
- Weight: 86kg
The Telwin Super Plasma 120A is a professional-grade industrial plasma cutting machine built for high-throughput fabrication and heavy-duty cutting applications. Its 120A output, 30mm cutting capacity, and HF non-contact ignition deliver the precision and reliability that structural fabricators, metalworking shops, and industrial operators demand. A serious investment for operations where cutting speed, capacity, and consistency are non-negotiable.
