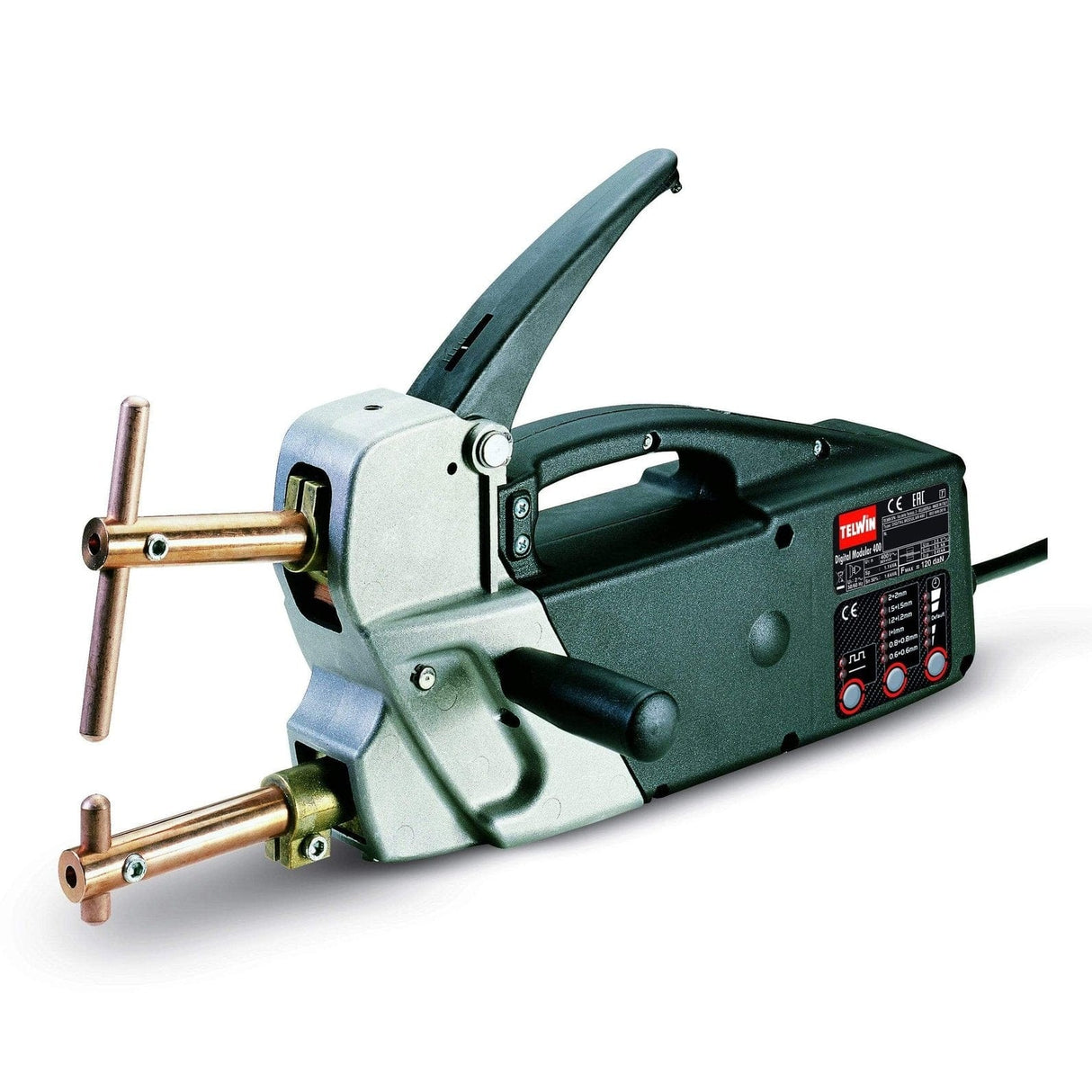

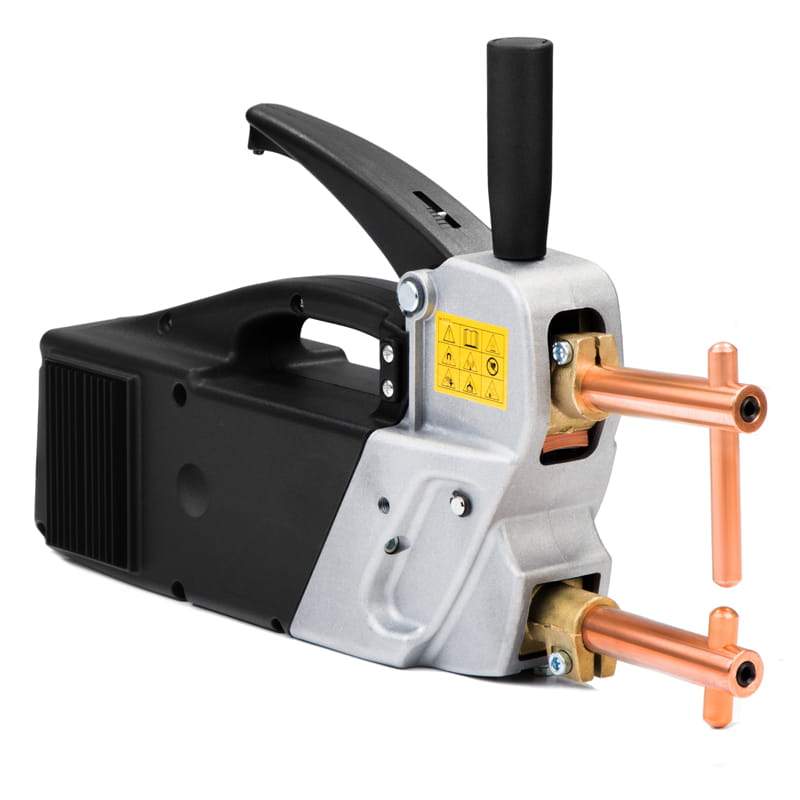

Telwin Spot Welding Machine 230V - DIGITAL MODULAR 230

GH₵18,000.00


How to Place an Order

Order your desired items quickly and easily within a minute using the following steps:

  • Browse Products: Browse through the products available and select the one you wish to purchase.
  • Buy It Now: Click on the
    "Buy it now" button next to the product you want to purchase to proceed to checkout
  • Fill in Contact Information:
    Provide your contact information such as name, email, and shipping address.
  • Select Shipping Method: Choose your preferred shipping method from the options provided.
  • Choose Payment Method: Select your preferred payment method (e.g., Pay on delivery, Paystack).
  • Confirm Order: Finally, click
    "CONFIRM ORDER" to complete your purchase.

If you're shopping for multiple items, simply add them to your cart, which can be found in the top right corner, and proceed to checkout.

For those located in Greater Accra, Kumasi, Takoradi & Tarkwa, payment can be made upon delivery. If you reside outside of these areas, not to worry! We offer nationwide shipping, but full payment must be made prior to shipment.

Shop Online, Skip the Lines – Fast Delivery to Your Door!

Pay on Delivery Options

Pay on delivery is available in Greater Accra and for orders below GH₵500 in Kumasi, Takoradi, and Tarkwa.

Description

Microprocessor controlled spot welding machine. It implements a new Fuzzy logic control system that simplifies its use and increases the spot welding quality.
Suitable for spot welding of sheets with maximum thickness of 2+2mm.


Features:
– automatic regulation of the spot welding current and time according to the material thickness
– a choice between continuous and pulse operation (suitable for sheets with high yield points – high stress)
– arms pressure adjustable from 40 kg to 120 kg (with arms L= 120 mm)
– handgrip made out of thermic isolating material
– thermal protection.

    SPECIFICATIONS

    • POWER FACTOR (cosphi) 0,9
    • SINGLE PHASE MAINS VOLTAGE 230 V
    • MAX WELD.THICK. ON 2 SHEETS 2 + 2 mm
    • MAINS FREQUENCY 50 / 60 Hz
    • DUTY CYCLE 1,5 %
    • MAX SPOT-WELDING CURRENT 6900 A
    • PROTECTION DEGREE IP20
    • MAX NO LOAD VOLTAGE 2,5 V
    • DIMENSIONS 44 x 10 x 18,5 cm
    • MAX ABSORBED POWER 13 kW
    • RATED POWER X=50% 2,3 kW
    • MAINS FUSE 25 A
