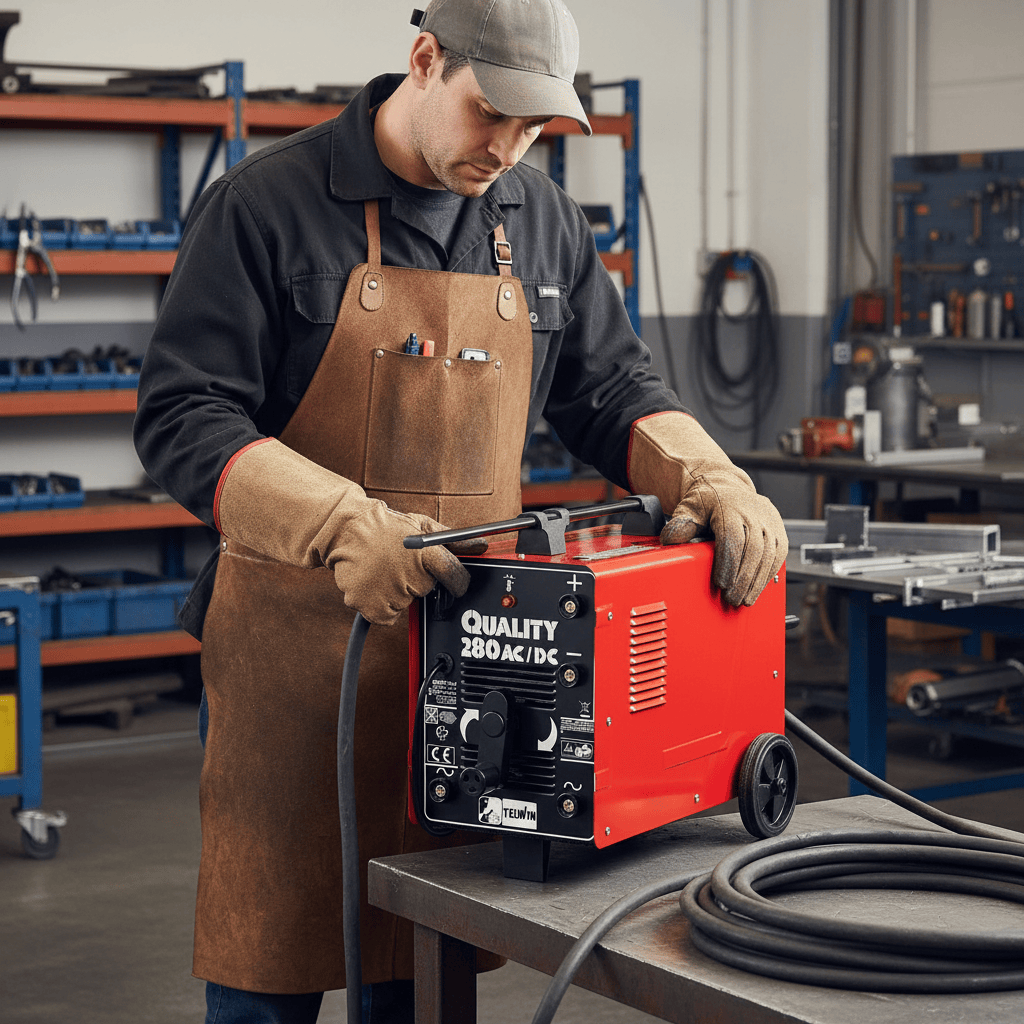

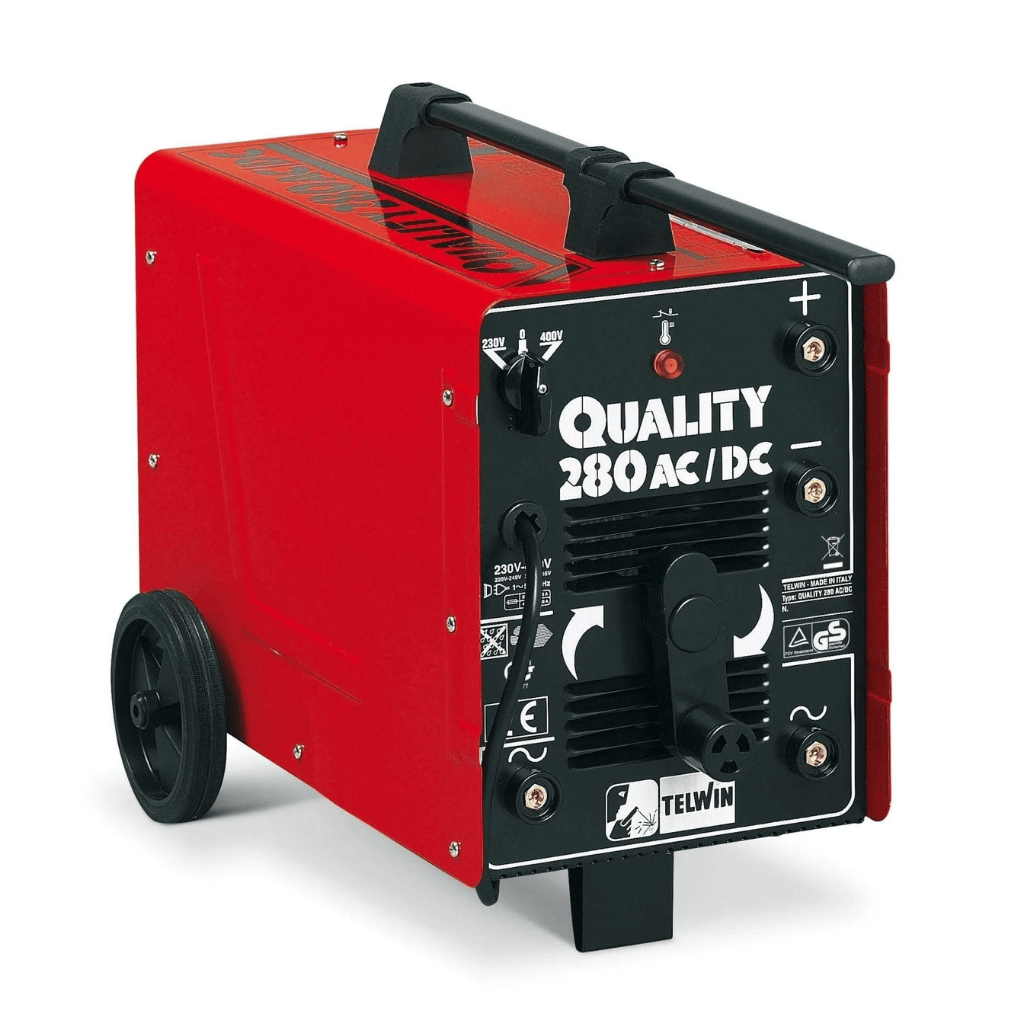

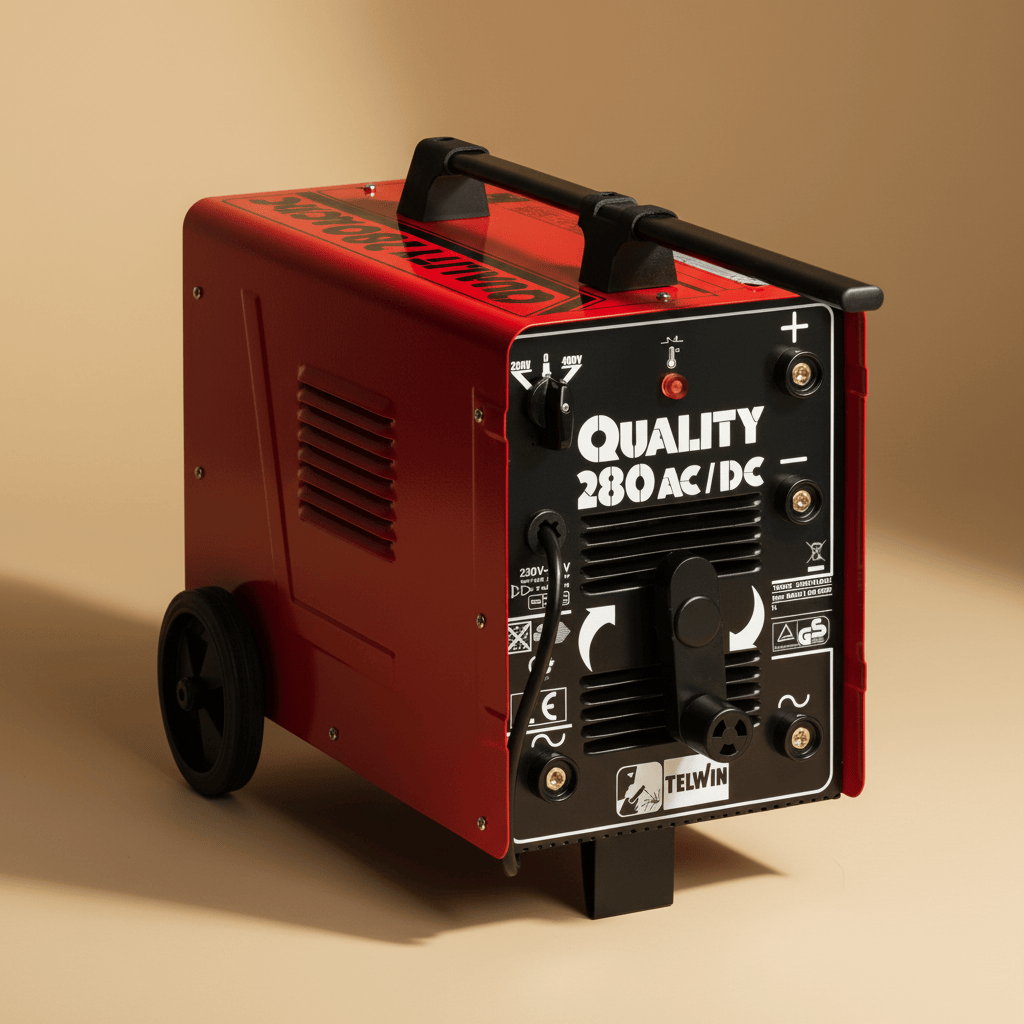

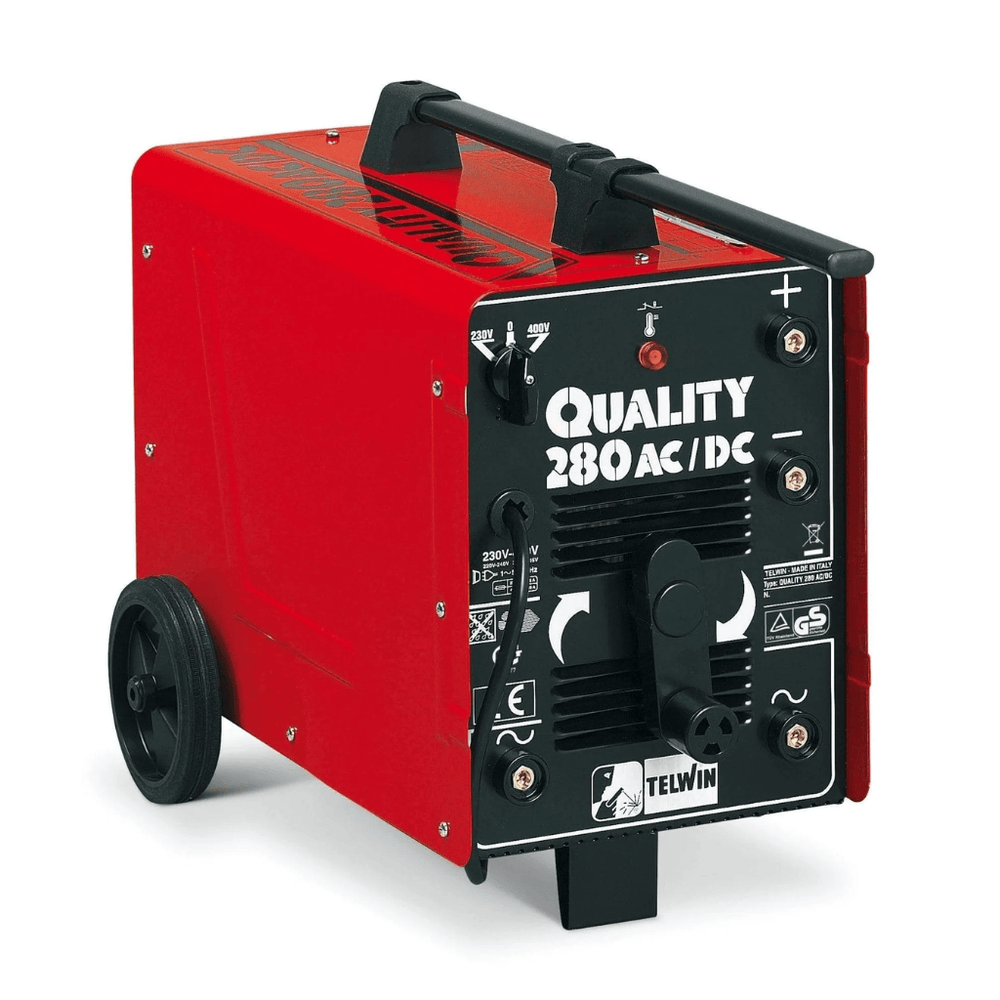

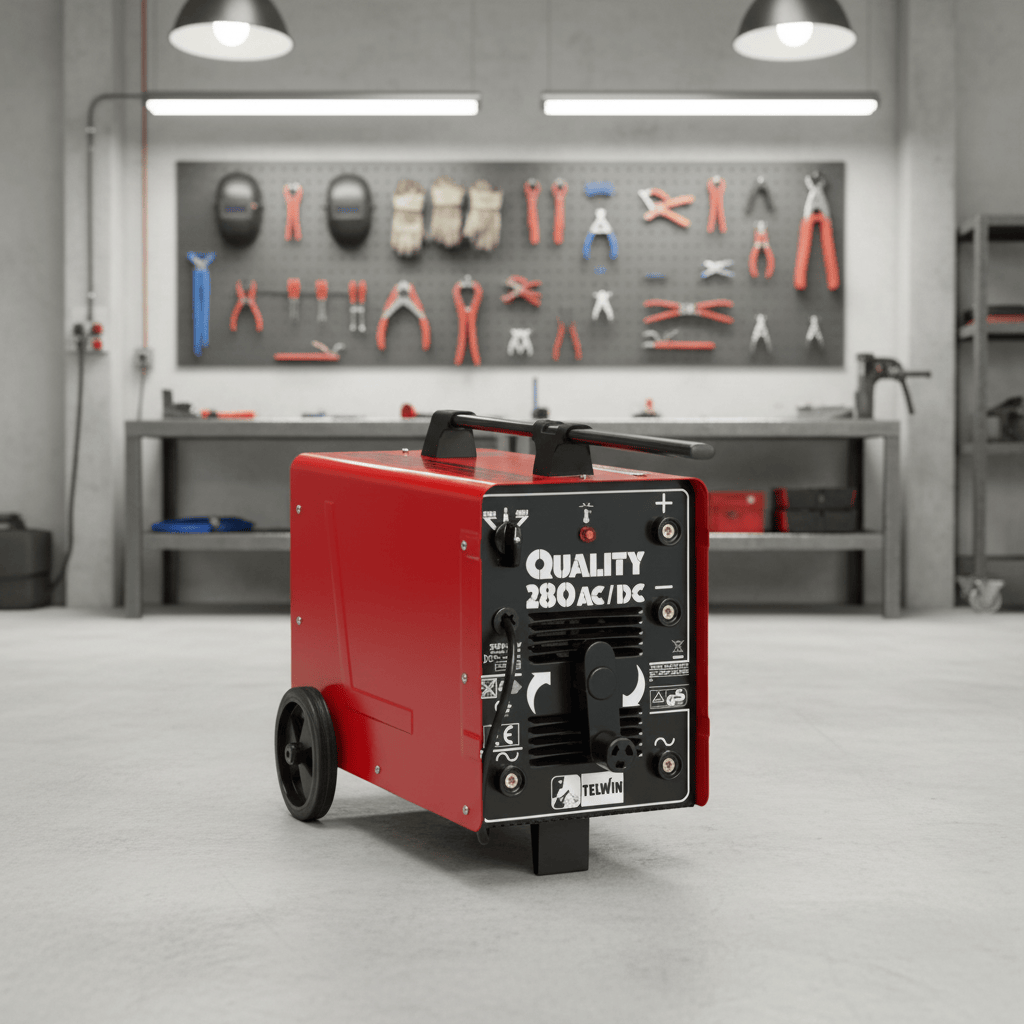

Telwin Quality 280 Professional 230A AC / 160A DC MMA Transformer Welding Machine 230V/400V - TEL-855012

The Telwin Quality 280 Professional AC/DC MMA Transformer Welding Machine (TEL-855012) is a versatile transformer-based welding machine offering selectable alternating-current and direct-current welding output from a 230V single-phase or 400V two-phase power supply. In AC mode it delivers a steplessly adjustable current of 45–230A (rated 220A at 10% duty cycle, 90A at 60%), while in DC mode it delivers 25–160A (rated 150A at 15% duty cycle, 80A at 60%). Supporting rutile, basic, stainless steel, and cast iron electrodes from 1.6mm to 5mm (AC) and 1.6mm to 4mm (DC), it is fan-cooled with thermostatic protection and an IP22 rating — making it a professional and versatile welding solution for general fabrication, construction, workshop repairs, and agricultural equipment maintenance.

Key Features:

• Selectable AC & DC Welding Output — Switch between alternating-current and direct-current welding to match electrode type, material, and application requirements.
• 45–230A AC / 25–160A DC Stepless Adjustment — Wide, continuously adjustable current ranges in both AC and DC modes for precise control across all supported electrode sizes and material thicknesses.
• Broad Electrode Compatibility — Supports rutile, basic, stainless steel, and cast iron electrodes from 1.6mm to 5mm (AC) and 1.6mm to 4mm (DC) for maximum welding versatility.
• Dual-Voltage 230V/400V Input — Operates from 230V single-phase or 400V two-phase power for flexibility across workshop, site, and agricultural power installations.
• Fan Cooling — Active fan cooling enables more sustained welding operation and faster thermal recovery during extended welding sessions.
• Thermostatic Protection — Built-in thermostatic protection prevents overheating and protects the machine during demanding use.
• IP22 Protection Rating — Suitable for indoor workshop and sheltered construction and agricultural site environments.

Technical Specifications:

• Product Type: AC/DC Transformer-Based MMA Welding Machine
• Welding Process: MMA Stick-Electrode Welding
• Welding Current Type: Alternating Current or Direct Current
• Mains Voltage: 230V Single Phase or 400V Two Phase
• Mains Frequency: 50/60Hz
• AC Welding-Current Range: 45–230A
• DC Welding-Current Range: 25–160A
• Maximum Rated AC Output: 220A at 10% Duty Cycle
• Maximum Rated DC Output: 150A at 15% Duty Cycle
• AC Output at 60% Duty Cycle: 90A
• DC Output at 60% Duty Cycle: 80A
• Maximum No-Load Voltage in AC: 55V
• Maximum No-Load Voltage in DC: 67V
• Maximum Absorbed Power: 7.2kW
• Absorbed Power at 60%: 3.3kW
• Power Factor: 0.5
• AC Electrode Diameter: 1.6–5mm
• DC Electrode Diameter: 1.6–4mm
• Compatible Electrodes: Rutile, Basic, Stainless Steel and Cast Iron
• Current Adjustment: Stepless
• Cooling System: Fan Cooled
• Thermal Protection: Yes
• Protection Rating: IP22
• Dimensions: 75 × 36 × 49cm
• Weight: 40kg

The Telwin Quality 280 is a professional AC/DC transformer welder that stands apart from the Nordika series by offering selectable DC output alongside AC, enabling it to weld with basic, stainless steel, and cast iron electrodes in addition to rutile. Its fan cooling, broad electrode compatibility, and dual-voltage input make it a versatile and capable choice for general fabrication, construction, workshop repairs, and agricultural equipment maintenance where both AC and DC welding capability is required. A professional, multi-mode welding solution built to Telwin's exacting standards.
