Telwin Motoinverter 264D CE 230A MMA & TIG DC Diesel Engine-Dri...
Telwin Motoinverter 264D CE 230A MMA & TIG DC Diesel Engine-Driven Welding Machine - TEL-861002 is available on backorder and will be fulfilled once restocked.
Product details
Product details

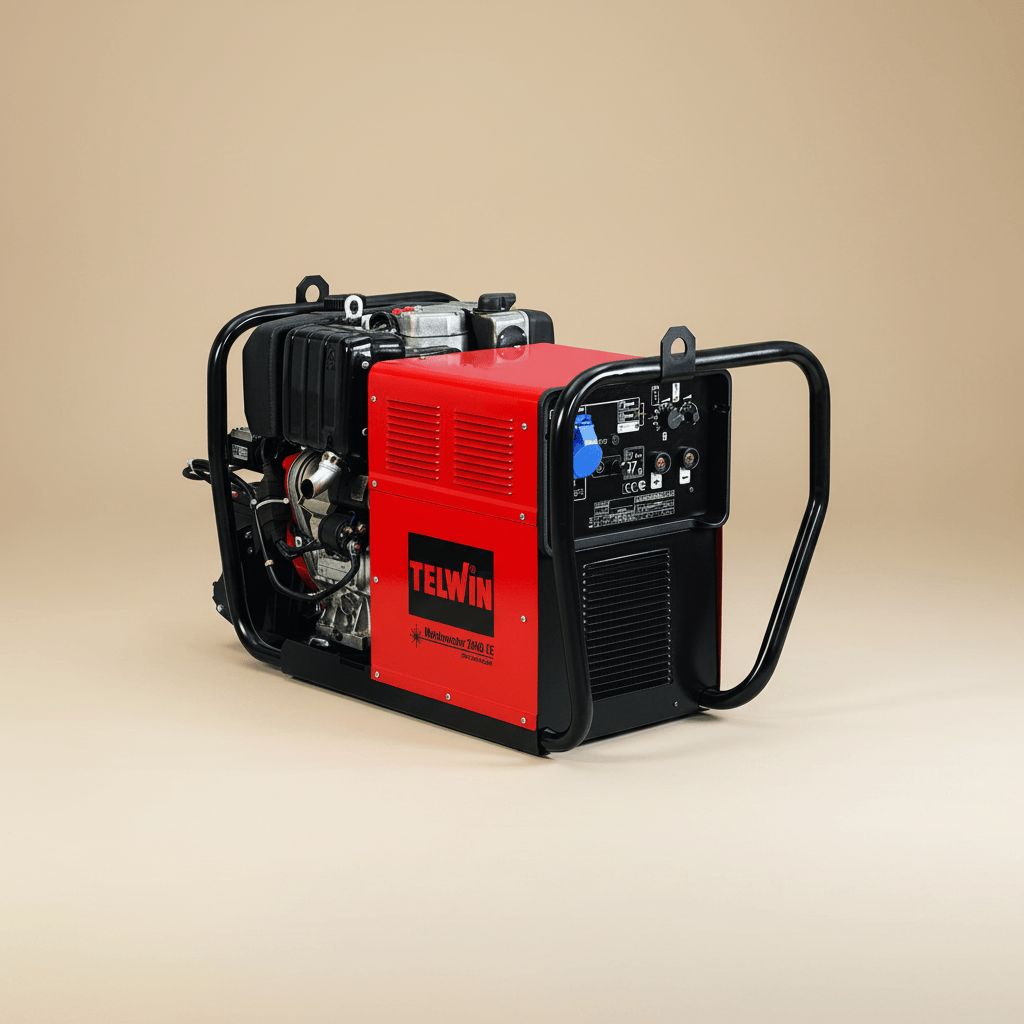

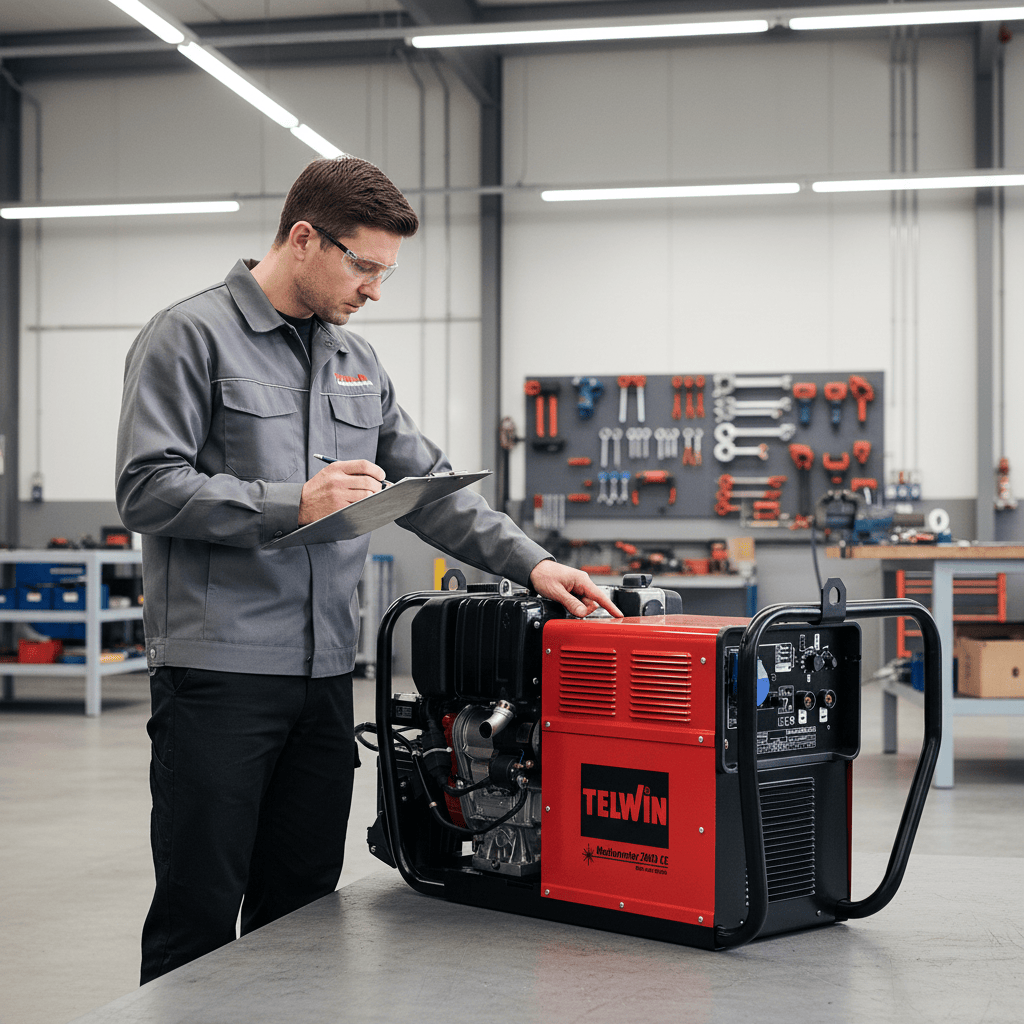

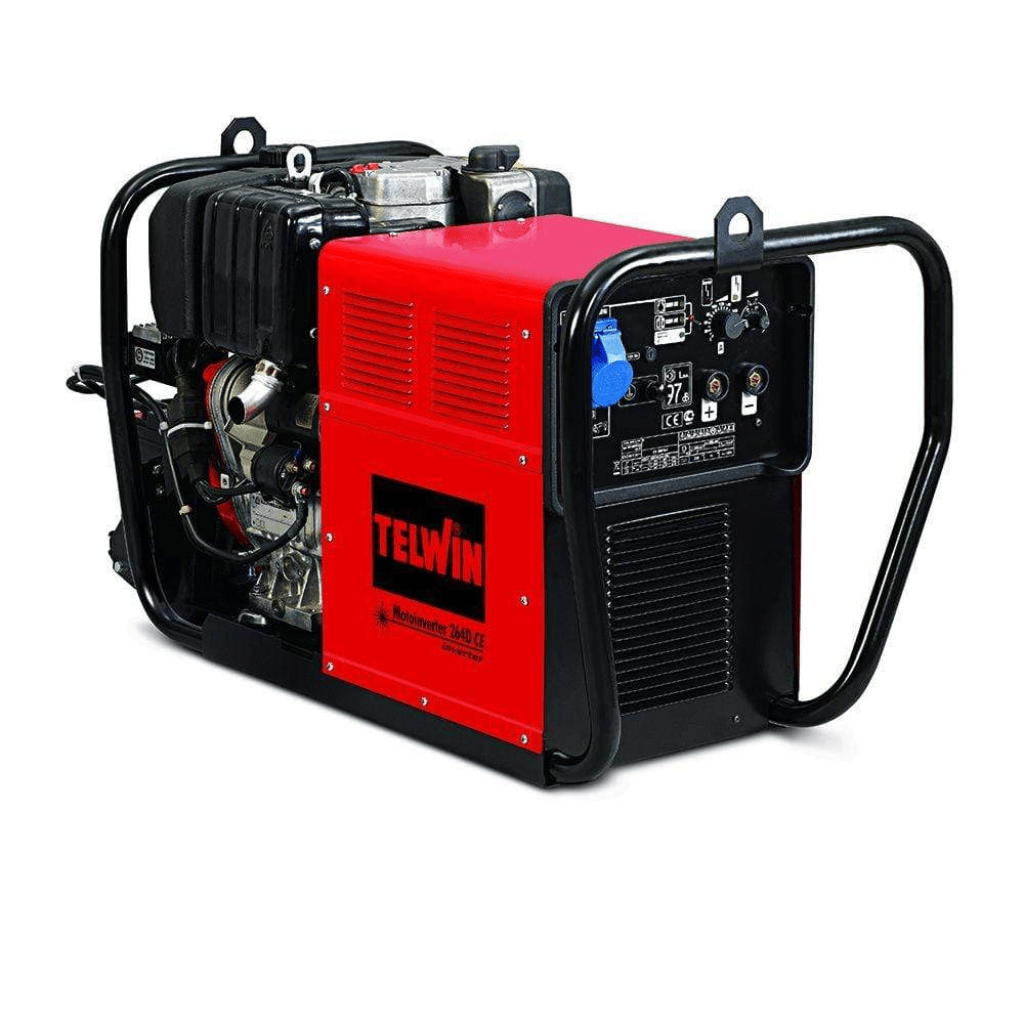

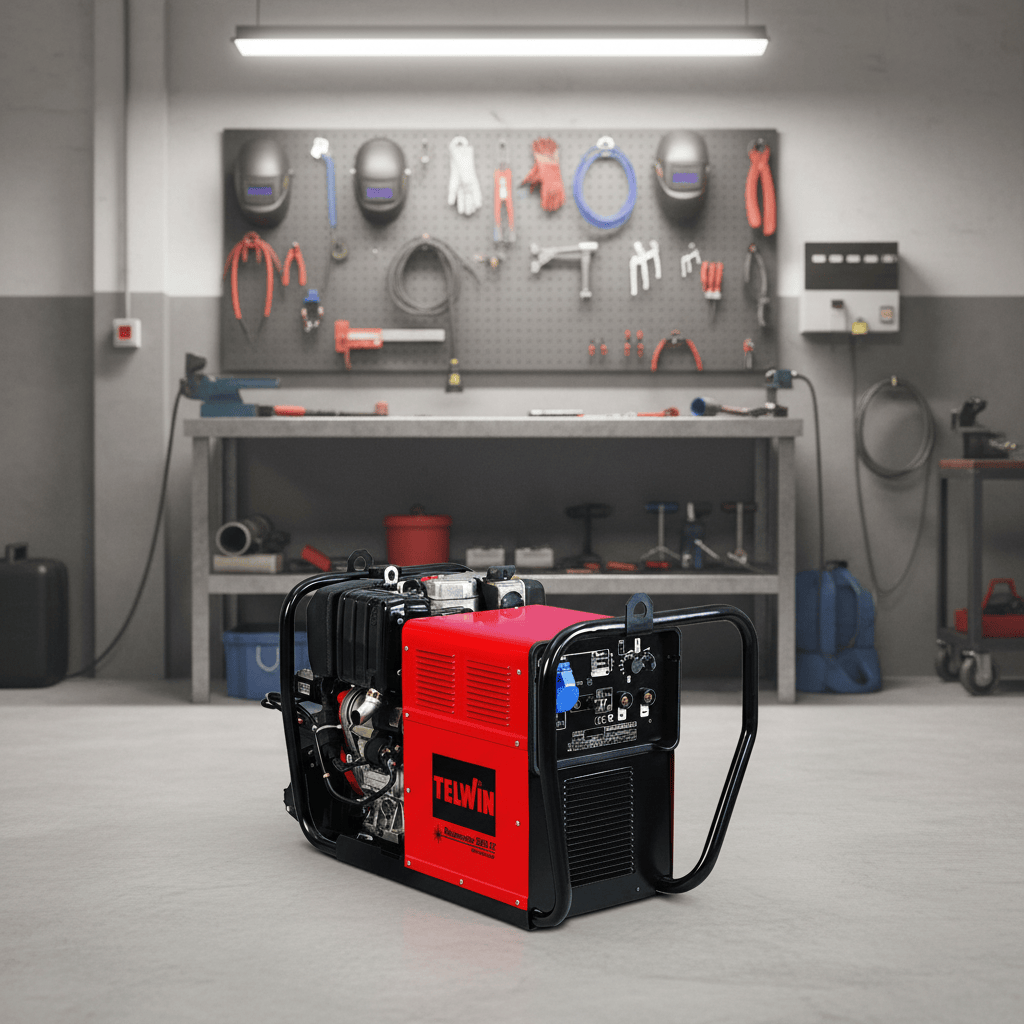

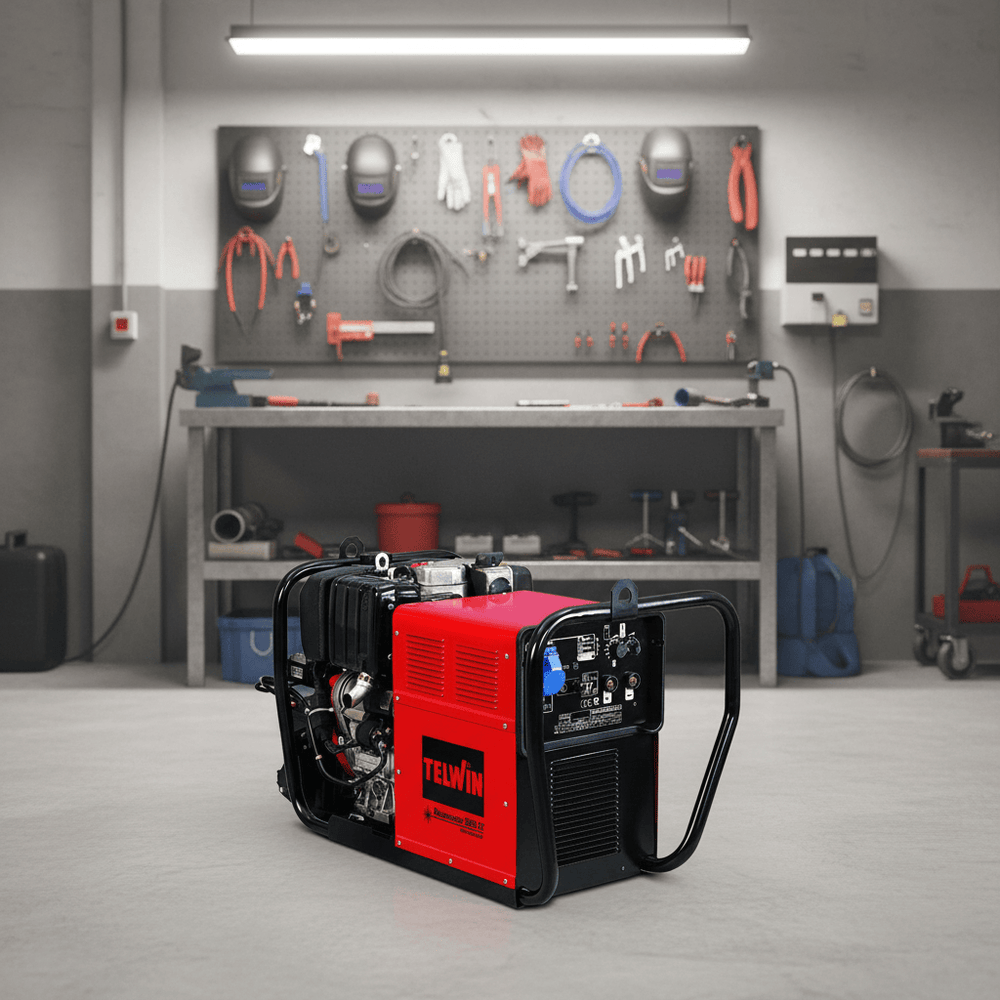

The Telwin Motoinverter 264D CE MMA & TIG DC Diesel Engine-Driven Welding Machine (TEL-861002) is a self-contained diesel-powered inverter welding machine delivering an adjustable DC welding current of 5–230A for MMA stick welding and TIG scratch-start arc ignition — completely independent of mains power. Rated at 200A at 30% duty cycle and 130A at 60% duty cycle, it is powered by a Lombardini 15LD 440 four-stroke air-cooled diesel engine (442cc, 8.1kW/11HP) with electric key start and a 5L fuel tank. Supporting cellulosic, rutile, basic, stainless steel, and cast iron electrodes from 1.6mm to 5mm, with adjustable Arc Force, Hot Start, and Anti-Stick, it is the definitive professional welding solution for remote construction sites, pipeline work, agricultural repairs, and locations without mains power access.
Key Features:
- Fully Self-Contained Diesel Power — Completely independent of mains power, enabling professional MMA and TIG welding in the most remote locations, construction sites, and off-grid environments.
- Lombardini 15LD 440 Diesel Engine — Reliable four-stroke, air-cooled, direct-injection diesel engine (442cc, 8.1kW/11HP) for dependable power in demanding field conditions.
- Electric Key Start — Convenient electric key start system for fast, reliable engine starting in all conditions.
- 5–230A Adjustable DC Welding Current — Wide current range for precise control from thin sheet metal through to heavy structural and pipeline components with electrodes from 1.6mm to 5mm.
- 200A at 30% / 130A at 60% Duty Cycle — Professional output ratings for sustained field welding sessions.
- MMA & TIG Scratch-Start Dual Process — Supports both MMA stick welding and TIG scratch-start ignition for versatility across construction, pipeline, and agricultural welding tasks.
- Cellulosic Electrode Support — Compatible with cellulosic electrodes for pipeline and vertical-down welding applications in the field.
- Broad Electrode Compatibility — Supports cellulosic, rutile, basic, stainless steel, and cast iron electrodes from 1.6mm to 5mm diameter.
- Adjustable Arc Force & Hot Start — Fine-tunable arc control functions for optimised arc stability and electrode ignition across all supported electrode types.
- Anti-Stick Function — Reduces output current if the electrode sticks, protecting the electrode and workpiece.
- 5L Fuel Tank — Onboard 5L diesel fuel tank for extended field welding sessions without refuelling.
Technical Specifications:
- Product Type: Diesel Engine-Driven Inverter Welding Machine
- Welding Processes: MMA and TIG DC
- Welding Current Type: Direct Current
- TIG Ignition: Scratch Start
- Welding-Current Range: 5–230A
- Maximum Rated Welding Output: 200A at 30% Duty Cycle
- Output at 60% Duty Cycle: 130A
- Maximum No-Load Voltage: 113V DC
- Electrode Diameter Range: 1.6–5mm
- Compatible Electrodes: Rutile, Basic, Cellulosic, Stainless Steel and Cast Iron
- MMA Functions: Adjustable Arc Force, Hot Start and Anti-Stick
- Engine Manufacturer: Lombardini
- Engine Model: 15LD 440
- Engine Type: Four-Stroke, Air-Cooled Diesel
- Fuel Injection: Direct Injection
- Engine Displacement: 442cc
- Engine Output: 8.1kW / 11HP
- Engine Speed: 3,500rpm
- Starting System: Electric Key Start
- Fuel-Tank Capacity: 5L
The Telwin Motoinverter 264D CE is the definitive professional diesel-driven inverter welding machine for remote construction sites, pipeline projects, agricultural repairs, and any location where mains power is unavailable. Its Lombardini diesel engine, electric key start, 5–230A DC output, cellulosic electrode support, and adjustable arc control make it a self-contained, highly capable professional welding solution that goes wherever the work demands. Built to Telwin's exacting CE-certified professional standards for the most demanding field welding environments.
