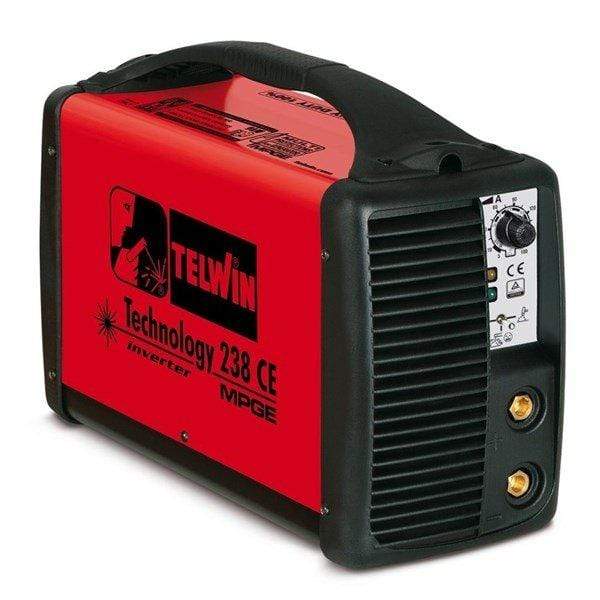

MMA and TIG inverter, electrode welding machine in direct current (DC) with scratch striking. Use with a wide range of electrodes: rutile, basic, stainless steel, cast iron, cellulosic, etc. Recommended for motor-generators, this model grants high performance despite power supply instability, thanks to the MPGE multiprotection: control device of the waveform, filter against input peaks, stabilization of oscillations. Robust and impact resistant.Features:
- Compact and light
- 50 Ø dense
- high welding current stability in spite of mains voltage fluctuations
- regulation of arc force and hot start according to the type of electrode in use
- anti-stick device
- thermostatic, overvoltage, under-voltage, overcurrent protections.
Complete with MMA welding accessories and aluminum carry case.
- ABSORBED POWER AT 60% 3 kW
- SINGLE PHASE MAINS VOLTAGE 230 V
- MOTORGENERATOR MINIMUM POWER 10 kW
- MAINS FREQUENCY 50 / 60 Hz
- EFFICIENCY 87 %
- CURRENT RANGE 5 – 200 A
- POWER FACTOR (cosphi) 0,7
- MAX CURRENT DC (EN 60974-1) 200 @ 35 % A
- D. USABLE ELECTRODES IN DC 1,6 – 4 mm
- DC CURRENT 140 A
- PROTECTION DEGREE IP23
- MAX NO LOAD VOLTAGE 80 V
- MAX ABSORBED CURRENT 39 A
- ABSORBED CURRENT AT 60% – MAX 20 A
- MAX ABSORBED POWER 6,3 kW
