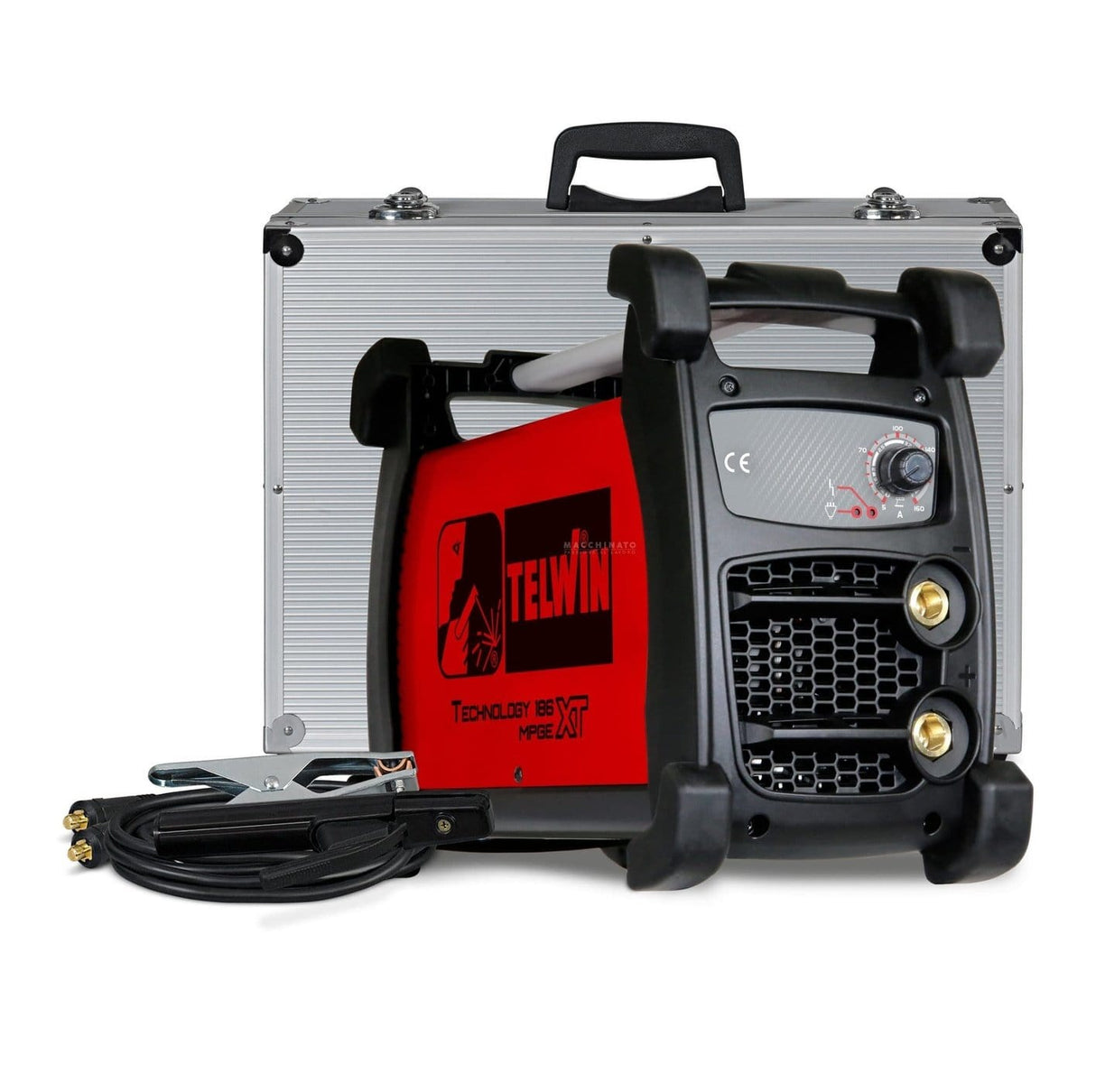

MMA and TIG inverter, electrode welding machine in direct current (DC) with scratch striking.
Use with a wide range of electrodes: rutile, basic, stainless steel, cast iron, etc.
Recommended for motor-generators, this model grants high performance despite power supply instability, thanks to the MPGE multi protections: control device of the waveform, filter against input peaks, stabilization of oscillations. Robust and impact resistant.
– compact and light
– 50 Ø dinse
– high welding current stability in spite of mains voltage fluctuations
– arc force, hot start, and anti-stick devices
– thermostatic, overvoltage, under-voltage, overcurrent, motor-generator (+/- 15%) protections.
Complete with MMA welding accessories and aluminium carry case.
- ABSORBED POWER AT 60% 2,7 kW
- SINGLE PHASE MAINS VOLTAGE 230 V
- MOTORGENERATOR MINIMUM POWER 7 kW
- MAINS FREQUENCY 50 / 60 Hz
- EFFICIENCY 90 %
- CURRENT RANGE 5 – 160 A
- POWER FACTOR (cosphi) 0,7
- MAX CURRENT DC (EN 60974-1) 160 @ 35 % A
- D. USABLE ELECTRODES IN DC 1,6 – 4 mm
- DC CURRENT 120 A
- PROTECTION DEGREE IP23
- MAX NO LOAD VOLTAGE 60 V
- DIMENSIONS 37,5 x 50 x 22 cm
- MAX ABSORBED CURRENT 32 A
- ABSORBED CURRENT AT 60% – MAX 18 A
- MAX ABSORBED POWER 5 kW
