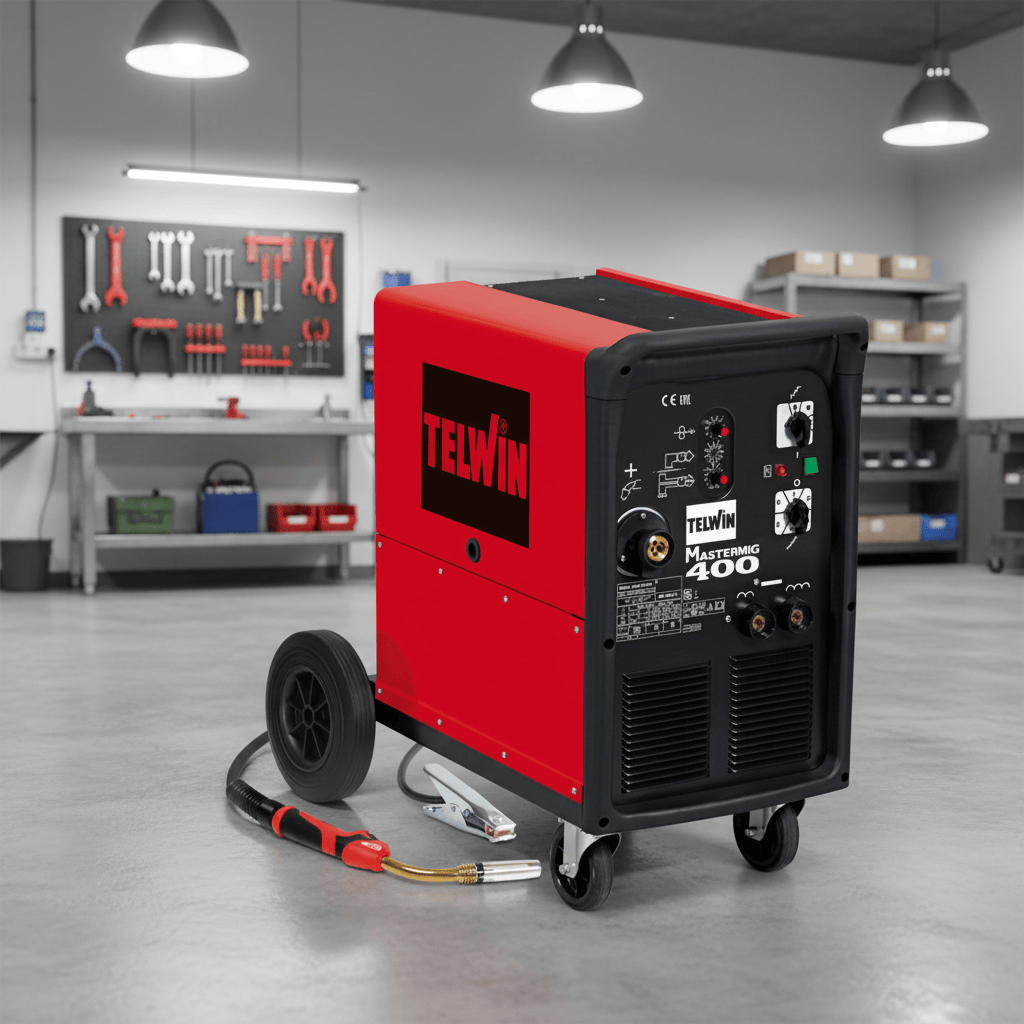

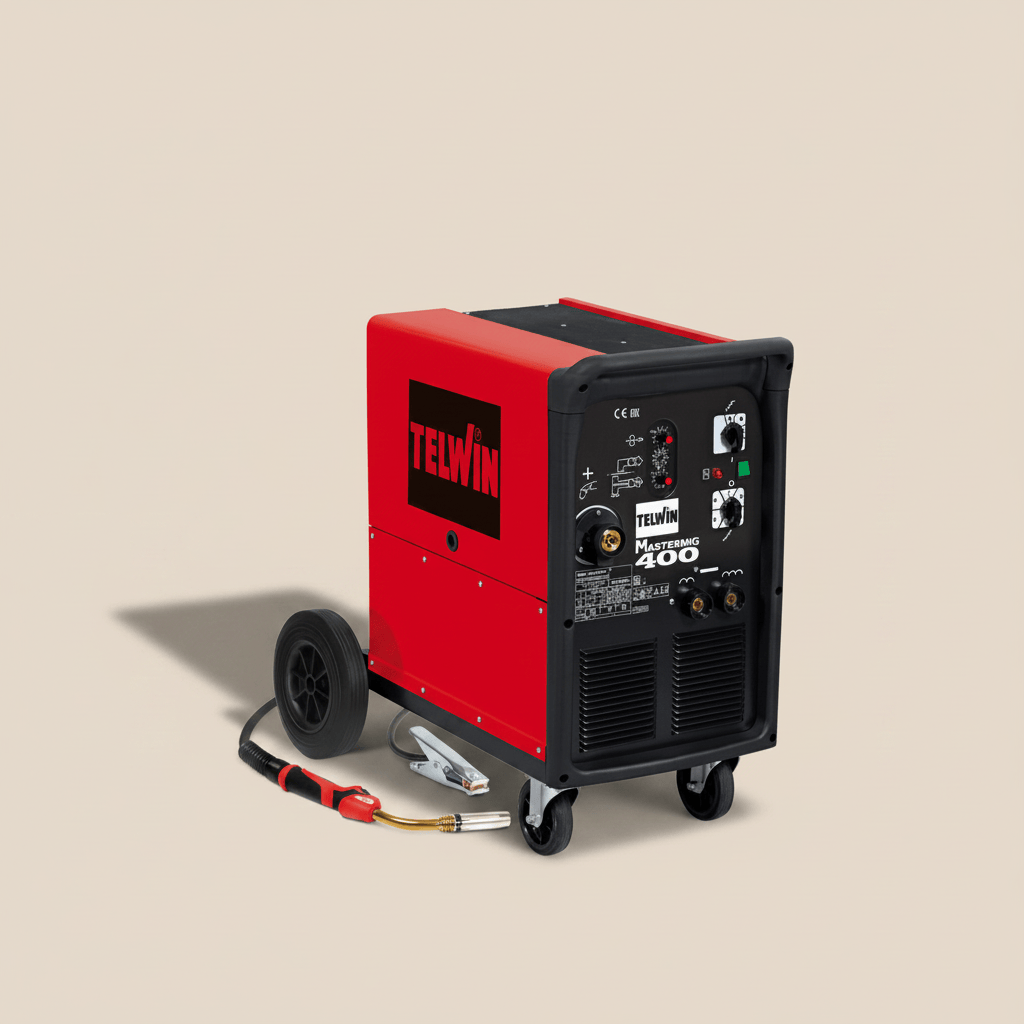

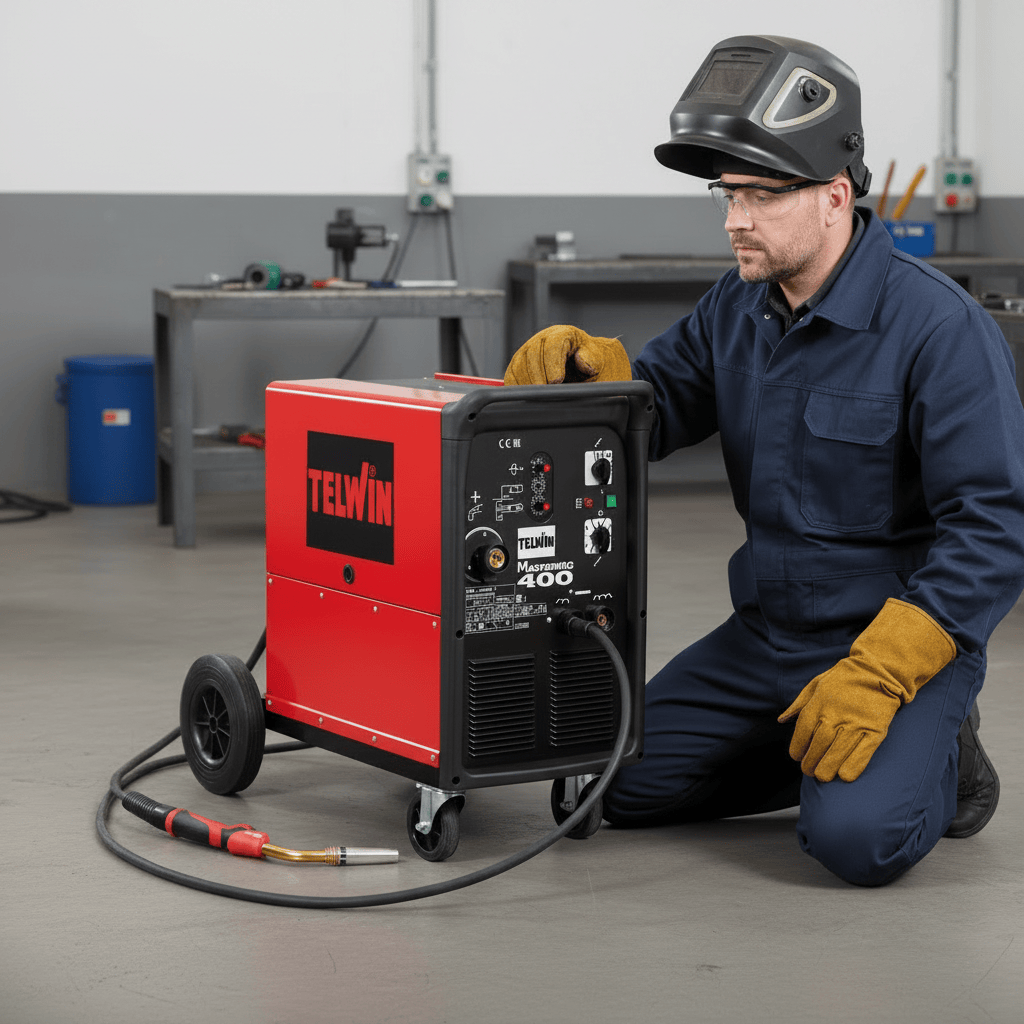

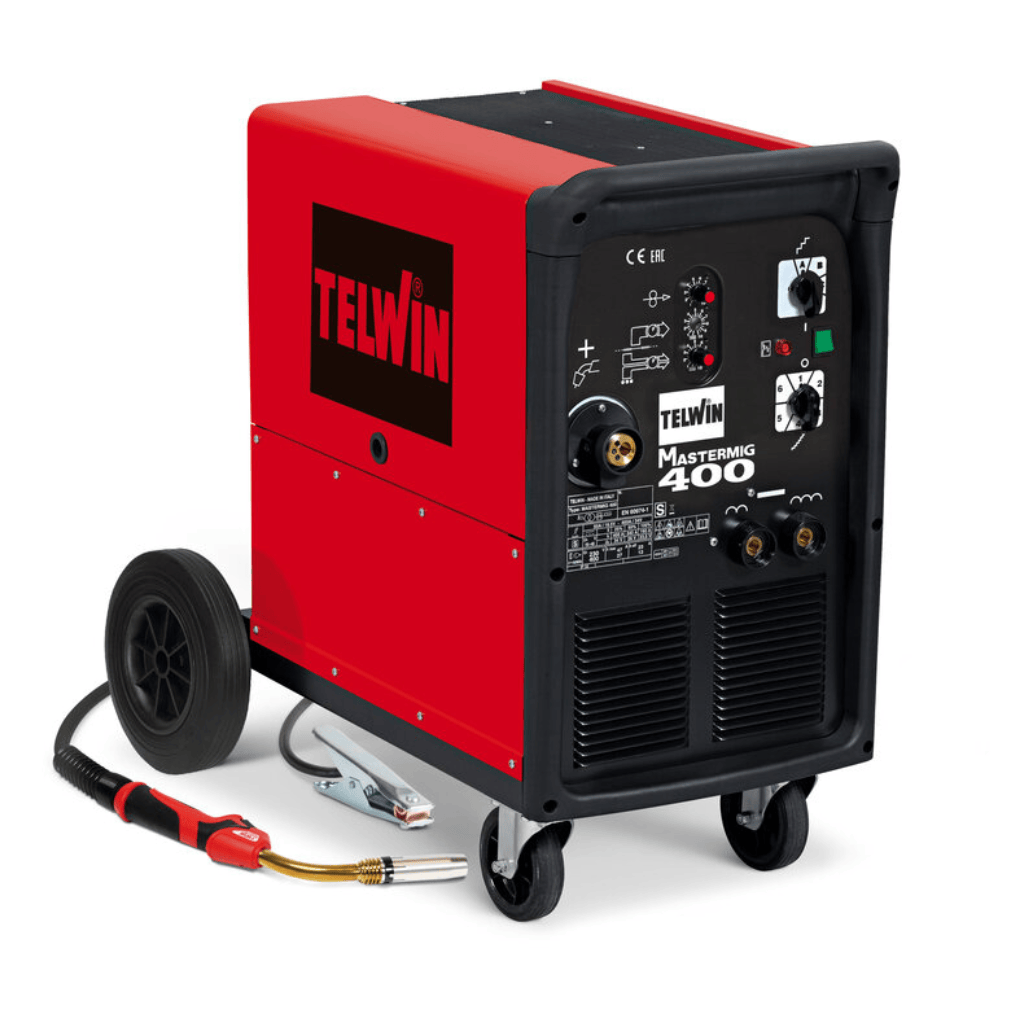

Telwin Mastermig 400 Professional 400A MIG-MAG, Flux-Cored & Brazing Welding Machine - TEL-827004
Telwin Mastermig 400 Professional 400A MIG-MAG, Flux-Cored & Brazing Welding Machine - TEL-827004 is available on backorder and will be fulfilled once restocked.
Complete your purchase
Useful add-ons for this product.
Telwin Mastermig 400 Professional 400A MIG-MAG, Flux-Cored & Br...
Telwin Mastermig 400 Professional 400A MIG-MAG, Flux-Cored & Brazing Welding Machine - TEL-827004 is available on backorder and will be fulfilled once restocked.
Product details
Product details
The Telwin Mastermig 400 Professional MIG-MAG, Flux-Cored & Brazing Welding Machine (TEL-827004) is a high-output industrial 230V/400V three-phase DC welding system supporting MIG-MAG, Gas-Shielded Flux-Cored, and MIG Brazing processes with an adjustable current range of 50–400A. Delivering 400A at 25% duty cycle on 400V, 240A at 60% duty cycle, and 190A continuously at 100% duty cycle, it features both continuous and spot welding modes, a four-roller P-K wire-feed system, and support for steel (0.6–1.6mm), stainless steel (0.8–1.6mm), aluminium (0.8–1.2mm), flux-cored (0.8–1.2mm), and brazing wire (0.8–1.2mm). Engineered for general metal fabrication, automotive bodywork, sheet-metal, stainless steel, and high-strength-steel welding applications.
Key Features:
- 400A Maximum Output — Delivers 400A at 25% duty cycle on 400V and 400A at 20% duty cycle on 230V for high-throughput industrial MIG-MAG welding applications.
- 240A at 60% / 190A at 100% Duty Cycle — Sustained output ratings for both extended production welding and continuous duty industrial applications.
- MIG-MAG, Flux-Cored & MIG Brazing — Supports MIG-MAG, Gas-Shielded Flux-Cored, and MIG Brazing processes for versatility across steel, stainless steel, aluminium, and galvanised sheet metal.
- Continuous & Spot Welding Modes — Selectable continuous seam welding and spot welding modes for fabrication and bodywork applications.
- Four-Roller P-K Wire-Feed System — Robust four-roller P-K drive ensures consistent, reliable wire feeding across the full wire-speed range of 1.5–20m/min.
- Wide Wire Compatibility — Supports steel (0.6–1.6mm), stainless steel (0.8–1.6mm), aluminium (0.8–1.2mm), flux-cored (0.8–1.2mm), and brazing wire (0.8–1.2mm).
- 230V/400V Three-Phase Input — Wide voltage input with ±15% tolerance for compatibility with variable site and workshop power supplies.
- Large Wire-Reel Capacity — Accepts wire reels from 200mm to 300mm diameter for extended production runs without reel changes.
- Class H Insulation — High-grade insulation for safe, durable performance under demanding industrial welding conditions.
- IP22 Protection Rating — Suitable for indoor workshop and sheltered industrial environments.
Technical Specifications:
- Product Type: Industrial MIG-MAG, Flux-Cored and Brazing Welding Machine
- Welding Processes: MIG-MAG, Gas-Shielded Flux-Cored Welding and MIG Brazing
- Welding Modes: Continuous and Spot Welding
- Welding Current Type: Direct Current
- Mains Voltage: 230V/400V, Three Phase
- Mains Frequency: 50/60Hz
- Mains-Voltage Tolerance: -15% to +15%
- Welding-Current Range: 50–400A
- Maximum Output at 400V: 400A at 25% Duty Cycle
- Maximum Output at 230V: 400A at 20% Duty Cycle
- Welding Current at 60%: 240A
- Continuous Output at 100%: 190A
- MIG Output-Voltage Range: 9–34V
- Maximum No-Load Voltage: 45.5V
- Maximum Absorbed Current at 400V: 27A
- Maximum Absorbed Current at 230V: 47A
- Maximum Absorbed Power: 20kW
- Absorbed Power at 60%: 10kW
- Recommended Fuse at 400V: 16A
- Recommended Fuse at 230V: 25A
- Steel-Wire Diameter: 0.6–1.6mm
- Stainless-Steel Wire Diameter: 0.8–1.6mm
- Aluminium-Wire Diameter: 0.8–1.2mm
- Flux-Cored Wire Diameter: 0.8–1.2mm
- Brazing-Wire Diameter: 0.8–1.2mm
- Wire-Speed Range: 1.5–20m/min
- Wire-Reel Diameter: 200–300mm
- Number of Feed Rollers: 4
- Feed-Roller Type: P-K
- Feed-Roller Diameter: 30mm
- Supply-Cable Length: 2.5m
- Insulation Class: H
- Protection Rating: IP22
- Dimensions: 94.5 × 56.5 × 83cm
- Weight: 104kg
The Telwin Mastermig 400 is a professional industrial MIG-MAG welding machine that delivers 400A output, continuous and spot welding modes, and broad wire compatibility in a robust three-phase unit with a four-roller P-K wire-feed system. Its 190A continuous duty rating, wide wire range, and support for flux-cored and brazing processes make it the definitive choice for high-throughput fabrication, automotive bodywork, and industrial sheet-metal welding operations. A high-performance, professional-grade MIG welding solution built to Telwin's exacting industrial standards.
