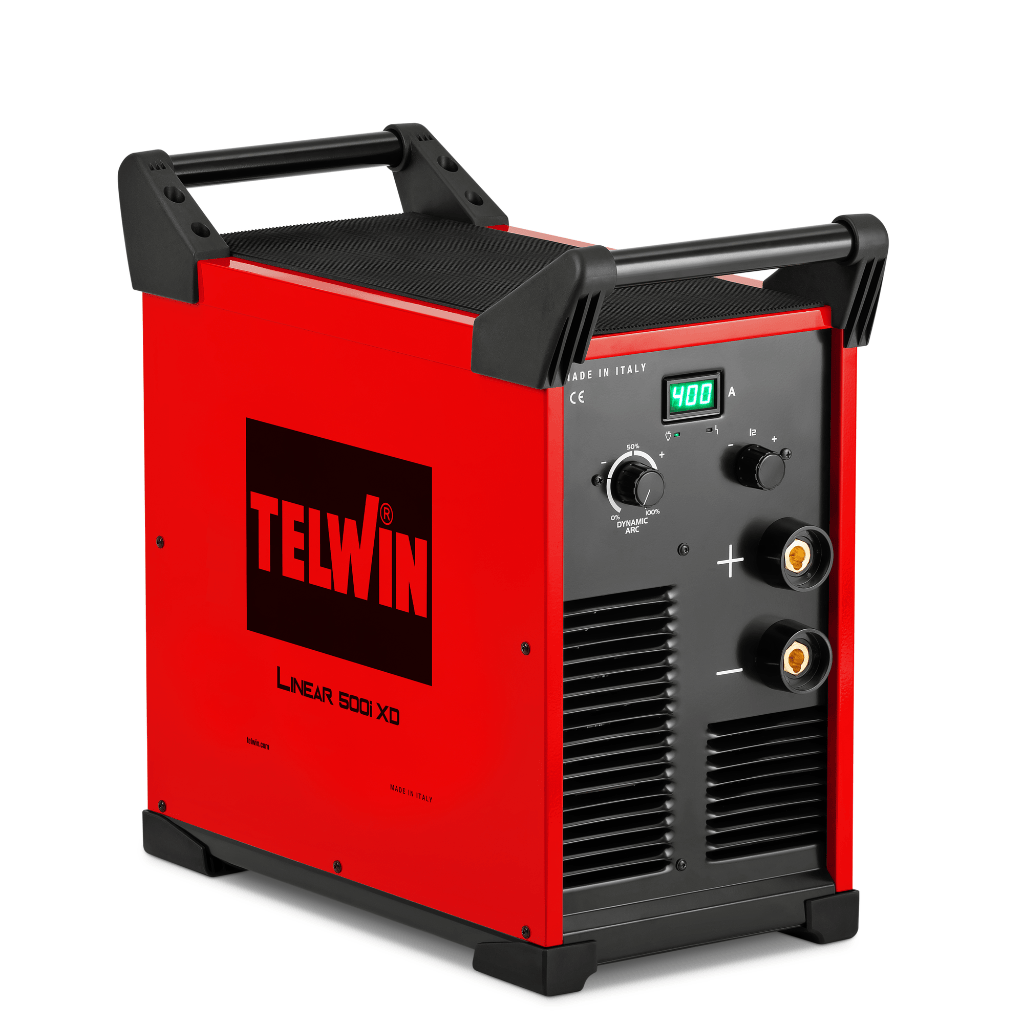

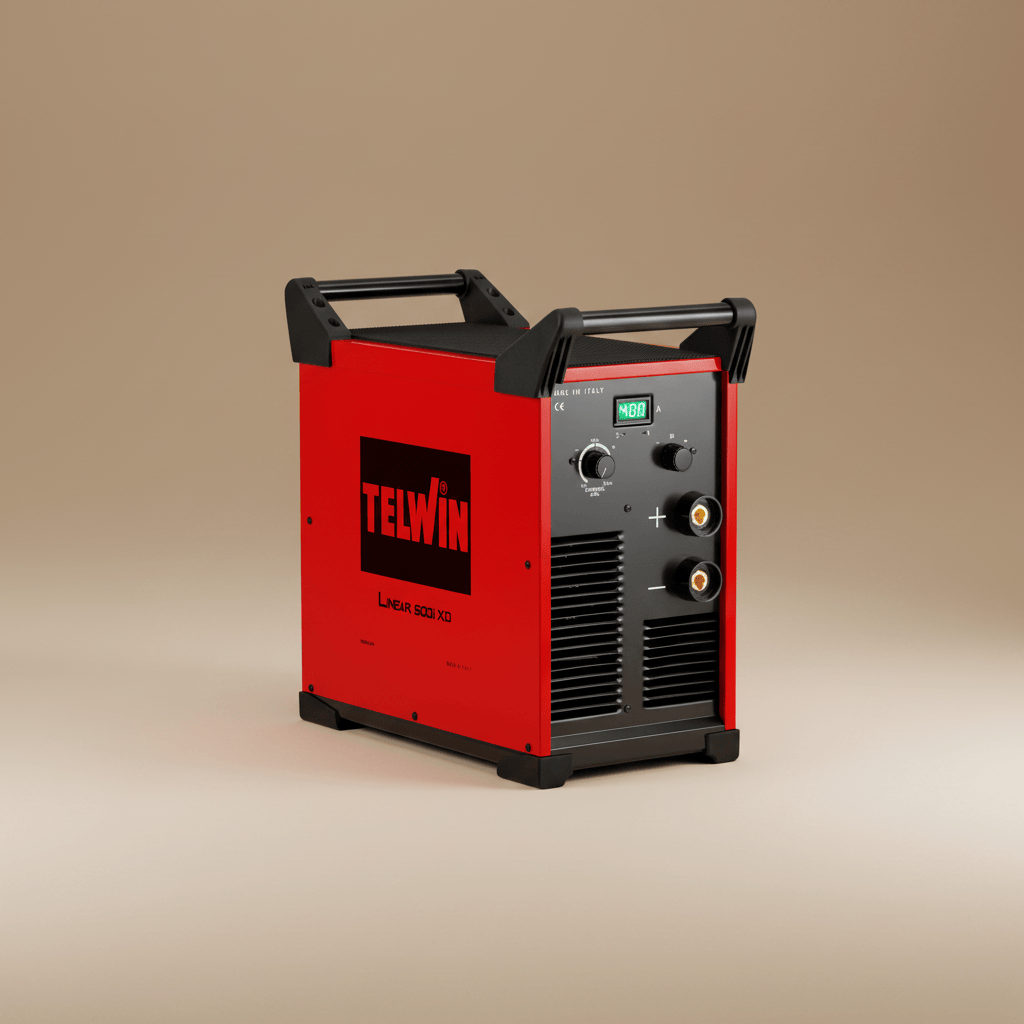

Telwin Linear 500I XD Professional 400A MMA DC Inverter Welding Machine with 600A Welding Kit, 230V/400V - TEL-816185

The Telwin Linear 500I XD Professional MMA DC Inverter Welding Machine with 600A Welding Kit (TEL-816185) is a high-output professional inverter welder delivering up to 400A at 60% duty cycle and 300A continuously at 100% duty cycle on 400V three-phase, with a wide mains-voltage tolerance of -25% to +15%. Its XD eXtra Duty construction is engineered for extended welding cycles in the most demanding heavy structural, shipbuilding, pipeline, and industrial applications. Supporting electrodes from 1.6mm to 6mm across rutile, basic, stainless steel, and cast iron types, it features Arc Force, Hot Start, Anti-Stick, a digital welding-current display, and optional gouging capability. Supplied complete with the Telwin MMA Welding Kit 801106 (DALLAS 600 electrode holder, TOLEDO 600 work clamp, 4m 70mm² electrode-holder cable, 3m 70mm² work-return cable, AX70 cable connections, and slag-removal tool).

Key Features:

• 400A at 60% Duty Cycle on 400V — Delivers 400A sustained output at 60% duty cycle and 300A continuously at 100% duty cycle on 400V for the most demanding extended welding applications.
• 300A at 60% Duty Cycle on 230V — Delivers 300A at 60% duty cycle and 210A continuously at 100% duty cycle on 230V for high-output single-phase-equivalent performance.
• XD eXtra Duty Construction — Engineered for extended welding cycles and sustained high-current output in heavy industrial, shipbuilding, and pipeline environments.
• Wide Mains-Voltage Tolerance — Operates reliably across -25% to +15% mains-voltage variation for stable performance on variable site power supplies.
• 20–400A Adjustable Current on 400V — Wide current range from 20A to 400A (20–320A on 230V) for precise control across all electrode sizes and material thicknesses.
• Broad Electrode Compatibility — Supports rutile, basic, stainless steel, and cast iron electrodes from 1.6mm to 6mm diameter.
• Optional Gouging Capability — Prepared for gouging with an optional gouging kit for carbon arc gouging applications.
• Digital Welding-Current Display — Clear digital display for precise current monitoring and parameter setting.
• Arc Force, Hot Start & Anti-Stick — Intelligent arc control functions for stable arc performance, easy electrode ignition, and electrode protection.
• 86% Efficiency — High inverter efficiency reduces energy consumption in demanding industrial environments.
• Supplied with 600A Welding Kit (801106) — Complete ready-to-weld setup included.

Technical Specifications:

• Product Type: Professional MMA Inverter Welding Machine
• Welding Process: MMA Electrode Welding
• Welding Current Type: Direct Current
• Mains Voltage: 230V/400V, Three Phase
• Mains Frequency: 50/60Hz
• Mains-Voltage Tolerance: -25% to +15%
• Current Range at 400V: 20–400A
• Current Range at 230V: 20–320A
• Maximum Output at 400V: 400A at 60% Duty Cycle
• Continuous Output at 400V: 300A at 100% Duty Cycle
• Maximum Output at 230V: 300A at 60% Duty Cycle
• Continuous Output at 230V: 210A at 100% Duty Cycle
• Maximum No-Load Voltage at 400V: 67V
• Maximum No-Load Voltage at 230V: 93V
• Maximum Absorbed Power at 400V: 16.6kW
• Maximum Absorbed Power at 230V: 11.8kW
• Recommended Fuse at 400V: 25A
• Recommended Fuse at 230V: 32A
• Efficiency: 86%
• Electrode Diameter Range: 1.6–6mm
• Compatible Electrodes: Rutile, Basic, Stainless Steel and Cast Iron
• Functions: Arc Force, Hot Start and Anti-Stick
• Display: Digital Welding-Current Display
• Gouging Capability: Prepared for Gouging with Optional Kit
• Supply-Cable Length: 3m
• Insulation Class: F
• Protection Rating: IP23
• Dimensions: 54.6 × 27.4 × 50cm
• Weight: 23.6kg

Supplied Welding Kit (Telwin 801106):

• DALLAS 600 Electrode Holder, 600A
• TOLEDO 600 Work Clamp, 600A
• 4m Electrode-Holder Cable, 70mm²
• 3m Work-Return Cable, 70mm²
• AX70 Cable Connections
• Slag-Removal Tool

The Telwin Linear 500I XD is the definitive professional MMA inverter welder for heavy structural, shipbuilding, pipeline, and industrial welding operations demanding sustained high-current output. Its XD eXtra Duty construction, 400A at 60% duty cycle, 300A continuous output, and wide voltage tolerance make it one of the most capable and reliable professional MMA inverters in Telwin's range. Supplied complete with a 600A welding kit, it is ready to perform from day one in the most demanding environments.
