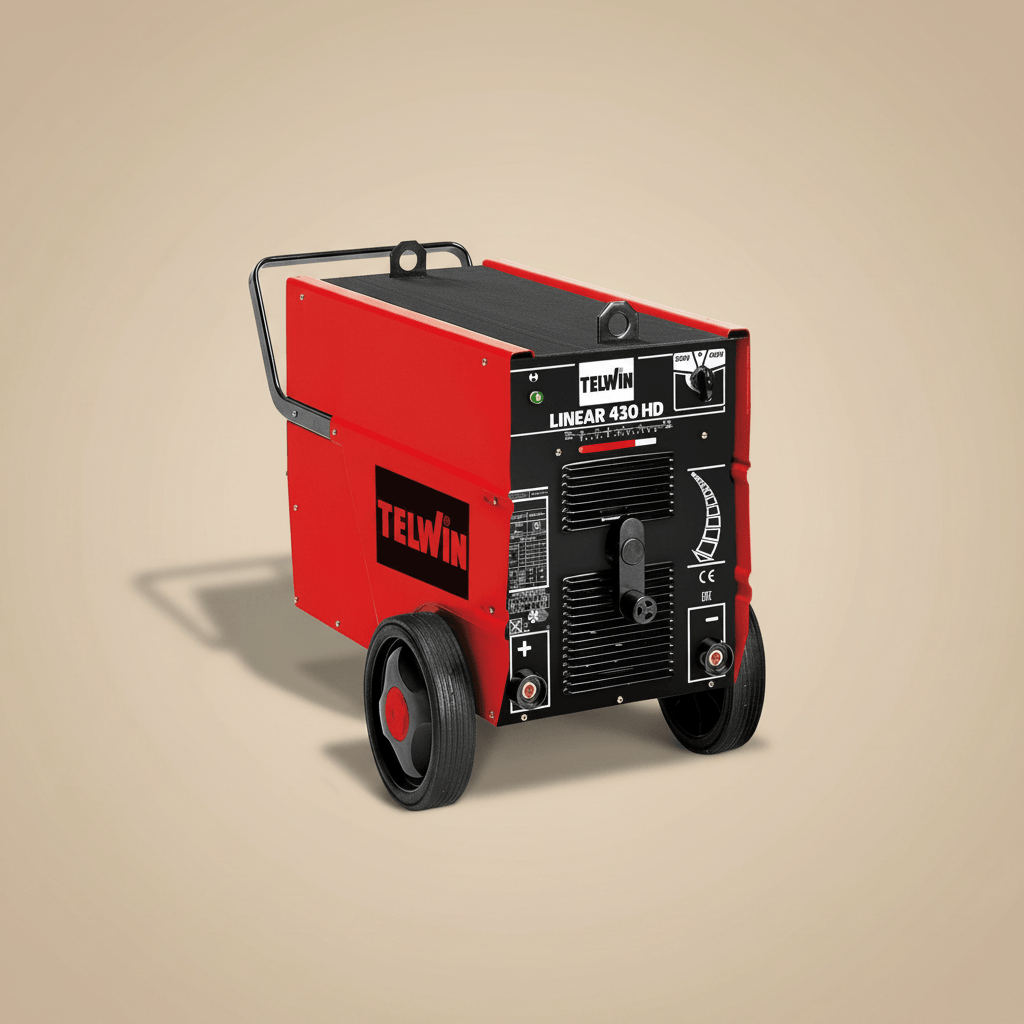

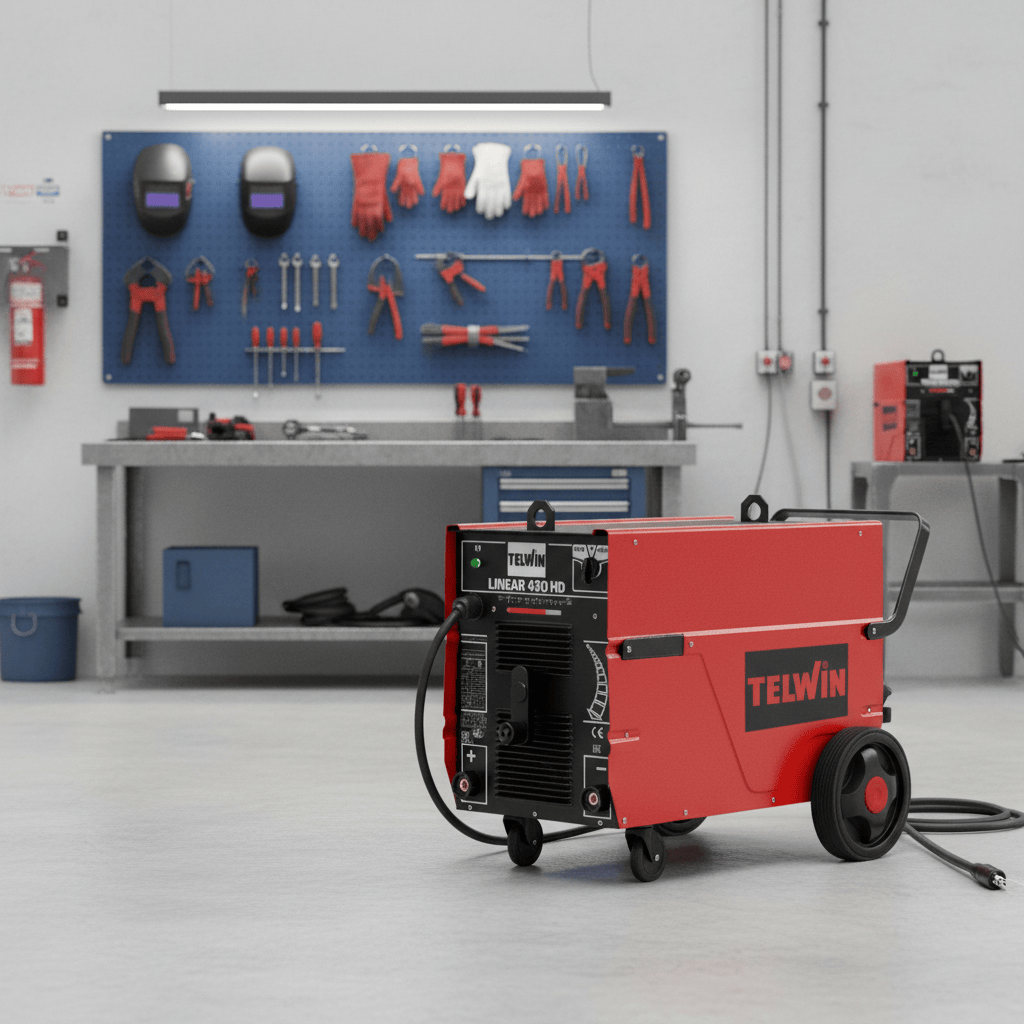

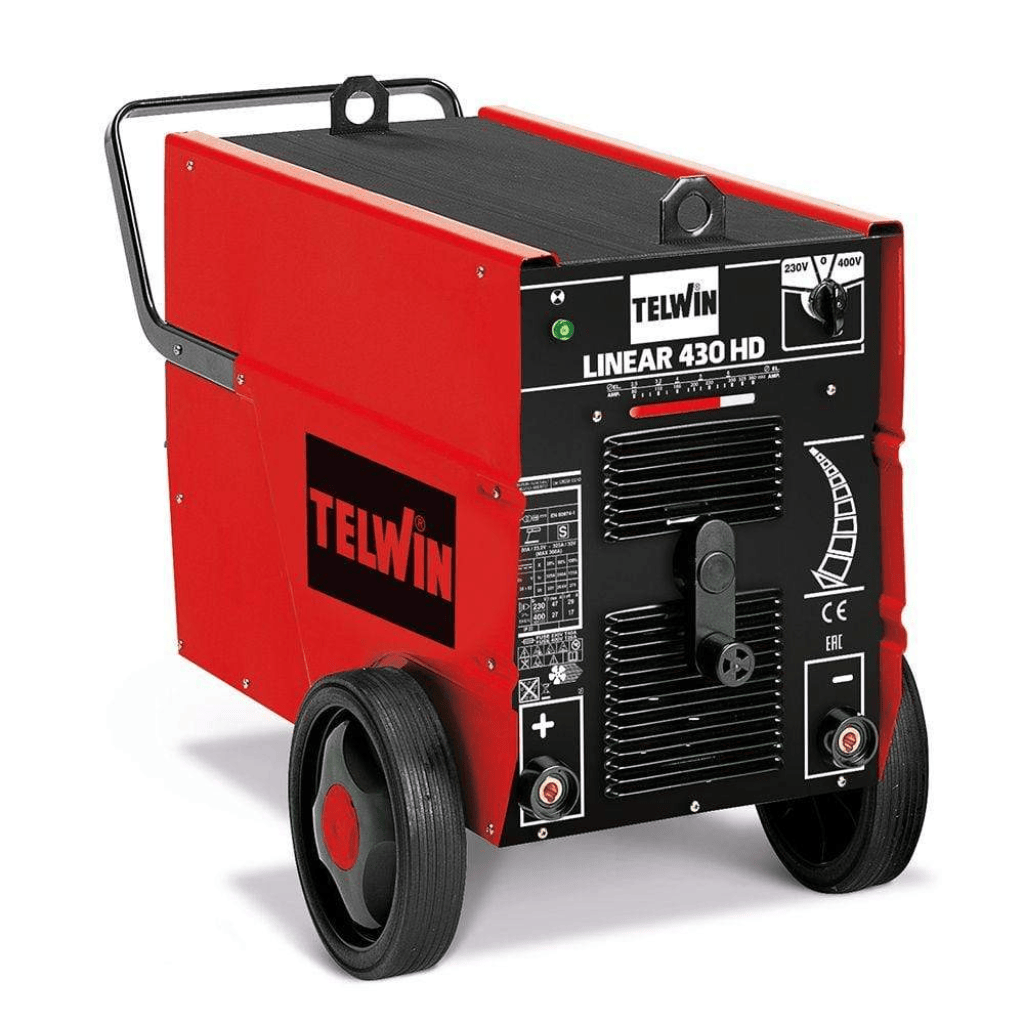

Telwin Linear 430 HD Professional 360A MMA DC Rectified Welding Machine 230V/400V - TEL-860003

The Telwin Linear 430 HD Professional MMA DC Rectified Welding Machine (TEL-860003) is a heavy-duty transformer-based rectified welding machine delivering a continuously adjustable DC welding current of 80–360A from a 230V/400V three-phase power supply. Rated at 325A at 35% duty cycle and 240A at 60% duty cycle, it supports rutile, basic, stainless steel, cast iron, and aluminium electrodes from 2mm to 6mm diameter. With fan cooling, Class H insulation, and an IP22 protection rating, it is engineered for heavy structural-steel fabrication, shipbuilding, construction, civil engineering, and industrial workshop applications. Compatible with the Telwin MMA Welding Kit 801093 (sold separately) for a complete ready-to-weld setup.

Key Features:

• Rectified DC Welding Output — Transformer-based rectified DC output delivers stable, smooth arc performance for a wider range of electrode types and applications than AC welding.
• 80–360A Continuous Current Adjustment — Stepless continuous current adjustment for precise control across a wide range of electrode sizes and material thicknesses.
• 325A Rated Output at 35% Duty Cycle — High sustained output for demanding structural and heavy fabrication welding, with 240A at 60% duty cycle for extended welding sessions.
• Broad Electrode Compatibility — Supports rutile, basic, stainless steel, cast iron, and aluminium electrodes from 2mm to 6mm diameter for maximum welding versatility.
• 230V/400V Three-Phase Power Supply — Three-phase input for stable, high-efficiency operation in professional workshop and construction environments.
• Fan Cooling — Active fan cooling maintains safe operating temperatures during sustained high-current welding sessions.
• Class H Insulation — High-grade insulation for safe, durable performance under demanding welding conditions.
• IP22 Protection Rating — Suitable for indoor workshop and sheltered construction site environments.
• Compatible with Telwin MMA Welding Kit 801093 — Optional welding kit includes DALLAS 400 electrode holder, TOLEDO 400 work clamp, 4m electrode-holder cable (50mm²), 3m work-return cable (50mm²), AX50 cable connections, and slag-removal hammer and brush.

Technical Specifications:

• Product Type: Transformer-Based Rectified MMA Welding Machine
• Welding Process: MMA Electrode Welding
• Welding Current Type: Direct Current
• Mains Voltage: 230V/400V, Three Phase
• Mains Frequency: 50/60Hz
• Welding-Current Range: 80–360A
• Maximum Rated Welding Current: 325A at 35% Duty Cycle
• Welding Current at 60%: 240A
• Maximum No-Load Voltage: 62V
• Maximum Absorbed Power: 14kW
• Absorbed Power at 60%: 8.4kW
• Power Factor: 0.6
• Electrode Diameter Range: 2–6mm
• Compatible Electrodes: Rutile, Basic, Stainless Steel, Cast Iron and Aluminium
• Current Adjustment: Continuous
• Cooling System: Fan Cooled
• Insulation Class: H
• Protection Rating: IP22
• Dimensions: 95 × 49 × 68cm
• Weight: 101kg

Compatible Welding Kit (Telwin 801093 — sold separately):

• DALLAS 400 Electrode Holder, 400A
• TOLEDO 400 Work Clamp
• 4m Electrode-Holder Cable, 50mm²
• 3m Work-Return Cable, 50mm²
• AX50 Cable Connections
• Slag-Removal Hammer and Brush

The Telwin Linear 430 HD is a professional heavy-duty rectified DC welding machine built for the most demanding structural fabrication, shipbuilding, construction, and industrial welding applications. Its 325A rated output, broad electrode compatibility including aluminium, fan-cooled continuous operation, and Class H insulation make it the preferred choice for workshops and construction operations requiring sustained high-current DC welding performance. A robust, dependable professional welding solution built to Telwin's exacting standards.
