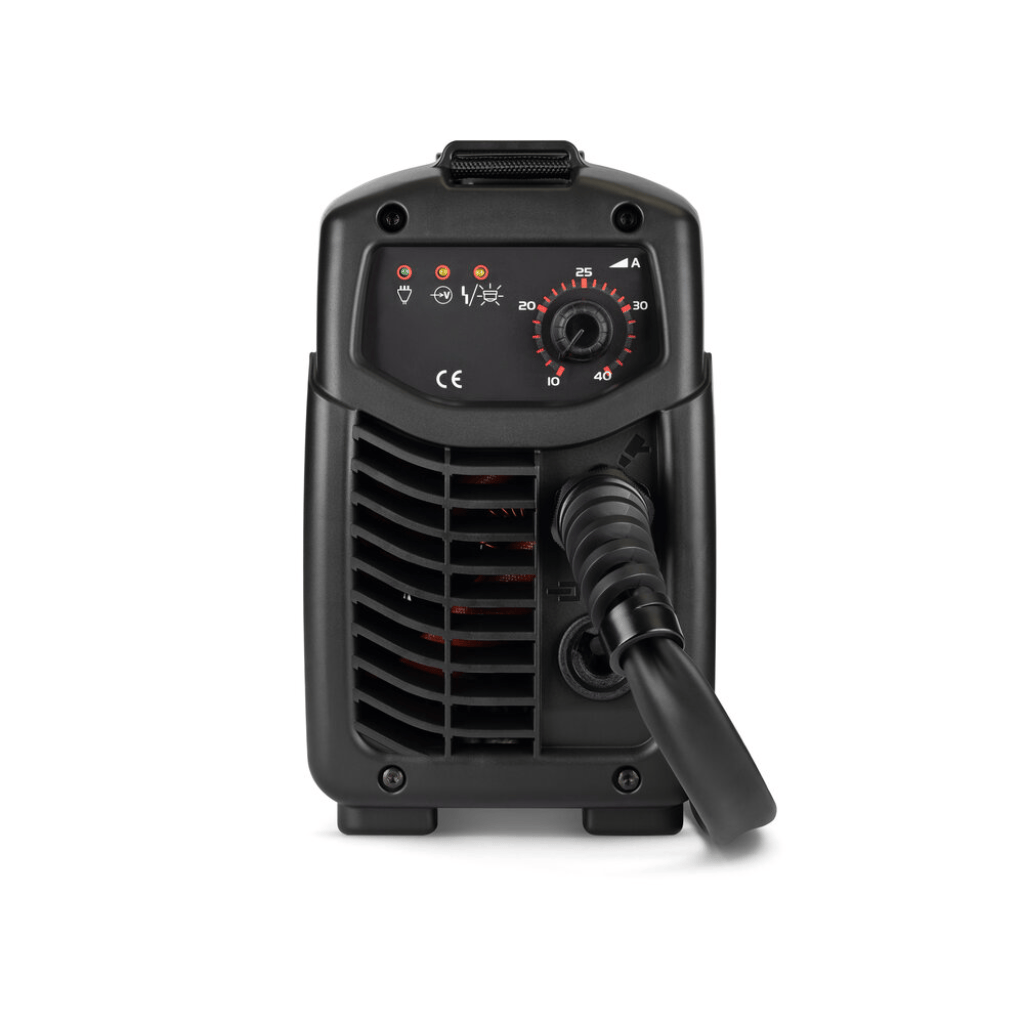

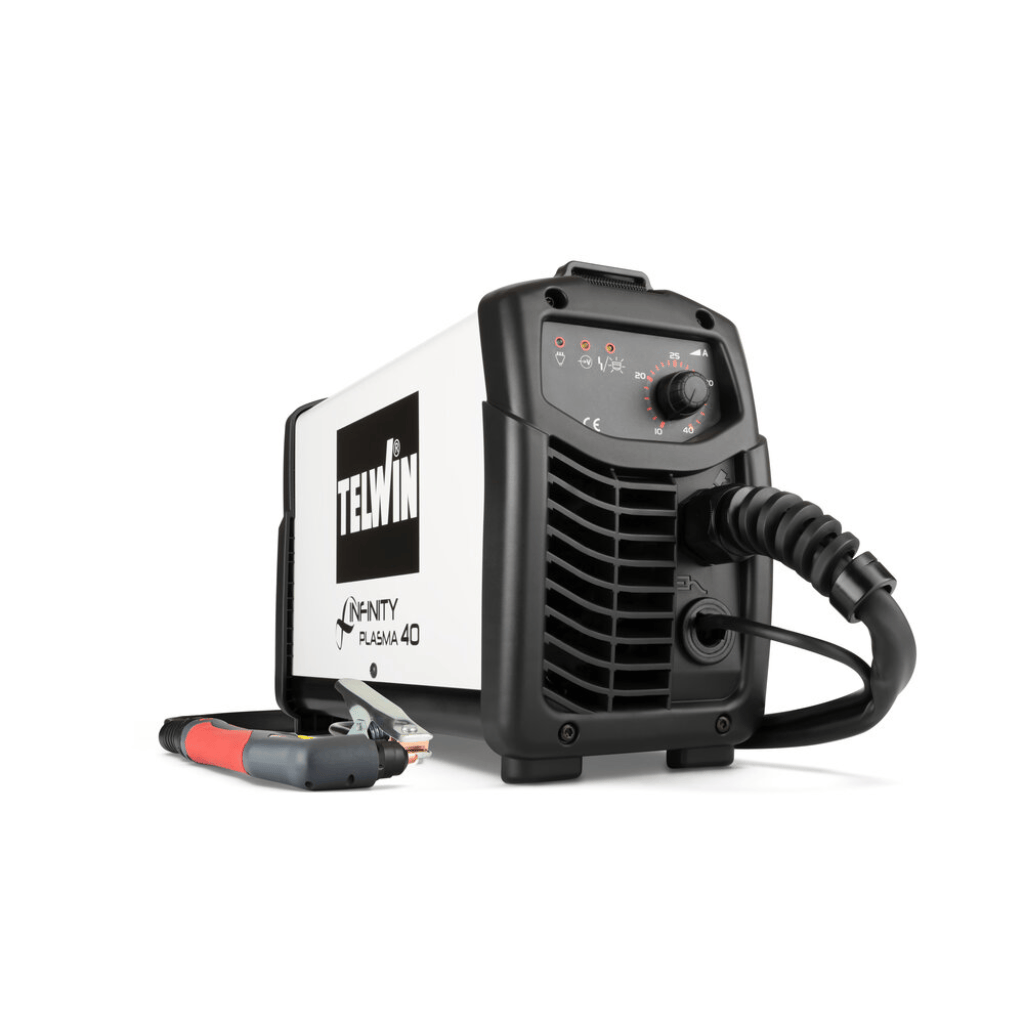

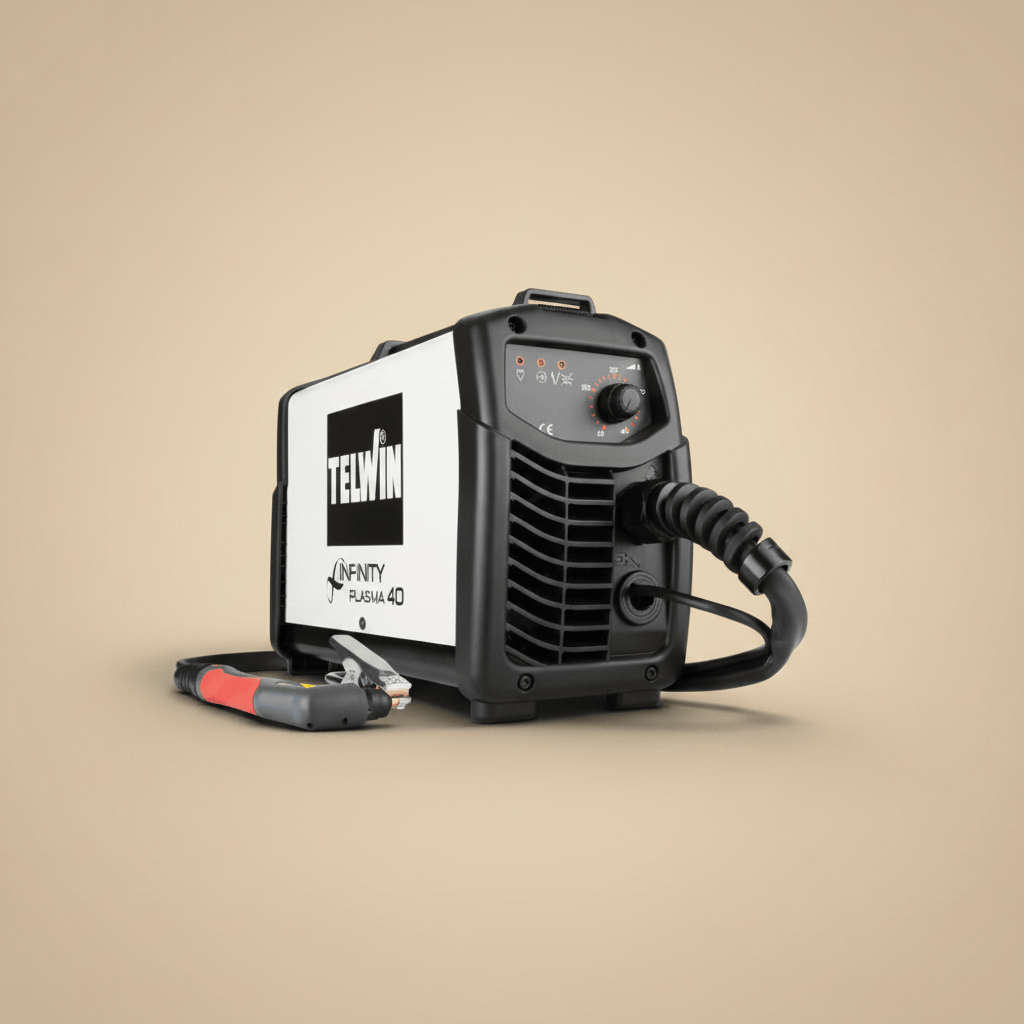

Telwin Infinity Plasma 40 Inverter Plasma Cutting System, 40A, 230V, 15mm - TEL-816145
Complete your purchase
Useful add-ons for this product.
Telwin Infinity Plasma 40 Inverter Plasma Cutting System, 40A, 230V...
Product details
Product details
The Telwin Infinity Plasma 40 Inverter Plasma Cutting System (TEL-816145) is a compact and capable 230V single-phase plasma cutter delivering up to 40A of cutting current for clean, precise cuts through conductive materials up to 15mm thick. Designed for metal fabrication, repair work, and construction applications, it handles steel, stainless steel, galvanised steel, aluminium, copper, and brass with ease. Its contact-striking pilot arc ignition and high 85% efficiency make it a reliable and energy-conscious choice for workshop and on-site use.
Key Features:
- 40A Maximum Cutting Current — Delivers up to 40A of cutting current at 20% duty cycle for effective cutting of conductive metals in fabrication and repair applications.
- 15mm Maximum Cutting Thickness — Cuts through steel, stainless steel, galvanised steel, aluminium, copper, and brass up to 15mm thick.
- Contact Striking Pilot Arc — Reliable contact-striking ignition method for consistent arc initiation across compatible conductive materials.
- Inverter Technology — High-efficiency inverter design at 85% efficiency reduces energy consumption and delivers stable cutting performance.
- Wide Material Compatibility — Suitable for steel, stainless steel, galvanised steel, aluminium, copper, brass, and other conductive metals.
- Compact & Portable — At just 7.4kg, it is easy to transport and position for workshop or on-site cutting tasks.
- IP23 Protection Rating — Dust and splash-resistant construction for reliable use in workshop and light outdoor environments.
- Class H Insulation — High-grade insulation class for safe, durable operation under demanding cutting conditions.
Technical Specifications:
- Product Type: Inverter Plasma Cutting System
- Power Supply: 230V, Single Phase
- Mains Frequency: 50/60Hz
- Cutting-Current Range: 10–40A
- Maximum Cutting Current: 40A at 20% Duty Cycle
- Maximum Cutting Thickness: 15mm
- Pilot-Arc Ignition: Contact Striking
- Maximum No-Load Voltage: 313V
- Maximum Absorbed Current: 29A
- Maximum Absorbed Power: 4kW
- Recommended Mains Fuse: 16A
- Efficiency: 85%
- Power Factor: 0.7
- Required Airflow: 100L/min
- Required Air Pressure: 4–5 Bar
- Insulation Class: H
- Protection Rating: IP23
- Dimensions: 55 × 14.5 × 24cm
- Weight: 7.4kg
The Telwin Infinity Plasma 40 delivers professional plasma cutting performance in a compact, single-phase package that is accessible for both workshop and field use. Its broad material compatibility, 85% inverter efficiency, and 15mm cutting capacity make it a versatile tool for fabricators, maintenance technicians, and construction professionals. A dependable entry into Telwin's plasma cutting range, built to perform where precision and portability matter.
