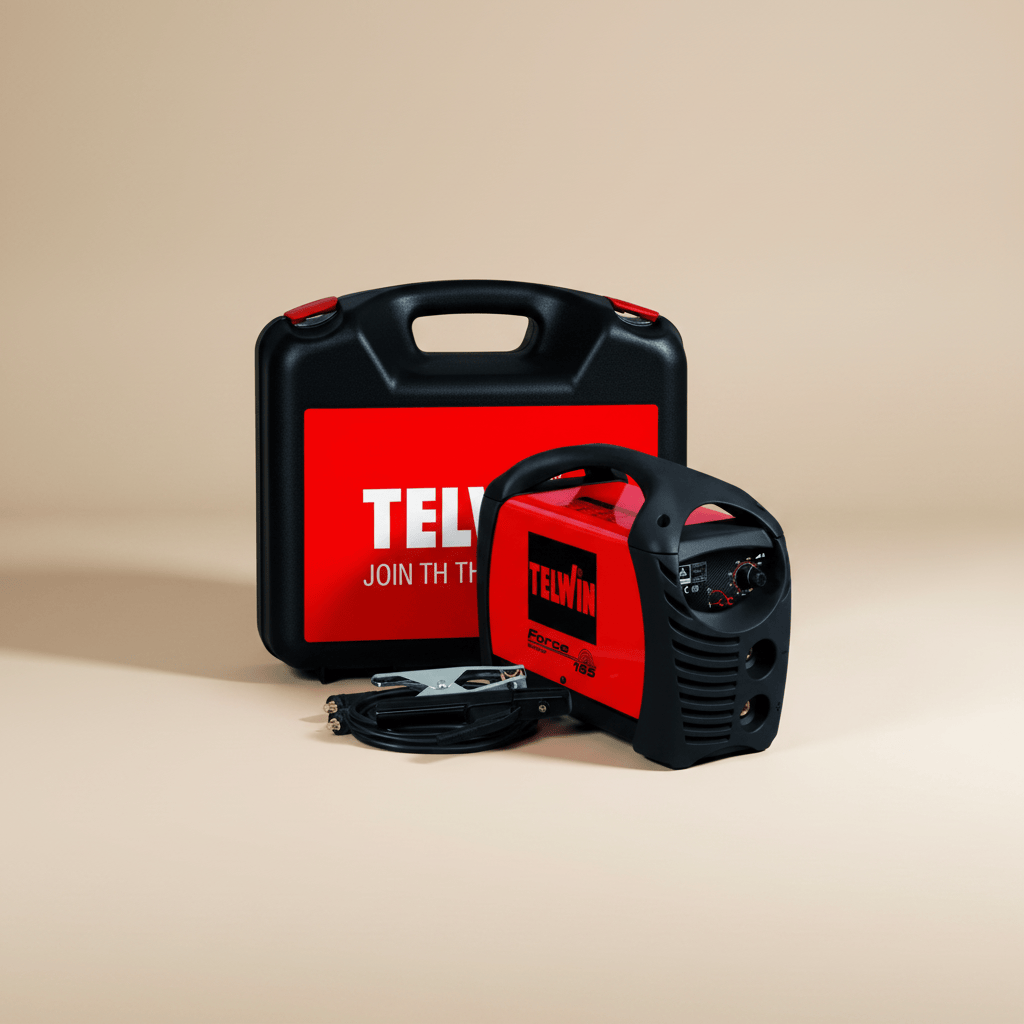

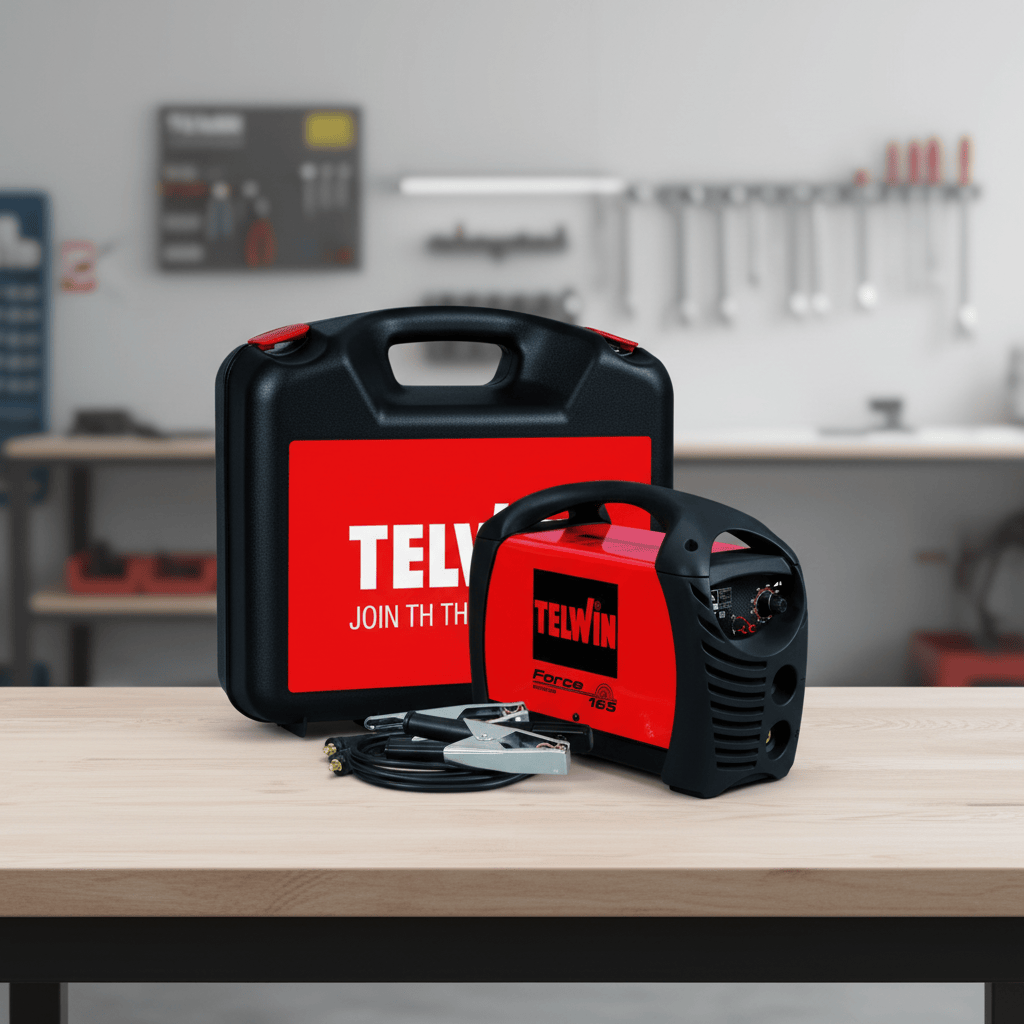

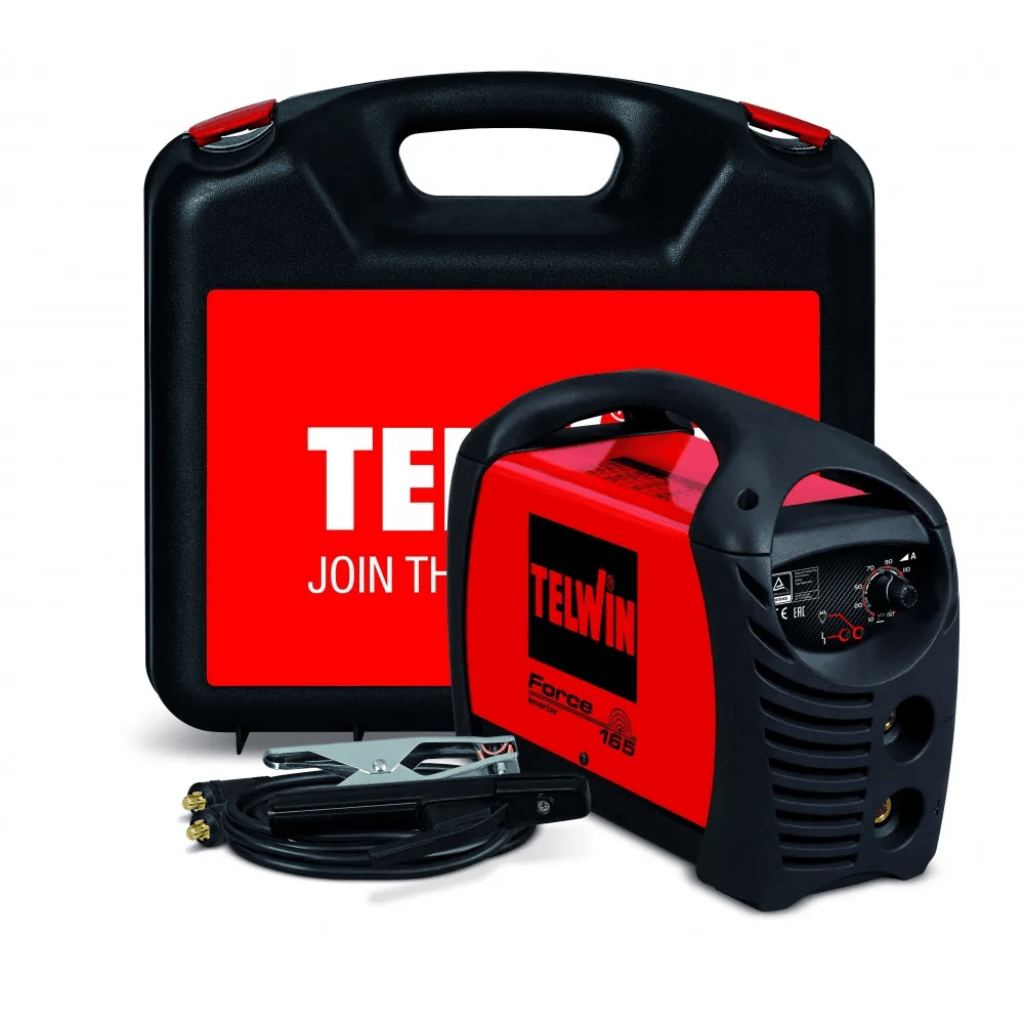

Telwin Force 165 Professional 150A MMA DC Inverter Welding Machine with Carry Case - TEL-815857

The Telwin Force 165 Professional MMA DC Inverter Welding Machine with Carry Case (TEL-815857) is a compact and capable 230V single-phase DC inverter welder delivering an adjustable welding current of 10–150A for general metal fabrication, gate and railing welding, and construction and installation work. Rated at 140A at 7% duty cycle under EN 60974-1 and 150A at 60% duty cycle at 20°C, it supports rutile, basic, stainless steel, and cast iron electrodes from 1.6mm to 4mm. With Arc Force, Hot Start, and Anti-Stick functions, generator compatibility from 6kW, and 82% efficiency, it is a reliable and portable professional MMA welding solution supplied with a carry case for easy transport and storage.

Key Features:

• 10–150A Adjustable Welding Current — Wide current range for precise control across thin sheet metal through to structural components with electrodes from 1.6mm to 4mm.
• 150A at 60% Duty Cycle (20°C) — Sustained output at 60% duty cycle for extended welding sessions in workshop and site environments.
• Broad Electrode Compatibility — Supports rutile, basic, stainless steel, and cast iron electrodes from 1.6mm to 4mm diameter.
• Generator Compatible — Minimum generator power of 6kW with ±15% voltage tolerance for reliable site and field deployment.
• Arc Force Control — Automatically adjusts current to maintain a stable arc and prevent electrode sticking during welding.
• Hot Start Function — Momentary current boost on arc ignition for easier, more reliable electrode striking.
• Anti-Stick Function — Reduces output current if the electrode sticks, protecting the electrode and workpiece from damage.
• 82% Efficiency — Efficient inverter design reduces energy consumption in workshop and site environments.
• Supplied with Carry Case — Included carry case for convenient, protected transport and storage of the welding machine.
• IP21 Protection Rating — Suitable for indoor workshop and sheltered site environments.

Technical Specifications:

• Product Type: MMA Inverter Welding Machine
• Welding Process: MMA Electrode Welding
• Welding Current Type: Direct Current
• Mains Voltage: 230V, Single Phase
• Mains Frequency: 50/60Hz
• Welding-Current Range: 10–150A
• Maximum Rated Current: 140A at 7% Duty Cycle (EN 60974-1)
• Duty Cycle at 20°C: 150A at 60%
• Maximum No-Load Voltage: 72V
• Maximum Absorbed Current: 31A
• Maximum Absorbed Power: 4.1kW
• Recommended Mains Fuse: 16A
• Minimum Generator Power: 6kW
• Generator Voltage Tolerance: ±15%
• Efficiency: 82%
• Power Factor: 0.6
• Electrode Diameter Range: 1.6–4mm
• Compatible Electrodes: Rutile, Basic, Stainless Steel and Cast Iron
• Functions: Arc Force, Hot Start and Anti-Stick
• Protection Rating: IP21
• Package Dimensions: 38 × 42 × 17cm
• Package Weight: 5.5kg

The Telwin Force 165 is a professional, portable MMA DC inverter welder that combines reliable arc performance, broad electrode compatibility, and generator compatibility in a compact package supplied with a carry case. Its 150A output, Arc Force, Hot Start, and Anti-Stick functions make it a dependable choice for fabricators, construction professionals, and maintenance engineers working in workshop or field environments. A practical, professional-grade welding solution built to Telwin's quality standards.
