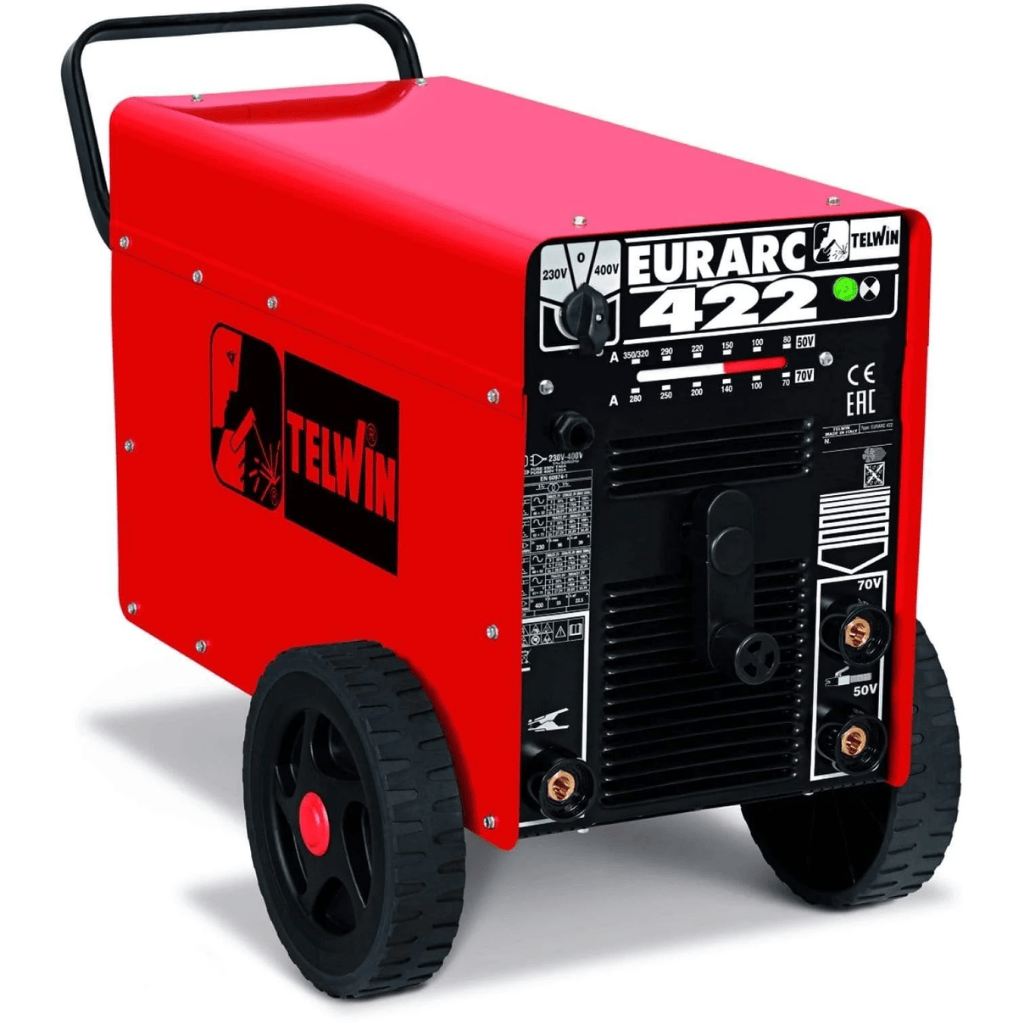

Telwin Eurarc 422 ACX Professional 320A MMA AC Welding Machine with Welding Kit, 230V/400V - TEL-858013

The Telwin Eurarc 422 ACX Professional MMA AC Welding Machine with Welding Kit (TEL-858013) is a heavy-duty transformer-based AC welding machine delivering a steplessly adjustable welding current of 70–350A from a 230V single-phase or 400V two-phase power supply. Rated at 320A at 15% duty cycle and 215A at 35% duty cycle, with 170A at 60% duty cycle, it supports both rutile and basic electrodes from 2mm to 6mm diameter. With thermostatic protection, Class H insulation, and an IP22 protection rating, it is a robust and reliable solution for structural-steel fabrication, general metal fabrication, construction, and welding gates, railings, and frames.

Key Features:

• 70–350A Stepless Current Adjustment — Continuously adjustable welding current for precise control across a wide range of electrode sizes and material thicknesses.
• 320A Maximum Output at 15% Duty Cycle — High peak output for demanding welding tasks, with 215A at 35% and 170A sustained at 60% duty cycle for extended welding sessions.
• Rutile & Basic Electrode Compatibility — Supports both rutile and basic electrodes from 2mm to 6mm diameter for greater welding versatility across structural and general fabrication applications.
• 230V/400V Dual Voltage Input — Operates from 230V single-phase or 400V two-phase power for flexibility across workshop and site power installations.
• 52–73V No-Load Voltage Range — Wide no-load voltage range supports reliable arc ignition with both rutile and basic electrode types.
• Thermostatic Protection — Built-in thermostatic protection prevents overheating and protects the machine during extended welding sessions.
• Class H Insulation — High-grade insulation for safe, durable performance under demanding welding conditions.
• IP22 Protection Rating — Suitable for indoor workshop and sheltered construction site environments.
• Supplied with Welding Kit — Includes a welding kit for immediate operational readiness.

Technical Specifications:

• Product Type: Transformer-Based MMA Electrode Welding Machine
• Welding-Current Type: Alternating Current
• Mains Voltage: 230V Single Phase / 400V Two Phase
• Mains Frequency: 50/60Hz
• Welding-Current Adjustment Range: 70–350A
• Maximum Welding Current: 320A at 15% Duty Cycle
• Rated Welding Current: 215A at 35% Duty Cycle
• Welding Current at 60%: 170A
• Maximum No-Load Voltage: 52–73V
• Maximum Absorbed Power: 13kW
• Absorbed Power at 60%: 4.5kW
• Power Factor: 0.4
• Compatible Electrodes: Rutile and Basic
• Electrode Diameter Range: 2–6mm
• Current Adjustment: Stepless
• Thermostatic Protection: Yes
• Insulation Class: H
• Protection Rating: IP22
• Dimensions: 83 × 45.5 × 58cm
• Weight: 61kg

The Telwin Eurarc 422 ACX is a professional heavy-duty transformer AC welder that adds basic electrode compatibility and a higher duty cycle rating over the Eurarc 410, making it the preferred choice for structural fabrication, construction, and gate and railing welding where both rutile and basic electrodes are required. Supplied with a welding kit for immediate use, it combines robust transformer reliability with Class H insulation and thermostatic protection for safe, sustained performance in demanding environments. A dependable, professional-grade AC welding solution built to Telwin's exacting standards.
