Telwin Digital Modular Microprocessor-Controlled Handheld Spot-Welding Machine, 6900A, 230V - TEL-823016
Telwin Digital Modular Microprocessor-Controlled Handheld Spot-Welding Machine, 6900A, 230V - TEL-823016 is available on backorder and will be fulfilled once restocked.
Telwin Digital Modular Microprocessor-Controlled Handheld Spot-Weld...
Telwin Digital Modular Microprocessor-Controlled Handheld Spot-Welding Machine, 6900A, 230V - TEL-823016 is available on backorder and will be fulfilled once restocked.
Product details
Product details

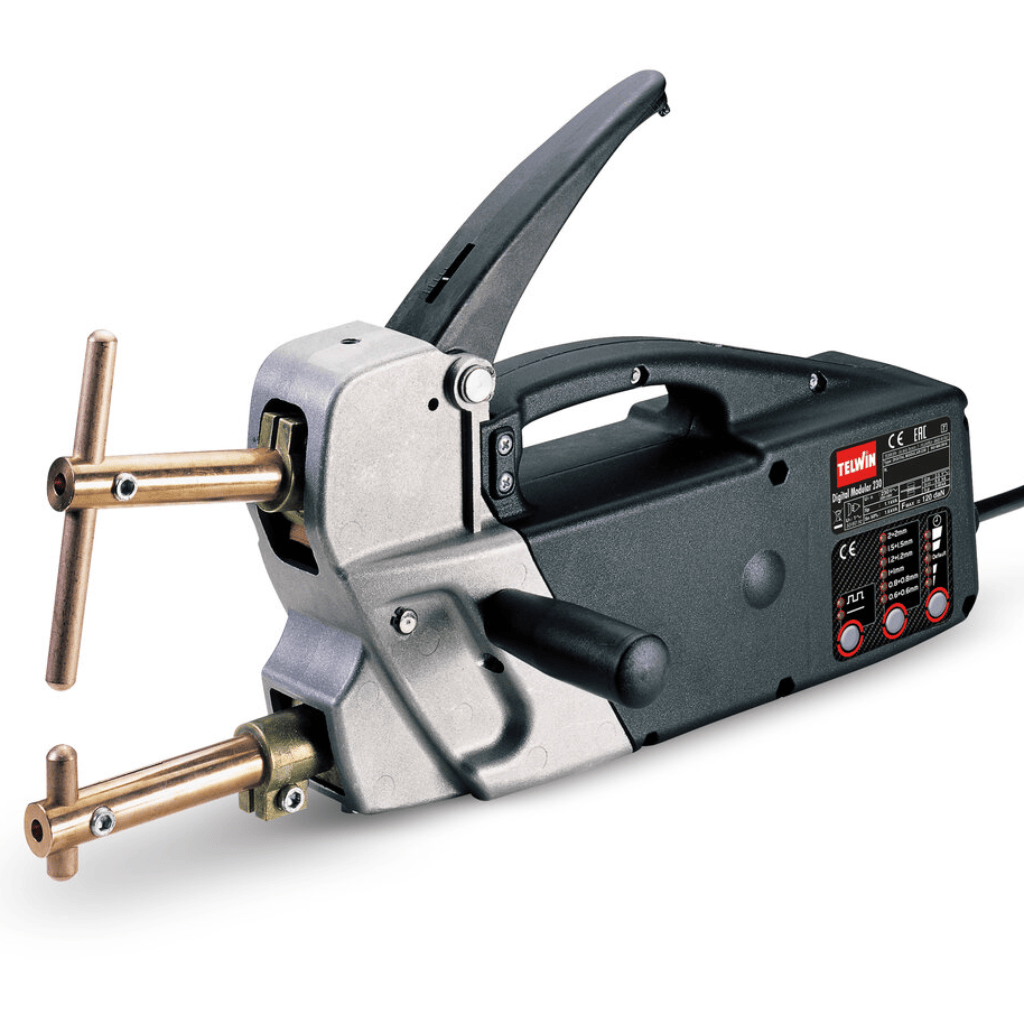

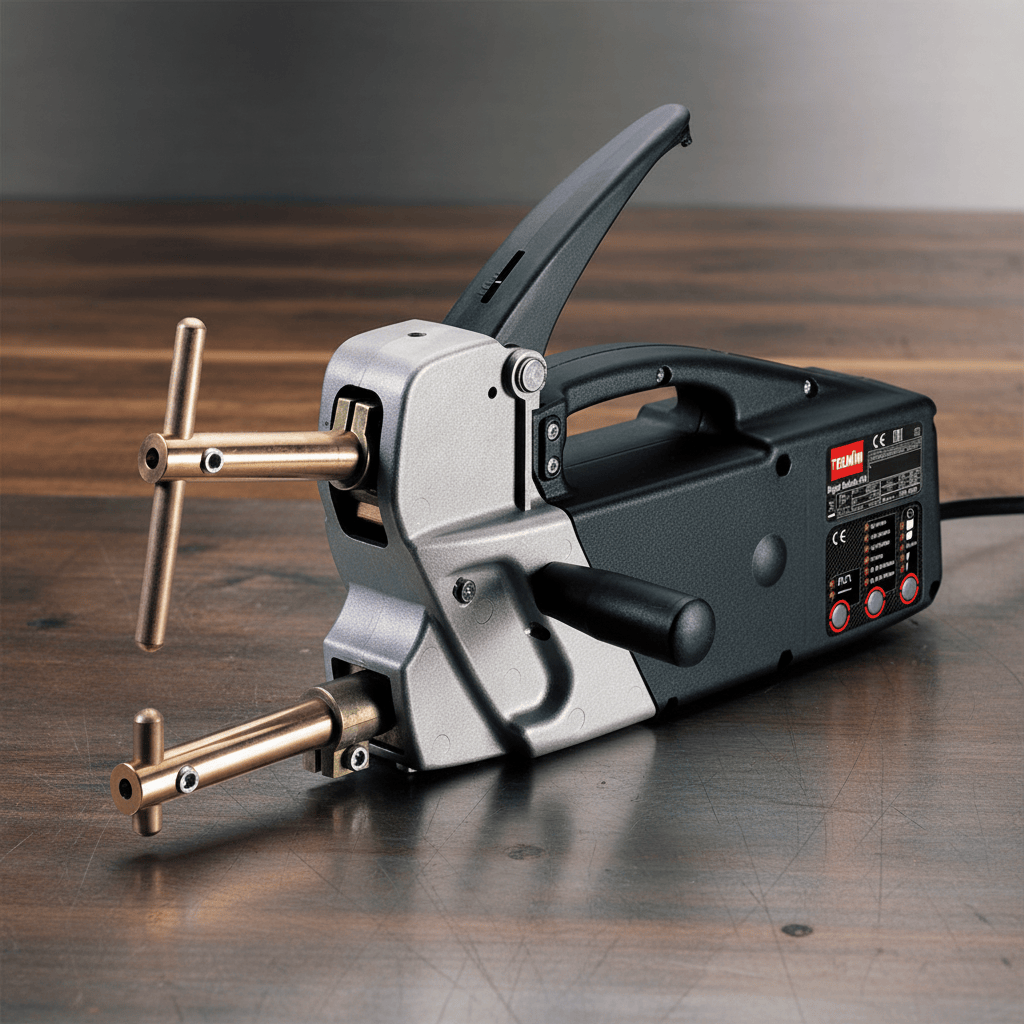

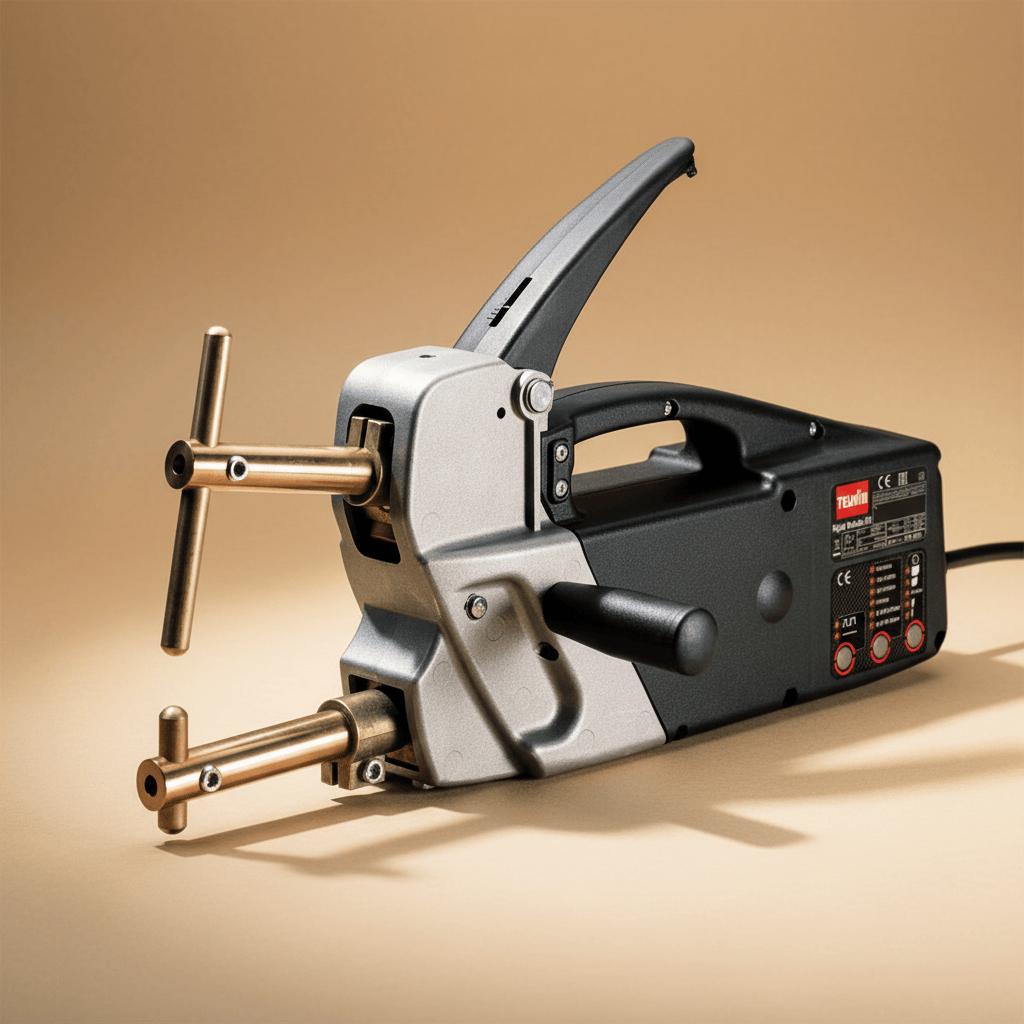

The Telwin Digital Modular Microprocessor-Controlled Handheld Spot-Welding Machine (TEL-823016) is a professional 230V single-phase resistance spot welder delivering a maximum spot-welding current of 6900A for joining mild-steel, galvanised, and oxidised sheet metal up to 2mm + 2mm thickness. Controlled by a microprocessor with Fuzzy Logic for improved ease of use and weld consistency, it operates in both Continuous and Pulse modes with adjustable arm pressure from 40kg to 120kg using 120mm arms. Designed for automotive body-panel repairs, sheet-metal fabrication, and joining mild-steel sheets, it is a precise, reliable, and professional-grade spot-welding solution.
Key Features:
- 6900A Maximum Spot-Welding Current — High peak current for reliable, consistent spot welds on mild-steel, galvanised, and oxidised sheet metal up to 2mm + 2mm.
- Fuzzy Logic Microprocessor Control — Intelligent control system automatically adjusts welding parameters for improved ease of use and consistent weld quality across varying material conditions.
- Continuous & Pulse Operating Modes — Selectable modes for different welding applications and material thicknesses.
- Adjustable Arm Pressure (40–120kg) — Arm pressure adjustable from 40kg to 120kg with 120mm arms for precise electrode force control across different panel thicknesses.
- 2mm + 2mm Maximum Weldable Thickness — Welds two sheets of up to 2mm each for compatibility with standard automotive body-panel thicknesses.
- Handheld Configuration — Portable handheld design for flexible positioning and access in automotive body repair and sheet-metal fabrication environments.
- 230V Single-Phase Power Supply — Compatible with standard single-phase workshop power for straightforward installation.
- IP20 Protection Rating — Suitable for indoor workshop and bodyshop environments.
Technical Specifications:
- Product Type: Microprocessor-Controlled Resistance Spot-Welding Machine
- Configuration: Handheld Spot Welder
- Mains Voltage: 230V, Single Phase
- Mains Frequency: 50/60Hz
- Maximum Spot-Welding Current: 6900A
- Maximum No-Load Voltage: 2.5V
- Rated Power at 50% Duty: 1.4kVA
- Required Mains Fuse: 25A
- Power Factor: 0.9
- Maximum Weldable Thickness: 2mm + 2mm
- Operating Modes: Continuous and Pulse
- Control System: Microprocessor with Fuzzy Logic
- Arm Pressure: Adjustable from 40kg to 120kg with 120mm arms
- Duty Cycle: 1.5%
- Insulation Class: B
- Protection Rating: IP20
- Dimensions: 44 × 10 × 18.5cm
- Weight: 10.5kg
The Telwin Digital Modular Spot Welder combines 6900A peak current with Fuzzy Logic microprocessor control to deliver precise, consistent spot welds on automotive body panels and sheet-metal components. Its adjustable arm pressure, dual operating modes, and handheld design make it a versatile and professional tool for bodyshop technicians and sheet-metal fabricators. A high-performance, intelligent spot-welding solution built to Telwin's exacting professional standards.
