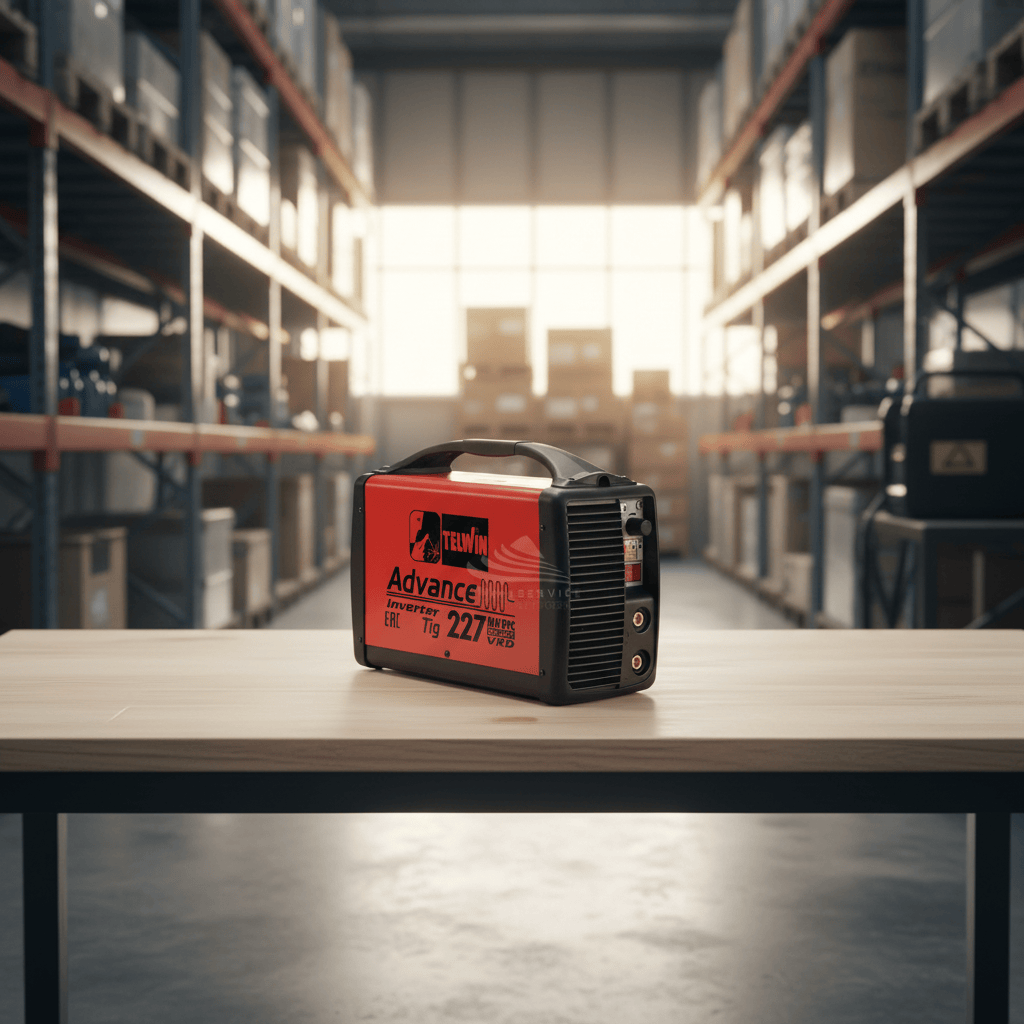

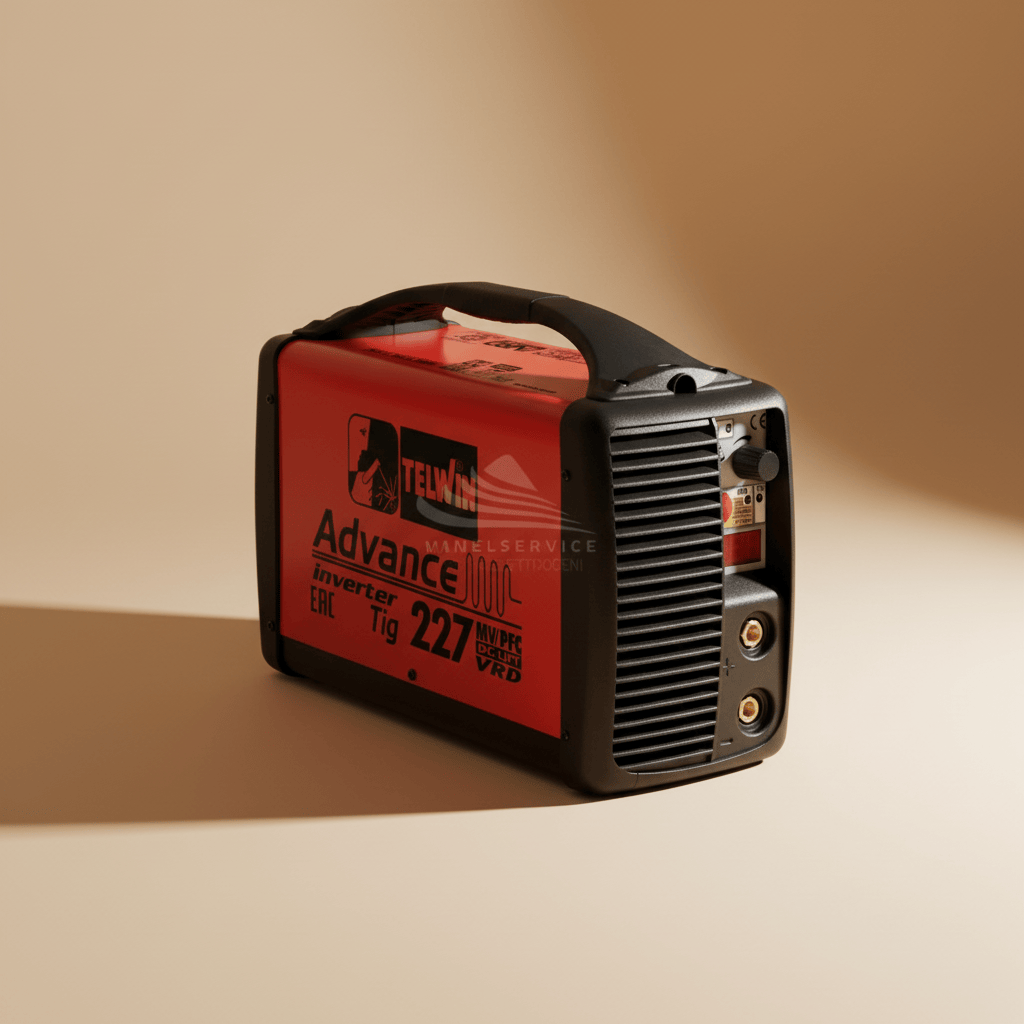

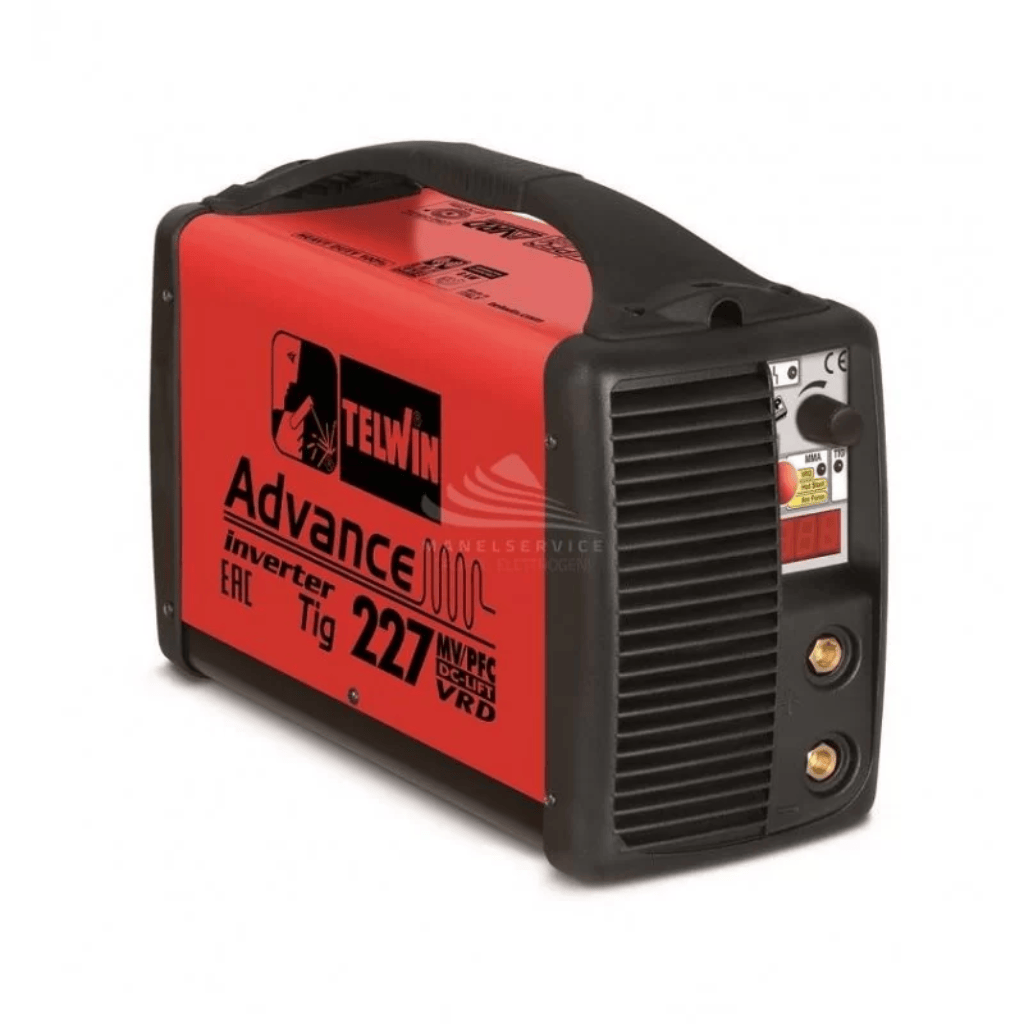

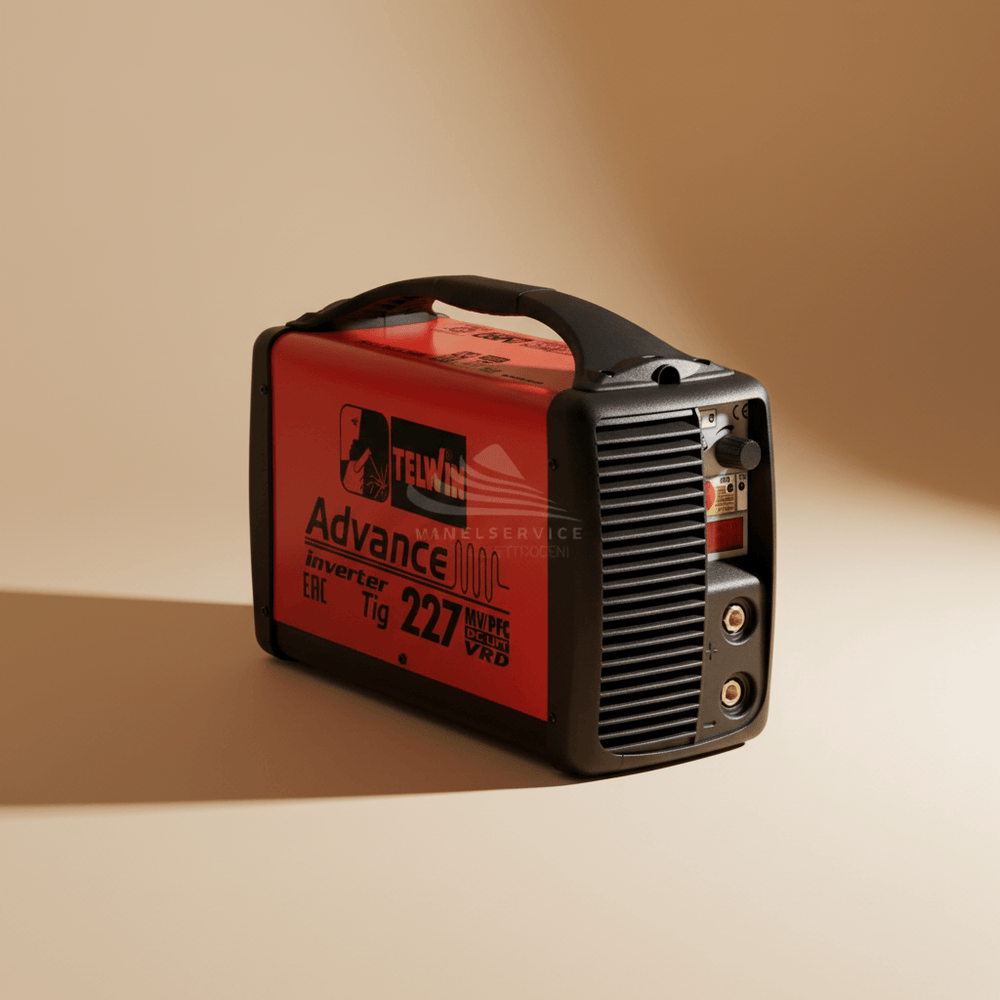

Telwin Advance TIG 227 MV/PFC Professional 200A MMA & TIG DC-Lift Inverter Welding Machine, 100–240V - TEL-852048
Telwin Advance TIG 227 MV/PFC Professional 200A MMA & TIG DC-Lift Inverter Welding Machine, 100–240V - TEL-852048 is available on backorder and will be fulfilled once restocked.
Complete your purchase
Useful add-ons for this product.
Telwin Advance TIG 227 MV/PFC Professional 200A MMA & TIG DC-Li...
Telwin Advance TIG 227 MV/PFC Professional 200A MMA & TIG DC-Lift Inverter Welding Machine, 100–240V - TEL-852048 is available on backorder and will be fulfilled once restocked.
Product details
Product details
The Telwin Advance TIG 227 MV/PFC Professional MMA & TIG DC-Lift Inverter Welding Machine (TEL-852048) is a highly versatile 100–240V single-phase DC inverter welder supporting both MMA stick welding and TIG Lift-Arc ignition with an adjustable current range of 5–200A. Its MV Multivoltage and PFC (Power Factor Correction) input technologies enable reliable operation across a wide range of global power supplies and generator outputs, making it an ideal solution for international use, site work, and locations with variable power quality. With Arc Force, Hot Start, Anti-Stick, and VRD (Voltage Reduction Device) functions, it delivers safe, precise, and consistent arc performance for general fabrication, structural steel, and construction welding.
Key Features:
- 100–240V Multivoltage Input (MV) — Operates reliably across a wide single-phase input range from 100V to 240V, enabling use on global power supplies and variable-voltage generator outputs.
- PFC Power Factor Correction — Reduces reactive power draw for more efficient generator and mains power utilisation, minimising the required generator size.
- MMA & TIG Lift-Arc Dual Process — Supports both MMA stick welding and TIG Lift-Arc ignition for versatility across fabrication, structural, and construction welding applications.
- 5–200A Adjustable Welding Current — Wide current range for precise control from thin sheet metal through to structural steel components.
- VRD Voltage Reduction Device — Reduces no-load voltage between welds for enhanced operator safety, particularly in confined or damp environments.
- Arc Force Control — Automatically adjusts current to maintain a stable arc and prevent electrode sticking.
- Hot Start Function — Momentary current boost on arc ignition for easier, more reliable electrode striking.
- Anti-Stick Function — Reduces output current if the electrode sticks, protecting the electrode and workpiece.
- 8kW Generator Compatible — Recommended generator power of 8kW for reliable site and field deployment.
- Compact & Lightweight — At just 6.3kg, it is highly portable for a 200A professional inverter welder.
Technical Specifications:
- Product Type: MMA and TIG DC-Lift Inverter Welding Machine
- Welding Current Type: Direct Current
- Mains Voltage: 100–240V, Single Phase
- Mains Frequency: 50/60Hz
- Welding-Current Range: 5–200A
- Maximum Output at 100–120V: 170A at 40% Duty Cycle
- Maximum Output at 200–240V: 200A at 35% Duty Cycle
- Maximum No-Load Voltage: 72V
- Maximum Absorbed Power: 6kW
- Absorbed Power at 60%: 3.7kW
- Recommended Mains Fuse: 25A
- Recommended Generator Power: 8kW
- Electrode Diameter Range: 1.6–4mm
- Compatible Electrodes: Rutile, Basic and Stainless Steel
- TIG Ignition: Lift-Arc
- Functions: Arc Force, Hot Start, Anti-Stick and VRD
- Input Technologies: MV Multivoltage and PFC
- Insulation Class: H
- Protection Rating: IP23
- Dimensions: 38.5 × 15 × 26.5cm
- Weight: 6.3kg
The Telwin Advance TIG 227 MV/PFC is a professional-grade, globally compatible MMA and TIG inverter welder that combines multivoltage input, PFC technology, and VRD safety in a compact 6.3kg package. Its 100–240V operating range and 8kW generator compatibility make it the ideal choice for international projects, remote site work, and locations with variable power quality. A feature-rich, safe, and highly portable professional welding solution built to Telwin's exacting standards.
