Sodeca

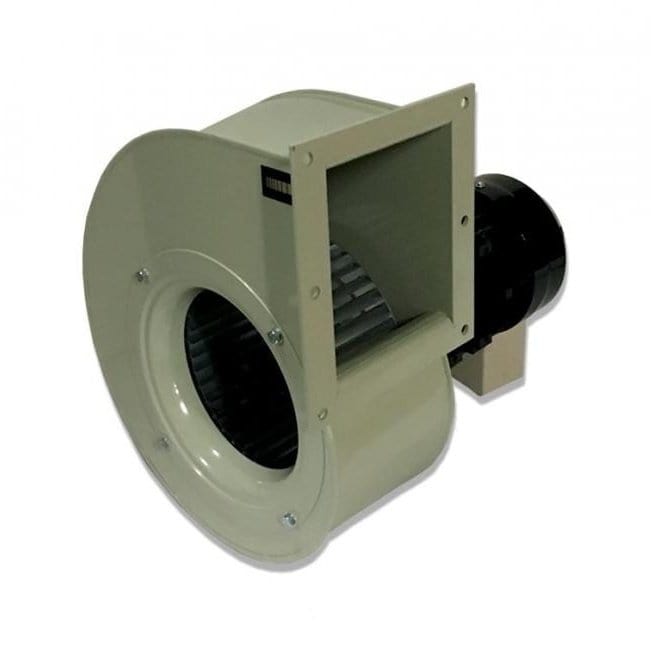

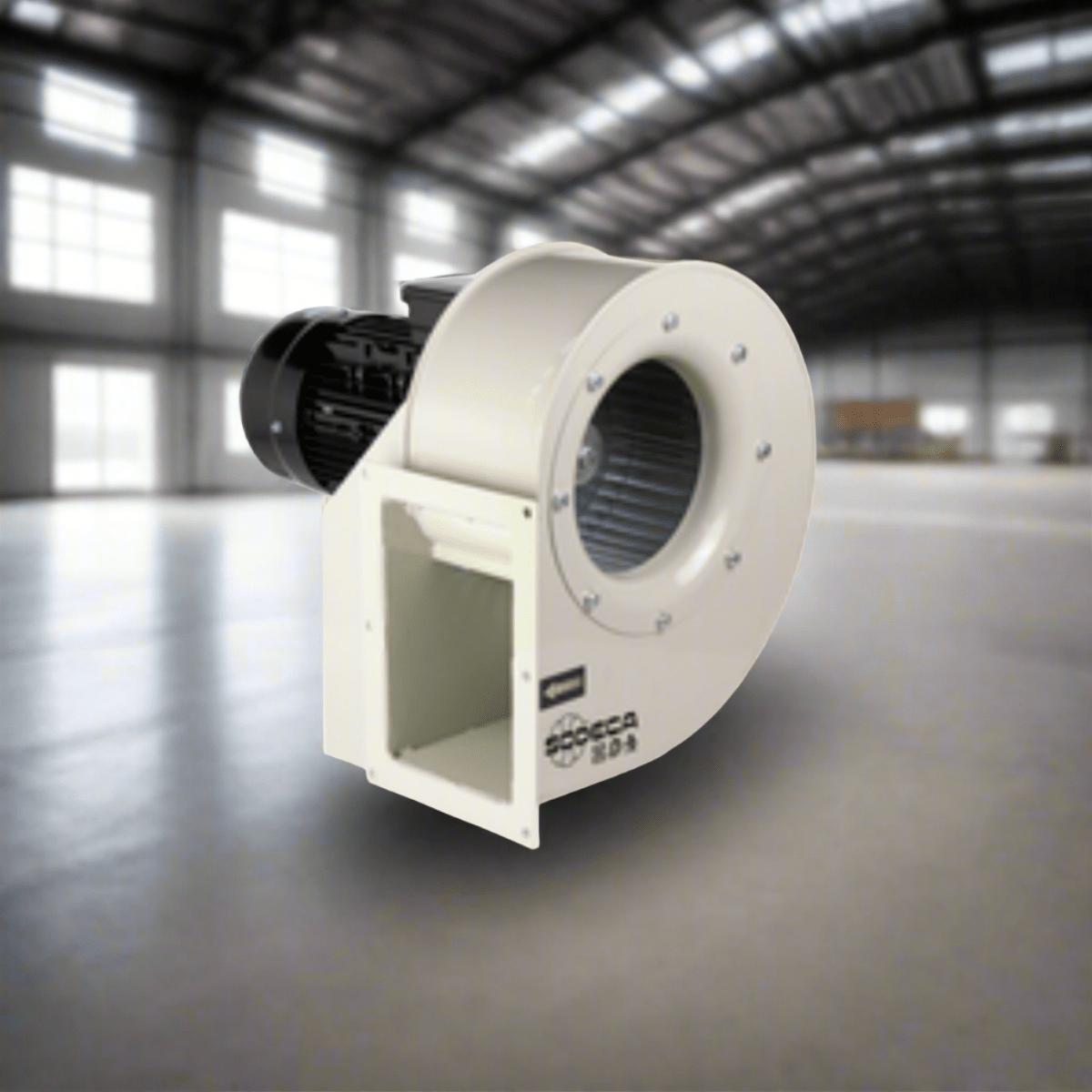

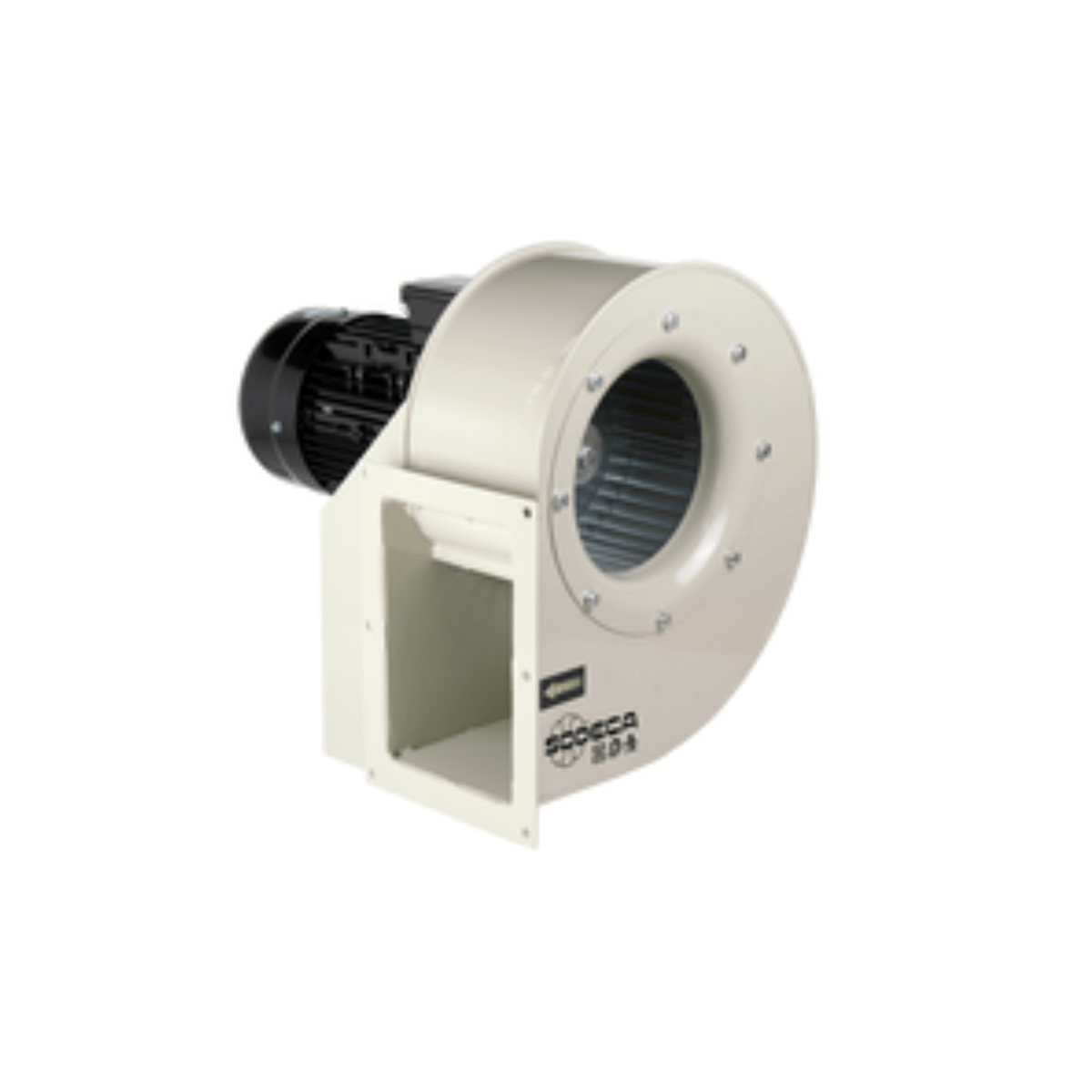

Sodeca Single Inlet Medium Pressure Centrifugal Fan - CMP

GH₵7,600.00
GH₵0.00 back
in Cash Credit Earned when this order is delivered.
Warranty support through Supply Master
Eligible supplier-backed warranty claims are coordinated for you.
7-day returns on eligible items
Unused items in original packaging can be returned within 7 days. Product-specific conditions apply.
Supply Master customer trust
Managed buying experience since 2019
Customers rate us 4.6/5 based on 1274 reviews.

Product details

Single inlet medium pressure centrifugal fans with sheet steel casing and impeller.

  • Speed: 1320 r/min
  • Max. electric power: 0.09 kw
  • Max. flow rate: 565 m3/h
  • Sound pressure: 58 dB
  • Weight: 5 kg

Fan:

  • Sheet steel casing.
  • Forward curved impeller in galvanized sheet steel.
  • Model CMP 38-2M cast aluminum casing.
  • Maximum temperature of air to be carried: -25 ºC +120 ºC, maximum +100 ºC model CMP-38.


Motor

  • Motors with IE3 efficiency for powers equal to or greater than 0.75 kW, except single-phase, 2-speed and 8-pole.
  • Class F motors with ball bearings and IP55 protection except single-phase models with IP54 protection. CMP-38 model with IP21 protection.
  • Single-phase 230 V 50 Hz and three-phase 230/400 V 50 Hz (up to 4 kW) and 400/690 V 50 Hz (powers greater than 4 kW).
  • Working temperature: -25 ºC +50 ºC.


Finish

  • Anti-corrosive finish in polyester resin, polymerized at 190 ºC, after degreasing with phosphate-free nanotechnology treatment.
