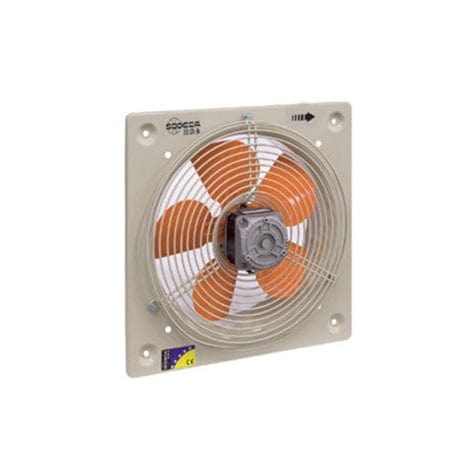

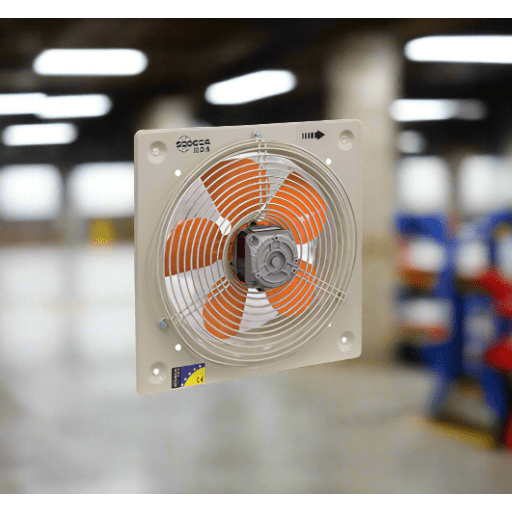

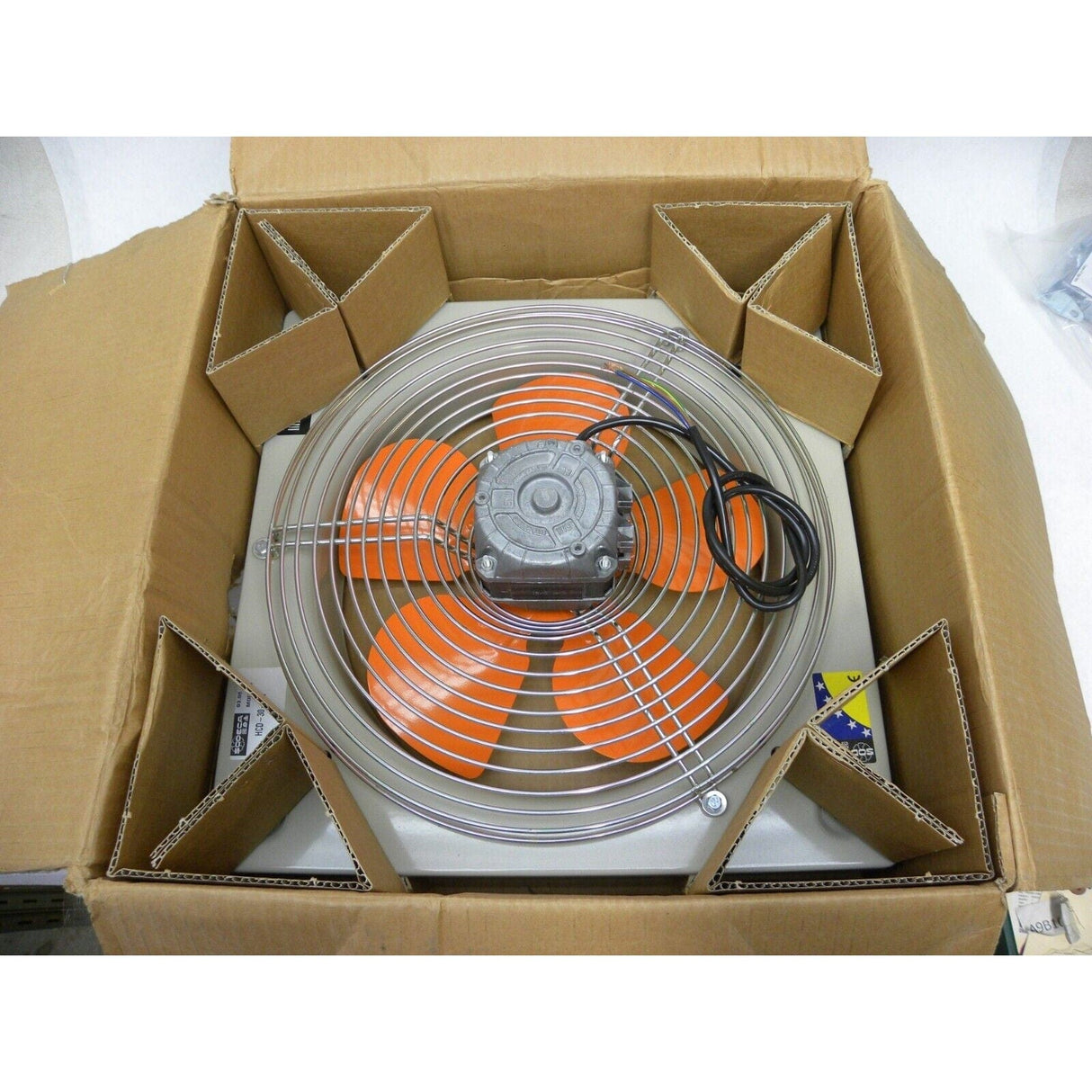

Sodeca Wall Mounted Axial Small Diameter Fan - HCD Series
Sodeca Wall Mounted Axial Small Diameter Fan - HCD Series - 560 is available on backorder and will be fulfilled once restocked.
Sodeca Wall Mounted Axial Small Diameter Fan - HCD Series - 560 is available on backorder and will be fulfilled once restocked.
Product details
Product details
Wall mounted axial fans with aluminum sheet impeller, shadow loop motors and built-in connection cable.
Fan
- Steel sheet support frame.
- Aluminum sheet impeller.
- Protection grid against contacts according to UNE-EN ISO 12499.
- Airflow direction from motor to impeller.
Motor
- Class B motors with self-lubricating friction bearings, IP44 protection, except for model 40 equipped with a class F motor with ball bearings and IP54 protection.
- Single-phase 230 V 50 Hz.
- Working temperature: -30 ºC +50 ºC.
Finish
- Anti-corrosive finish in polyester resin, polymerized at 190 ºC, after degreasing with phosphate-free nanotechnology treatment.
Axial SDHCD20-4M
- Speed: 1350 r/min
- Max. electric power: 36 w
- Max. flow rate: 560 m3/h
- Sound pressure: 38 dB
- Weight: 1.15 kg
Axial SDHCD30-4M
- Speed: 1360 r/min
- Max. electric power: 76 w
- Max. flow rate: 1350 m3/h
- Sound pressure: 48 dB
- Weight: 2.15 kg
Axial SDHCD35-4M
- Speed: 1365 r/min
- Max. electric power: 115 w
- Max. flow rate: 1820 m3/h
- Sound pressure: 53 dB
- Weight: 6.2 kg
