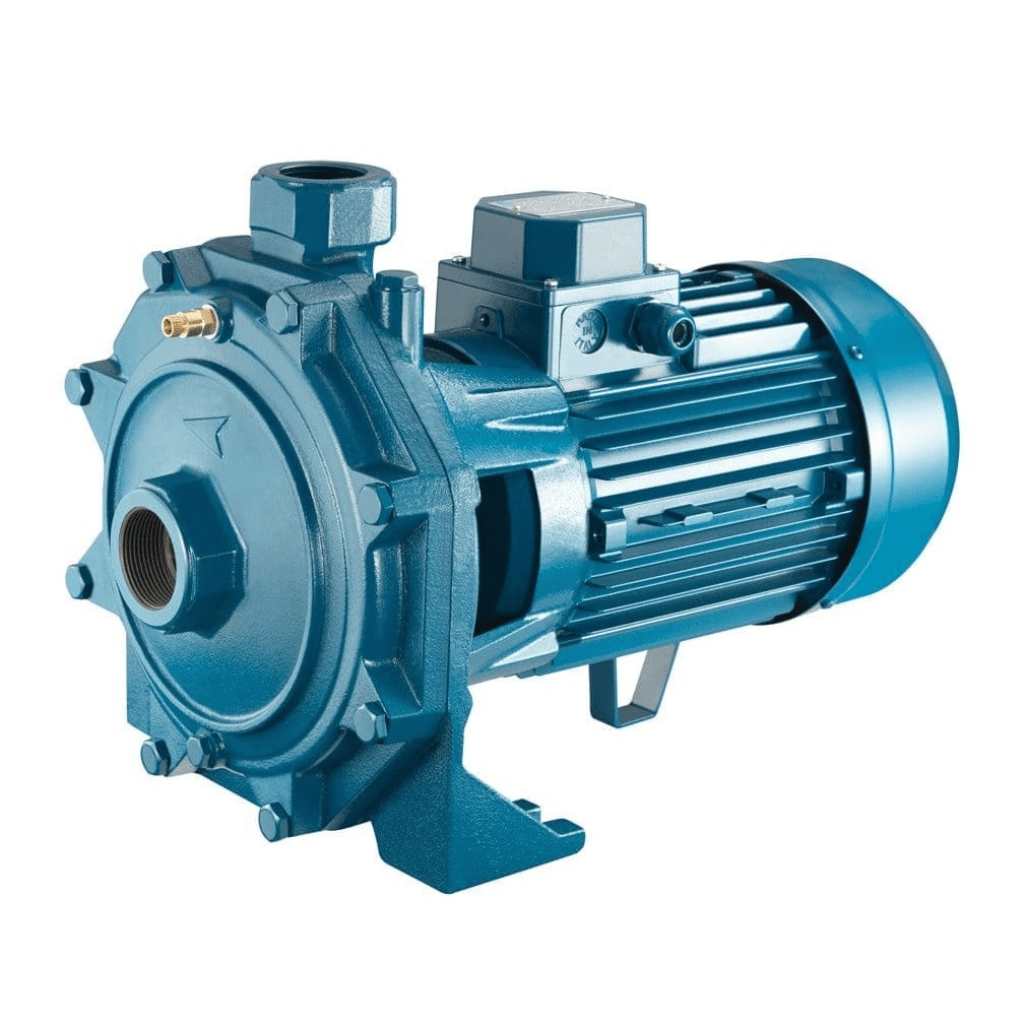

Pentax Three Phase Centrifugal Water Pump with Double Impeller - CB Series
Pentax Three Phase Centrifugal Water Pump with Double Impeller - CB Series - 3HP is available on backorder and will be fulfilled once restocked.
Pentax Three Phase Centrifugal Water Pump with Double Impeller - CB...
Pentax Three Phase Centrifugal Water Pump with Double Impeller - CB Series - 3HP is available on backorder and will be fulfilled once restocked.
Product details
Product details
The Pentax CBT Series Three-Phase Double Impeller Centrifugal Water Pumps are engineered for applications that demand high pressure, excellent flow rates, and continuous-duty performance. Featuring a twin-impeller design, these pumps deliver significantly higher pressure than conventional centrifugal pumps, making them ideal for industrial water systems, irrigation networks, pressure boosting stations, commercial buildings, manufacturing facilities, and agricultural operations. The dual counter-opposed impellers are specifically designed to provide high head and efficient water delivery.
Key Features:
- Double impeller centrifugal pump design for higher pressure
- Suitable for clean water applications
- High-efficiency water transfer and distribution
- Powerful pressure boosting capability
- Durable cast iron pump body
- Corrosion-resistant components
- Designed for residential, agricultural, and commercial use
- Available in multiple horsepower options
Specifications:
- Pump Body: cast iron
- Motor Bracket: cast iron (150~200)
- Impeller: brass or noryl® (CB100~900), brass (CB800~1500)
- Mechanical seal: ceramic-graphite-NBR
- Motor shaft: steel AISI 416 (75~100),
- Pump Shaft End: stainless steel AISI 304, stainless steel AISI 416 (CB100)
- Ambient temperature: noryl® impeller: 0 - 50 °C, brass impeller: 0 - 90 °C
- Pump body gasket: max 6 bar (100), max 11 bar (160-1500)
- 2 poles induction motor: 3~ 230/400V-50Hz P 4kW, 3~ 400/690V-50Hz P > 4kW, 1~ 230V-50Hz (with thermal protection up to MEC 80)
- Insulation class: F
- Protection degree: IPX4, IPX5 (800÷1500)
Models
- CBT310/01: 3HP (2.2KW), Flow rate: 10~150L/Min, H: 63.5~36m
- CBT400/01: 4HP (3.0KW), Flow rate: 25~200L/Min, H: 63.6~43.9m
- CBT751/01: 7.5HP (5.5KW), Flow rate: 25~250L/Min, H: 90.7~63.7m
- CBT1000: 10HP (7.5KW), Flow rate: 100~500L/Min, H: 80.4~43.7m
Unlike standard centrifugal pumps, the CB Series utilizes a double impeller design that significantly increases pressure performance while maintaining excellent efficiency. This makes it ideal for applications where higher delivery heads and stronger water pressure are required.
