Pentax Submersible Motor For 4S100 Series Deep Well Pump
Pentax Submersible Motor For 4S100 Series Deep Well Pump - 1.0HP is backordered and will ship as soon as it is back in stock.
Description
Description

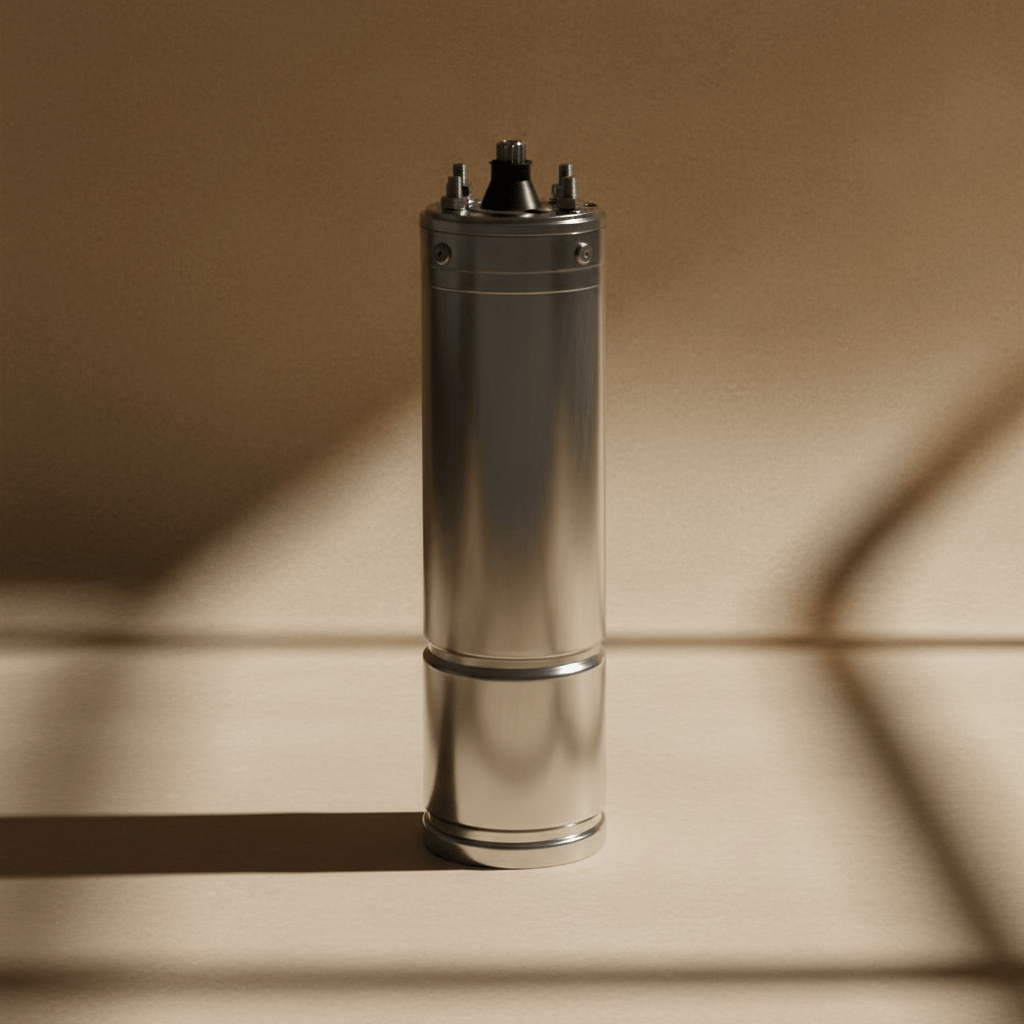

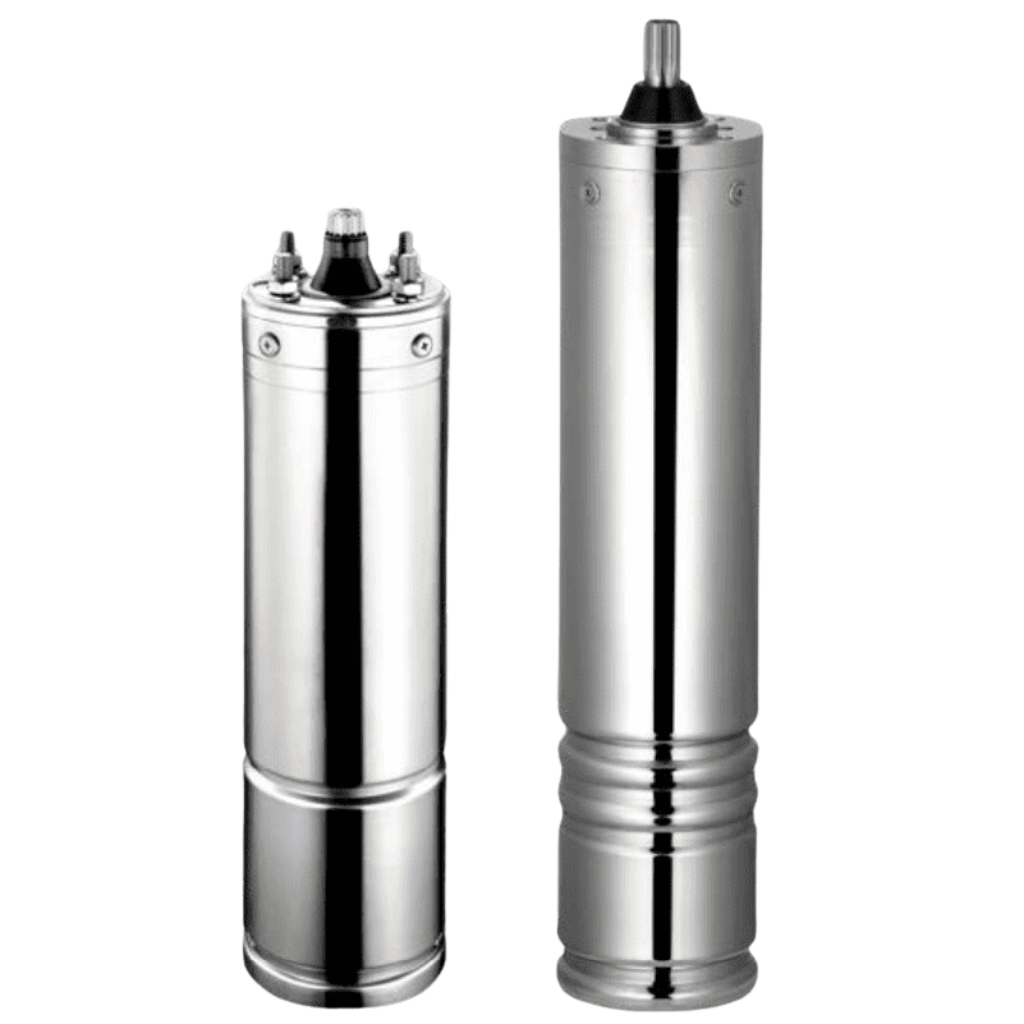

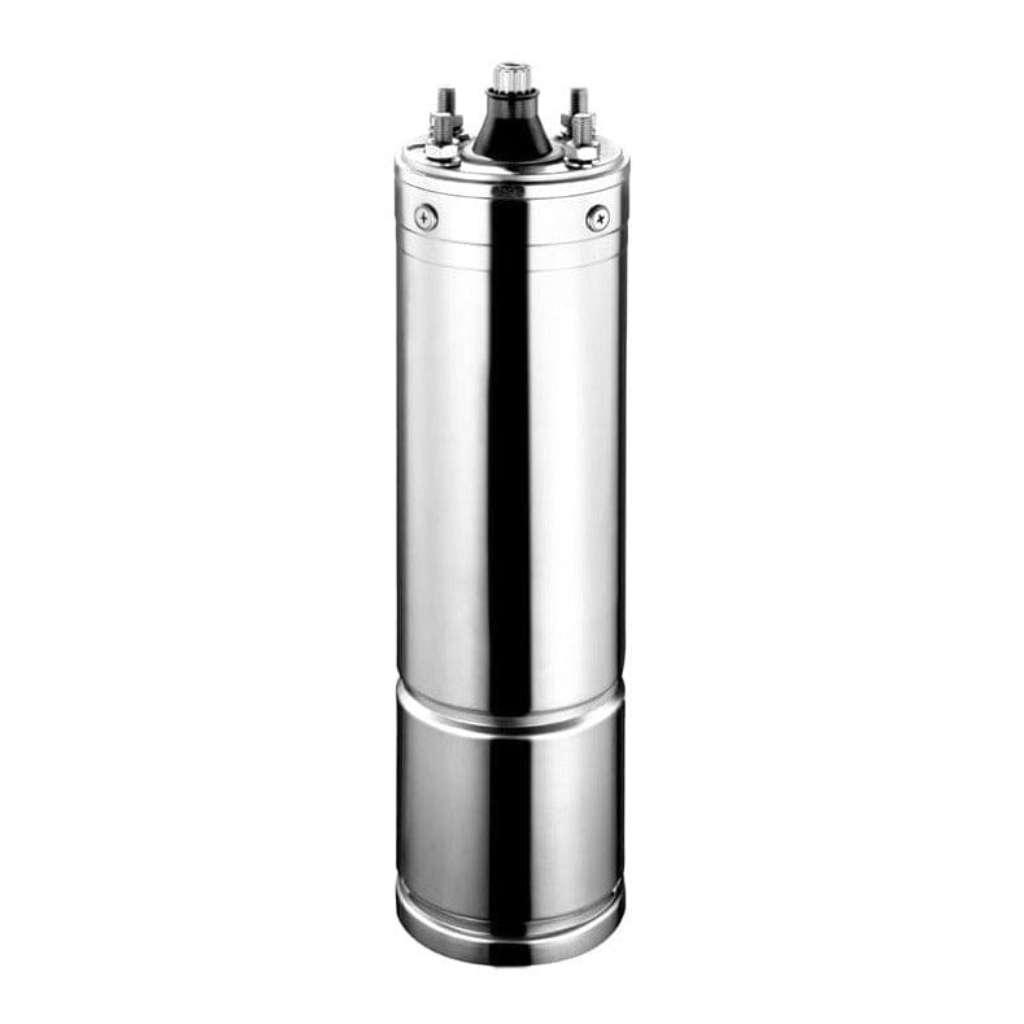

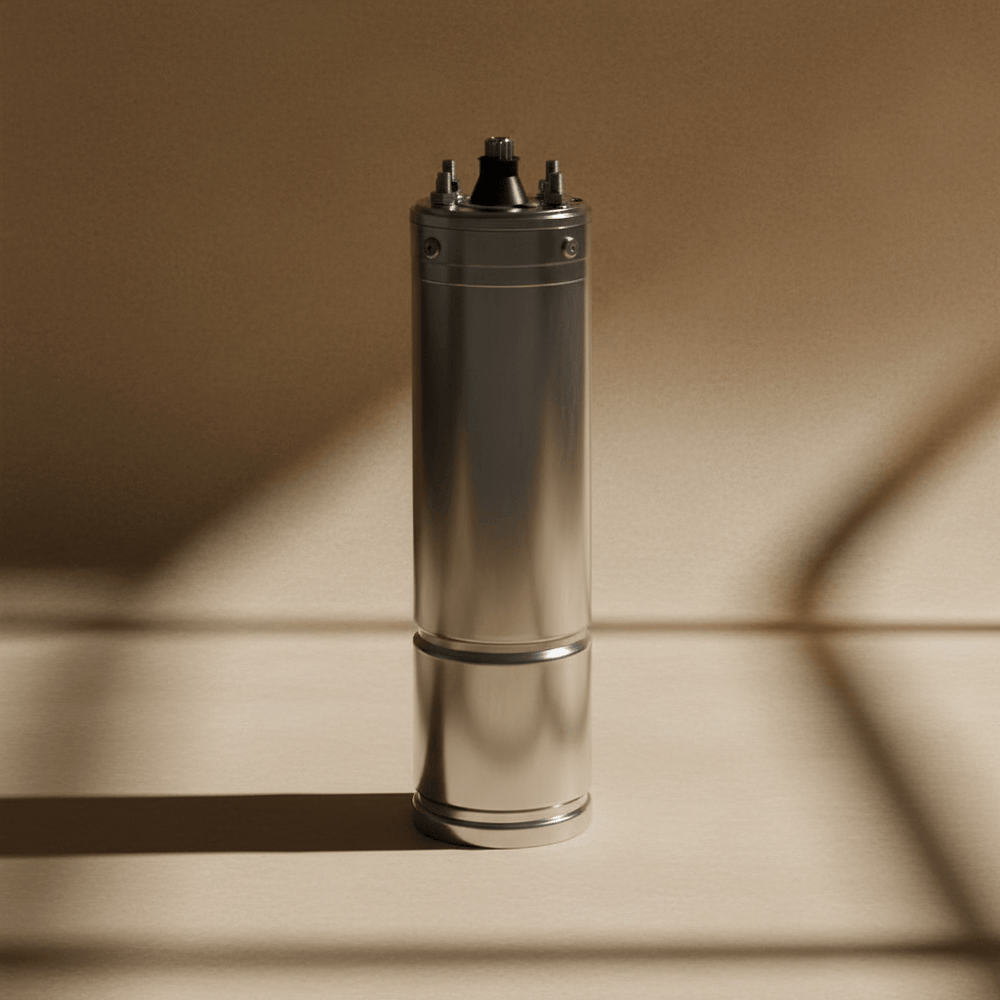

The Pentax Submersible Motor for 4S100 Series Deep Well Pumps is a high-performance oil-filled borehole motor specifically designed to power Pentax 4S100 Series submersible pumps used in deep well and borehole water extraction systems. Available in 1.0HP, 1.5HP, and 2.0HP configurations, these motors deliver dependable performance for residential, agricultural, commercial, and industrial water supply applications.
Engineered with a robust stainless-steel construction, oil-lubricated bearings, and NEMA-standard shaft coupling, the motor is built to withstand continuous submerged operation in demanding borehole environments. Its rewindable oil-bath design enhances durability, serviceability, and long-term reliability.
Key Features
- Designed specifically for Pentax 4S100 Series deep well pumps
- Available in 1.0HP, 1.5HP, and 2.0HP models
- Oil-filled rewindable motor design
- NEMA standard shaft extension for easy coupling
- Stainless steel external jacket and shaft
- High starting torque performance
- Suitable for deep well and borehole applications
- P68 waterproof protection
Specifications
- Series Compatibility: 4S100 Deep Well Pump Series
- Motor Type: Rewindable Oil-Filled Submersible Motor
- Motor Diameter: 4 Inches
- Motor Shaft: standard NEMA
- Ambient Temperature: max 35° C
- Cable: 1.75 to 4 m according to motor size (3 wires + ground)
- External jacket: cast iron nickel-plated
- Upper Support: stainless steel
- External Jacket, shaft and cup: ceramic-graphite
- Quantity of sand in the water: from 1,75 to 4 m based on engine size (3 wires + earth)
- Mechanical Seal: axial and radial oil lubrication
- Number of startups/hr: max 30
- Asynchronous 2 poles rewindable in oil bath: 1~ 220/230V-50Hz, 3~ 380/415V-50Hz
- Maximum Immersion Depth: 150 Metres
- Insulation Class: F
- Protection Degree: IP68
Models
- 4MPE10 – 1.0HP (0.75kW),1500N thrust, suitable for 4S100-09A pump
- 4MPE15 – 1.5HP (1.1kW), 1500N thrust, suitable for 4S100-14A pump
- 4MPE20 – 2.0HP (1.5kW), 1500N thrust, suitable for 4S100-18A pump
The Pentax Submersible Motor for 4S100 Series Deep Well Pumps is a durable and efficient borehole motor solution designed to deliver reliable power and long-lasting performance for residential, agricultural, commercial, and industrial water supply systems.
