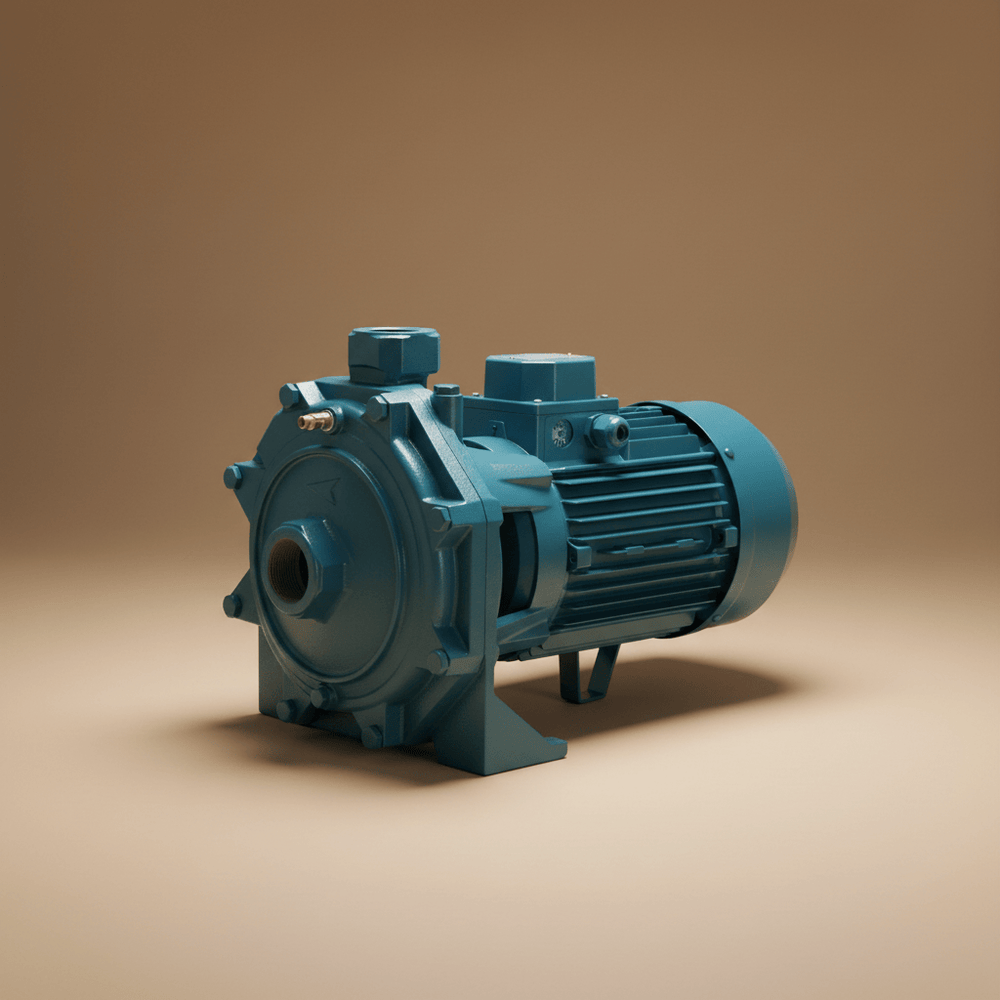

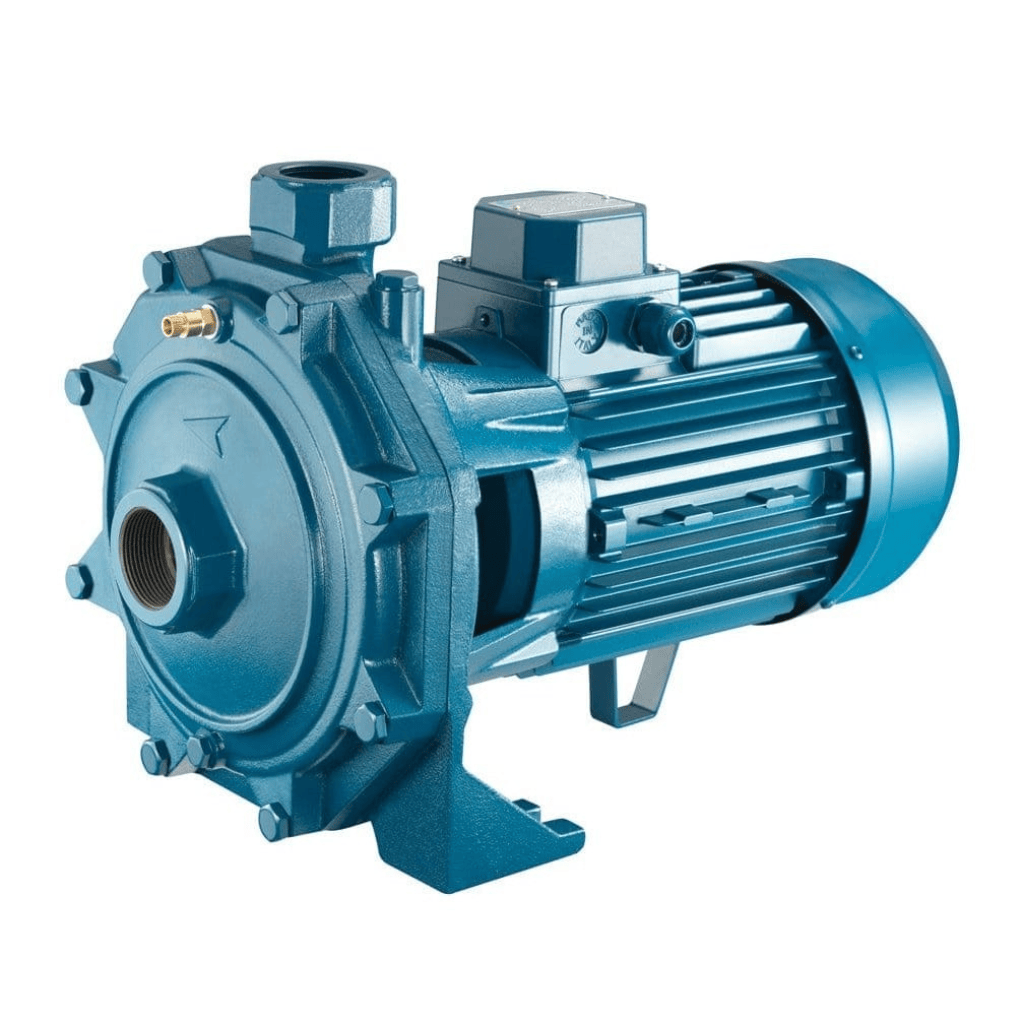

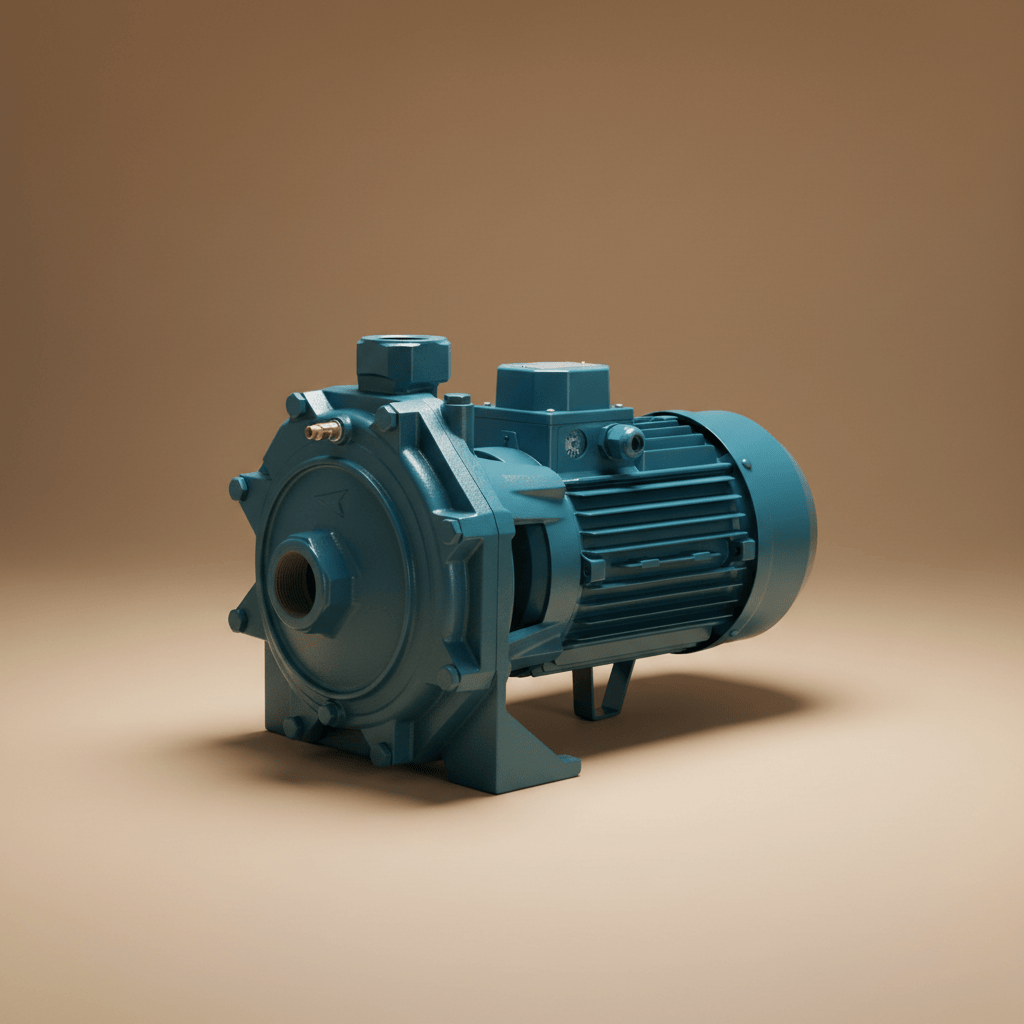

Pentax Single Phase Centrifugal Water Pump with Double Impeller - CB Series
Pentax Single Phase Centrifugal Water Pump with Double Impeller - CB Series - 2HP is available on backorder and will be fulfilled once restocked.
Pentax Single Phase Centrifugal Water Pump with Double Impeller - C...
Pentax Single Phase Centrifugal Water Pump with Double Impeller - CB Series - 2HP is available on backorder and will be fulfilled once restocked.
Product details
Product details
The Pentax CB Series Double Impeller Centrifugal Water Pumps are engineered to deliver exceptional pressure, high efficiency, and reliable performance for demanding water supply applications. Designed with a twin-impeller configuration, the CB Series generates higher pressure than standard single-impeller pumps, making it ideal for pressure boosting, multi-storey buildings, irrigation systems, industrial water transfer, and commercial water distribution networks.
Key Features:
- Double impeller centrifugal pump design for higher pressure
- Suitable for clean water applications
- High-efficiency water transfer and distribution
- Powerful pressure boosting capability
- Durable cast iron pump body
- Corrosion-resistant components
- Designed for residential, agricultural, and commercial use
- Available in multiple horsepower options
Specifications:
- Pump Body: cast iron
- Motor Bracket: cast iron (150~200)
- Impeller: brass or noryl® (CB100~900), brass (CB800~1500)
- Mechanical seal: ceramic-graphite-NBR
- Motor shaft: steel AISI 416 (75~100),
- Pump Shaft End: stainless steel AISI 304, stainless steel AISI 416 (CB100)
- Ambient temperature: noryl® impeller: 0 - 50 °C, brass impeller: 0 - 90 °C
- Pump body gasket: max 6 bar (100), max 11 bar (160-1500)
- 2 poles induction motor: 3~ 230/400V-50Hz P 4kW, 3~ 400/690V-50Hz P > 4kW, 1~ 230V-50Hz (with thermal protection up to MEC 80)
- Insulation class: F
- Protection degree: IPX4, IPX5 (800÷1500)
Models
- CB210/01: 2HP (1.5KW)
- CB400/01: 4HP (3.0KW)
Unlike standard centrifugal pumps, the CB Series utilizes a double impeller design that significantly increases pressure performance while maintaining excellent efficiency. This makes it ideal for applications where higher delivery heads and stronger water pressure are required.
