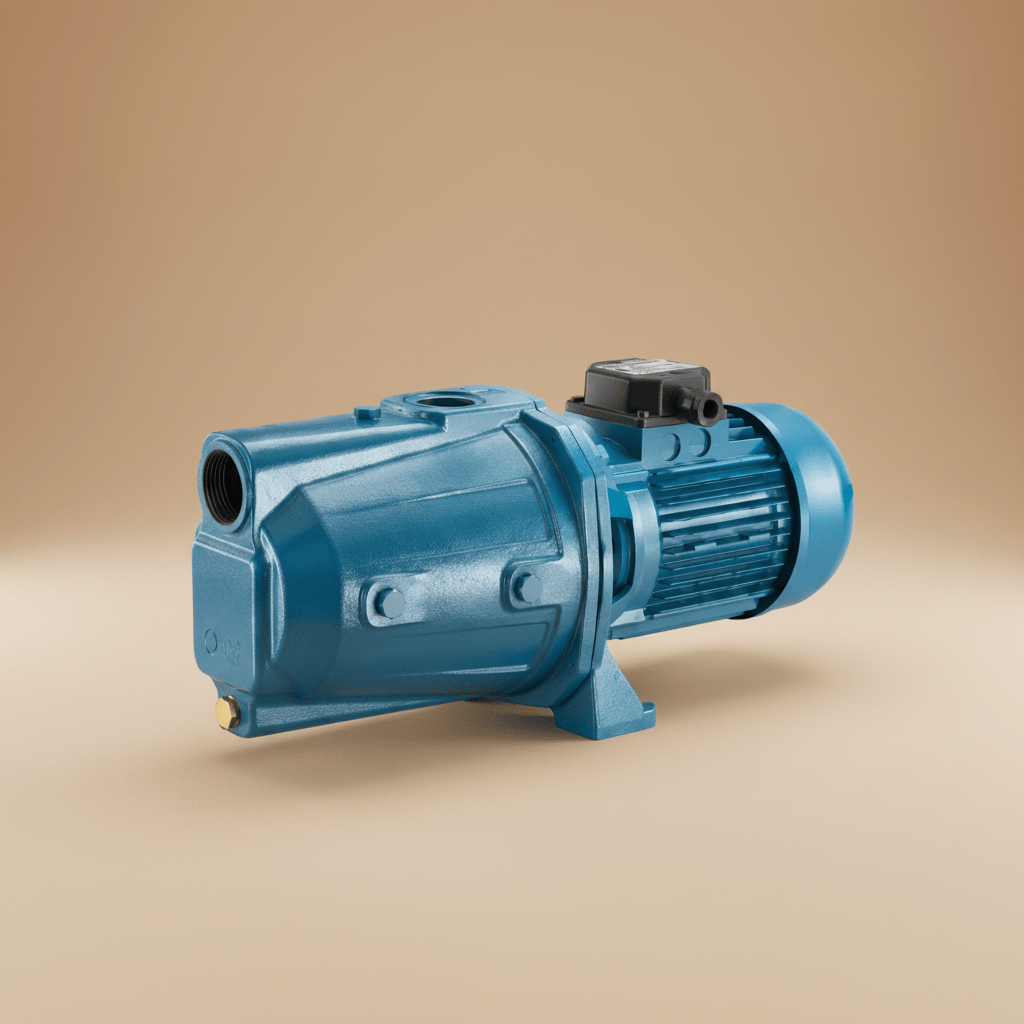

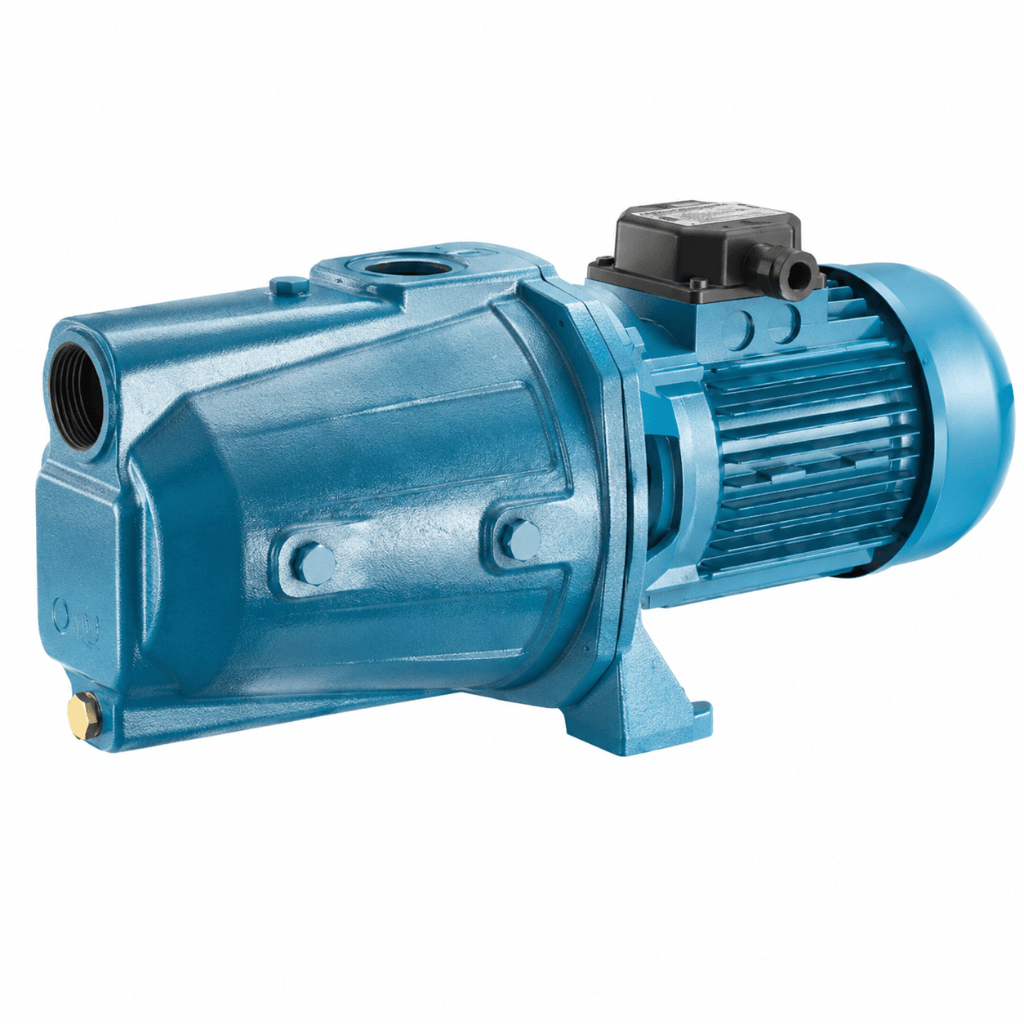

Pentax Self Priming Centrifugal Water Pump - CAM Series
Pentax Self Priming Centrifugal Water Pump - CAM Series - 1HP is available on backorder and will be fulfilled once restocked.
Pentax Self Priming Centrifugal Water Pump - CAM Series
Pentax Self Priming Centrifugal Water Pump - CAM Series - 1HP is available on backorder and will be fulfilled once restocked.
Product details
Product details
The Pentax CAM Series is a range of self-priming centrifugal water pumps designed for domestic water supply, pressure boosting, tank filling, liquid transfer, and garden irrigation applications. The self-priming design allows the pump to efficiently handle water even when mixed with air or gas, making it ideal for installations where reliable suction performance is required.
Key Features:
- Self-priming centrifugal pump design
- Suitable for water mixed with air or gas
- High-pressure water delivery performance
- Durable cast iron pump body
- Reliable domestic and commercial water supply solution
- Designed for residential, agricultural, and commercial use
- Available in multiple horsepower options
Specifications:
- Pump Body: cast iron
- Motor Bracket: Aluminum or Cast Iron (Model Dependent)
- Impeller: brass / noryl / stainless steel
-
Mechanical seal: ceramic-graphite-NBR
- Pump Shaft End: steel AISI 416
- Liquid temperature: 0 - 50 °C
- Operating pressure: max 8 bar
- 2 poles induction motor: 3~230/400V-50Hz, 1~ 230V-50Hz
- Insulation class: F
- Protection degree: IPX4
Models
- CAM100N/00: 1HP (0.75KW) Single Phase
Flow rate: 10~70L/Min, H: 44.3~20m, Inlet × Outlet Size: 1" × 1"
- CAM140/60: 1.5HP (1.1KW) Single Phase
Flow rate: 10~70L/Min, H: 55.7~28.1m, Inlet × Outlet Size: 1" × 1"
- CAM150/01: 1.5HP (1.1KW) Single Phase
Flow rate: 20~120L/Min, H: 48.9~26.8m, Inlet × Outlet Size: 1" × 1"
- CAM200/01: 2HP (1.5KW) Single Phase
Flow rate: 20~120L/Min, H: 56.8~34.8m, Inlet × Outlet Size: 1" × 1"
- CAMT150/01: 1.5HP + 8L Booster (1.5KW) Three Phase
Flow rate: 20~120L/Min, H: 48.9~26.8m, Inlet × Outlet Size: 1½" × 1¼"
Built with a durable cast iron pump body and high-quality internal components, the CAM Series delivers excellent pressure performance, quiet operation, and long-term reliability. These pumps are commonly used with pressure tanks and automatic booster systems in homes, farms, offices, and commercial properties.
