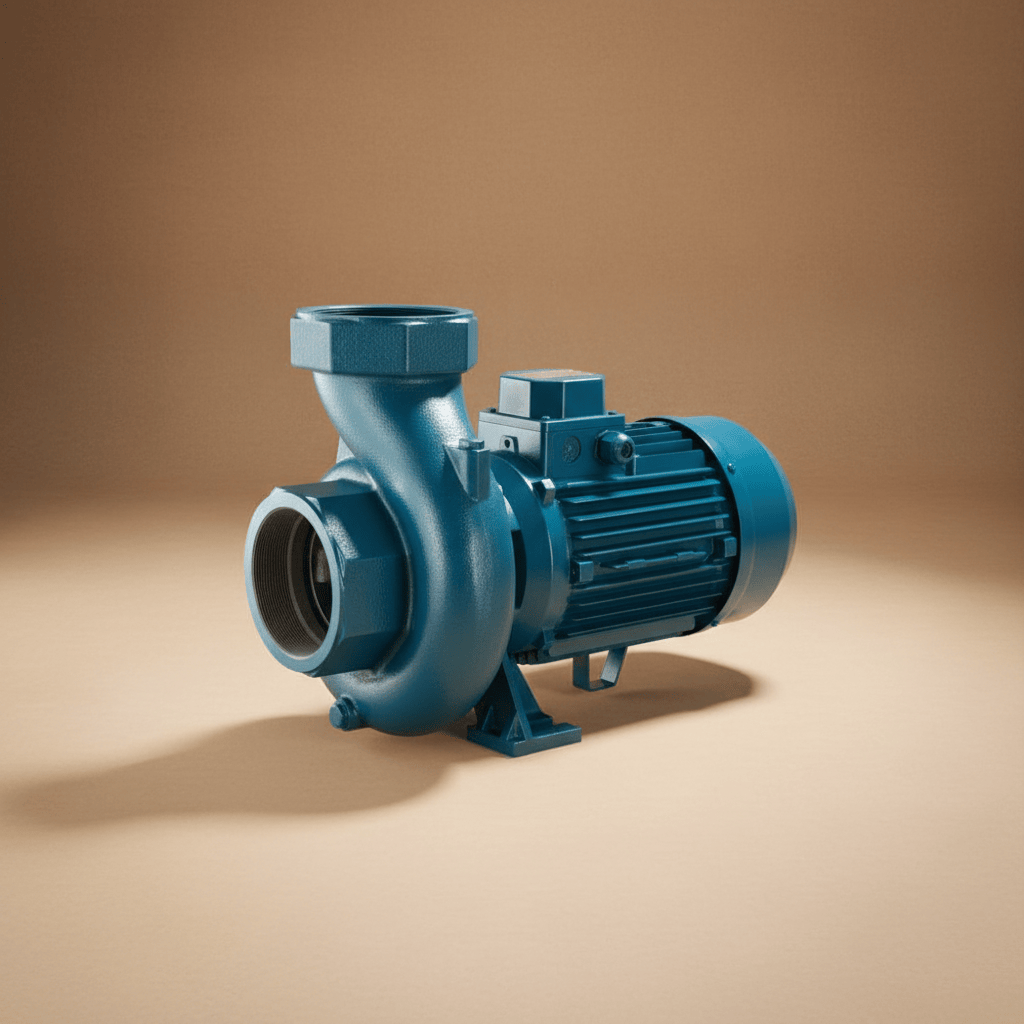

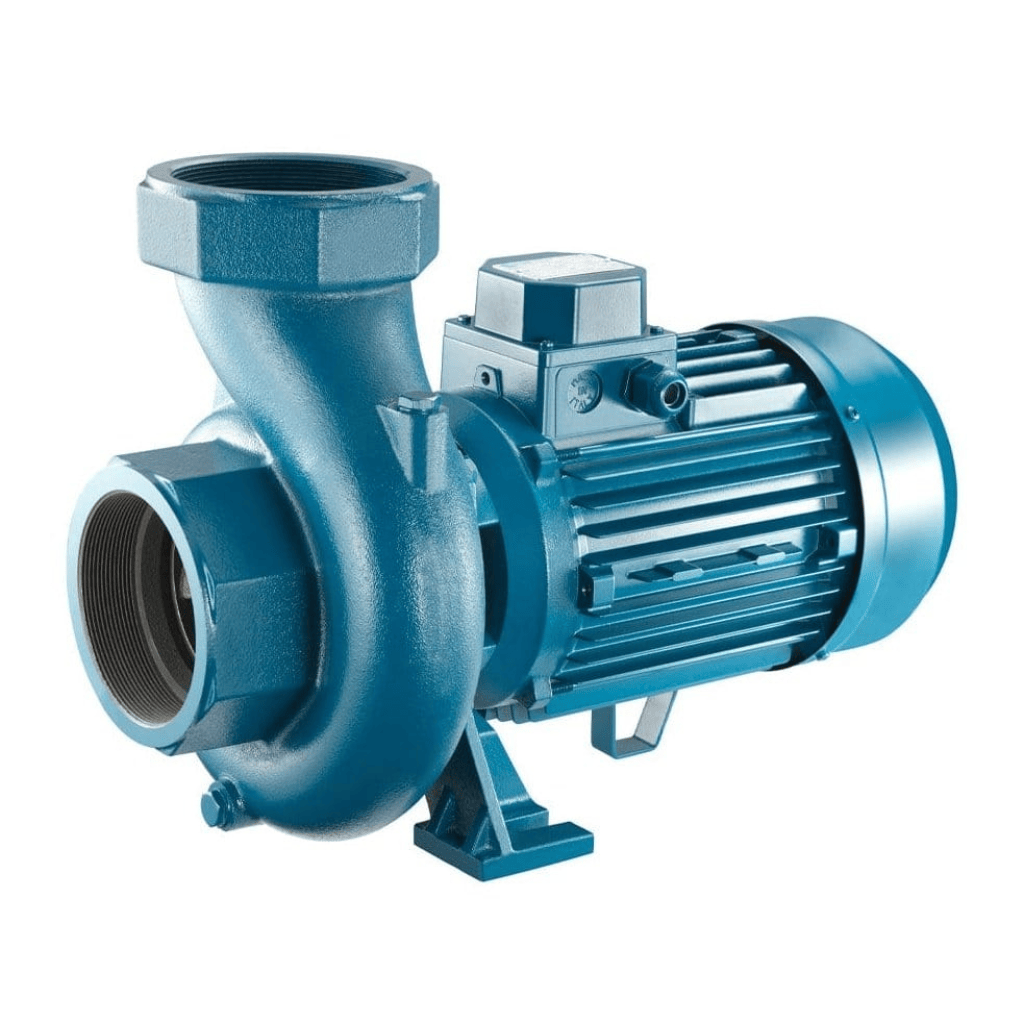

Pentax Centrifugal Water Pump - CS Series
Pentax Centrifugal Water Pump - CS Series - 2HP / 2X2" is available on backorder and will be fulfilled once restocked.
Pentax Centrifugal Water Pump - CS Series
Pentax Centrifugal Water Pump - CS Series - 2HP / 2X2" is available on backorder and will be fulfilled once restocked.
Product details
Product details

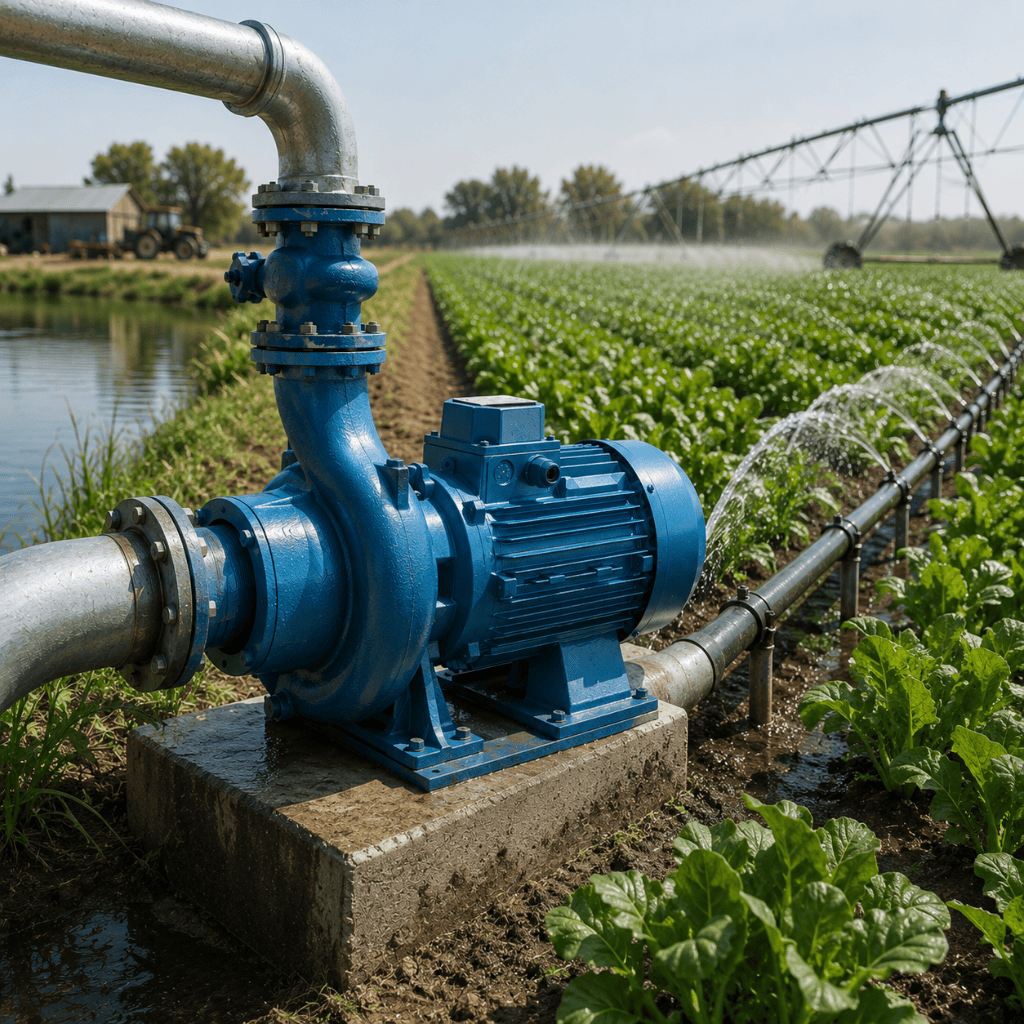

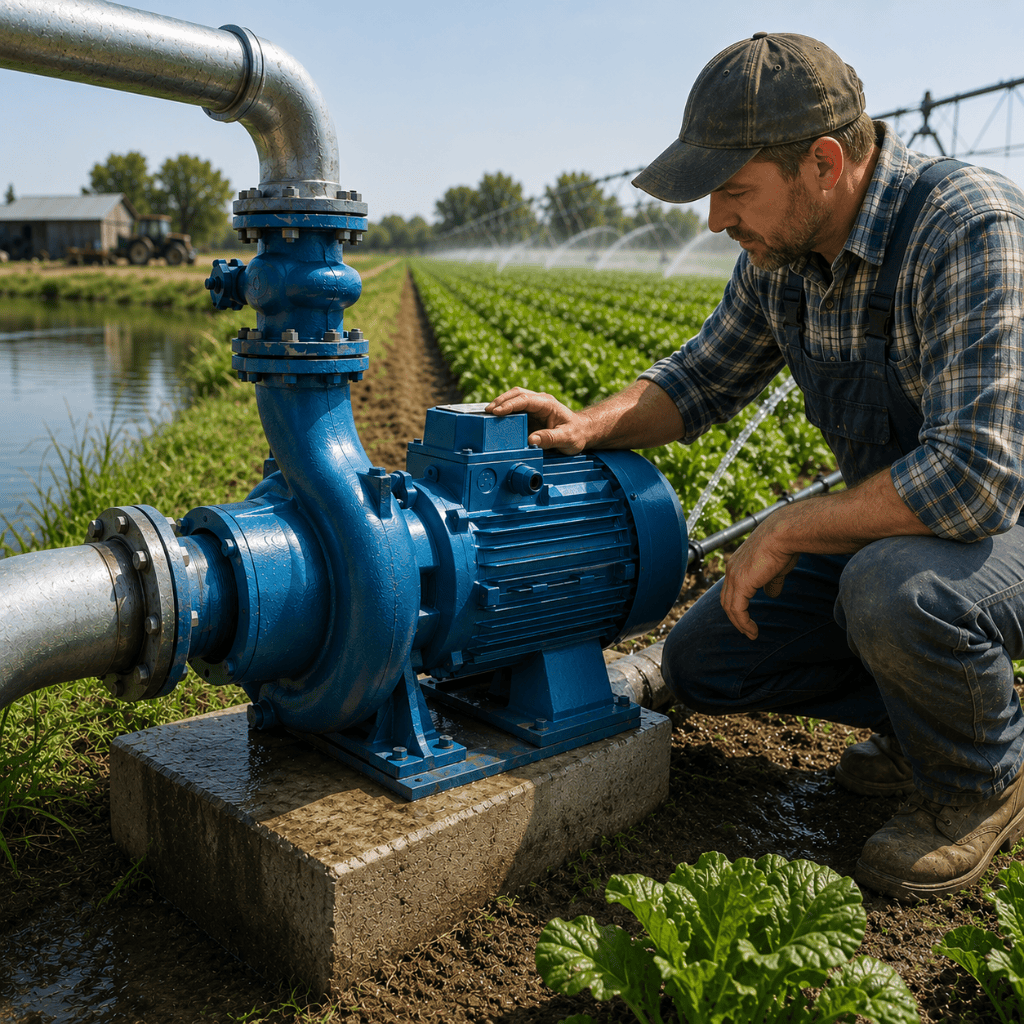

The Pentax CS Series Centrifugal Water Pumps are engineered for high-flow water transfer, circulation, irrigation, and industrial water supply applications. Designed with a robust single-stage centrifugal configuration, the CS Series delivers excellent hydraulic efficiency, reliable performance, and long service life, making it ideal for agricultural, commercial, industrial, and municipal water systems.
Key Features:
- Double impeller centrifugal pump design for higher pressure
- Suitable for clean water applications
- High-efficiency water transfer and distribution
- Powerful pressure boosting capability
- Durable cast iron pump body
- Corrosion-resistant components
- Designed for residential, agricultural, and commercial use
- Available in multiple horsepower options
Specifications:
- Pump Body: cast iron
- Motor Bracket: cast iron
- Impeller: cast iron or brass (CSB)
- Mechanical seal: ceramic-graphite-NBR
- Pump Shaft End: steel AISI 303, steel AISI 416 (75÷120)
- Ambient temperature: 0 - 90 °C
- Pump body gasket: max 6 bar (100)
- 2 poles induction motor: 3~ 230/400V-50Hz, 1~ 230V-50Hz (with thermal protection up to MEC 80)
- Insulation class: F
- Protection degree: IPX4
Models
- CS200/2: 2HP (1.5KW) 2 X 2"
Flow rate: 100~900L/Min, H: 13.4~5.4m
- CST300/3: 3HP (2.2KW) 3 X 3"
Flow rate: 300~1000L/Min, H: 16.8~8.2m
- CST400/3: 4HP (3.0KW) 3 X 3"
Flow rate: 300~1000L/Min, H: 20.3~13.1m
- CST550/4: 5.5HP (3.0KW) 4 X 4"
Flow rate: 600~1600L/Min, H: 18.3~11.1m
Built with premium-quality materials and Italian engineering excellence, the CS Series is specifically designed to handle large volumes of clean water with low energy consumption and dependable pressure performance. Its heavy-duty cast iron construction and industrial-grade motor make it suitable for continuous operation in demanding environments.
