Pentax

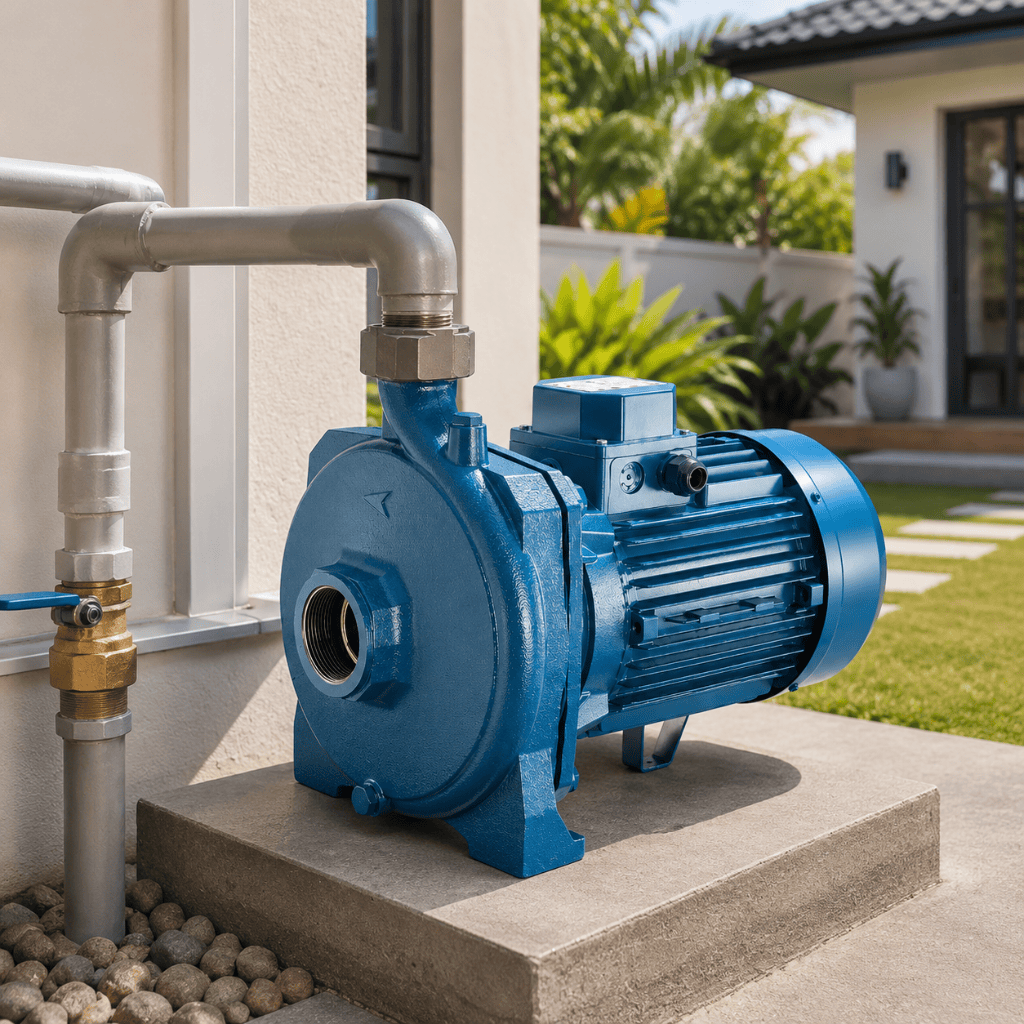

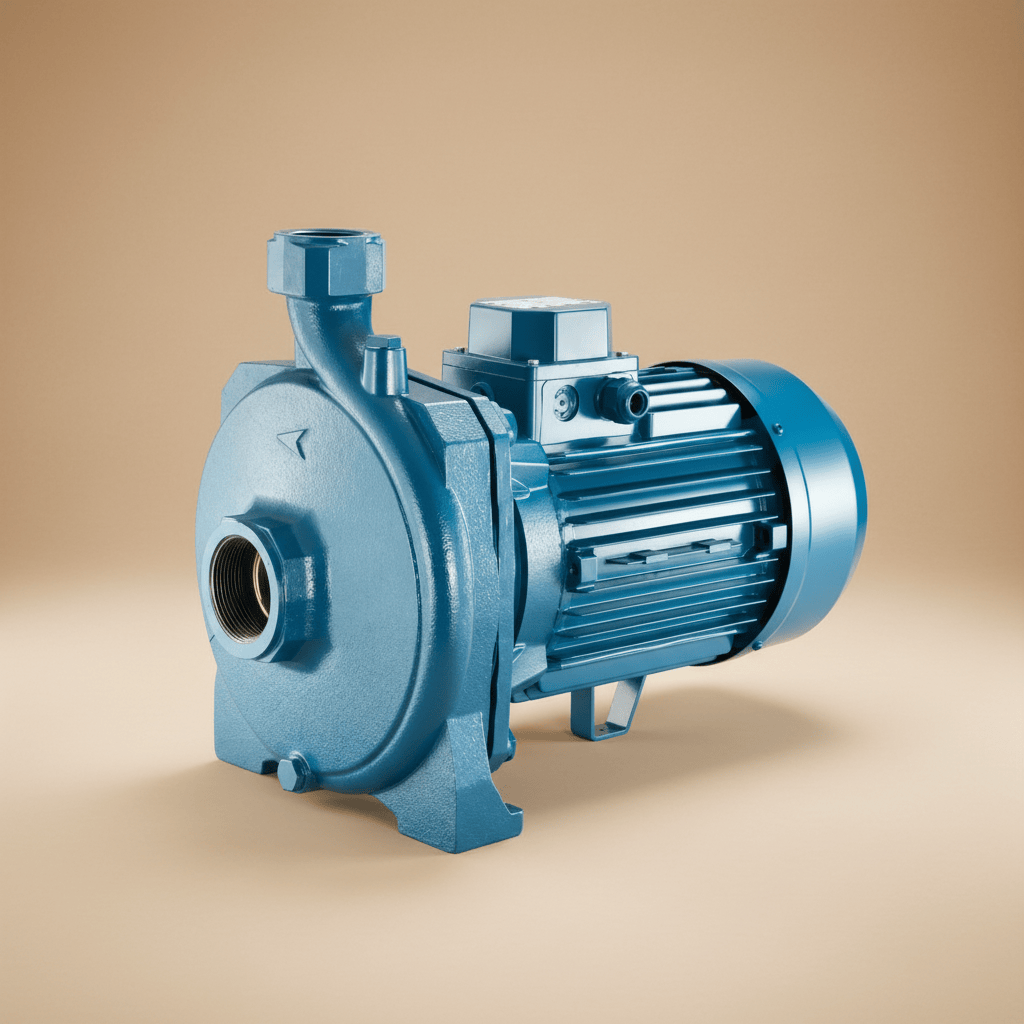

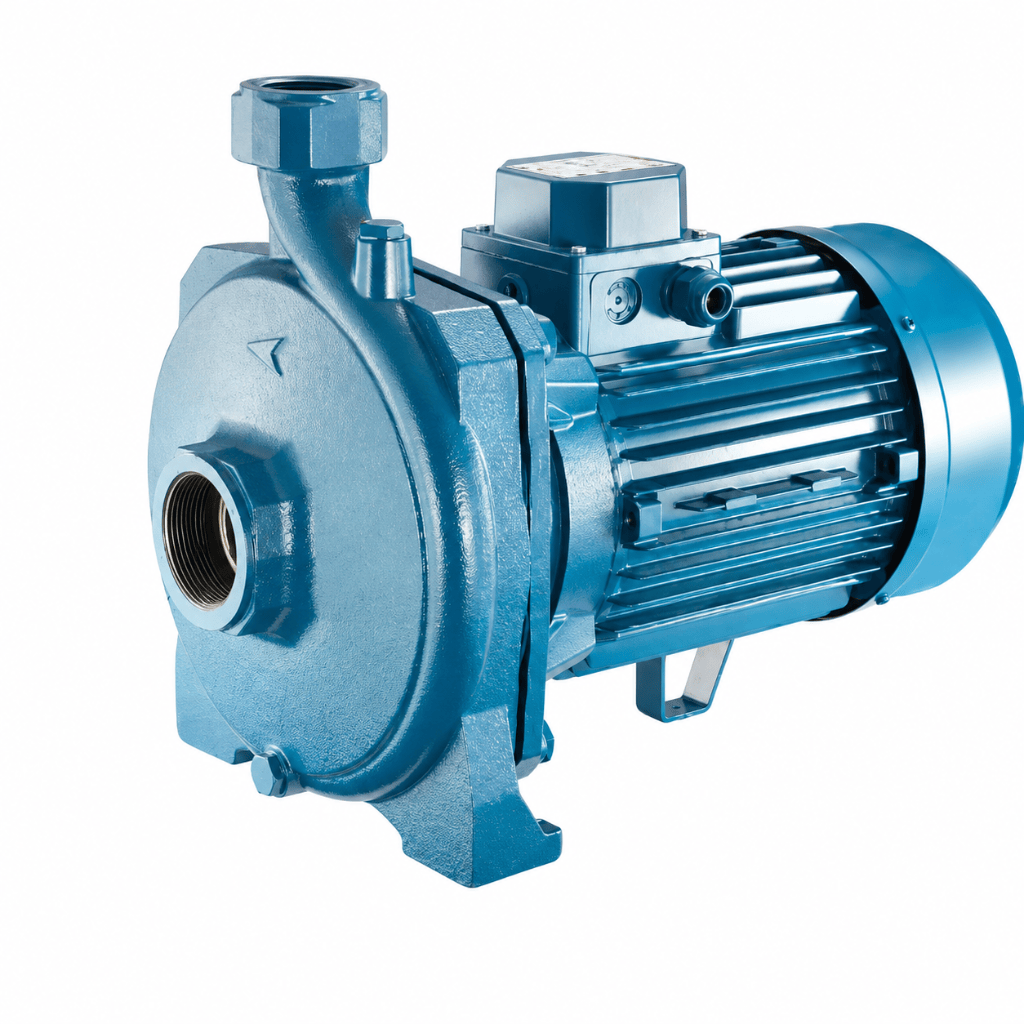

Pentax Centrifugal Water Pump - CM Series

GH₵4,900.00
Size
GH₵0.00 back
in Club Cash Join or sign in to earn.
Warranty & after-sales support
Eligible warranty claims are coordinated through Supply Master from issue report to resolution.
7-day return window
Eligible unused items in original packaging can be returned within 7 days of delivery.
Supply Master customer trust
Managed buying experience since 2019
Customers rate us 4.6/5 based on 1291 reviews.

Product details

The Pentax CM Series Centrifugal Water Pumps are high-efficiency single-impeller pumps designed for clean water transfer, pressure boosting, irrigation, and water distribution systems. Renowned for their quiet operation and reliable performance, the CM Series is suitable for residential, civil, agricultural, and industrial applications where consistent water pressure and dependable operation are required.

Key Features:

  • Single impeller centrifugal pump design for quiet & smooth operation
  • Suitable for clean water applications
  • High-efficiency water transfer and distribution
  • Powerful pressure boosting capability
  • Durable cast iron pump body
  • Corrosion-resistant components
  • Designed for residential, agricultural, and commercial use
  • Available in multiple horsepower options

Specifications:

  • Pump Body: cast iron
  • Motor Bracket: cast iron (45, 50, 164÷550), aluminum (75÷100)
  • Impeller: noryl® (45), noryl® or brass (50-314), brass (400-550)
  • Mechanical seal: ceramic-graphite-NBR
  • Pump Shaft End: steel AISI 416 (45÷100), steel AISI 303 (164÷550)
  • Ambient temperature: impeller in noryl®(NT): 0 - 50 °C, brass impeller: 0 - 90 °C
  • Pump body gasket: max 6 bar (45-100), max 8 bar (164-550)
  • 2 poles induction motor: 1~ 230V-50Hz (with thermal protection up to MEC 80)
  • Insulation class: F
  • Protection degree: IPX4

Models

  • CM100/61: 1HP (0.74KW)

Flow rate: 20~90L/Min, H: 32.5~25.2m

  • CM160/01: 1.5HP (1.1KW)

Flow rate: 20~110L/Min, H: 39.1~27.2m

  • CM164/01: 1.5HP NT (1.1KW)

Flow rate: 20~110L/Min, H: 39.1~27.2m

  • CM214/01: 2HP NT (1.5KW)

Flow rate: 20~120L/Min, H: 49.5~35.5m

  • CM310/01: 3HP (2.2KW)

Flow rate: 20~130L/Min, H: 53.2~39.4m

  • CM314/01: 3HP 1.25" (2.2KW)

Flow rate: 20~130L/Min, H: 53.2~39.4m

The CM Series offers an excellent balance of flow rate, pressure performance, efficiency, and durability. Its quiet operation and ability to maintain stable pressure make it one of the most versatile centrifugal pump ranges available for residential and commercial applications.
