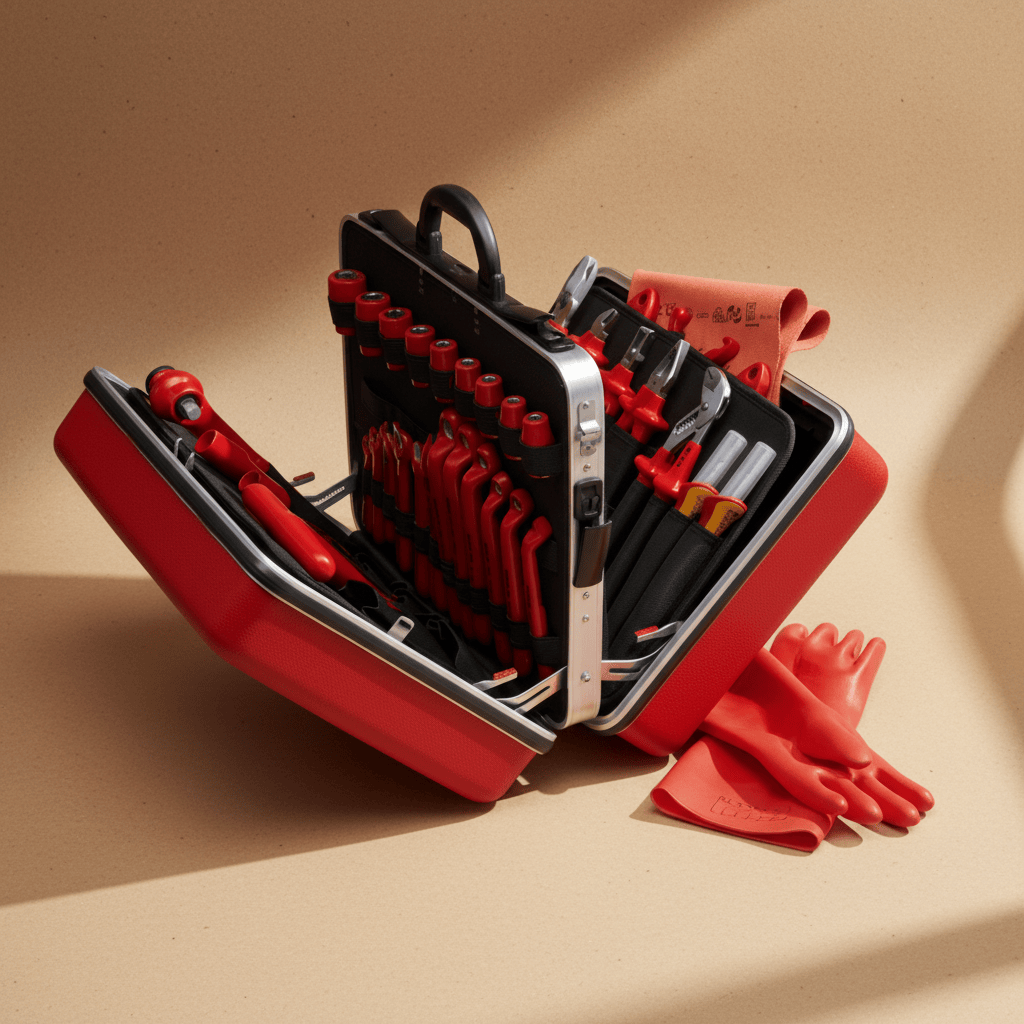

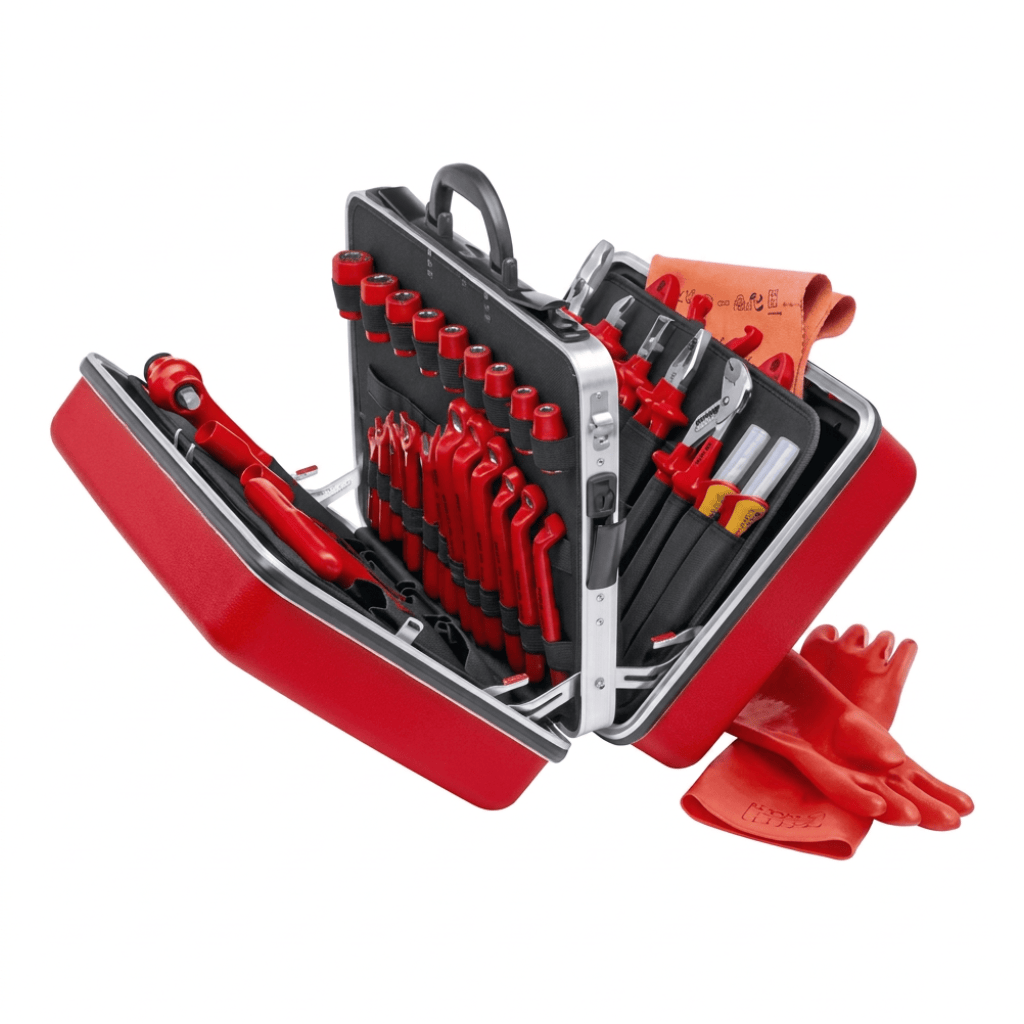

Knipex 48-Piece Universal VDE Insulated Electrician's Tool Case with Pliers, Wrenches, Sockets & Screwdrivers - K-989914

The Knipex K-989914 48-Piece Universal VDE Insulated Electrician’s Tool Case is a comprehensive professional kit purpose-built for electrical installation, industrial maintenance, distribution-board installation, and control-panel servicing at voltages up to 1000V. Housed in a rugged red ABS plastic case with an aluminium frame and external dimensions of 490 × 255 × 410mm, it supports a maximum payload of 30kg and carries a tool-set weight of approximately 16.25kg. Every tool is VDE-insulated and tested to DIN EN/IEC 60900, giving professional electricians a complete, certified kit in a single carry.

Key Features:

• 48-piece comprehensive tool set covering pliers, cutters, open-end wrenches, box wrenches, screwdrivers, sockets, cable knives, and electrical safety accessories
• All applicable tools VDE-insulated and tested to DIN EN/IEC 60900 for safe use up to 1000V
• Includes 5 pliers and cutting tools: combination pliers, wire stripper, diagonal cutters, Alligator® water-pump pliers, and cable shears
• Full set of insulated open-end and box wrenches from 10mm to 22mm for panel and enclosure work
• Six insulated screwdrivers covering 2.5mm to 6.5mm slotted and PH1/PH2 Phillips profiles
• Complete ½-inch drive socket set with reversible ratchet, T-handle, extension bars, and sockets from 10mm to 24mm
• Cable knives and electrical safety accessories including insulating mats, plastic insulating clamps, and electrician’s protective gloves
• Rugged red ABS plastic case with aluminium frame and 30kg maximum payload for demanding job-site use

Specifications:

• Product Type: VDE Insulated Electrician’s Tool Case
• Total Components: 48
• Case Material: ABS Plastic
• Case Colour: Red
• Frame: Aluminium
• External Dimensions: 490 × 255 × 410mm
• Internal Dimensions: 445 × (105 + 105) × 350mm
• Base-Tray Height: 58mm
• Maximum Payload: 30kg
• Tool-Set Weight: Approximately 16.25kg
• Maximum Working Voltage: Up to 1000V for appropriately rated tools
• Compliance Standard: DIN EN/IEC 60900

Tool Case Contents:

Pliers and Cutting Tools

• 1 × 200mm insulated combination pliers – 03 07 200
• 1 × 160mm insulated wire stripper – 11 17 160
• 1 × 160mm insulated diagonal cutters – 70 07 160
• 1 × 250mm insulated KNIPEX Alligator® water-pump pliers – 88 07 250
• 1 × 200mm insulated cable shears – 95 17 200


Insulated Open-End Wrenches

• 1 × 10mm – 98 00 10
• 1 × 13mm – 98 00 13
• 1 × 14mm – 98 00 14
• 1 × 17mm – 98 00 17
• 1 × 19mm – 98 00 19
• 1 × 22mm – 98 00 22


Insulated Box Wrenches

• 1 × 10mm – 98 01 10
• 1 × 13mm – 98 01 13
• 1 × 14mm – 98 01 14
• 1 × 17mm – 98 01 17
• 1 × 19mm – 98 01 19
• 1 × 22mm – 98 01 22


Insulated Screwdrivers

• 1 × 2.5mm slotted – 98 20 25
• 1 × 4mm slotted – 98 20 40
• 1 × 5.5mm slotted – 98 20 55
• 1 × 6.5mm slotted – 98 20 65
• 1 × PH1 Phillips – 98 24 01
• 1 × PH2 Phillips – 98 24 02


Insulated ½-Inch Drive Tools

• 1 × Insulated reversible ratchet – 98 40
• 1 × Insulated T-handle – 98 42
• 1 × 125mm insulated extension bar – 98 45 125
• 1 × 250mm insulated extension bar – 98 45 250


Insulated ½-Inch Drive Sockets

• 1 × 10mm – 98 47 10
• 1 × 11mm – 98 47 11
• 1 × 12mm – 98 47 12
• 1 × 13mm – 98 47 13
• 1 × 14mm – 98 47 14
• 1 × 17mm – 98 47 17
• 1 × 19mm – 98 47 19
• 1 × 22mm – 98 47 22
• 1 × 24mm – 98 47 24


Cable Knives

• 1 × Insulated cable knife – 98 52
• 1 × Insulated dismantling knife for round cables – 98 53 03


Electrical Safety Accessories

• 3 × Insulating mats – 98 67 05
• 6 × Plastic insulating clamps – 98 64 02
• 1 × Pair of electrician’s protective gloves – 98 65 40
