Product details
Product details

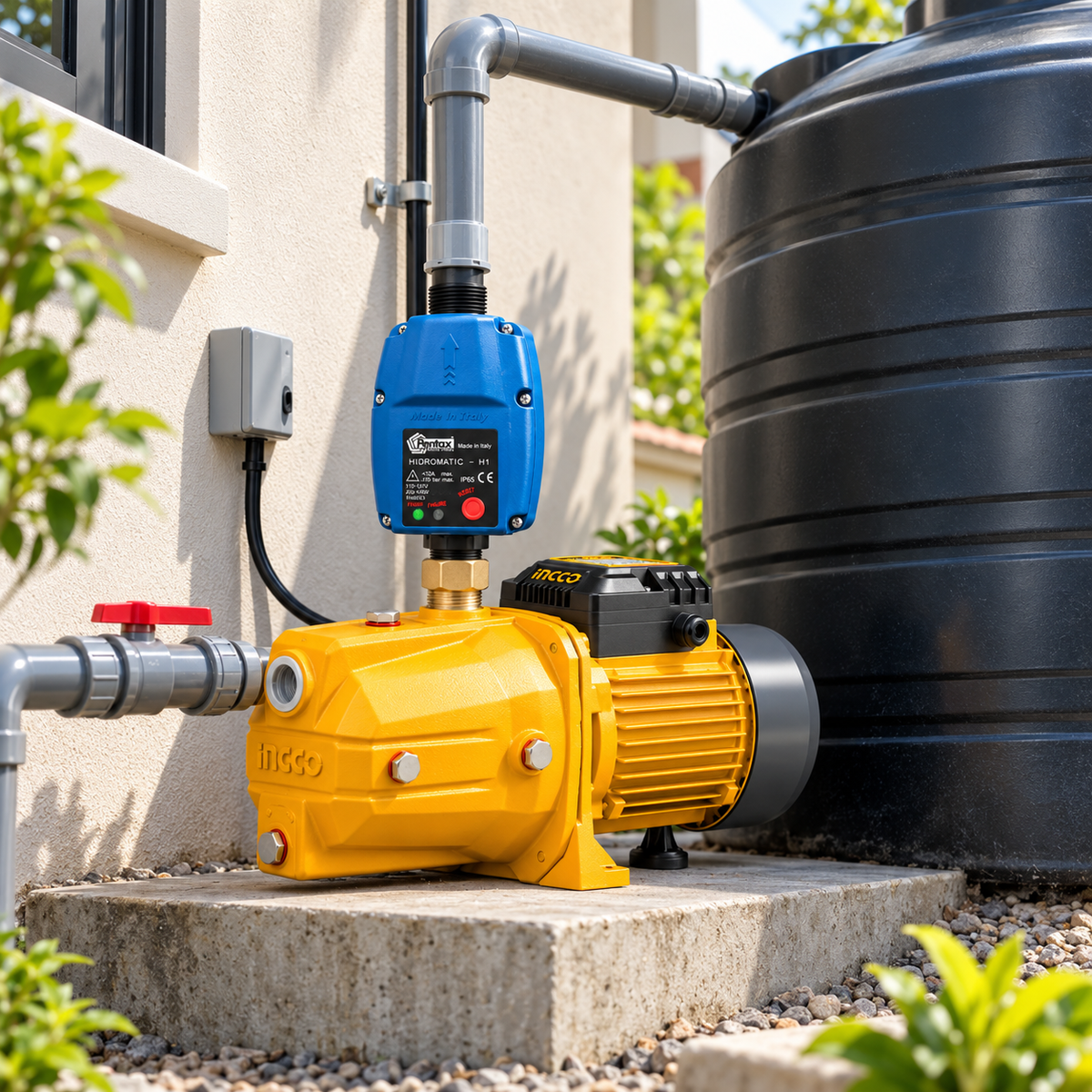

A high-demand domestic water-pressure system combining the Ingco 2HP self-priming jet pump with the Pentax Hidrotank-H1 controller. The controller is explicitly rated for pumps up to 1.5kW / 2HP and adds adjustable start pressure, dry-run protection, water-hammer protection, a pressure gauge and an integrated 0.4L tank.
SYSTEM COMPONENTS
Pump + automatic control

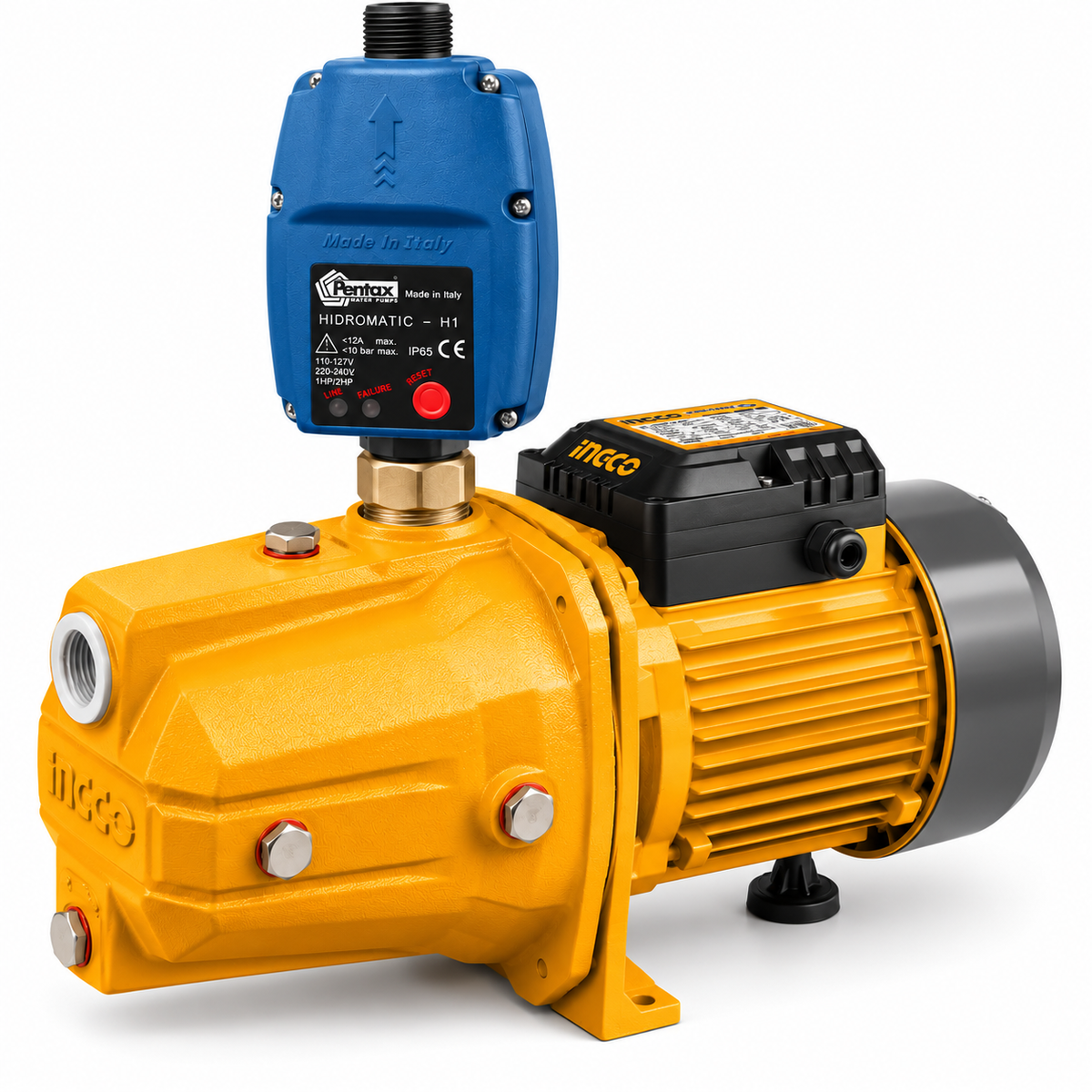

- Pump: Ingco JP150068 2HP Self-Priming Jet Pump
- Control: Pentax Hidrotank-H1 12A Automatic Pump Control
KEY SYSTEM SPECIFICATIONS
- 1500W / 2HP self-priming jet pump
- 60m maximum head
- 125L/min maximum flow
- 9m maximum suction
- 1 in. inlet/outlet
- Pentax controller rated 1.5kW / 2HP
- 12A maximum rated current
- Adjustable 1–3.5 bar start pressure
- Dry-run and water-hammer protection
SUPPLY MASTER COMPLETE
Buy the system. Have the replacement completed.
Professional installation · Greater Accra
Product delivery remains nationwide. Professional installation is available in Greater Accra. Product Only includes the pump and matched controller. Replacement Installation adds the standard connection materials, professional replacement labour, setup, priming, testing and handover.
EXISTING SETUP
Replacement Installation
For an accessible existing clean-water pump point with compatible 1-inch suction/discharge pipework, stable mounting base and an existing correctly rated earthed electrical supply appropriate for the 2HP motor. The fixed installed total shown above covers this standard replacement scope.
Fixed standard installation price shown above.
NEW SETUP
Assessment & quote
For first-time installations or sites that need new pipe runs, electrical work, civil work or other changes. Buy the pump-and-control system today; the installation is assessed and quoted separately.
System today. Installation quoted separately.
STANDARD MATERIALS SUPPLIED
- 2 × full-bore isolation ball valves
- 2 × removable unions
- 1 × non-return/check valve, or foot valve where the verified source requires it
- Pump-to-pipe threaded adaptors/reducers
- Short approved PVC/PPR connection pieces and elbows at the existing points
- PTFE thread-seal tape and matching pipe-joining consumables
- Electrical cable gland, terminal connectors and short connection tail to the existing compliant supply
- Anti-vibration mounting pads and base fasteners
STANDARD REPLACEMENT SCOPE

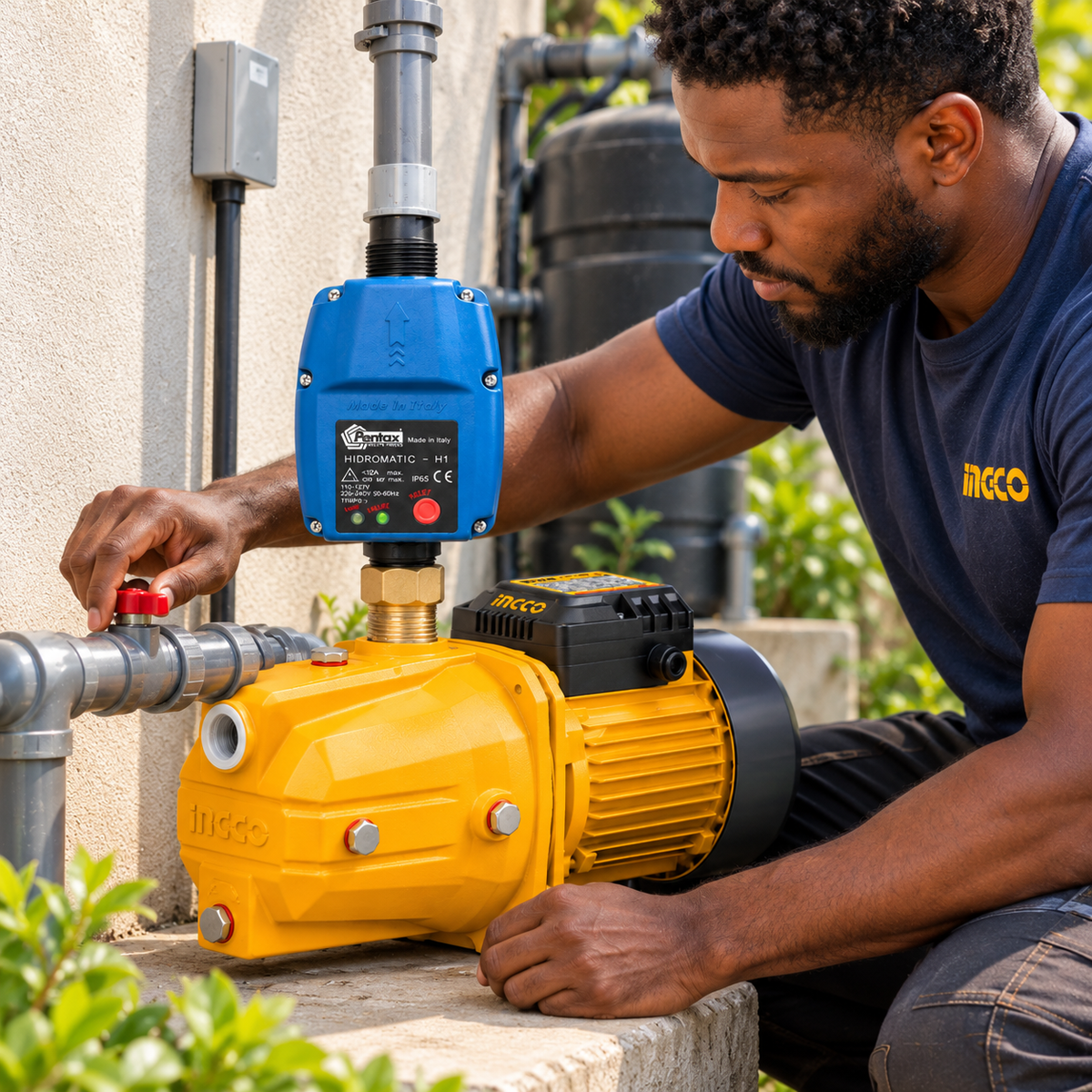

Includes isolation and removal of the existing comparable surface pump/controller, installation on the existing suitable pipe and electrical points, controller setup, pump priming, startup, pressure/leak checks and customer handover.
Not included: new borehole or tank work, new suction/discharge runs, new electrical circuits or rewiring, civil base construction, concealed leak diagnosis, wall cutting or major plumbing alteration. Additional work is quoted before it begins.
