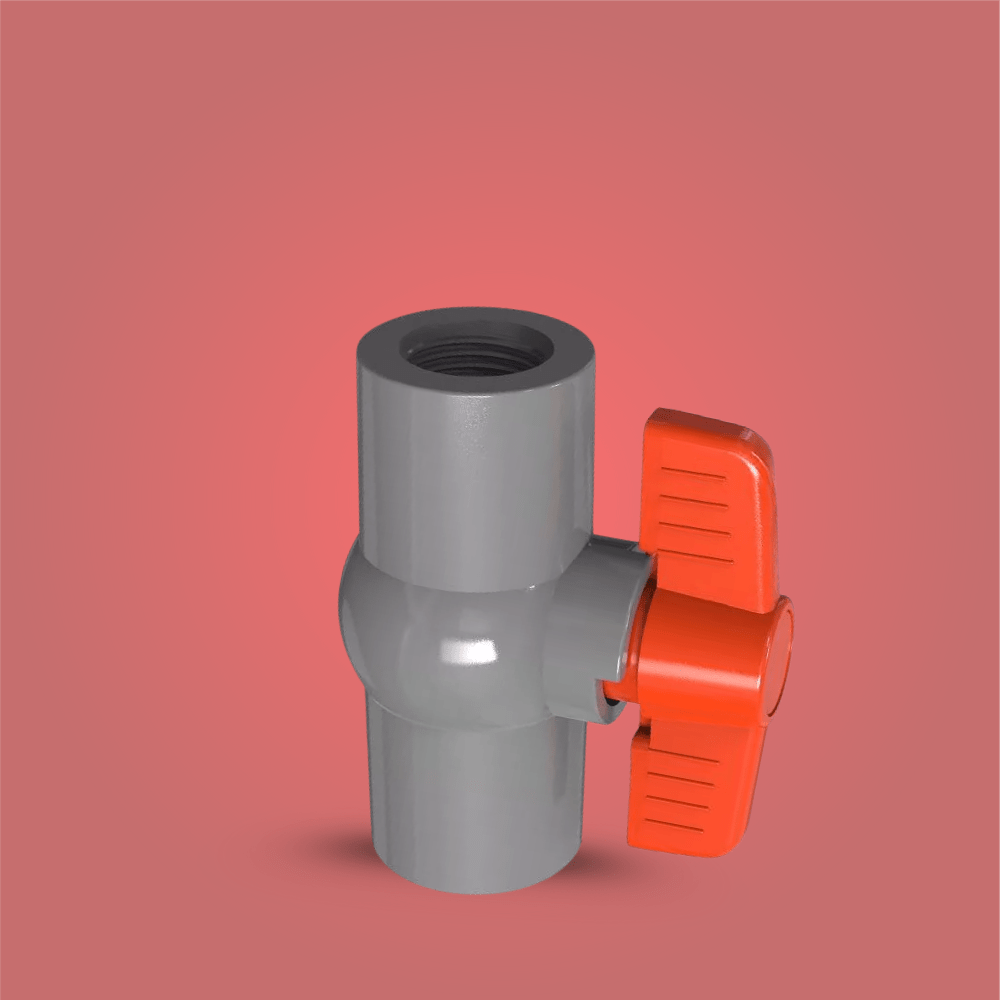

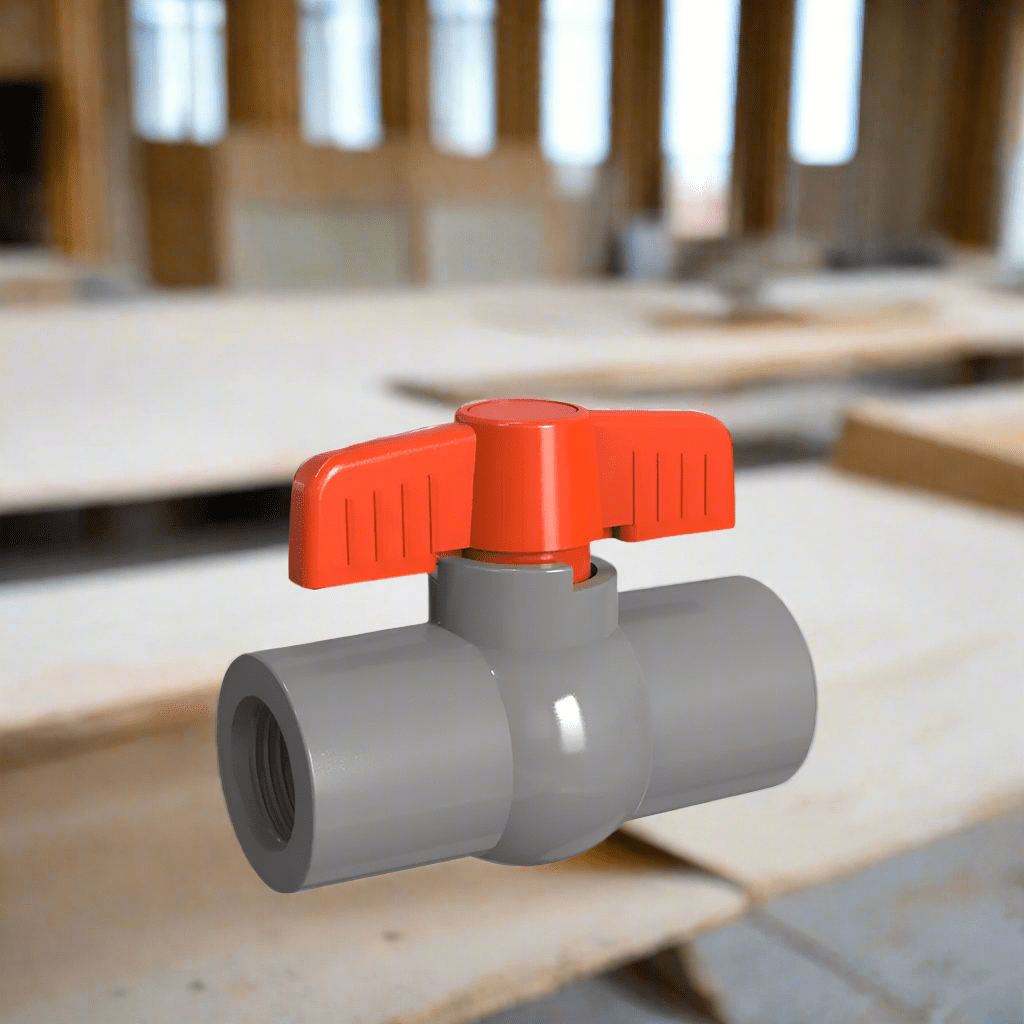

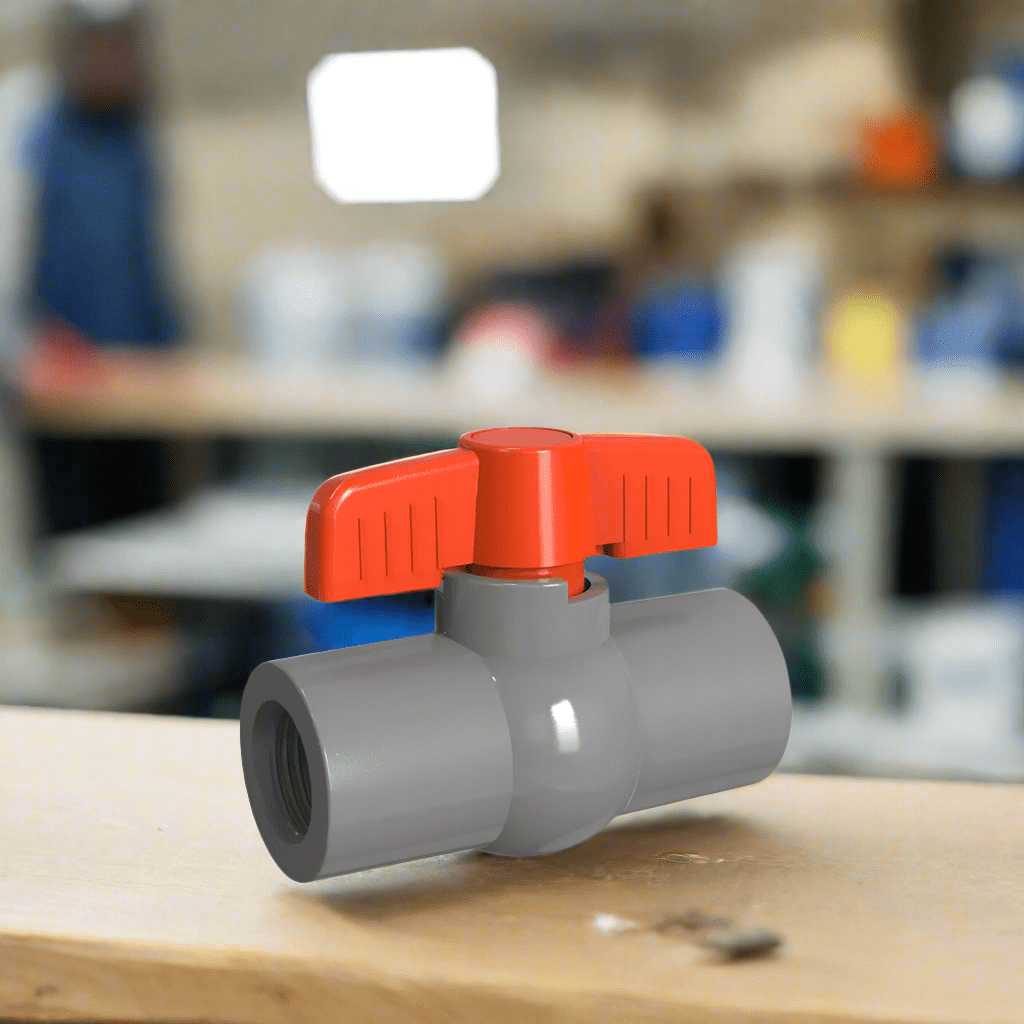

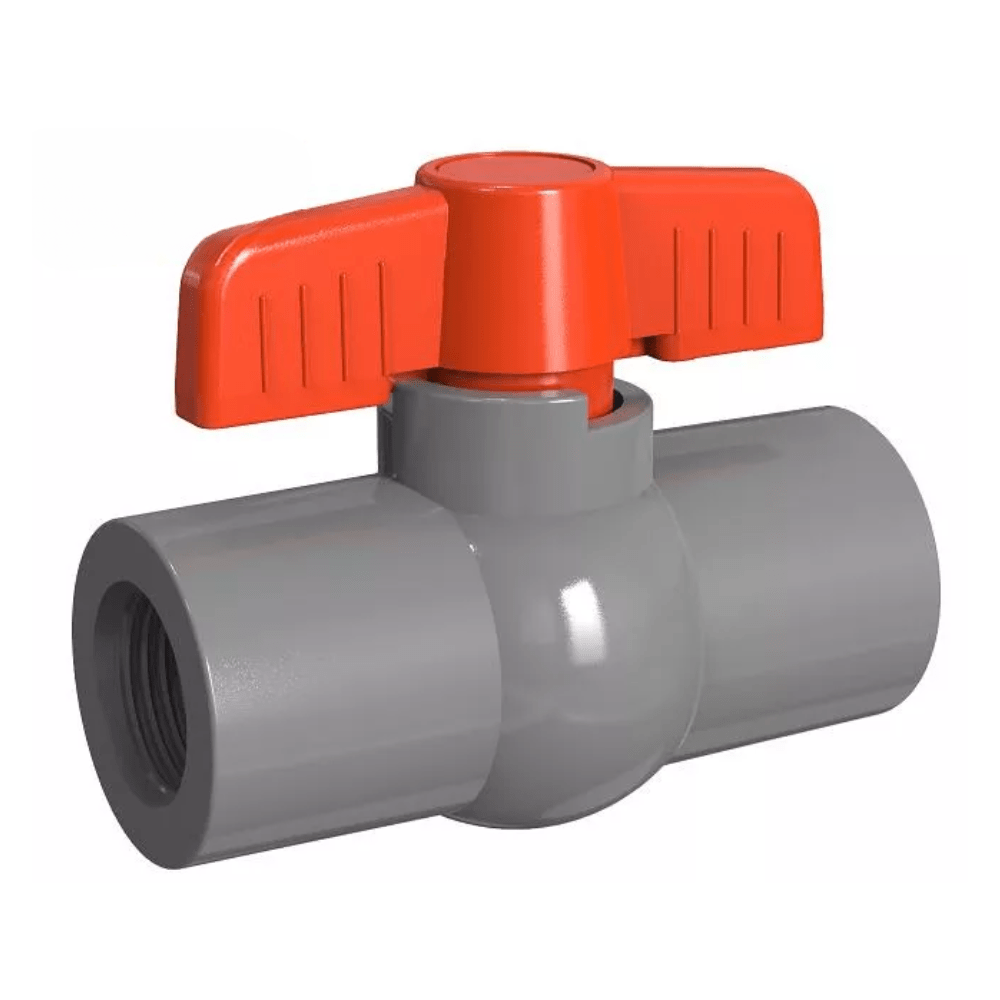

The ERA UCB01 Compact Ball Valve is engineered for precision control and space-saving installation. Crafted from durable lead-free PVC-U, this valve is available with both socket and threaded ends—making integration into your system seamless. Compliant with a range of global standards including DIN, ANSI (ASTM F1970), BS, JIS, BSPT, NPT, the UCB01 is rated for PN10/PN16 pressure. Perfect for systems requiring quick shut-off, this valve spans sizes from ½″ to 2″, It features a full-port design for smooth flow and minimal pressure drop.
Key Features:
- Space-Saving Compact Design — Ideal for tight installations without sacrificing flow
-
Certified Versatility — Complies with DIN, ANSI/ASTM F1970, BS, JIS, BSPT, and NPT standards
-
Full-Port Flow — Minimizes pressure loss for efficient fluid movement
-
Flexible Connectivity — Socket or threaded ends accommodate varying plumbing needs
-
Robust Material Build — Made from high-quality PVC-U with internal components like TPE seals, EPDM O-ring, and ABS handle support
Technical Specifications:
- Model: UCB01
- Material: PVC-U (Lead-free, unplasticized)
- Sizes Available:
- ½″ (15 mm / NPT 14)
- ¾″ (20 mm)
- 1″ (25 mm)
- 1¼″ (32 mm)
- 1½″ (40 mm)
- 2″ (50 mm)
- Connection Types: Socket and Threaded (NPT/BSPT)
- Standards & Certifications:
- DIN, ANSI (ASTM F1970), BS, JIS
- NSF-14 & 61, UPC, CE, WATERMARK
-
Pressure Rating: PN10 / PN16 (up to 10 bar nominal)
-
Operating Temperature: 0–45 °C
- Internal Components:
- Seat Seal: TPE/PTFE
- O-Ring: EPDM/FPM
- Ball: PVC
- Handle & Cap: ABS
Minimal size, maximum reliability. This compact design delivers smooth flow control, rugged durability, and certified performance—perfect for residential and commercial piping systems.
