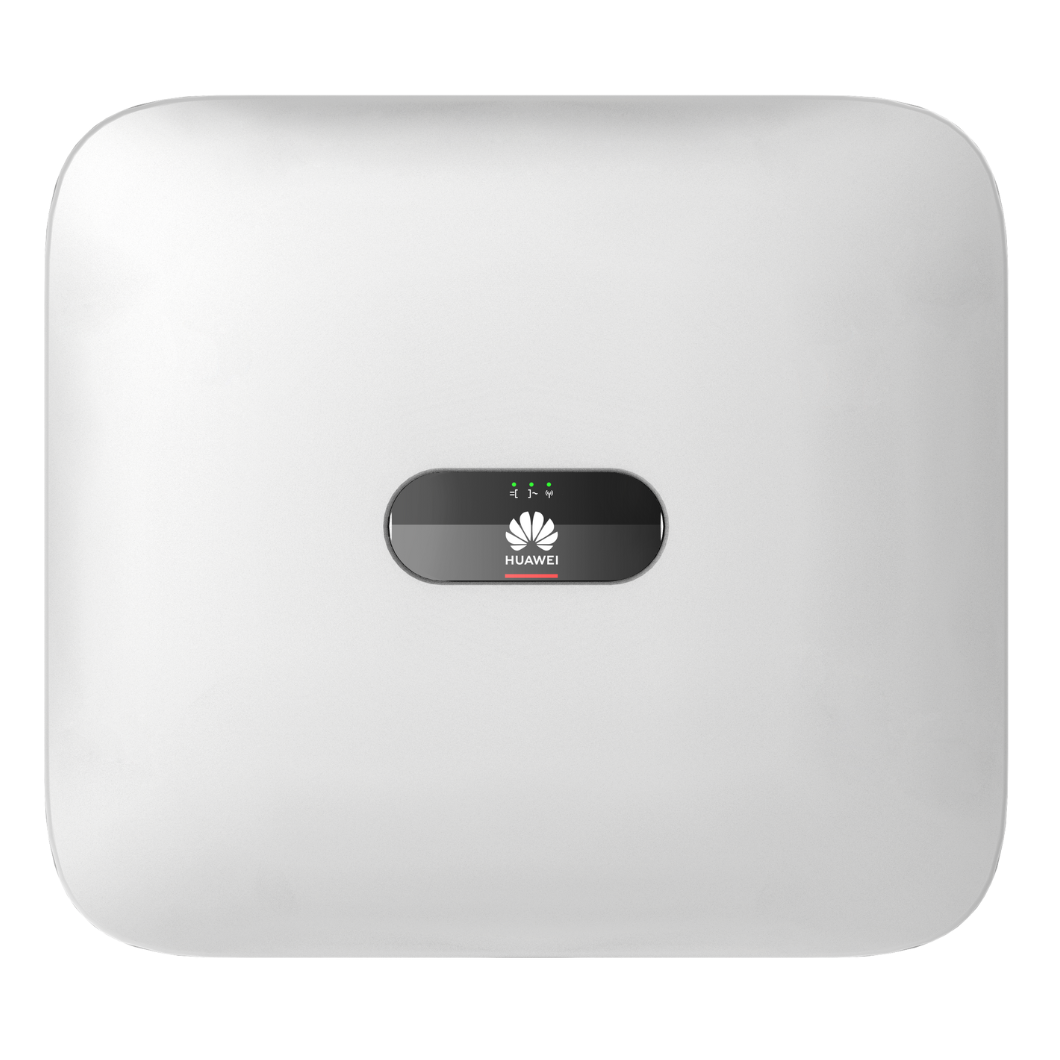

Huawei Inverter Three Phase 10000W SUN2000-10KTL-M1 - 01074311-001

The Huawei SUN2000-10KTL-M1 is a premium three-phase solar inverter designed for mid to large residential and commercial systems. It supports both grid-tie and hybrid (battery plus grid) configurations thanks to its built-in high-voltage battery interface. With dual MPPT trackers, high efficiency (up to 98.6 %), and robust protections, this inverter extracts maximum power from your solar array while ensuring reliability and safety.

Ideal for solar installations paired with Huawei’s Smart ESS battery systems (5 kWh to 30 kWh), the inverter also supports dynamic power management, PID recovery, and smart grid support features.

Key Features

• Dual MPPT trackers for optimized string layouts and shading resilience
• High efficiency of up to 98.6 % (European efficiency ~98.1 %)
• Wide MPPT voltage range: 140 V to 980 V (operation)
• Maximum DC input voltage: 1,100 V
• Battery-ready hybrid mode (600 V battery interface) for Huawei smart ESS systems
• Three-phase output with adjustable PF (±0.8) to support diverse grid requirements
• IP65 enclosure for outdoor use and protection from dust and rain
• Comprehensive safety & protection suite:
    • Anti-islanding, DC reverse-polarity, insulation monitoring
    • AC overvoltage, overcurrent, short circuit, surge protection, arc fault detection
    • Residual current monitoring, PID recovery, ripple control features
• Smart communications & monitoring: RS485, built-in WiFi, Ethernet via Smart Dongle, support for 4G/3G dongles
• Passive cooling (no fan), high altitude support (derated above 2,000 m)
• Supports Huawei optimizers (Sun2000-P series) for module-level management


Technical Specifications

• Rated AC output power: 10,000 W
• Maximum apparent output (VA): 11,000 VA
• Rated output voltage: 220 / 380 V or 230 / 400 V, 3W + N + PE
• Max output current: 16.9 A
• AC grid frequency: 50 Hz / 60 Hz
• Harmonic distortion (THDi): ≤ 3 %
• Recommended maximum PV power: 15,000 Wp (with optimizers)
• Start-up voltage (minimum): 200 V
• MPPT range: 140 V to 980 V
• Max short-circuit current per MPPT: 15–19.5 A (version dependent)
• Battery voltage / range: 600 V (nominal), 600 V to 980 V operation for battery mode
• Maximum battery current: 16.7 A
• Operating temperature range: –25 °C to +60 °C
• Protection rating (Ingress): IP65
• Dimensions (with bracket): 525 × 470 × 146.5 mm
• Weight (with bracket): 17 kg
• Night-time power consumption: < 5.5 W
• Altitude rating: up to 4,000 m (derated above 2,000 m)
• Cooling method: Natural convection (passive)


The Huawei SUN2000-10KTL-M1 stands out as a powerful, efficient, and flexible inverter solution. With hybrid capabilities, IP65 durability, dual MPPTs, and grid compatibility, it offers a future-proof investment for users planning solar + battery systems.
