Victron Energy Black Smart Battery Monitor with Shunt 6.5-70 VDC Di...
Victron Energy Black Smart Battery Monitor with Shunt 6.5-70 VDC Display and Bluetooth - BMV-712 is available on backorder and will be fulfilled once restocked.
Product details
Product details
The Victron Energy BMV-712 Smart Battery Monitor is a modern, high-accuracy monitor designed to give you deep insight into your battery system. It continuously measures voltage, current, and ampere-hours, then calculates your battery’s state of charge (SoC), power usage, and time-to-go based on current loads. With built-in Bluetooth, you can instantly monitor and configure it using the VictronConnect app—no extra hardware needed.
An auxiliary input adds flexibility: you can monitor a second battery, midpoint voltage, or battery temperature (with optional sensor). The monitor includes audible and visual alarms, a programmable relay to automate behavior (e.g. triggering a generator), and robust protection features to keep your system safe.
Key Features:
- Full battery insight: tracks voltage, current, amp-hours, SoC, and time-to-go

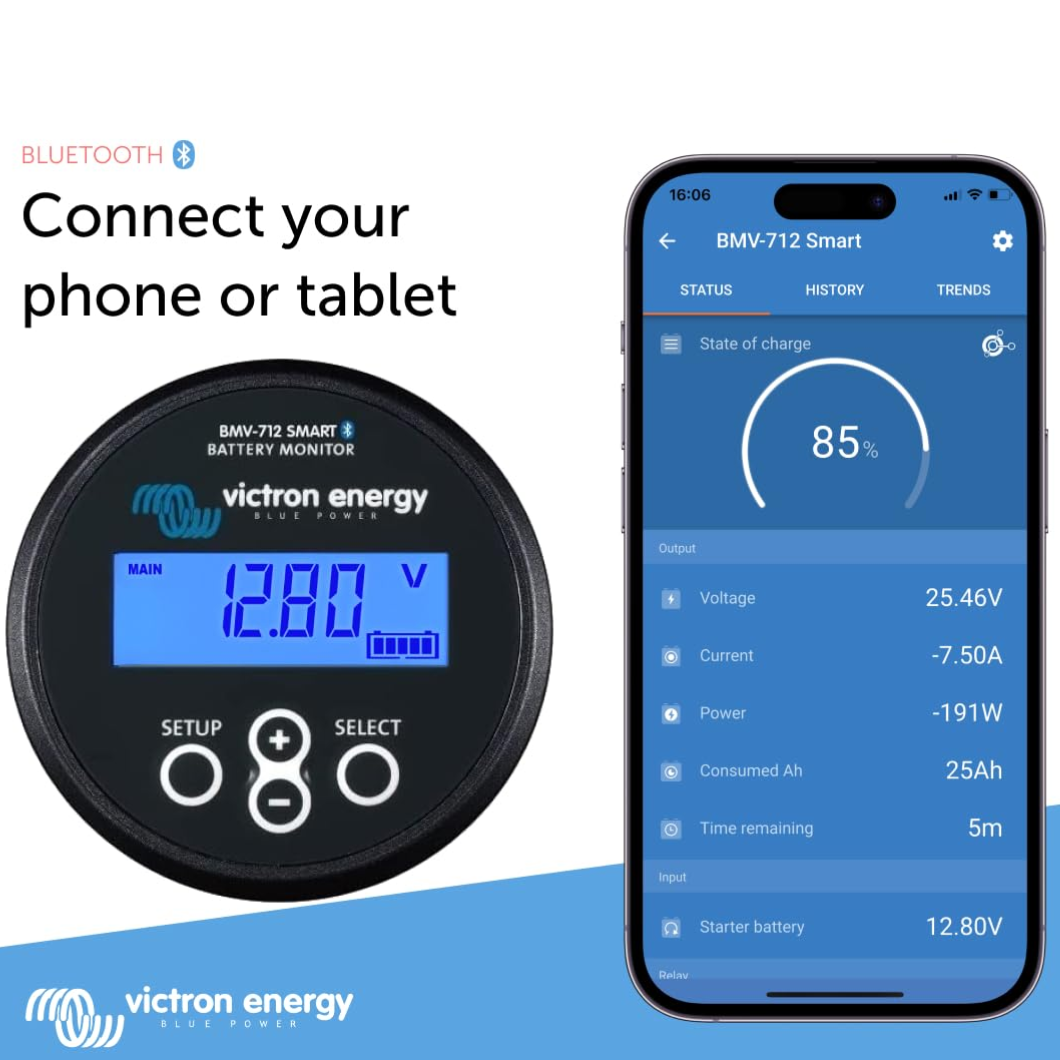

- Built-in Bluetooth for wireless configuration and live data via VictronConnect
- Auxiliary input for 2nd battery voltage, midpoint, or temperature monitoring
- Programmable relay (60 V / 1 A) to switch loads, start a generator, or respond to alarms
- Alarms & thresholds: set under/over voltage, low SoC, temperature, and more
- Low power draw: < 1 mA when backlight is off
- Wide voltage range: operates from 6.5 V up to 70 V DC
-
High accuracy & resolution:
• Current ±0.01 A
• Voltage ±0.01 V
• Amp-hours ±0.1 Ah
• SoC ±0.1 % - Supports historic trend data: stores days of voltage, current, SoC trends
- Rugged design: IP55 front protection, flush mount form factor
-

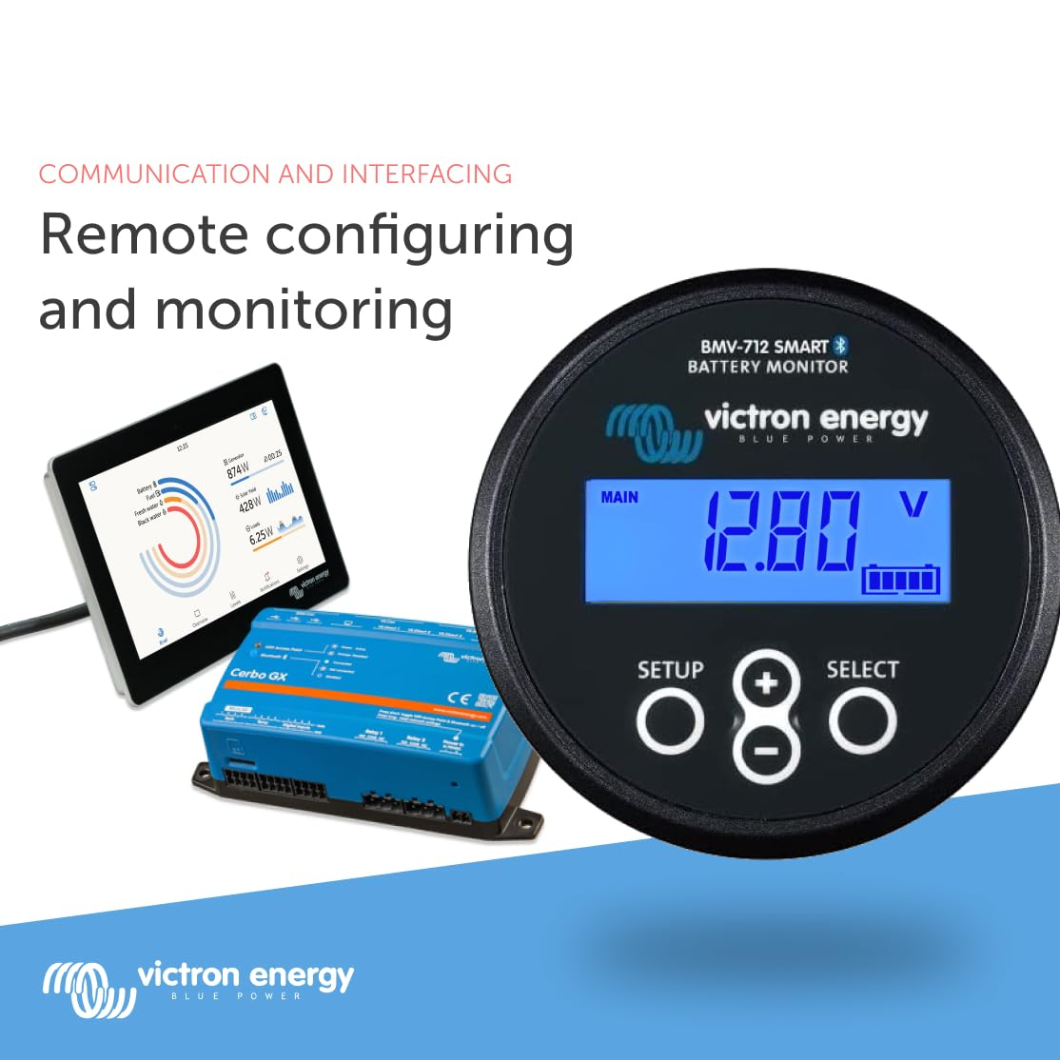

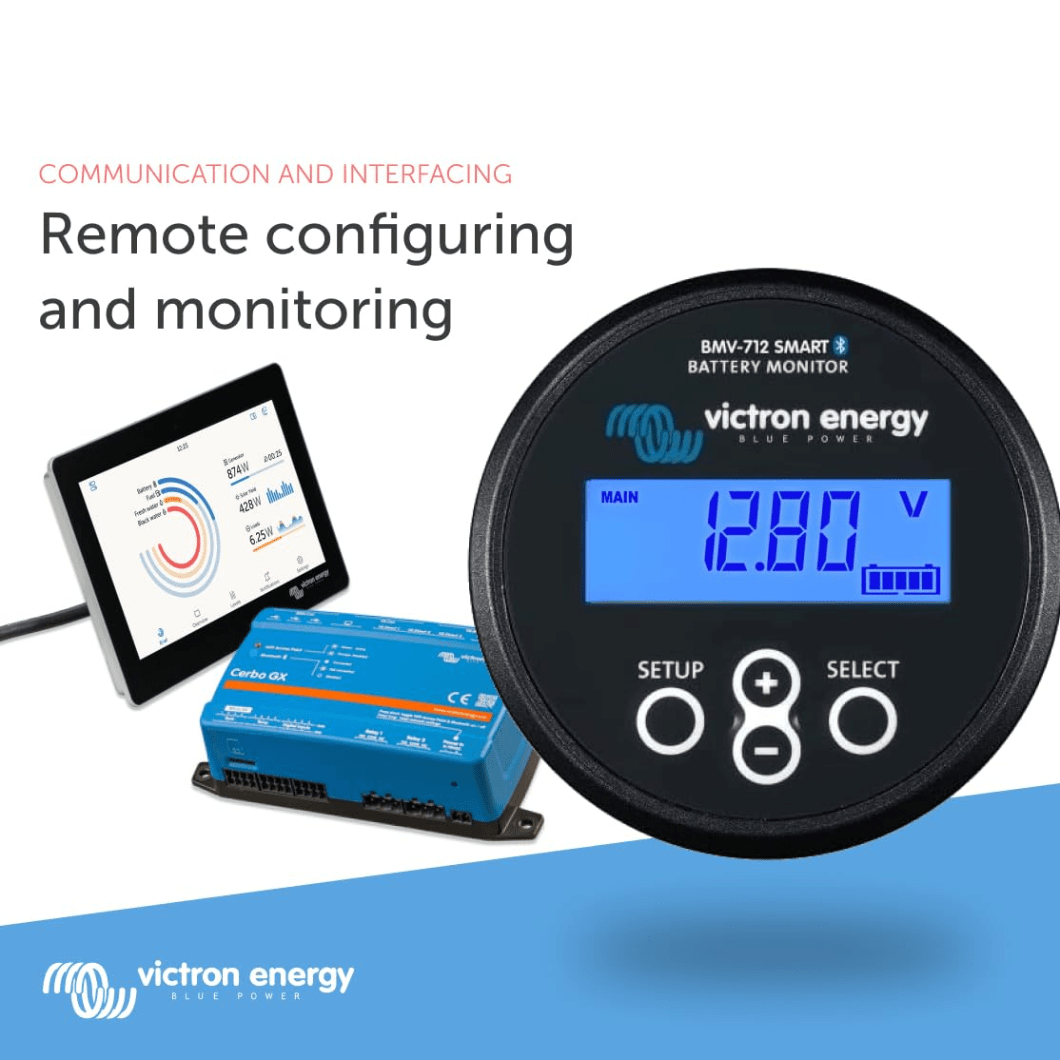

Easy to integrate: VE.Direct port for connecting with GX devices or logging systems
Technical Specifications:
- Supply voltage range: 6.5 V – 70 V DC
- Current draw (backlight off): < 1 mA
- Auxiliary voltage input range: 6.5 V – 70 V DC
- Battery capacity (Ah) setting range: 1 – 9,999 Ah
- Operating temperature range: –40 °C to +50 °C
- Temperature input (optional): –20 °C to +50 °C (via external sensor)
- Relay output: 60 V / 1 A, normally open (configurable)
-
Resolution & accuracy (with standard 500 A / 50 mV shunt):
• Current: ±0.01 A
• Voltage: ±0.01 V
• Amp-hours: ±0.1 Ah
• State of charge (SoC): ±0.1 %
• Time-to-go: ± 1 minute - Installation & dimensions: flush mount; head front 63 mm diameter; body 52 mm × 31 mm
- Shunt connection bolts: M10 (0.3937 inch)
- Protection class (head): IP55 (not recommended for direct outdoor exposure)
- Included shunt: 500 A / 50 mV quick-connect
-
Cabling included: 10m RJ12 UTP cable + positive fused lead cable
With its combination of precision, Bluetooth connectivity, alarm features, and flexible input options, the Victron BMV-712 Smart Battery Monitor is a modern, powerful tool for any system where battery insight matters. It gives real-time, reliable data and control to keep your battery health in check.
