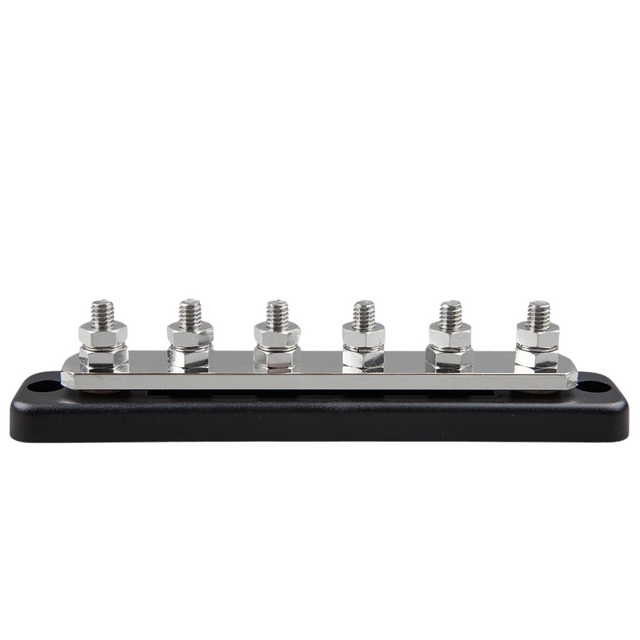

Victron Energy 250A 6P+Cover - VBB125060020

The Victron Energy 250A 6P + Cover Busbar (VBB125060020) is a premium DC distribution block designed for medium to large systems that demand dependable power routing and safety. It consolidates up to six high-current connections in a single modular unit and includes a protective cover to guard against accidental short circuits and environmental harm.

This busbar is ideal for solar installations, battery banks, off-grid systems, marine setups, and power distribution panels. With its clean layout, rugged materials, and professional design, it helps installers and system owners maintain clarity, reduce wiring clutter, and boost reliability.

Key Features:

• 150-250 A rated current for heavy load systems — fully capable of high-power distributions
• Six output poles (6P) to connect up to six circuits or components individually
• Protective ABS cover included, removable, to shield against accidental shorts and improve safety
• Stainless steel terminals (5/16 in / ~8 mm diameter) with secure bolt connection design
• Tin-plated copper busbar strip (5 × 24 mm) for low resistance and efficient current flow
• ABS base and cover materials (UL 94 V-0 base, V-2 cover) for robust insulation and structure
• Compact footprint (with cover): 48 × 237 × 70 mm for efficient space use
• Recommended torque: 13 N·m (≈ 110 lbf·inch) to ensure solid connections


Technical Specifications:

• Maximum current rating: 250 A DC
• Maximum voltage rating: 70 V DC
• Terminal diameter: 5/16 inch (≈ 8 mm)
• Terminal height (above bar): ~0.67 inch (≈ 17 mm)
• Busbar strip cross-section: 5 × 24 mm copper, tin-plated
• Base / insulator material: ABS, UL 94 V-0
• Cover material: ABS, UL 94 V-2
• With cover dimensions (H × W × D): 48 × 237 × 70 mm (1.9 × 9.4 × 2.8 in)
• Weight (6P version, with cover): ~1.0 lb (0.43 kg)
• Recommended mounting method and dimensions: detailed in Victron’s datasheet “Busbar 250 A 4P and 6P with cover”
• Recommended torque for terminal bolts: 13 N·m (110 lbf·inch)


The Victron VBB125060020 (250A 6P + Cover Busbar) is a high-capacity, clean, and safe solution for DC power distribution in advanced solar and battery systems. With six distribution points, solid current handling, and a protective cover, it’s ideal for clients who want professional, reliable power routing in compact form.
