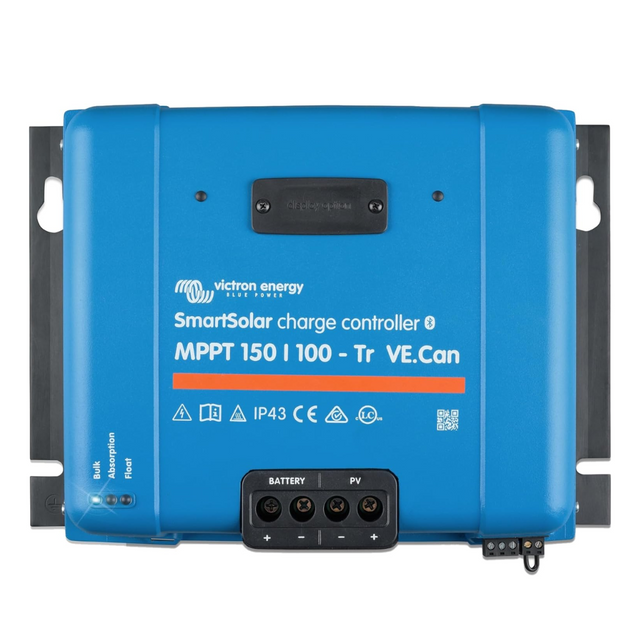

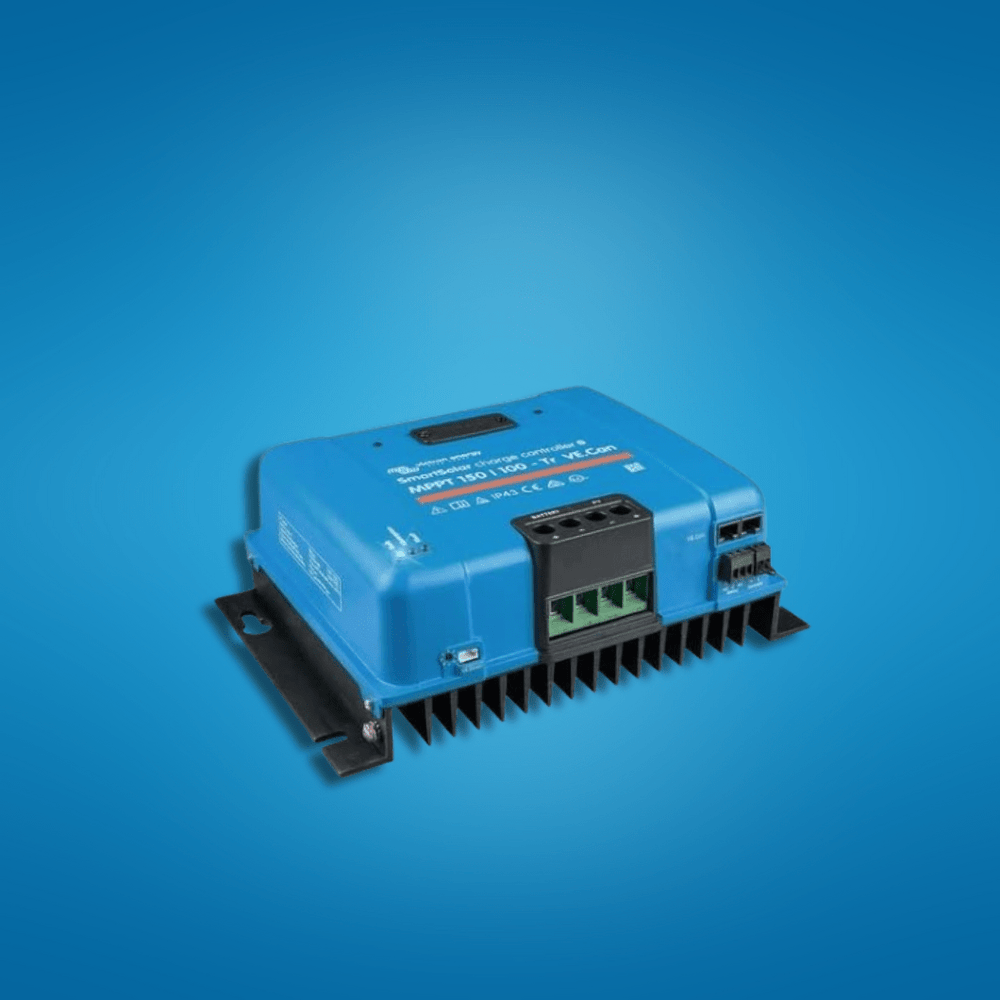

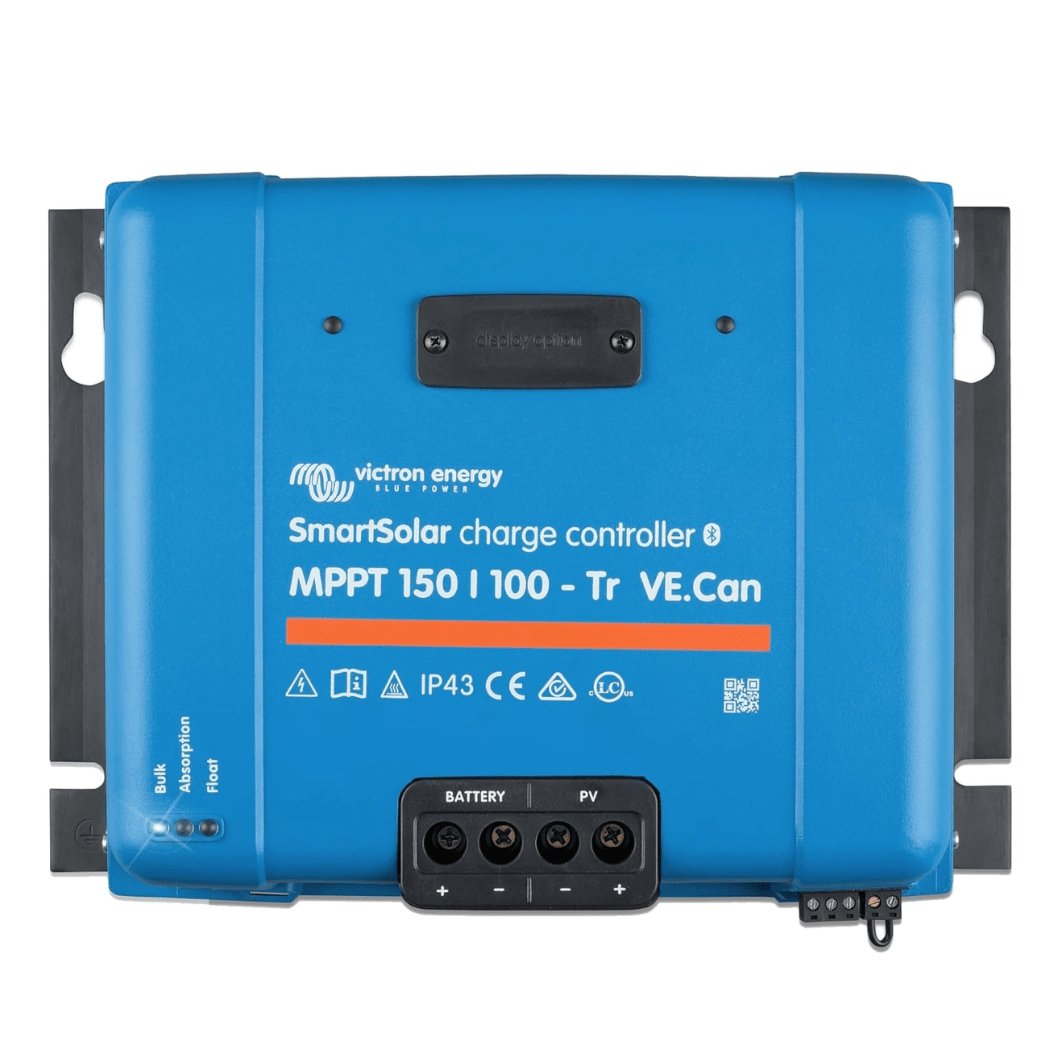

Victron Energy SmartSolar MPPT 150/100 -Tr VE.Can Charge Controller - SCC115110410

The Victron Energy SmartSolar MPPT 150/100-Tr VE.Can (SCC115110410) is built for large, demanding solar power systems that require both power and intelligent management. It uses ultra-fast MPPT (Maximum Power Point Tracking) technology to extract maximum energy from solar panels, even under challenging conditions like partial shading or low sunlight. With full VE.Can communication, remote monitoring and synchronization, it’s engineered for high performance, reliability, and battery protection.

This controller supports 12V, 24V, and 48V battery banks (with 36V selection manual), and delivers 100A charge current — ideal for large residential, industrial, or off-grid systems. Built-in protections, advanced charge algorithms, and high input voltage capacity give you confidence in both performance and safety.

Key Features:

• High-capacity 100A charge current for heavy-duty solar systems
• MPPT technology ensures peak solar harvest, even under varying lighting conditions
• Compatible with 12V, 24V, and 48V battery systems (36V manual select)
• VE.Can & VE.Direct ports for communication, monitoring, synchronization, and integration with remote systems
• Programmable relay and remote on/off support to integrate with system control or safety mechanisms
• Multiple pre-programmed charge profiles; user-definable charge algorithms for various battery types
• Low self-consumption to minimize wasted energy when idle
• Robust protection: PV reverse polarity, output short-circuit, over-temperature; operates reliably in harsh environments


Technical Specifications:

• Rated battery voltages: 12V / 24V / 48V auto-detect; 36V must be manually selected
• Charge current: 100A continuous
• Maximum PV open-circuit voltage (Voc): 150V absolute maximum in cold conditions; ~145V for start-up and operation
• Nominal PV input power capability:
  • ~1,450W for 12V systems
  • ~2,900W for 24V systems
  • ~4,350W for 36V systems
  • ~5,800W for 48V systems
• Efficiency: Peak efficiency of about 98%.
• Self-consumption: Less than ~35mA @ 12V; less than ~20mA @ 48V
• Charge voltages (default settings, adjustable):
  • Absorption: 14.4V / 28.8V / 43.2V / 57.6V
  • Float: 13.8V / 27.6V / 41.4V / 55.2V
  • Equalization (when enabled): 16.2V / 32.4V / 48.6V / 64.8V
• Temperature compensation included, with appropriate voltage drops per °C for battery safety
• Operating temperature range: –30°C up to +60°C; full rated output maintained up to approx. 40°C
• Protection category: IP43 for electronics; IP22 for connection/terminal area


For solar setups that demand serious power, reliability, and intelligent control, the Victron Energy SmartSolar MPPT 150/100-Tr VE.Can (SCC115110410) is the perfect match. With its high current capacity, broad battery compatibility, and remote-management features, it delivers performance you can count on.
