Victron Energy BlueSolar MPPT 100/20 48V Charge Controller - SCC11...
Victron Energy BlueSolar MPPT 100/20 48V Charge Controller - SCC110020170R is backordered and will ship as soon as it is back in stock.
Description
Description

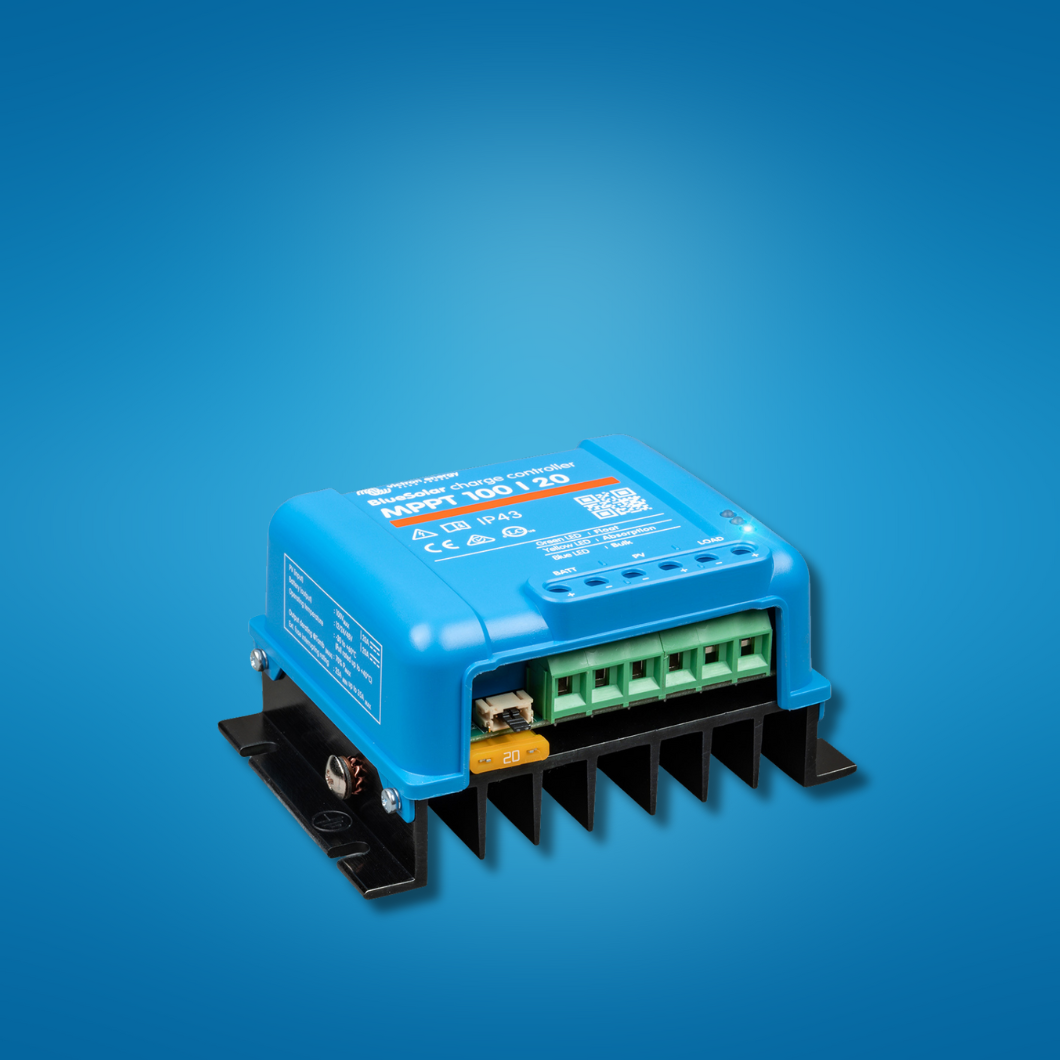

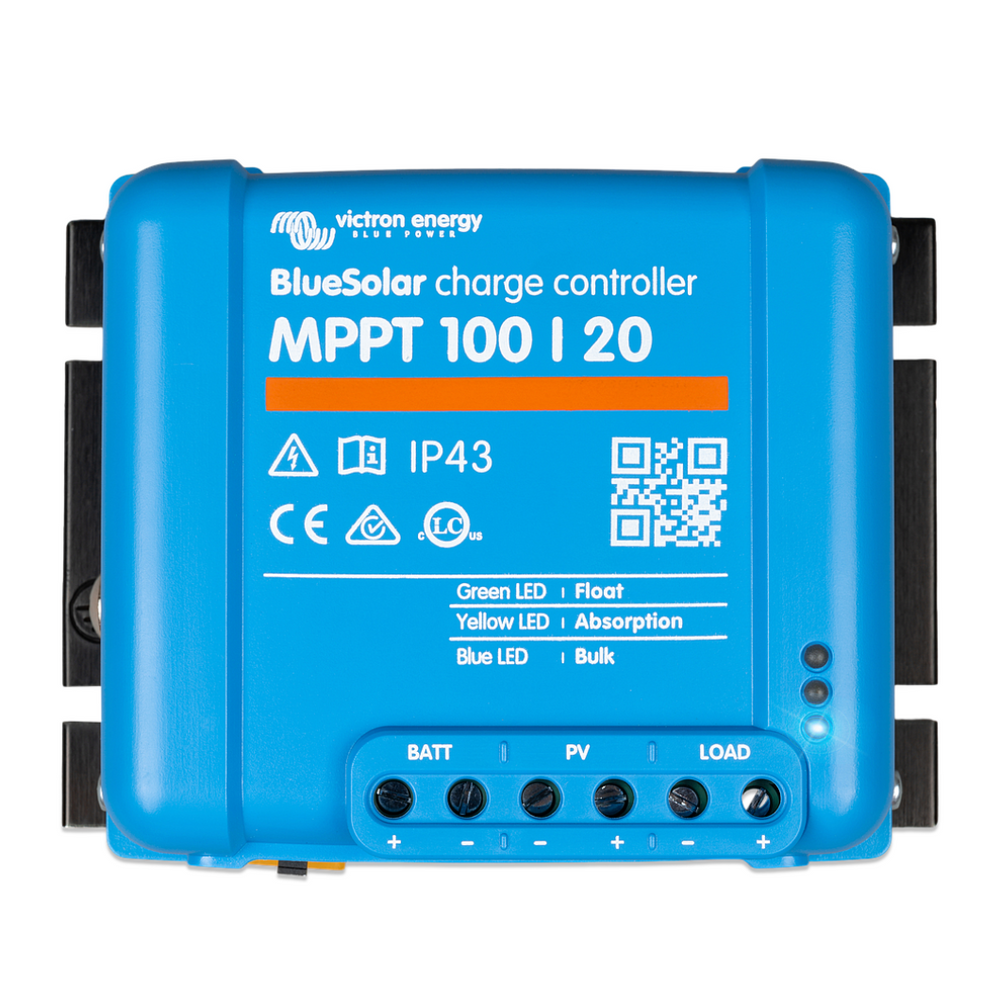

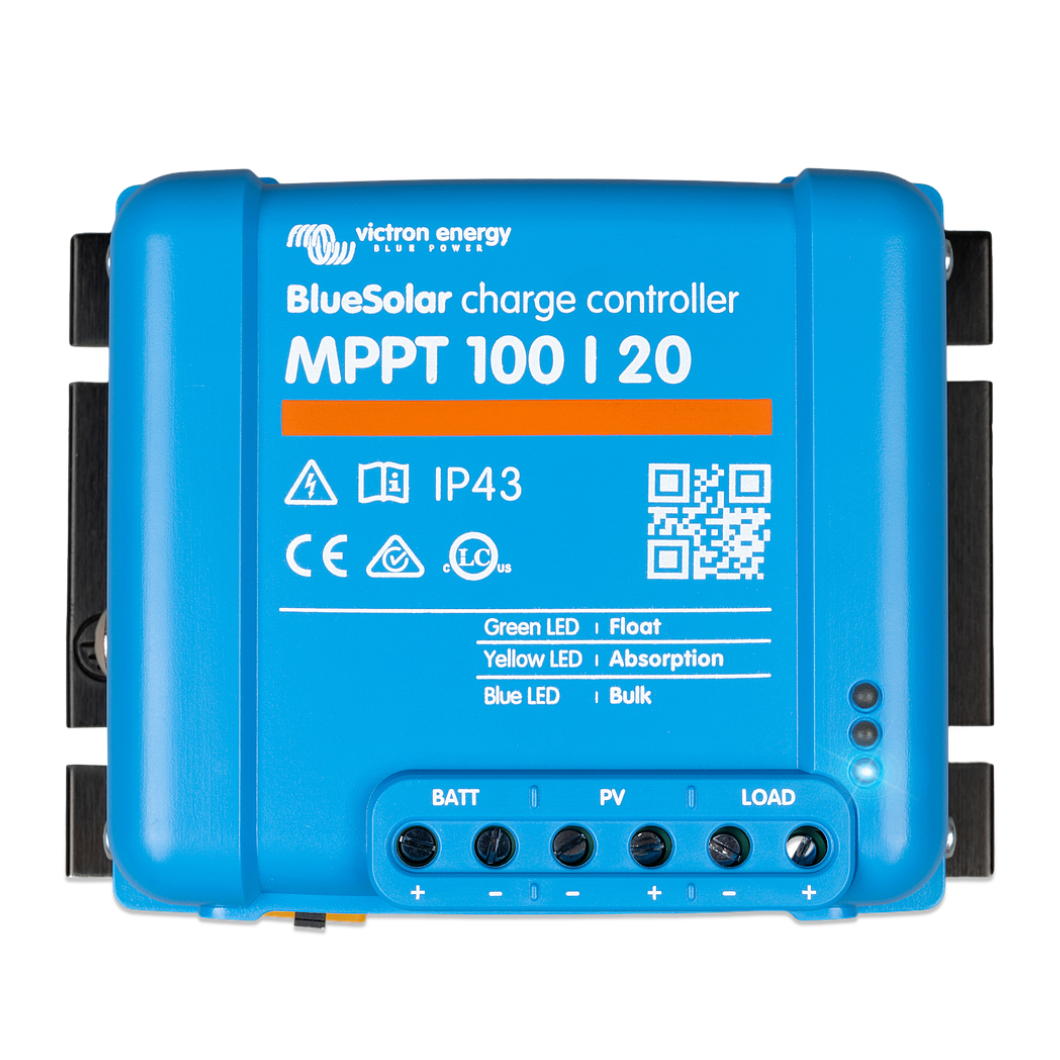

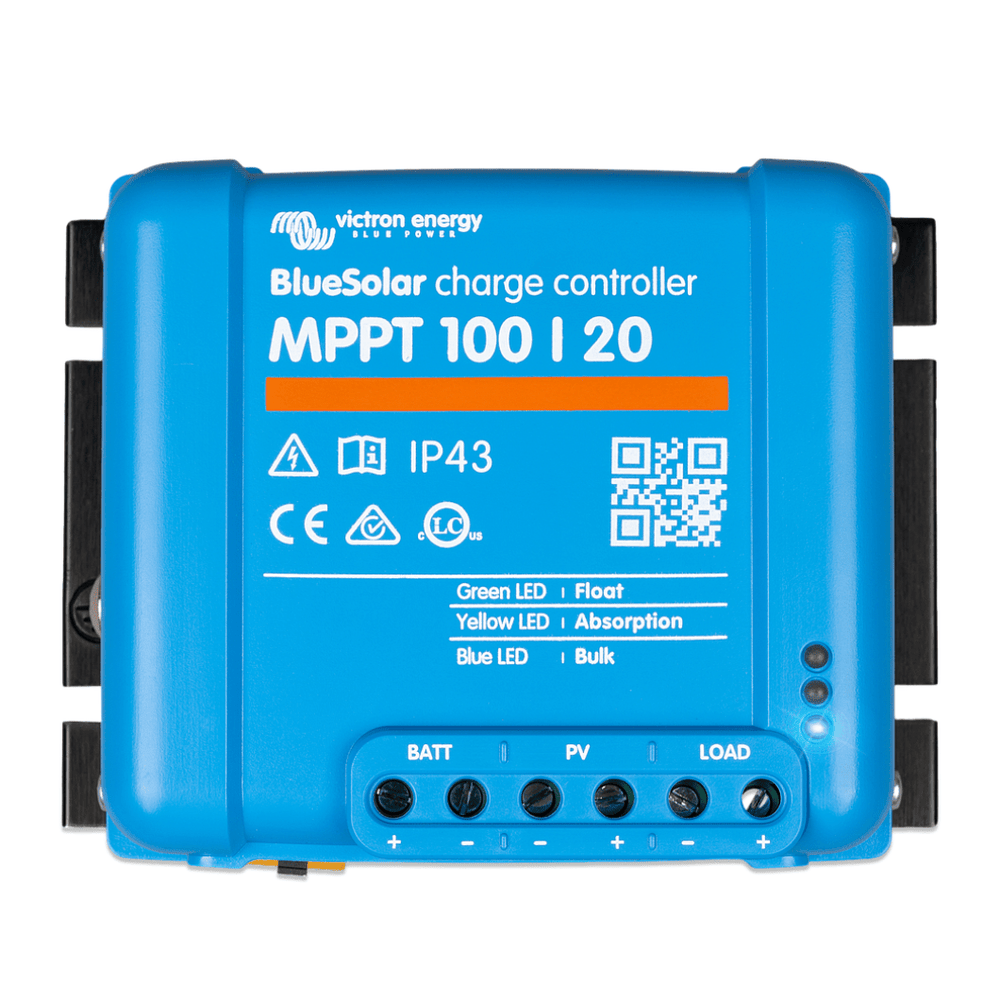

The Victron Energy BlueSolar MPPT 100/20 up to 48V (SCC110020170R) is designed for those who demand high efficiency and reliability in their solar installations. This MPPT (Maximum Power Point Tracking) controller ensures you harvest as much power as possible from your solar panels—even under variable light conditions—by constantly adjusting for the optimal voltage and current.
Tailored for 12V, 24V, or 48V battery systems, it delivers up to 20A of charging current, making it well-suited for medium-sized off-grid, mobile, marine, or backup applications. The BlueSolar MPPT 100/20 is engineered with robust protection features and smart battery management to extend battery life and safeguard your system against faults. If you don’t require built-in Bluetooth, this model gives excellent performance without extra wireless hardware.
Key Features:
- Ultra-fast MPPT tracking for optimal energy harvest, especially under changing sunlight and partial shading
- Supports 12V / 24V / 48V battery systems (auto-voltage detection)
- 20A charging current; appropriate for medium-power applications
- Max PV open-circuit voltage of 100V, allowing higher-voltage PV arrays for efficient wiring and reduced losses
- High peak efficiency (~98%) for minimal losses
- Load output with BatteryLife algorithm to protect batteries from over-discharge and ensure full daily recharge when possible
- Comprehensive safety and protection features: overheat protection, reverse polarity, short-circuit, and other electronic safeguards
- Weather-tolerant design; reliable operation over a wide temperature range
Technical Specifications:
- Works with battery systems at 12V, 24V, or 48V (auto-select)
- Rated charging current of 20A
- Maximum PV open-circuit voltage of 100V
- Nominal PV power capability: ~290W (12V), ~580W (24V), ~1,160W (48V)
- Peak efficiency approximately 98%
- Absorption voltage adjustable (~14.4V / 28.8V / 57.6V depending on system voltage)
- Float voltage adjustable (~13.8V / 27.6V / 55.2V)
- Self-consumption (load on): approx. 26mA (12V) / 20mA (24V) / 19mA (48V); with load off: approx. 10mA / 8mA / 7mA
- Operating temperature range: -30°C to +60°C, with full rated output up to about 40°C
- Protection rating: IP43 for electronic components; IP22 for connection area
- Typical dimensions: ~100mm height × 113mm width × 60mm depth
If you're seeking outstanding performance without unnecessary frills, the Victron Energy BlueSolar MPPT 100/20 up to 48V (SCC110020170R) delivers exactly that. It balances power, protection, and efficiency—perfect for medium off-grid systems or setups where reliability matters most.
